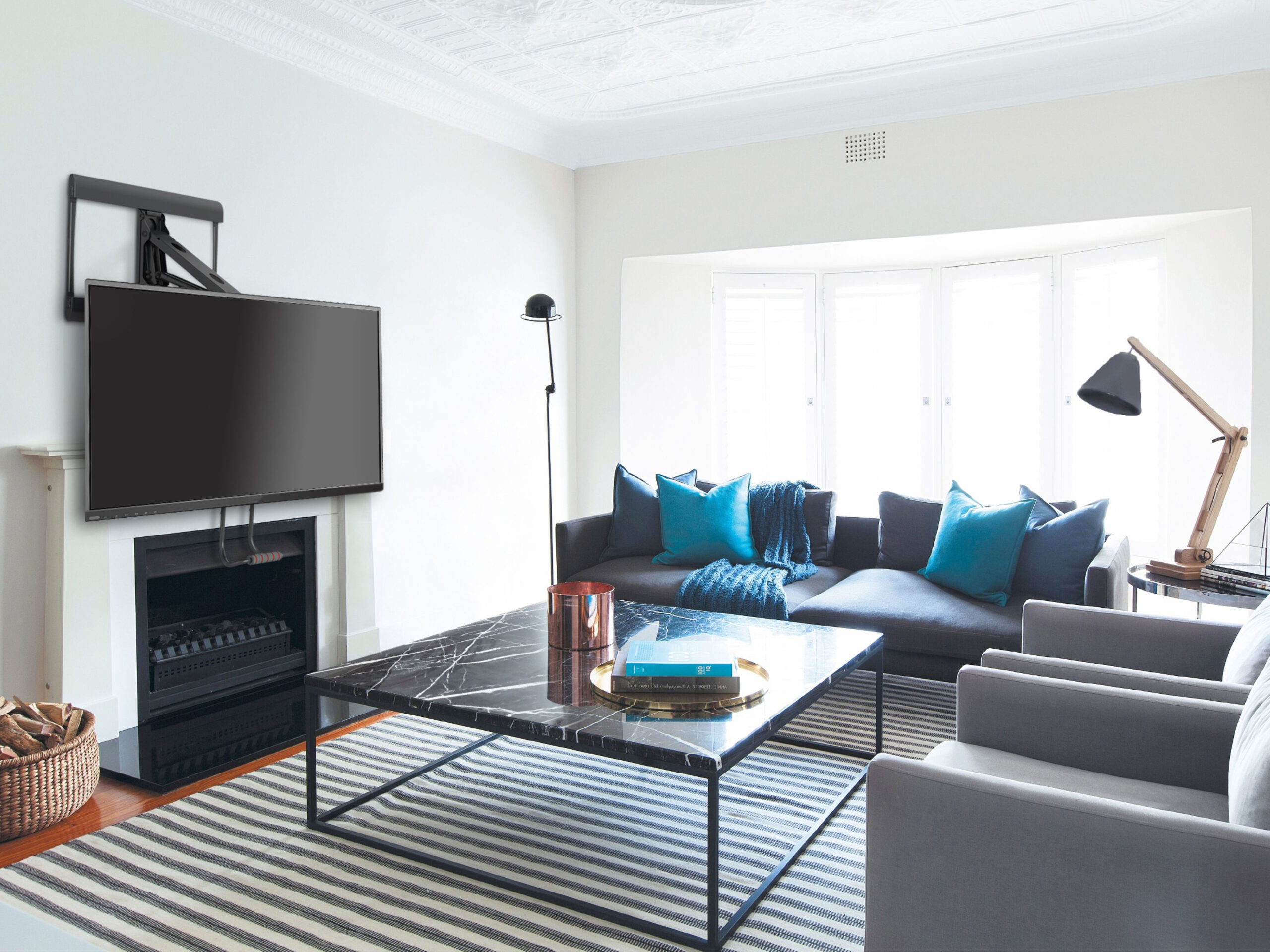

The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.

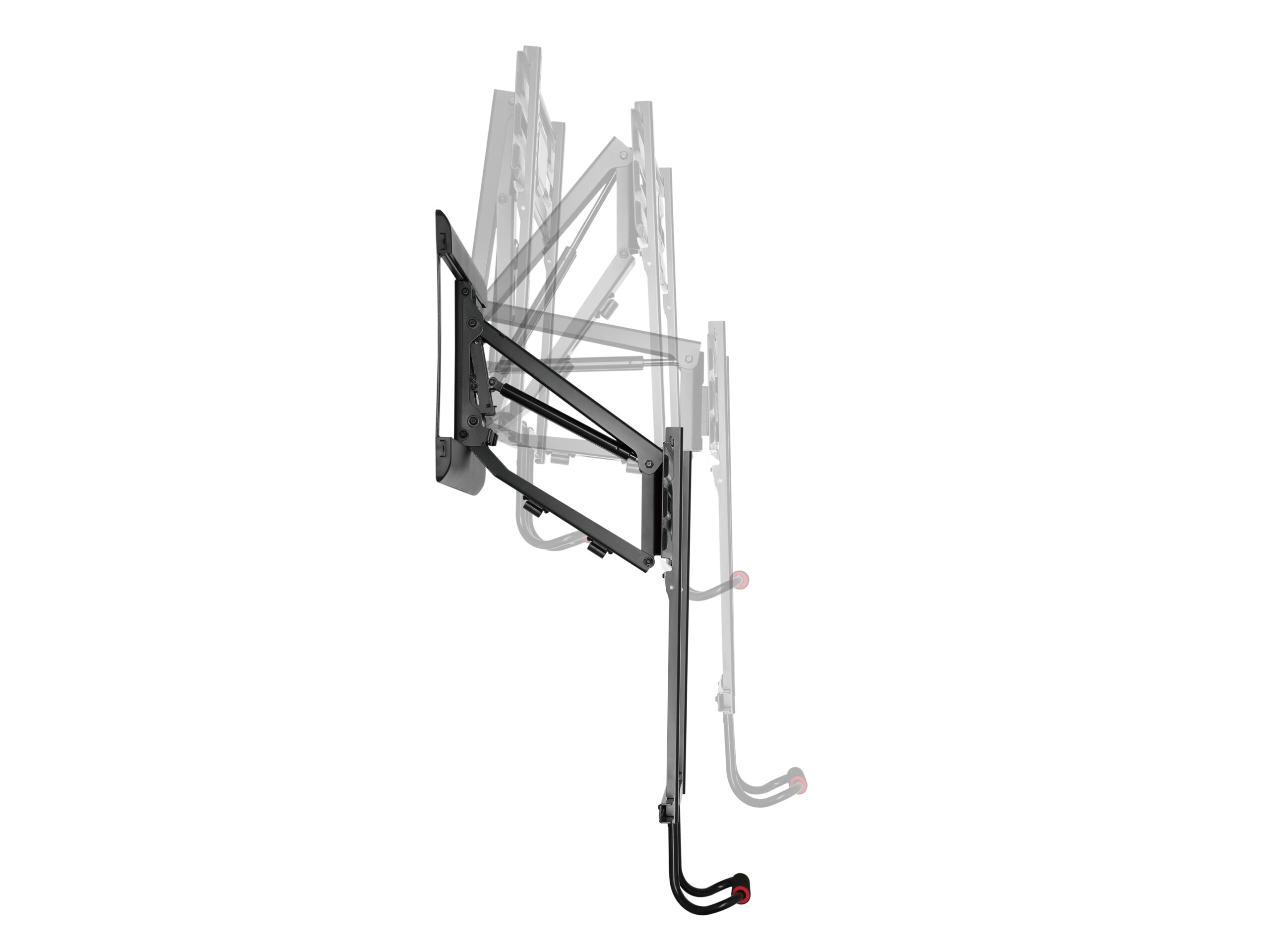

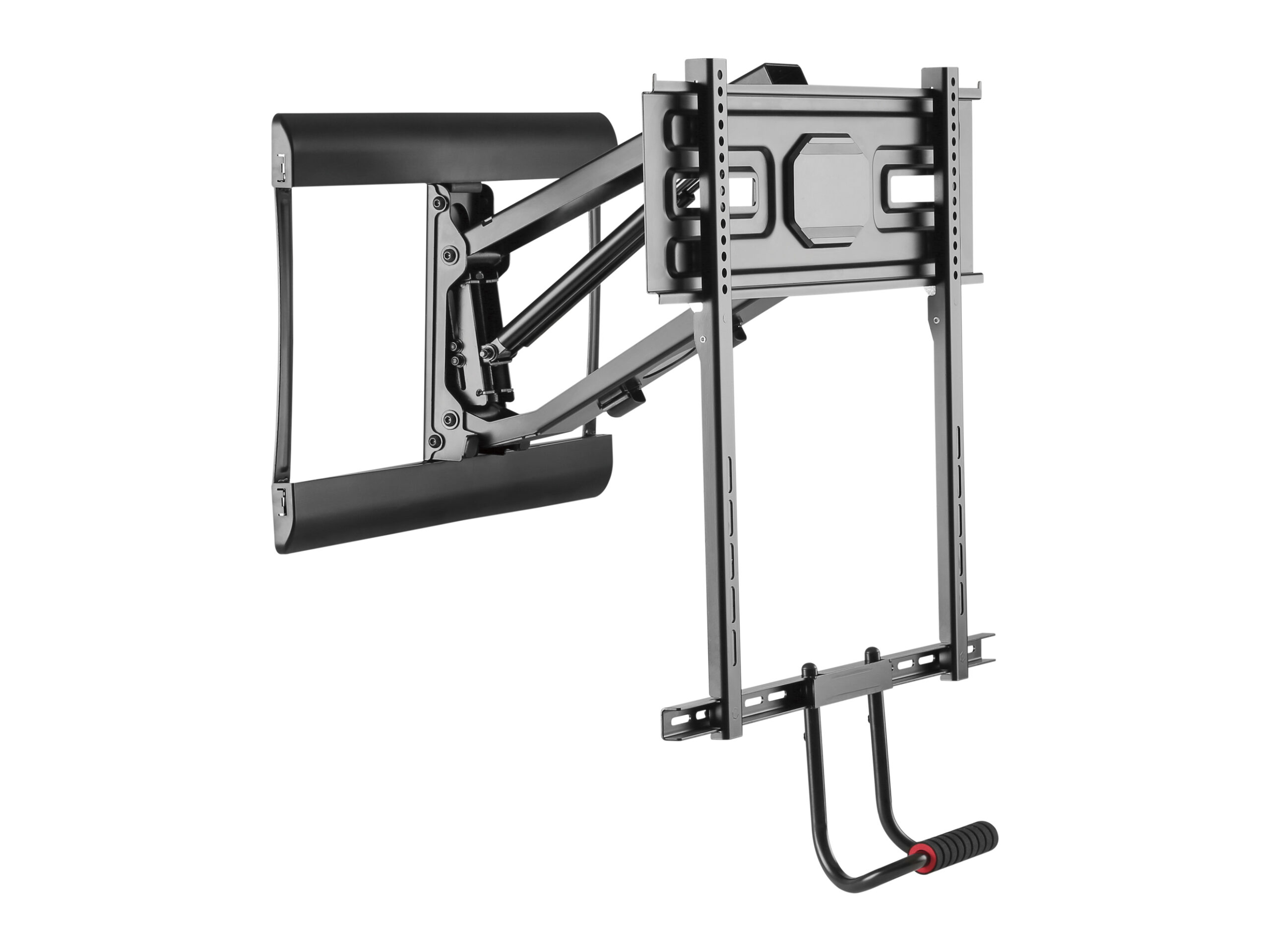

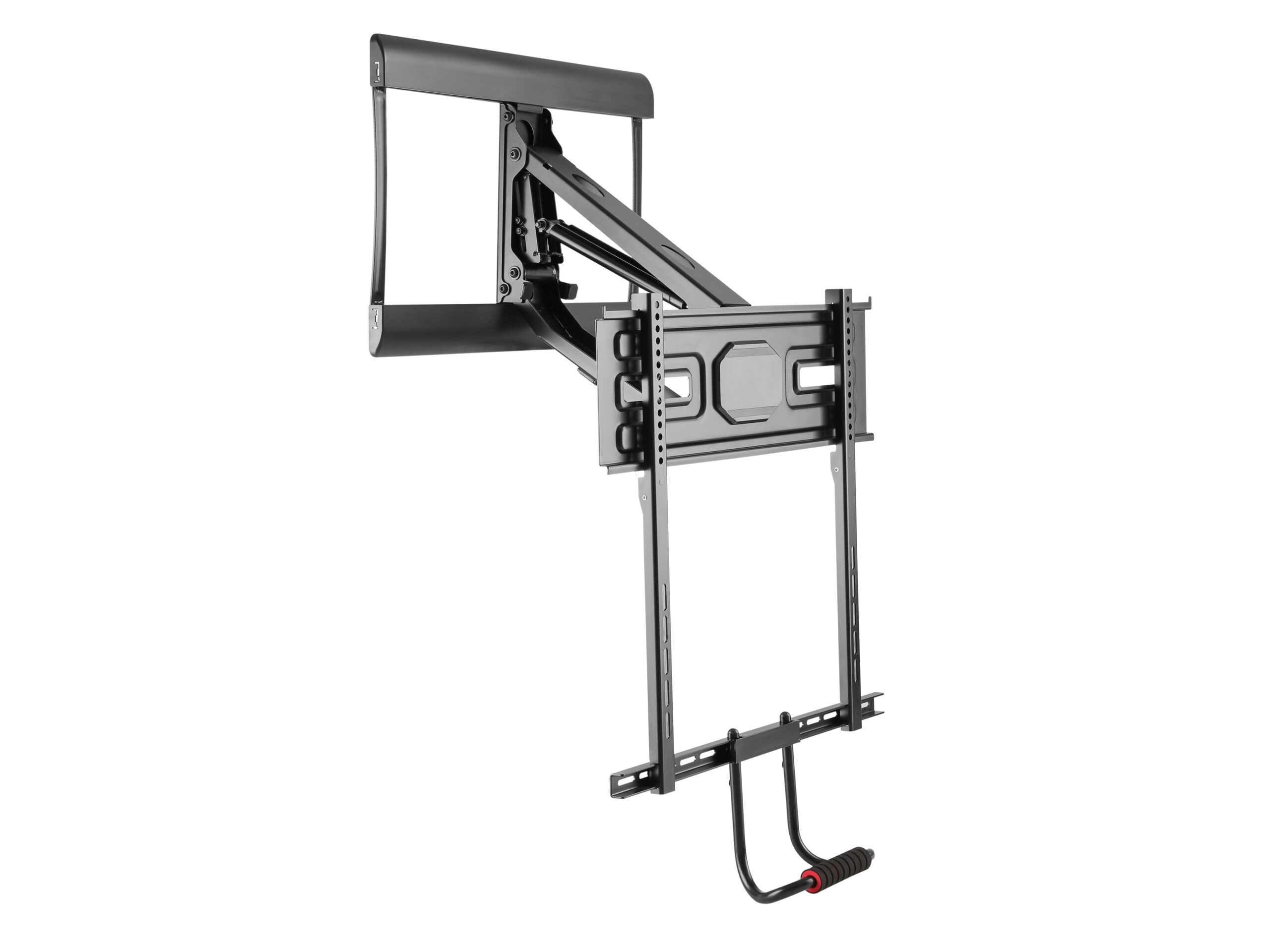

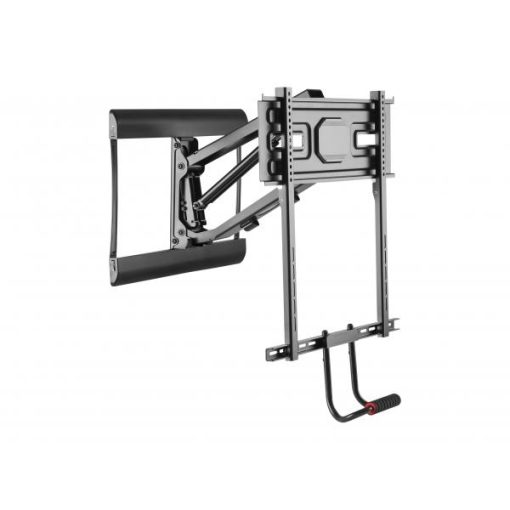

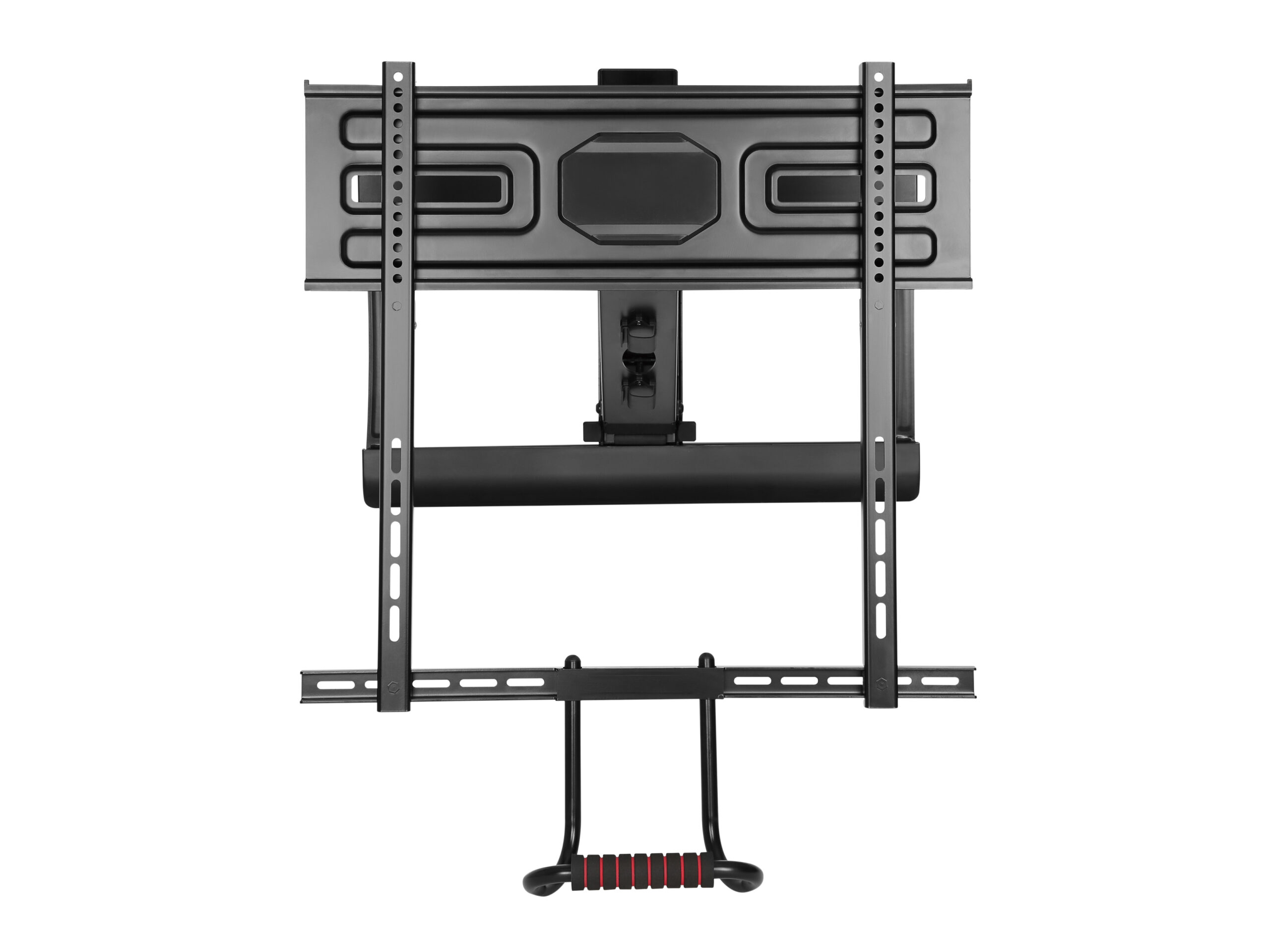

Equip 650326 43″-70″ Pull-Down TV Wall Mount Bracket, 200×200 mm, 600×400 mm, -5 – -12°, -30 – 30°
€223,99 incl. BTW
GTIN: 4015867222959
Categorie: Bevestigingssystemen
Sub categorie: Wandmontage
Beschikbaar via nabestelling
Additional information
| Merk | Equip |
|---|---|
| GTIN | 4015867222959 |
| Fabrikant code | 650326 |
| Fabrikant link | https://www.equip-info.net/TV/650326/p-1448.htm |
| Artikelnummer | 1059680 |
| Thuiskopieheffing |
Maximale gewichtscapaciteit | 35 kg |
|---|---|
Minimale schermgrootte | 109,2 cm (43") |
Aantal displays ondersteund | 1 |
Maximale schermgrootte | 177,8 cm (70") |

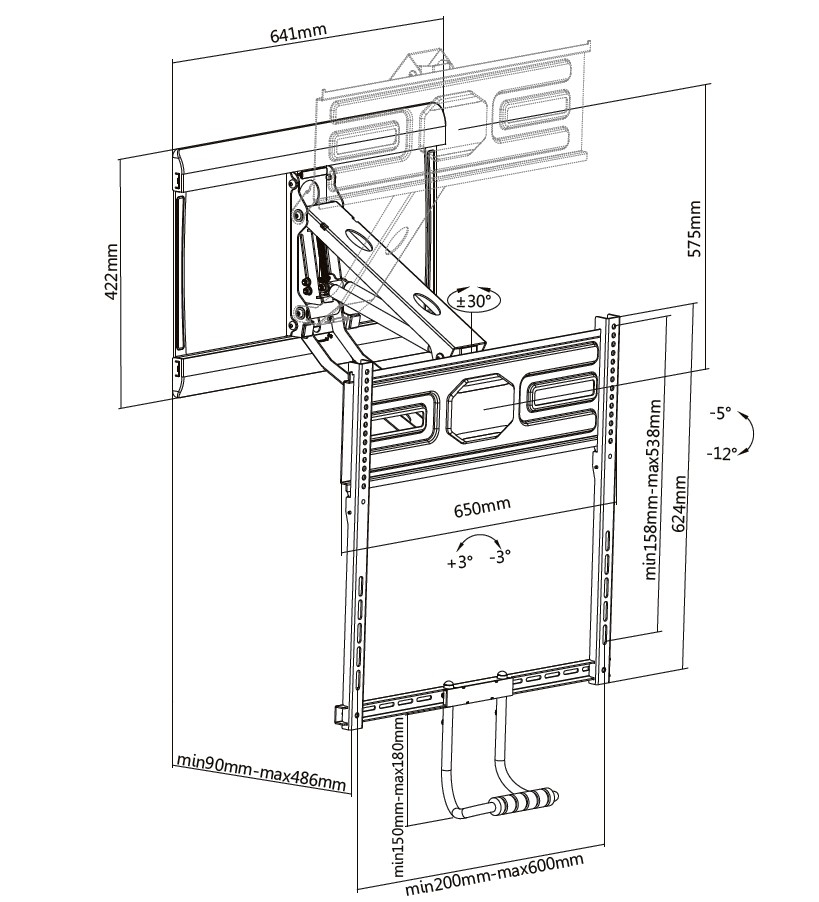

Montage interface compatibiliteit (min) | 200 x 200 mm |
Montage interface compatibiliteit (max) | 600 x 400 mm |
Paneelmontage-interface | 200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400 |
Montagewijze | Muur |
kantel aanpassingen | ✓ |
|---|---|
Bereik kantelhoek | -5 - -12° |

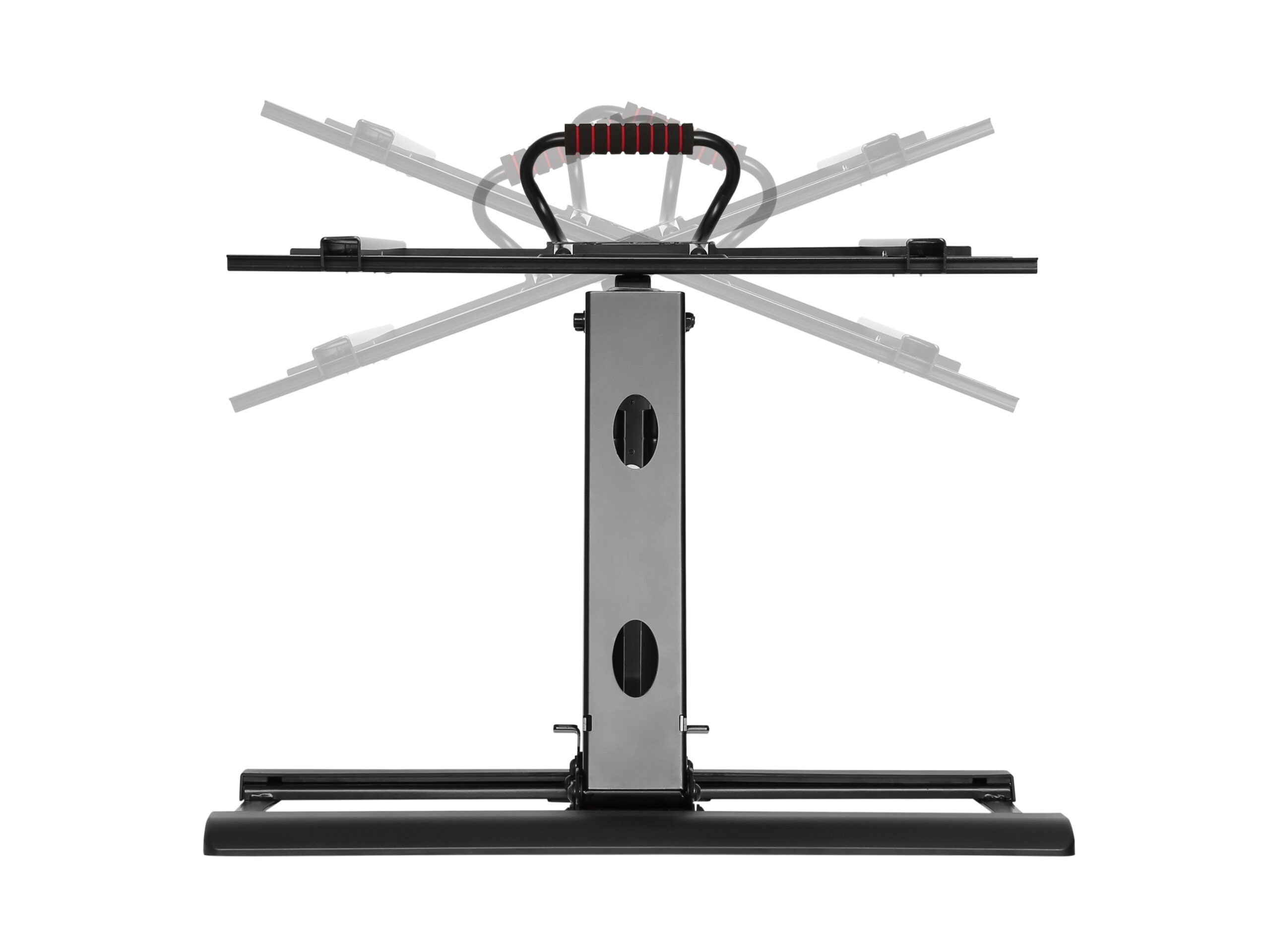

Horizontaal draaibaar | -30 - 30° |

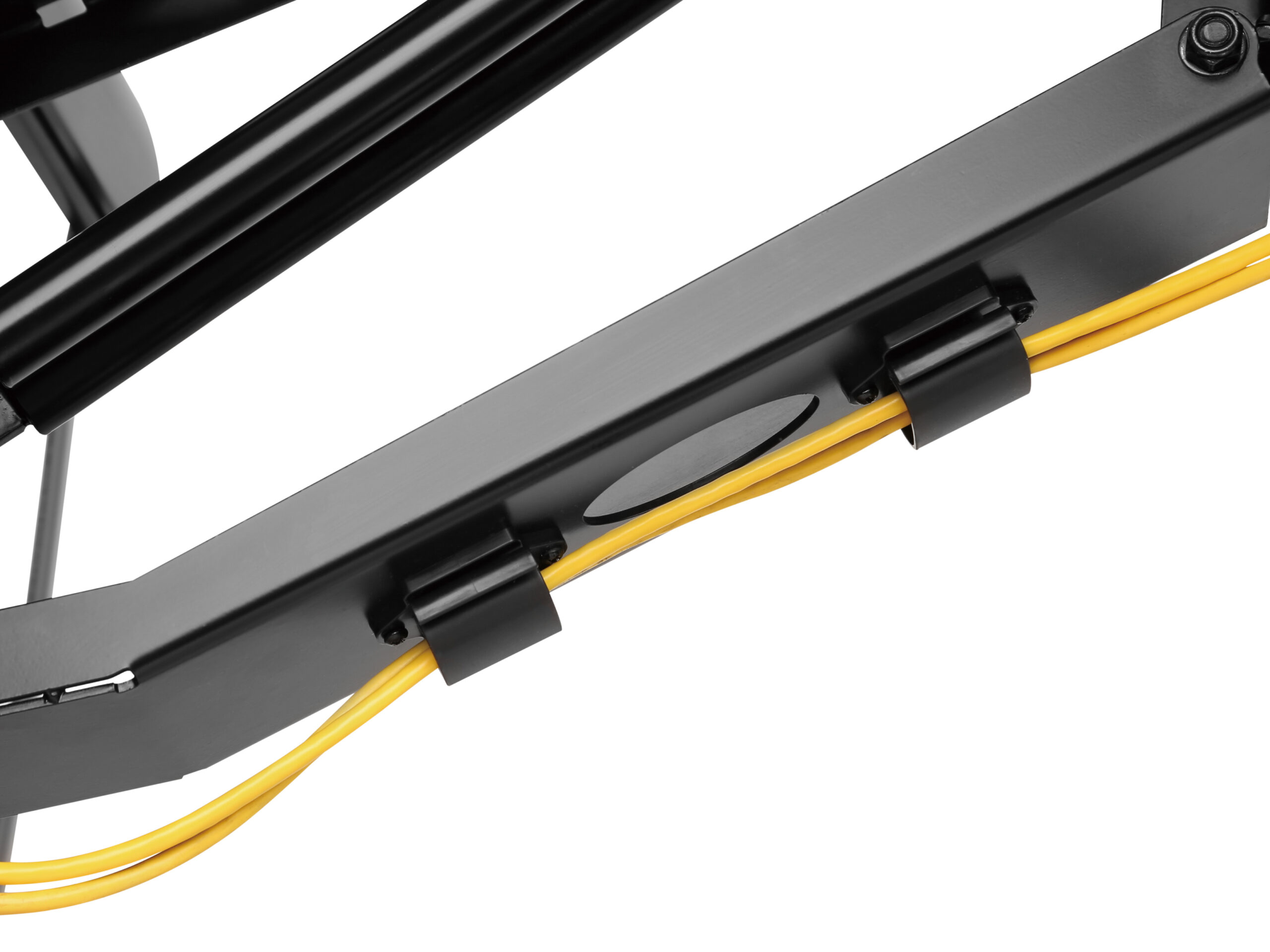

Verbeterd kabelbeheer | ✓ |
Afstand tot de muur (max.) | 48,6 cm |
Afstand tot de muur (min) | 9 cm |
Kleur van het product | Zwart |
|---|---|
Materiaal behuizing | Kunststof, Staal |
Anti-diefstal functie | ✕ |
Certificering | CE |
Land van herkomst | China |
|---|
Inclusief schroeven | ✓ |
|---|---|
Gebruikershandleiding | ✓ |
Breedte | 572 mm |
|---|---|
Diepte (max) | 65 cm |
Hoogte | 915 mm |
Gewicht | 14,2 kg |
Breedte verpakking | 510 mm |
|---|---|
Diepte verpakking | 155 mm |
Hoogte verpakking | 770 mm |
Gewicht verpakking | 16,3 kg |
Type verpakking | Doos |
(Buitenste) hoofdverpakking breedte | 510 mm |
|---|---|
(Buitenste) hoofdverpakking lengte | 155 mm |
(Buitenste) hoofdverpakking hoogte | 770 mm |
(Buitenste) hoofdverpakking brutogewicht | 16,3 kg |
Hoeveelheid per (buitenste) hoofdverpakking | 1 stuk(s) |
Code geharmoniseerd systeem (HS) | 85299097 |
