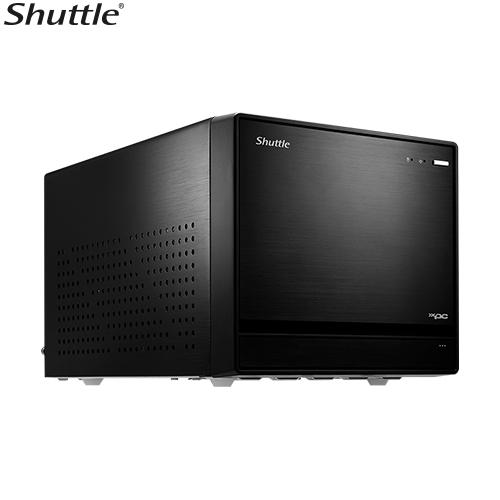

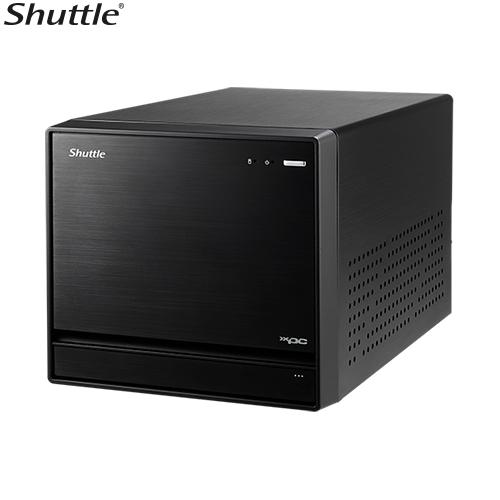

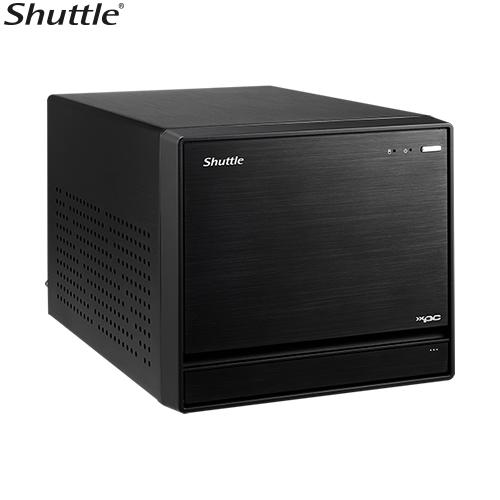

Compact Cube, Edge-Ready Server
Shuttle SB860R8 is a robust 13-liter Mini-PC that delivers workstation-class performance with the deployment flexibility of an edge server. Powered by Intel® Core™ Ultra 200 Series processors, it provides strong compute density for AI inference, on-site data analysis, video processing, and multitasking in commercial and industrial environments.
Designed for demanding edge workloads, the SB860R8 offers scalable storage with RAID support, along with options for GPU or AI accelerator installation and multi-display output. Its compact cube form fits easily into constrained spaces while delivering enterprise-level capability—making it an ideal platform for integrators and solution providers building next-generation AI and edge computing applications.
Intel® Core™ Ultra Processor (Series 2) | Arrow Lake-S
Powered by the latest Intel® Core™ Ultra 200 Series processors, SB860R8 integrates CPU, Intel® graphics, and NPU acceleration. This triple-engine design enables AI inference, multitasking, and visualization.
● AI Acceleration: Up to 36 TOPS (CPU + Xe + NPU)
● Hybrid Core Design: Up to 24 cores
● Memory Support: Up to 192 GB DDR5 5600
Optimized Internal Layout | Smart I/O

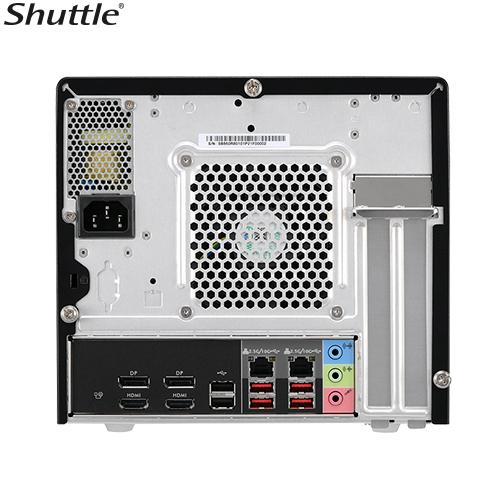

SB860R8 maximizes usability with clearly arranged front and rear I/O ports.
Future-Proof Expansion | PCIe & Connectivity
SB860R8 supports next-generation GPUs and accelerator cards with PCIe Gen5 x16 and Gen4 x4 slots. It also features an optional serial port for industrial peripherals and a dedicated WLAN perforation for wireless module integration.
*Card size limit: 280 mm (L) × 120 mm (H) × 40 mm (D)
Tool-Free Barebone Design | Easy Upgrade Flexibility
The SB860R8 barebone system features a tool-free chassis for quick upgrades. Users can easily expand with M.2 NVMe SSDs, DDR5 Memory, and SATA Storage.
Quad Display Output | Multitasking Made Easy
Equipped with 2× HDMI (2.1 + 2.0b) and 2× DisplayPort 1.4a, SB860R8 supports four independent displays.
Mini-Server Ready | Networking & Data Protection
Enterprise-class networking and storage in a compact cube, designed for edge servers and 24/7 deployments.
● Dual Intel® 2.5GbE LAN: High-speed, redundant networking
● RAID 0/1/5/10: Four SATA drives for performance & protection
● Wake on LAN: Remote management & power control

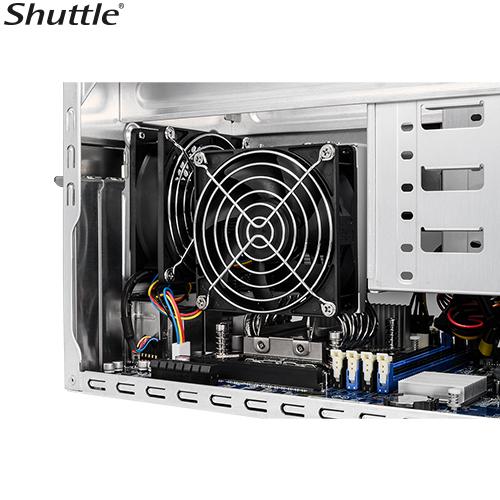

Triple Cooling | Improved Thermal Management
● Enhanced Thermal Module + Large Fan
Efficient CPU heat dissipation with constant airflow across the chassis
● Side Exhaust Fan
Actively removes trapped heat to prevent internal hotspots
● Front Fan (HDD Rack Cooling)
Dedicated airflow to stabilize storage drive temperature under heavy workloads
