The Shuttle XPC slim Barebone DL30N series is the successor to Shuttle’s DL20N series. These fanless Slim PC barebones with an energy-efficient Intel 12th-Gen ‘Alder Lake-N’ processor are suitable for building particularly slim PC systems with drives and operating system as well as client/server setups for pure network-based applications. Two Intel 2.5G LAN ports provide excellent network connectivity and the optional Shuttle accessory WWN03 allows for an LTE module to be installed for mobile internet access. The integrated graphics is based on Intel’s powerful Intel UHD Graphics that supports hardware acceleration for 4K videos. Combined with an SSD drive, these Slim-PCs works virtually noiseless.

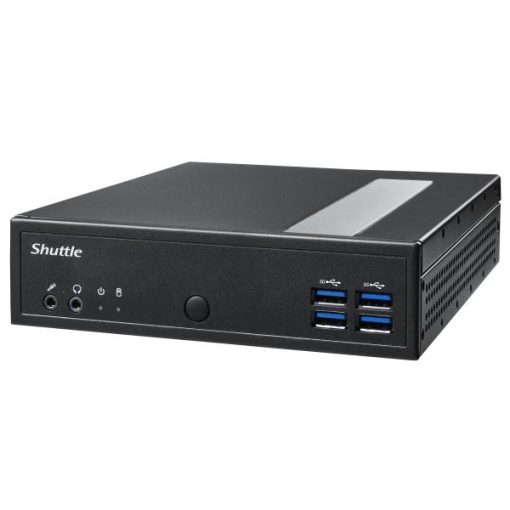

Shuttle PEB-DL30N101 DL30N Slim Barebone PC, 1.35L, IIntel N100 Fan, DDR5, 2x 2.5 GbE, 65W, 24/7
€241,99 incl. BTW
GTIN: 0887993006093
Categorie: Computers
Sub categorie: Barebone
4 op voorraad (kan nabesteld worden)
Additional information
| Merk | Shuttle |
|---|---|
| GTIN | 0887993006093 |
| Fabrikant code | PEB-DL30N101 |
| Fabrikant link | http://www.shuttle.eu |
| Artikelnummer | 1064642 |
| Thuiskopieheffing |
Processorfabrikant | Intel |
|---|---|
Processormodel | N100 |
Aantal processorkernen | 4 |
Processor aantal threads | 4 |
Maximale turbofrequentie van processor | 3,4 GHz |
Type processor | ✓ |
Processor cache | 6 MB |
Thermal Design Power (TDP) | 6 W |
ECC ondersteund door processor | ✕ |
Interne geheugen geïnstalleerd | ✕ |
|---|---|
Geheugen slots type | SO-DIMM |
Aantal geheugenslots | 1 |
Maximum intern geheugen | 16 GB |
Supported memory clock speeds | 4800 MHz |
Ondersteunde geheugen types | DDR5-SDRAM |
Geheugen kanaal | Eenkanaals |
Geheugen voltage | 1.1 V |
ECC | ✕ |
Non-ECC | ✓ |
Opslagdrives geïnstalleerd | ✕ |
|---|---|
Ondersteunde types opslag-drives | HDD & SSD |
Opslagschijf afmetingen ondersteund | 2.5,M.2 |
Opslag schijf-interface | PCI Express, SATA III |
NVMe | ✓ |
Aantal storage drives ondersteund | 2 |
Geïntegreerde geheugenkaartlezer | ✕ |
Ingebouwde grafische adapter | ✓ |
|---|---|
Grafische adapter-familie | Intel |
On-board graphics adapter model | Intel® UHD Graphics |
Discreet grafische adapter model | Niet beschikbaar |
Maximum resolutie | 4096 x 2160 Pixels |
Aantal displays ondersteund | 3 |
Ingebouwde luidsprekers | ✕ |
|---|
Ethernet LAN | ✓ |
|---|---|
Wifi | ✕ |
LAN controller | Intel I226-LM |
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 8 |
|---|---|
Aantal HDMI-poorten | 1 |
HDMI versie | 2.0b |
VGA (D-Sub)poort(en) | 1 |
Aantal DisplayPorts | 1 |
DisplayPort versie | 1.4a |
Microfoon, line-in ingang | ✓ |
Hoofdtelefoonuitgangen | 1 |
Aantal Ethernet LAN (RJ-45)-poorten | 2 |
Seriële poort(en) | 2 |
Aansluiting voor netstroomadapter | ✓ |
Type behuizing | 1,35L maat pc |
|---|---|
Kleur van het product | Zwart |
Type koeling | Passief |
Aan/uitschakelaar | ✓ |
LED-indicatoren | HDD, Stroom |
Materiaal behuizing | Staal |
Bevestigingsmogelijkheid voor kabelslot | ✓ |
Kabelslot sleuf type | Kensington |
VESA-montage | ✓ |
Paneelmontage-interface | 100 x 75 mm |
Type product | Mini PC barebone |
Aantal ondersteunde processoren | 1 |
|---|---|
BIOS type | UEFI AMI |
Trusted Platform Module (TPM) | ✓ |
Trusted Platform Module (TPM) version | 2.0 |
Audiochip | Realtek ALC888S |
Certificaten van naleving | BSMI, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI |
|---|
Code geharmoniseerd systeem (HS) | 84733080 |
|---|
Ondersteunt Windows | Windows 10, Windows 11 x64 |
|---|---|
Ondersteunt Linux | ✓ |
Inclusief besturingssysteem | ✕ |
Naleving van duurzaamheid | ✓ |
|---|---|
Duurzaamheidscertificaten | ENERGY STAR, ErP |
Soort voeding | Externe AC-adapter |
|---|---|
Netvoeding | 65 W |
Aantal voedingen | 1 |
AC-ingangsspanning | 100 - 240 V |
AC-ingangsfrequentie | 50/60 Hz |
AC-adapter, uitgangsspanning | 19 V |
AC-adapter, uitgangsstroom | 3,42 A |
Bedrijfstemperatuur (T-T) | 0 - 40 °C |
|---|---|
Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
Breedte | 165 mm |
|---|---|
Diepte | 190 mm |
Hoogte | 43 mm |
Gewicht | 800 g |
Gewicht verpakking | 2,1 kg |
Inclusief netsnoer | ✓ |
|---|---|
Inclusief AC-adapter | ✓ |
Snelstartgids | ✓ |
Meegeleverde drivers | ✓ |
