The Shuttle XPC slim Barebone DL30N series is the successor to Shuttle’s DL20N series. These fanless Slim PC barebones with an energy-efficient Intel 12th-Gen ‘Alder Lake-N’ processor are suitable for building particularly slim PC systems with drives and operating system as well as client/server setups for pure network-based applications. Two Intel 2.5G LAN ports provide excellent network connectivity and the optional Shuttle accessory WWN03 allows for an LTE module to be installed for mobile internet access. The integrated graphics is based on Intel’s powerful Intel UHD Graphics that supports hardware acceleration for 4K videos. Combined with an SSD drive, these Slim-PCs works virtually noiseless.

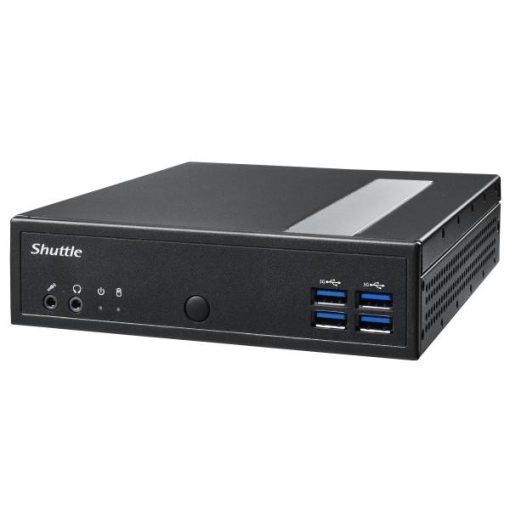

Shuttle PEC-DL30N101 DL3000XA XPC Slim System, Intel N100, 8GB RAM, 128GB SSD M.2, 2.5 GBe x2
€504,99 incl. BTW
GTIN: 4046047104154
Categorie: Computers
Sub categorie: Barebone
Beschikbaar via nabestelling
Additional information
| Merk | Shuttle |
|---|---|
| GTIN | 4046047104154 |
| Fabrikant code | PEC-DL30N101 |
| Fabrikant link | https://www.shuttle.eu |
| Artikelnummer | 1064793 |
| Thuiskopieheffing |
Processorfabrikant | Intel |
|---|---|
Processorfamilie | Intel® N |
Processormodel | N100 |
Aantal processorkernen | 4 |
Processor aantal threads | 4 |
Maximale turbofrequentie van processor | 3,4 GHz |
Processor cache | 6 MB |
Processor cache type | Smart Cache |
Intern geheugen | 8 GB |
|---|---|
Maximum intern geheugen | 16 GB |
Intern geheugentype | DDR5-SDRAM |
Geheugenlayout | 1 x 8 GB |
Geheugenslots | 1x SO-DIMM |
Kloksnelheid geheugen | 4800 MHz |
Geheugen kanaal | Eenkanaals |
Totale opslagcapaciteit | 128 GB |
|---|---|
Opslagmedia | SSD |
Soort optische drive | ✕ |
Aantal storage drives geïnstalleerd | 1 |
Totale capaciteit SSD's | 128 GB |
Aantal geïnstalleerde SSD's | 1 |
SSD capaciteit | 128 GB |
SSD-vormfactor | M.2 |
Ingebouwde grafische adapter | ✓ |
|---|---|
Discreet grafische adapter model | Niet beschikbaar |
Interne-GPU-fabrikant | Intel |
Familie ingebouwde grafische adapter | Intel® UHD Graphics |
On-board graphics adapter model | Intel® UHD Graphics |
Ethernet LAN | ✓ |
|---|---|
Ethernet LAN, data-overdrachtsnelheden | 100,1000,2500 Mbit/s |
LAN controller | Intel I226-LM |
Wifi | ✕ |
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 8 |
|---|---|
VGA (D-Sub)poort(en) | 1 |
Aantal HDMI-poorten | 1 |
HDMI versie | 2.0b |
Aantal DisplayPorts | 1 |
DisplayPort versie | 1.4a |
Aantal Ethernet LAN (RJ-45)-poorten | 2 |
Microfoon, line-in ingang | ✓ |
Hoofdtelefoonuitgangen | 1 |
Aansluiting voor netstroomadapter | ✓ |
Seriële poort(en) | 2 |
Type behuizing | Slim PC |
|---|---|
Volume | 1,35 l |
Bevestigingsmogelijkheid voor kabelslot | ✓ |
Kabelslot sleuf type | Kensington |
Kleur van het product | Zwart |
Materiaal behuizing | Staal |
Kijkglas | ✕ |
Markt positionering | Bedrijf |
|---|---|
Audiochip | RealTek ALC888S |
Wachtwoordbeveiliging | ✓ |
BIOS type | UEFI AMI |
Trusted Platform Module (TPM) | ✓ |
Type product | Mini PC |
Trusted Platform Module (TPM) version | 2.0 |
Inclusief besturingssysteem | ✕ |
|---|---|
Meegeleverde drivers | ✓ |
Netvoeding | 65 W |
|---|---|
Voeding, voltage ingang | 100 - 240 V |
Ingangsfrequentie voeding | 50/60 Hz |
Bedrijfstemperatuur (T-T) | 0 - 40 °C |
|---|---|
Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
Certificaten van naleving | BSMI, CE, Federal Communications Commission (FCC), Laagspanningsrichtlijn (LVD), RCM, RoHS, UKCA, VCCI |
|---|
Naleving van duurzaamheid | ✓ |
|---|---|
Duurzaamheidscertificaten | ENERGY STAR, ErP |
Breedte | 165 mm |
|---|---|
Diepte | 190 mm |
Hoogte | 43 mm |
Gewicht | 800 g |
Gewicht verpakking | 2,1 kg |
|---|
Meegeleverde kabels | AC |
|---|---|
Inclusief VESA-montage | ✓ |
Inclusief schroeven | ✓ |
Code geharmoniseerd systeem (HS) | 84714900 |
|---|
Inclusief monitor | ✕ |
|---|
Fanloos | ✓ |
|---|
