Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

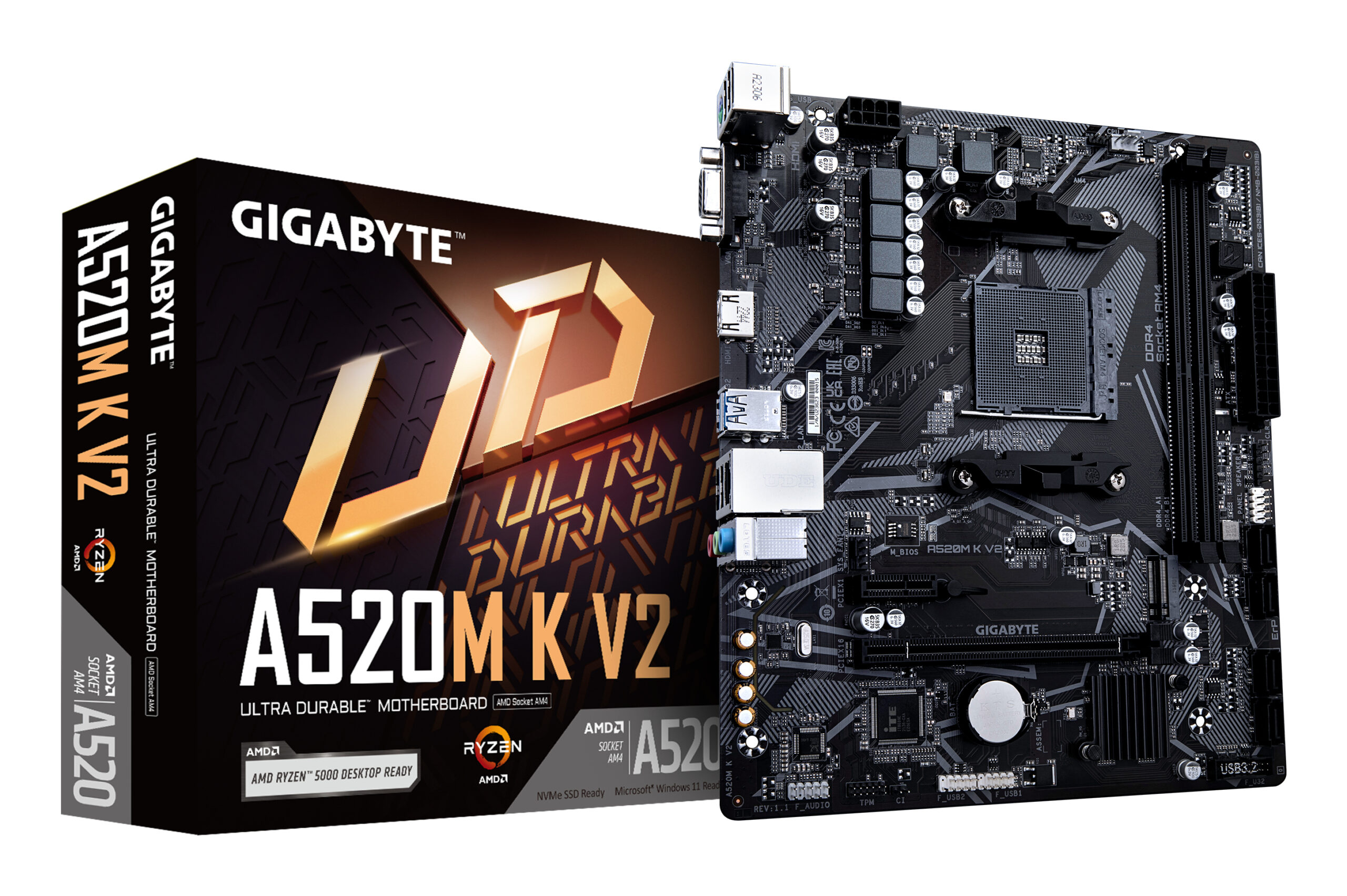

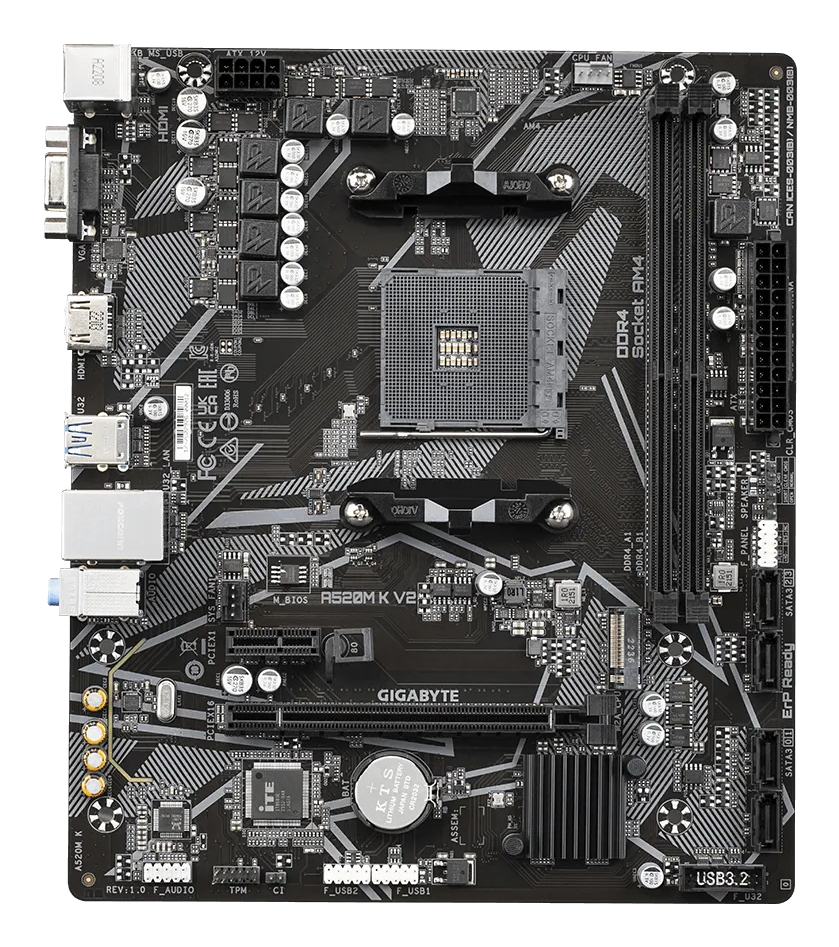

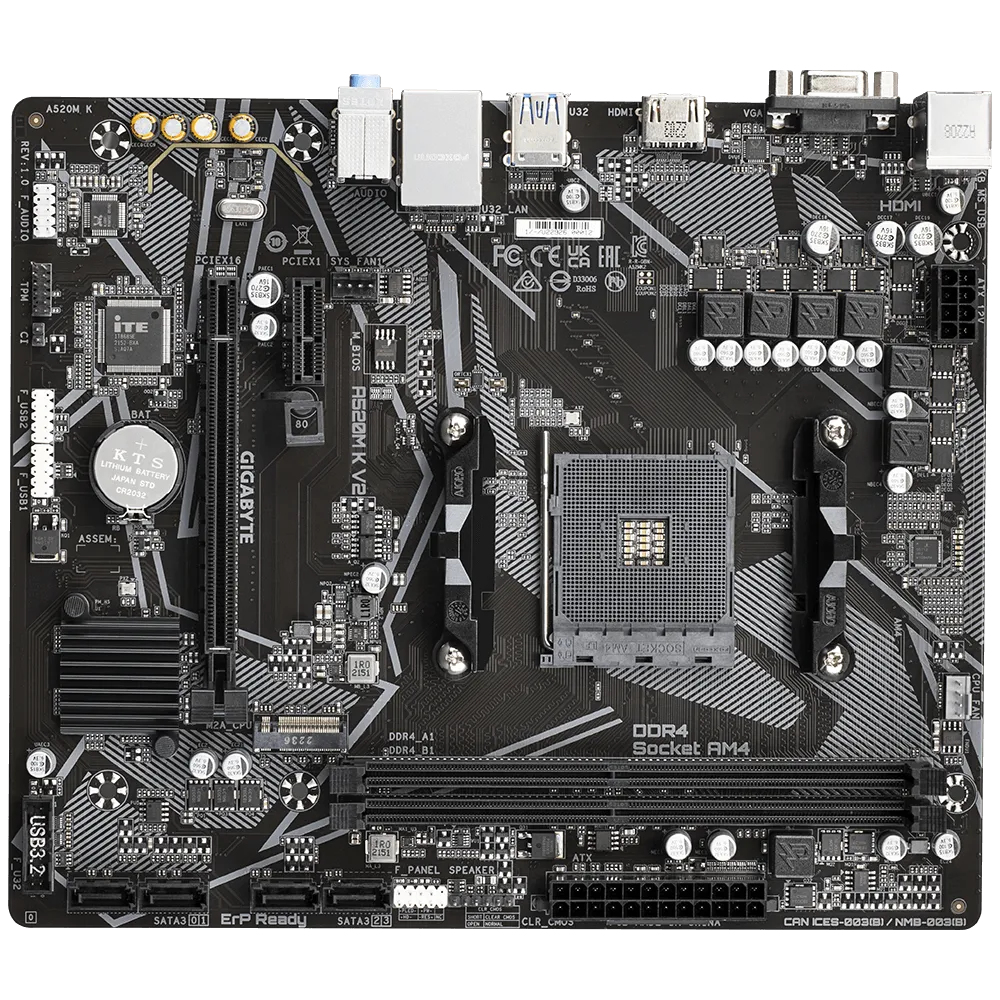

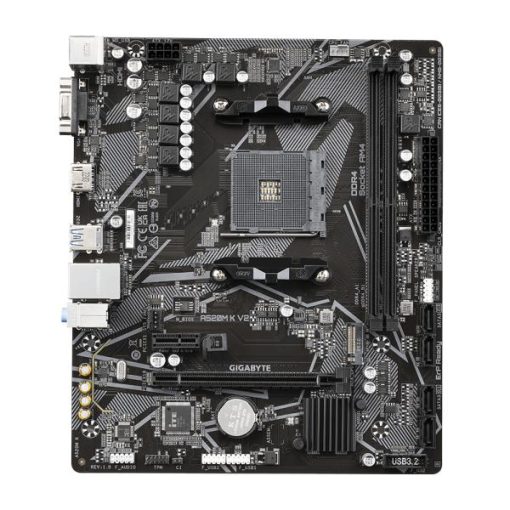

Gigabyte A520M K V2, mATX, AMD AM4, A520, DDR4, 5100 Mhz, USB 3.2 Gen 1, M.2, GbE LAN
€52,99 incl. BTW
GTIN: 4719331852771
Categorie: Moederborden
Sub categorie: AMD AM4
242 op voorraad (kan nabesteld worden)
Additional information
| Merk | Gigabyte |
|---|---|
| GTIN | 4719331852771 |
| Fabrikant code | A520M K V2 |
| Fabrikant link | https://www.gigabyte.com/Motherboard/A520M-K-V2-rev-10 |
| Artikelnummer | 1064110 |
| Thuiskopieheffing |
Processorfabrikant | AMD |
|---|---|
Processor socket | Socket AM4 |
Compatibele processors | AMD Ryzen 3000 Series, AMD Ryzen 5000 Series |
Supported processor sockets | Socket AM4 |
Ondersteunde geheugen types | DDR4-SDRAM |
|---|---|
Aantal geheugenslots | 2 |
Geheugen slots type | DIMM |
Geheugen kanaal | Dubbelkanaals |
ECC-compatibiliteit | ECC & Niet-ECC |
Supported memory clock speeds | 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz |
Ondersteunde geheugenkloksnelheid (max) | 5100 MHz |
Maximum intern geheugen | 64 GB |
Niet gebufferd geheugen | ✓ |
Ondersteunde types opslag-drives | HDD & SSD |
|---|---|
Ondersteunde opslagstationinterfaces | M.2, SATA III |
Aantal storage drives ondersteund | 5 |
RAID support | ✓ |
Soorten RAID | 0, 1, 10 |
Ondersteuning voor parallel processing | Niet ondersteund |
|---|---|
Maximum resolutie | 4096 x 2160 Pixels |
HDCP | ✓ |
USB 2.0 aansluitingen | 2 |
|---|---|
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 |
Aantal SATA III connectors | 4 |
Aansluiting voor audiopaneel aan voorzijde | ✓ |
Voorpaneel-connector | ✓ |
ATX Power connector (24-pin) | ✓ |
Aansluiting voor CPU koeler | ✓ |
Chassis intrusion aansluiting | ✓ |
EPS power connector (8-pin) | ✓ |
TPM connector | ✓ |
12V vermogen-connector | ✓ |

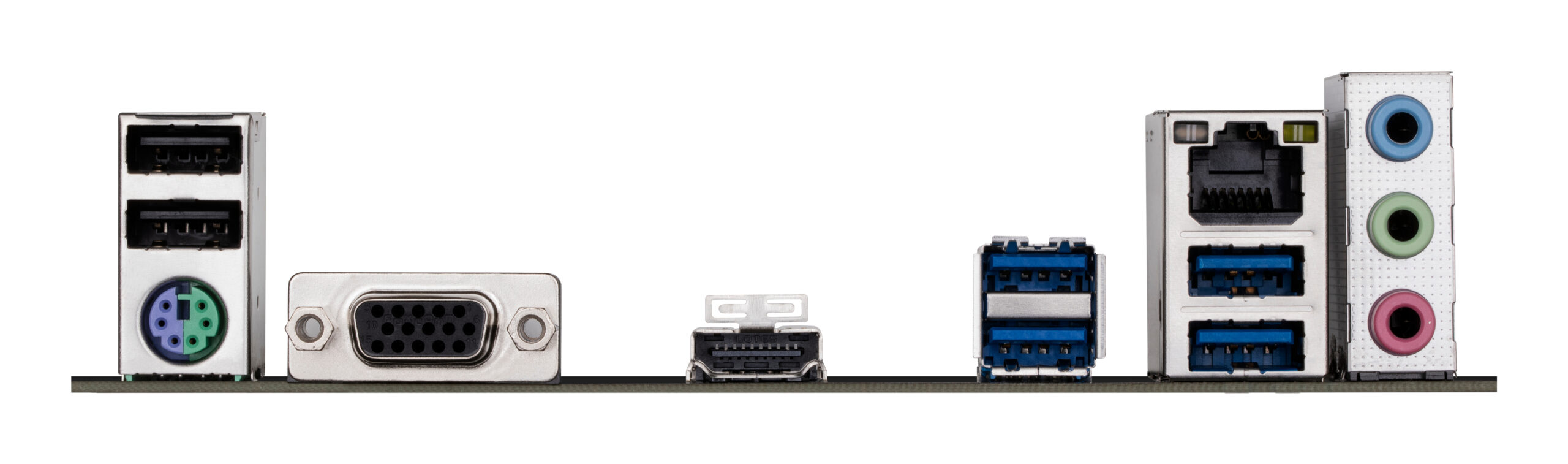

Aantal USB 2.0-poorten | 2 |
|---|---|
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 4 |
Aantal Ethernet LAN (RJ-45)-poorten | 1 |
PS/2 poort(en) | 1 |
VGA (D-Sub)poort(en) | 1 |
Aantal HDMI-poorten | 1 |
HDMI versie | 2.1 |
Hoofdtelefoonuitgangen | 3 |
Microfoon, line-in ingang | ✓ |
USB-connectortype | USB Type-A |
Ethernet LAN | ✓ |
|---|---|
Ethernet interface type | Gigabit Ethernet |
Wifi | ✕ |
Chipset moederbord | AMD A520 |
|---|---|
Audio-uitgangskanalen | 7.1 kanalen |
PC gezondheids monitor | Ventilator, Temperatuur, Spanning |
Component voor | PC |
Moederbord form factor | micro ATX |
Moederbord chipset familie | AMD |
Ondersteunt Windows | Windows 10 x64, Windows 11 x64 |
PCI Express x1 slots | 1 |
|---|---|
PCI Express x16 slots | 1 |
Aantal M.2 (M) slots | 1 |
BIOS type | UEFI AMI |
|---|---|
Grootte BIOS-geheugen | 128 Mbit |
ACPI version | 5.0 |
Clear CMOS jumper | ✓ |
Versie Desktop Management Interface (DMI) | 2.7 |
Systeem Management BIOS (SMBIOS) versie | 2.7 |
Land van herkomst | China |
|---|---|
Producten per (binnenste) verzendverpakking | 1 stuk(s) |
Gewicht batterij | 3 g |
|---|---|
Lithiumgewicht per batterij | 0,07 g |
Aantal batterijcellen | 1 |
Batterijtechnologie | Lithium-Manganese Dioxide (LiMnO2) |
Type batterij | CR2032 |
Breedte verpakking | 265 mm |
|---|---|
Diepte verpakking | 235 mm |
Hoogte verpakking | 52 mm |
Gewicht verpakking | 675 g |
Breedte | 233 mm |
|---|---|
Diepte | 198 mm |
Hoogte | 35 mm |
Meegeleverde kabels | SATA |
|---|---|
Batterijen inbegrepen | ✓ |
Meegeleverde software | Norton Internet Security |
Garantieperiode | 3 jaar |
|---|
