Features
AMD Socket AM4:Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
Digital 5+3 phases VRM solution
Dual Channel DDR4:4*DIMMs
WIFI EZ-Plug:Quick and easy design for Wi-Fi antenna installation
EZ-Latch:PCIe slots with Quick Release Design
Ultra-Fast Storage:2*M.2 slots, including PCIe 4.0 x1
Efficient Thermal:VRM Thermal Armor Advanced
Fast Networking:GbE LAN & Wi-Fi 5
Extended Connectivity:HDMI, Displayport
PCIe UD Slot:PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

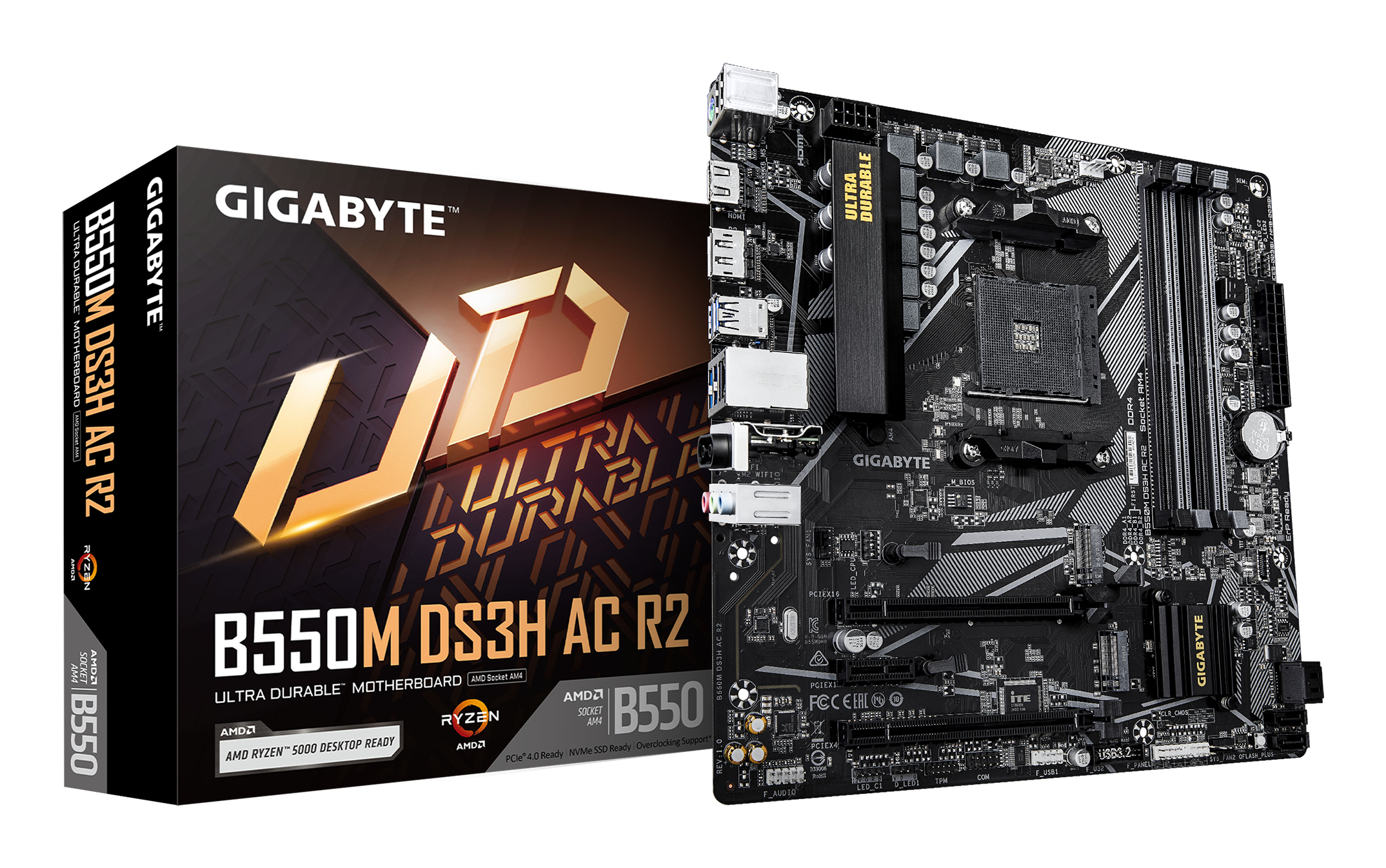

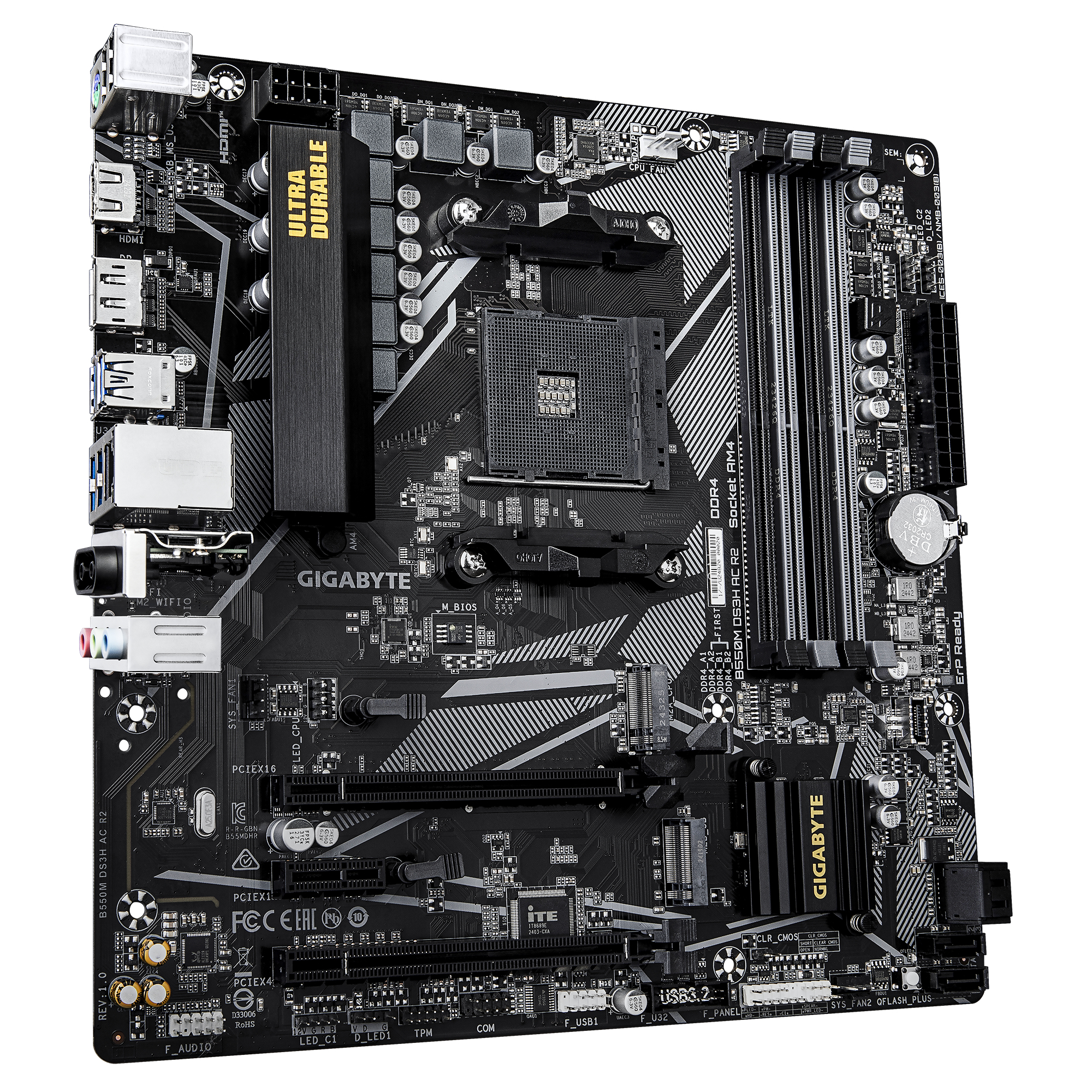

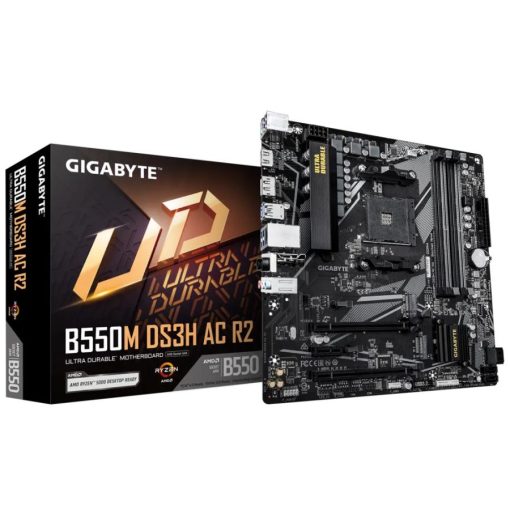

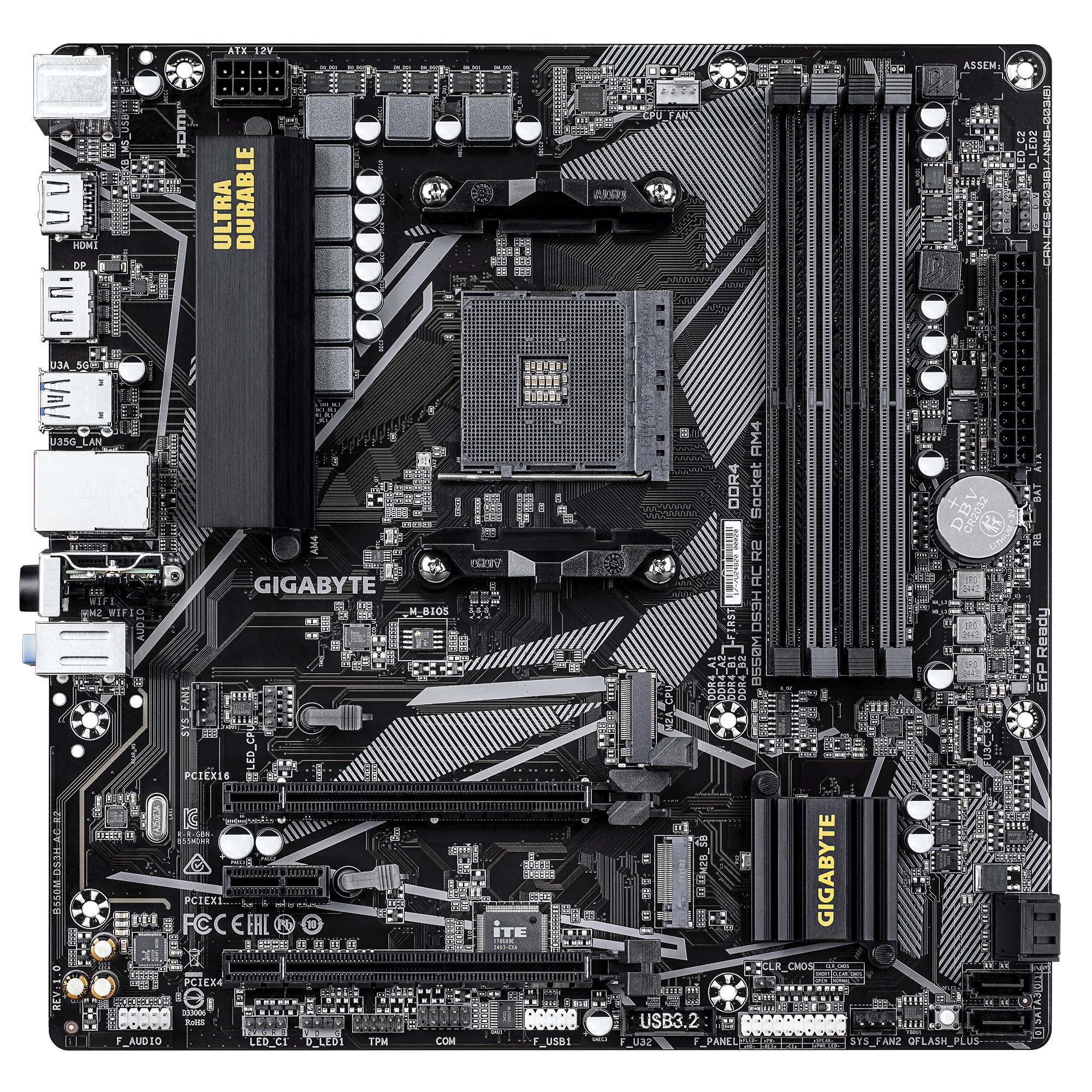

Gigabyte B550M DS3H AC R2
€99,99 incl. BTW
GTIN: 4719331869908
Categorie: Moederborden
Sub categorie: AMD AM4
Beschikbaar via nabestelling
Additional information
| Merk | Gigabyte |
|---|---|
| GTIN | 4719331869908 |
| Fabrikant code | B550M DS3H AC R2 |
| Fabrikant link | https://www.gigabyte.com/nl/Motherboard |
| Artikelnummer | 1065907 |
| Thuiskopieheffing |
Processorfabrikant | AMD |
|---|---|
Processor socket | Socket AM4 |
Compatibele processors | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
Supported processor sockets | Socket AM4 |
Ondersteunde geheugen types | DDR4-SDRAM |
|---|---|
Aantal geheugenslots | 4 |
Geheugen slots type | DIMM |
Geheugen kanaal | Dubbelkanaals |
ECC-compatibiliteit | ECC & Niet-ECC |
Supported memory clock speeds | 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz |
Ondersteunde geheugenkloksnelheid (max) | 4733 MHz |
Maximum intern geheugen | 128 GB |
Niet gebufferd geheugen | ✓ |
Maximaal intern geheugen per slot | 32 GB |
Ondersteunde types opslag-drives | HDD & SSD |
|---|---|
Ondersteunde opslagstationinterfaces | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
Maximum aantal HDD's per behuizing | 4 |
Aantal storage drives ondersteund | 6 |
RAID support | ✓ |
Soorten RAID | 0, 1, 10 |
Ondersteuning voor parallel processing | Niet ondersteund |
|---|---|
Ingebouwde grafische adapter | ✕ |
Maximum resolutie | 5120 x 2880 Pixels |
HDCP | ✓ |
DirectX versie | 12.0 |
USB 2.0 aansluitingen | 1 |
|---|---|
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 2 |
Aantal SATA III connectors | 4 |
Aansluiting voor audiopaneel aan voorzijde | ✓ |
Voorpaneel-connector | ✓ |
ATX Power connector (24-pin) | ✓ |
Aansluiting voor CPU koeler | ✓ |
Aantal CPU-ventilatoraansluitingen | 1 |
Aansluitingen voor behuizingsventilatoren | 2 |
EPS power connector (8-pin) | ✓ |
Aantal EPS-voedingsaansluitingen (8-pins) | 1 |
TPM connector | ✓ |
Serial port headers | 1 |
RGB LED-aansluitrail | ✓ |
Aantal RGB LED-pinheaders | 5 |

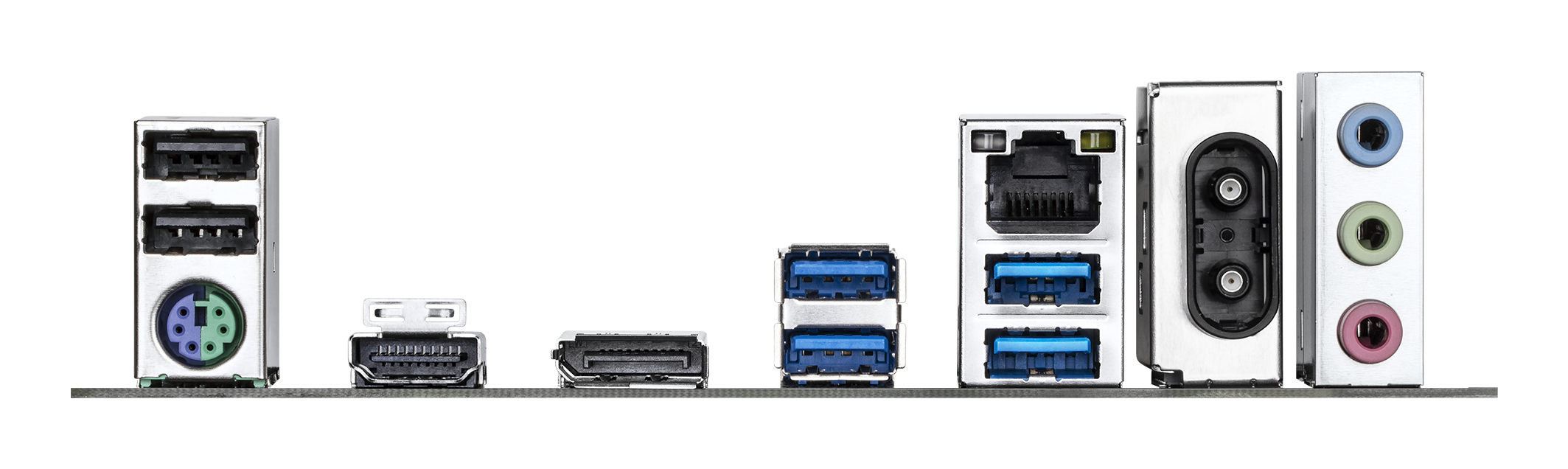

Aantal USB 2.0-poorten | 2 |
|---|---|
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 4 |
Aantal Ethernet LAN (RJ-45)-poorten | 1 |
PS/2 poort(en) | 1 |
Aantal HDMI-poorten | 1 |
HDMI versie | 2.1 |
Aantal DisplayPorts | 1 |
DisplayPort versie | 1.4 |
Hoofdtelefoonuitgangen | 1 |
Lijningang | ✓ |
Microfoon, line-in ingang | ✓ |
WiFi-AP antenna jack | 2 |
Ethernet LAN | ✓ |
|---|---|
Ethernet interface type | Gigabit Ethernet |
LAN controller | Realtek RTL8111H |
Wifi | ✓ |
Wifi-standaard | Wi-Fi 5 (802.11ac) |
Wi-Fi-standaarden | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
WLAN-controller-model | Realtek RTL8821CE |
Bluetooth | ✓ |
Bluetooth-versie | 5.0 |
Chipset moederbord | AMD B550 |
|---|---|
Audiochip | Realtek ALC1220-VB |
Audio-uitgangskanalen | 7.1 kanalen |
Kleur van het product | Donkerbruin |
PC gezondheids monitor | Ventilator, Temperatuur, Spanning |
Component voor | PC |
Moederbord form factor | micro ATX |
Moederbord chipset familie | AMD |
Type koeling | Passief |
Type stroombron | ATX |
Ondersteunt Windows | Windows 10 x64, Windows 11 x64 |
PCI Express x1 (Gen 3.x) slots | 1 |
|---|---|
PCI Express x16 (Gen 3.x) slots | 1 |
PCI Express x16 (Gen 4.x) sleuven | 1 |
Aantal M.2 (M) slots | 2 |
1e M.2 grootste sleutelgrootte | 2280 |
1e M.2 hoogste PCI Express-generatie | 4.0 |
2e M.2 grootste sleutelgrootte | 2280 |
2e M.2 hoogste PCI Express-generatie | 3.0 |
BIOS type | UEFI AMI |
|---|---|
Grootte BIOS-geheugen | 128 Mbit |
ACPI version | 5.0 |
Clear CMOS jumper | ✓ |
Versie Desktop Management Interface (DMI) | 2.7 |
Systeem Management BIOS (SMBIOS) versie | 2.7 |
Producten per (binnenste) verzendverpakking | 1 stuk(s) |
|---|
Gewicht batterij | 3 g |
|---|---|
Lithiumgewicht per batterij | 0,07 g |
Aantal batterijcellen | 1 |
Batterijtechnologie | Lithium-Manganese Dioxide (LiMnO2) |
Type batterij | CR2032 |
Breedte verpakking | 270 mm |
|---|---|
Diepte verpakking | 268 mm |
Hoogte verpakking | 68 mm |
Gewicht verpakking | 1,07 kg |
Breedte | 244 mm |
|---|---|
Diepte | 244 mm |
Hoogte | 35 mm |
Batterijen inbegrepen | ✓ |
|---|---|
Antenne inbegrepen | ✓ |
Inclusief schroeven | ✓ |
Meegeleverde software | Norton® Internet Security (OEM version) LAN bandwidth management software |
Gewicht | 980 g |
|---|
Garantieperiode | 3 jaar |
|---|
