Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

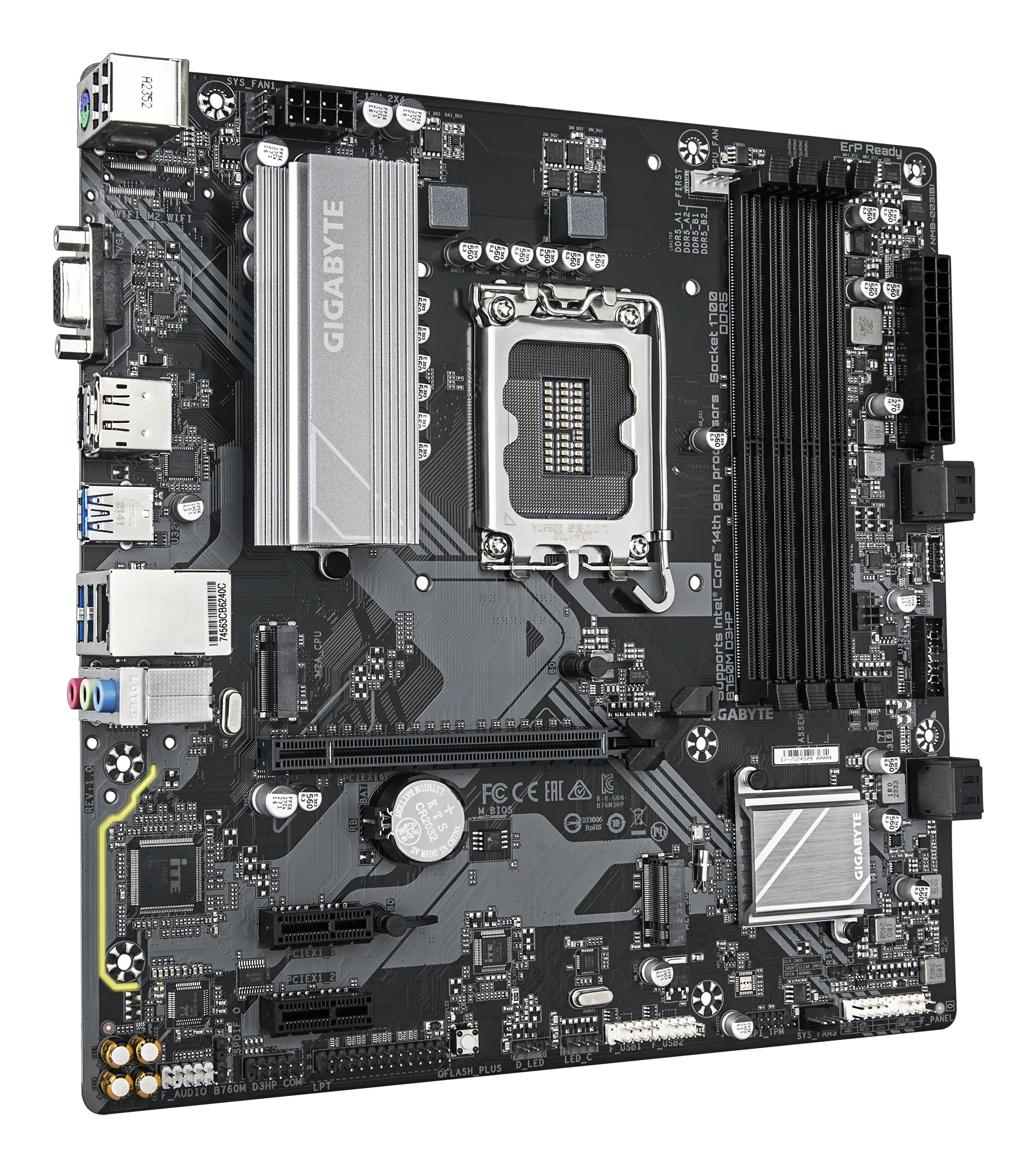

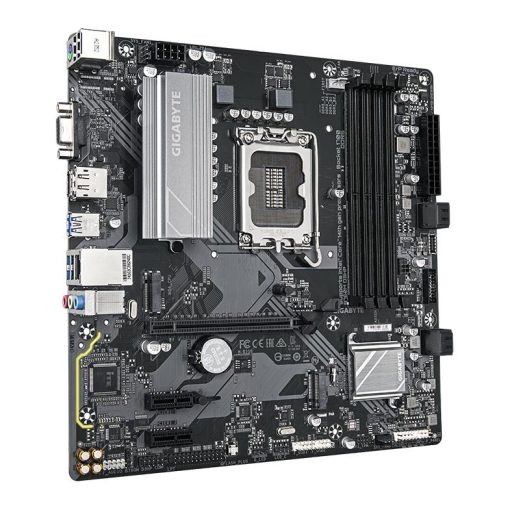

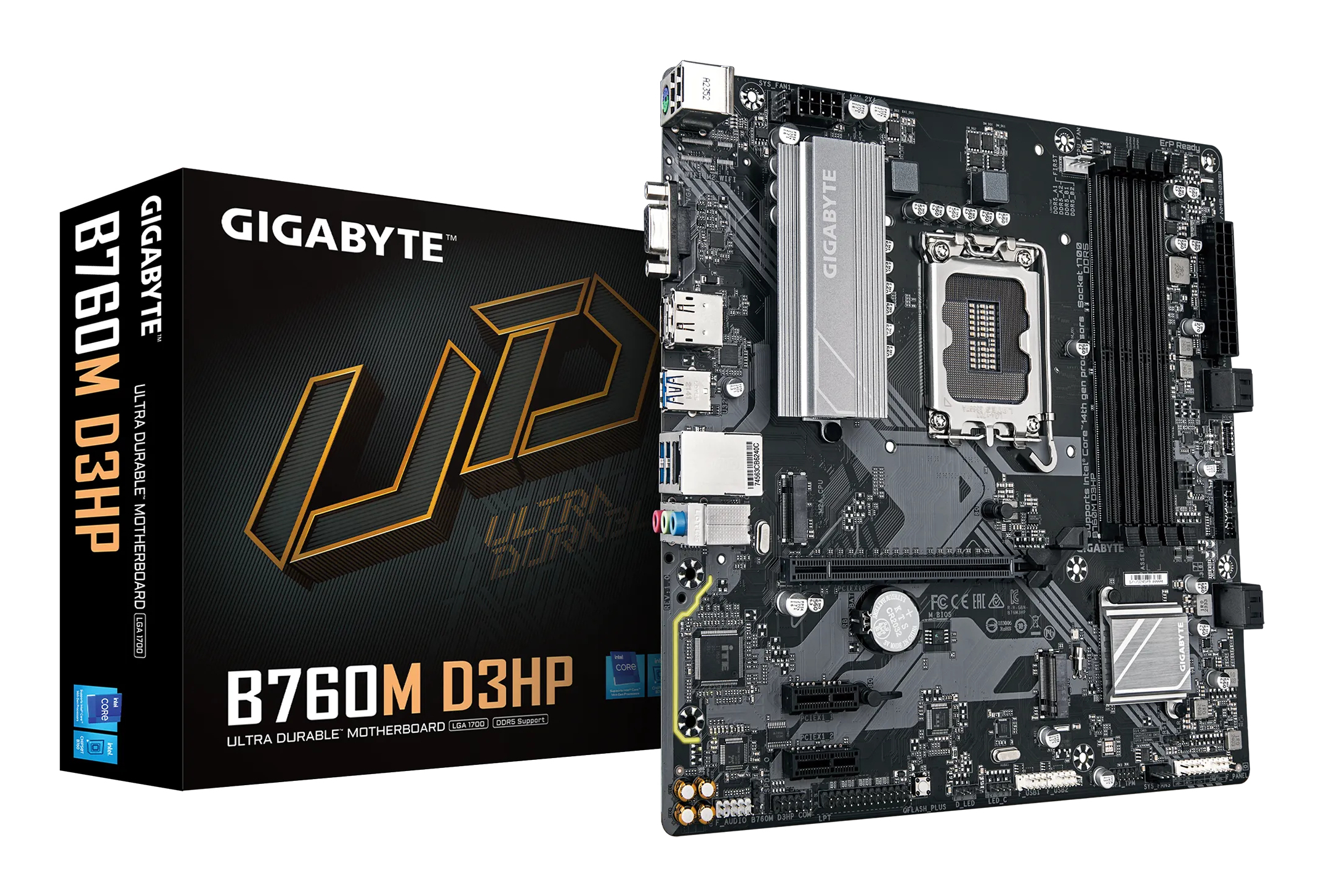

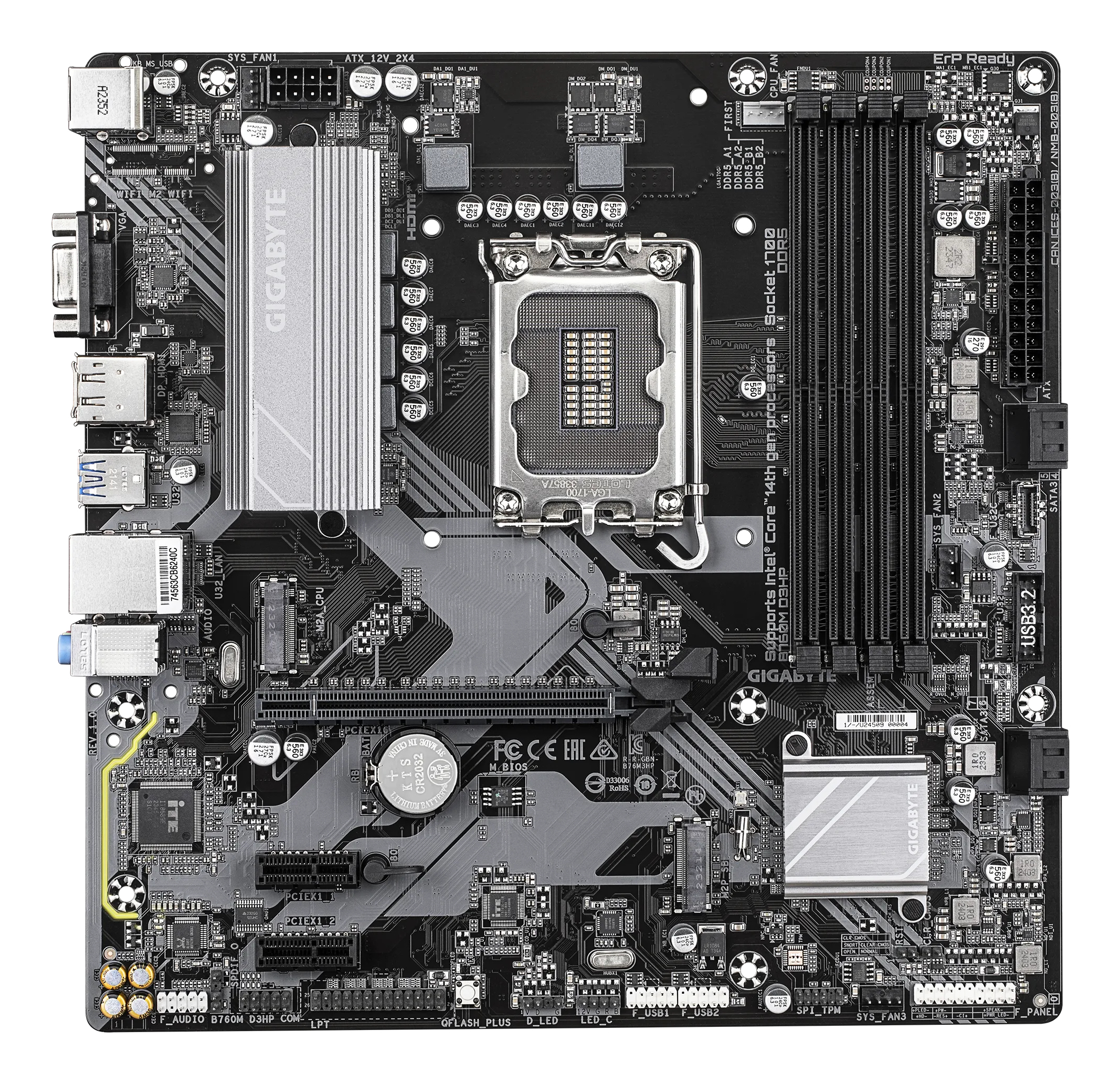

Gigabyte B760M D3HP
€105,99 incl. BTW
GTIN: 4719331864347
Categorie: Moederborden
Sub categorie: Intel S1700
Beschikbaar via nabestelling
Additional information
| Merk | Gigabyte |
|---|---|
| GTIN | 4719331864347 |
| Fabrikant code | B760M D3HP |
| Fabrikant link | https://www.gigabyte.com/nl/Motherboard |
| Artikelnummer | 1065888 |
| Thuiskopieheffing |
Processorfabrikant | Intel |
|---|---|
Processor socket | LGA 1700 |
Compatibele processors | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold |
Supported processor sockets | LGA 1700 |
Ondersteunde geheugen types | DDR5-SDRAM |
|---|---|
Aantal geheugenslots | 4 |
Geheugen slots type | DIMM |
Geheugen kanaal | Dubbelkanaals |
ECC-compatibiliteit | ECC & Niet-ECC |
Supported memory clock speeds | 4400,4800,5200,5600 MHz |
Ondersteunde geheugenkloksnelheid (max) | 5600 MHz |
Maximum intern geheugen | 256 GB |
Niet gebufferd geheugen | ✓ |
Maximaal intern geheugen per slot | 64 GB |
Ondersteunde types opslag-drives | HDD & SSD |
|---|---|
Ondersteunde opslagstationinterfaces | M.2, SATA III |
Maximum aantal HDD's per behuizing | 4 |
Aantal storage drives ondersteund | 6 |
RAID support | ✓ |
Soorten RAID | 0, 1, 5, 10 |
Ondersteuning voor parallel processing | Niet ondersteund |
|---|---|
Maximum resolutie | 4096 x 2304 Pixels |
HDCP | ✓ |
DirectX versie | 12.0 |

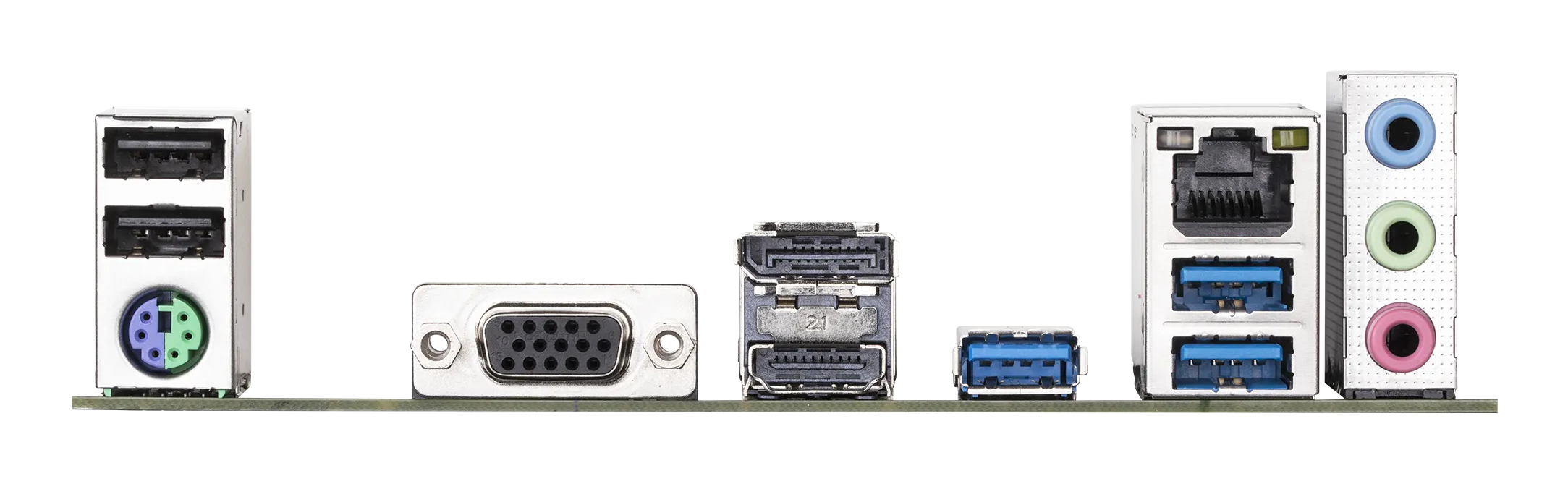

USB 2.0 aansluitingen | 2 |
|---|---|
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 2 |
Aantal SATA III connectors | 4 |
S/PDIF uitgang | ✓ |
Aansluiting voor audiopaneel aan voorzijde | ✓ |
Voorpaneel-connector | ✓ |
ATX Power connector (24-pin) | ✓ |
Aansluiting voor CPU koeler | ✓ |
Aantal CPU-ventilatoraansluitingen | 1 |
Aansluitingen voor behuizingsventilatoren | 3 |
EPS power connector (8-pin) | ✓ |
Aantal EPS-voedingsaansluitingen (8-pins) | 1 |
TPM connector | ✓ |
Parallele connector | ✓ |
Serial port headers | 1 |
12V vermogen-connector | ✓ |
RGB LED-aansluitrail | ✓ |
Aantal RGB LED-pinheaders | 2 |
Aantal USB 2.0-poorten | 2 |
|---|---|
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 3 |
Aantal Ethernet LAN (RJ-45)-poorten | 1 |
PS/2 poort(en) | 1 |
VGA (D-Sub)poort(en) | 1 |
Aantal HDMI-poorten | 1 |
HDMI versie | 2.1 |
Aantal DisplayPorts | 1 |
DisplayPort versie | 1.2 |
Hoofdtelefoonuitgangen | 1 |
Lijningang | ✓ |
Microfoon, line-in ingang | ✓ |
Ethernet LAN | ✓ |
|---|---|
Ethernet interface type | Gigabit Ethernet |
LAN controller | Realtek RTL8111H |
Wifi | ✕ |
Chipset moederbord | Intel B760 Express |
|---|---|
Audio-uitgangskanalen | 7.1 kanalen |
Kleur van het product | Bruin |
PC gezondheids monitor | Ventilator, Temperatuur, Spanning, Water cooling |
Component voor | PC |
Moederbord form factor | micro ATX |
Moederbord chipset familie | Intel |
Type stroombron | ATX |
Ondersteunt Windows | Windows 10, Windows 11 |
PCI Express x1 (Gen 3.x) slots | 2 |
|---|---|
PCI Express x16 (Gen 4.x) sleuven | 1 |
Aantal M.2 (M) slots | 2 |
1e M.2 grootste sleutelgrootte | 2280 |
1e M.2 hoogste PCI Express-generatie | 4.0 |
2e M.2 grootste sleutelgrootte | 2280 |
2e M.2 hoogste PCI Express-generatie | 4.0 |
BIOS type | UEFI AMI |
|---|---|
Grootte BIOS-geheugen | 128 Mbit |
ACPI version | 5.0 |
Clear CMOS jumper | ✓ |
Versie Desktop Management Interface (DMI) | 2.7 |
Systeem Management BIOS (SMBIOS) versie | 2.7 |
Producten per (binnenste) verzendverpakking | 1 stuk(s) |
|---|
Gewicht batterij | 3 g |
|---|---|
Lithiumgewicht per batterij | 0,07 g |
Aantal batterijcellen | 1 |
Batterijtechnologie | Lithium-Manganese Dioxide (LiMnO2) |
Type batterij | CR2032 |
Breedte verpakking | 270 mm |
|---|---|
Diepte verpakking | 268 mm |
Hoogte verpakking | 68 mm |
Gewicht verpakking | 1,21 kg |
Breedte | 244 mm |
|---|---|
Diepte | 244 mm |
Hoogte | 35 mm |
Batterijen inbegrepen | ✓ |
|---|---|
Inclusief schroeven | ✓ |
Meegeleverde software | Norton Internet Security |
Gewicht | 720 g |
|---|
Garantieperiode | 3 jaar |
|---|
