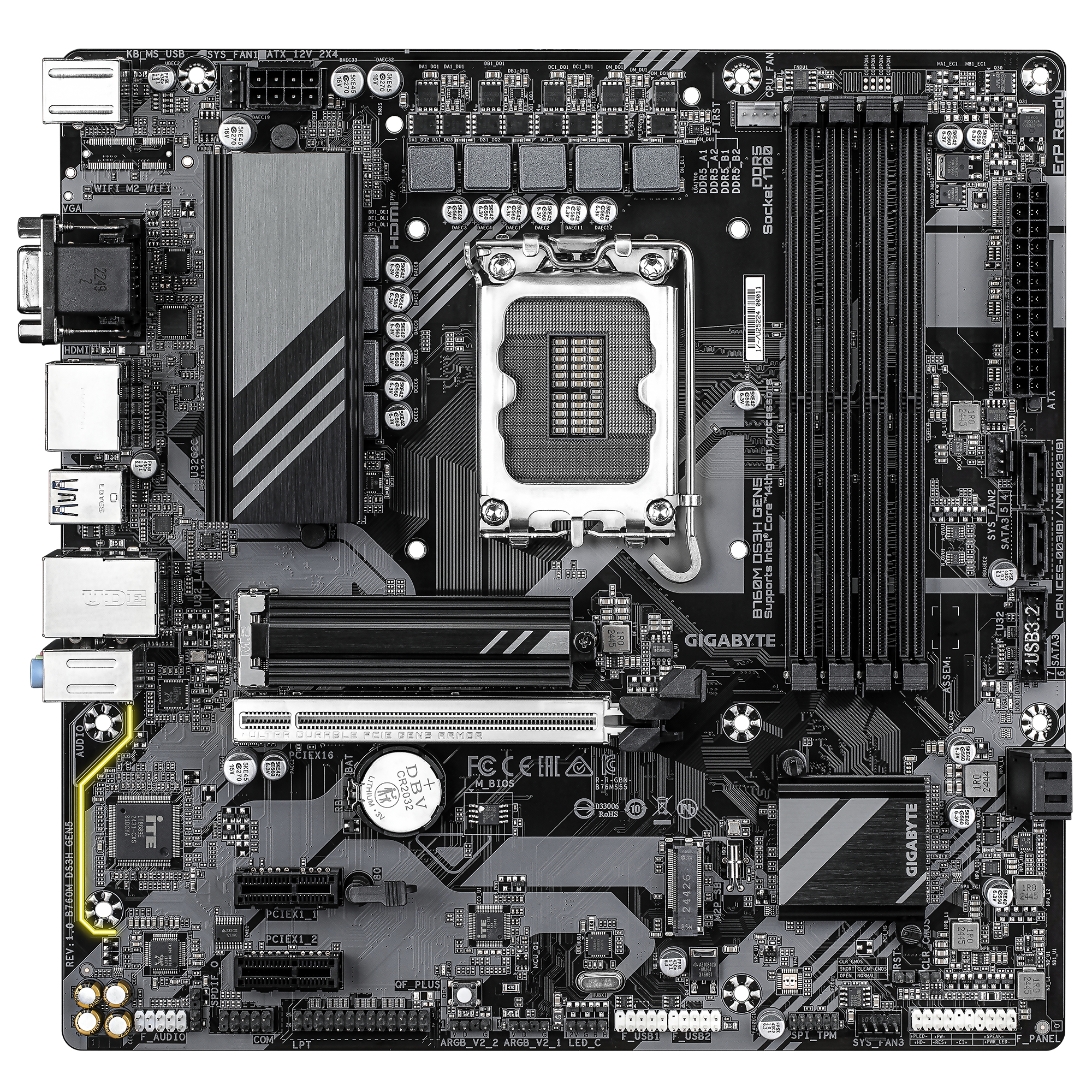

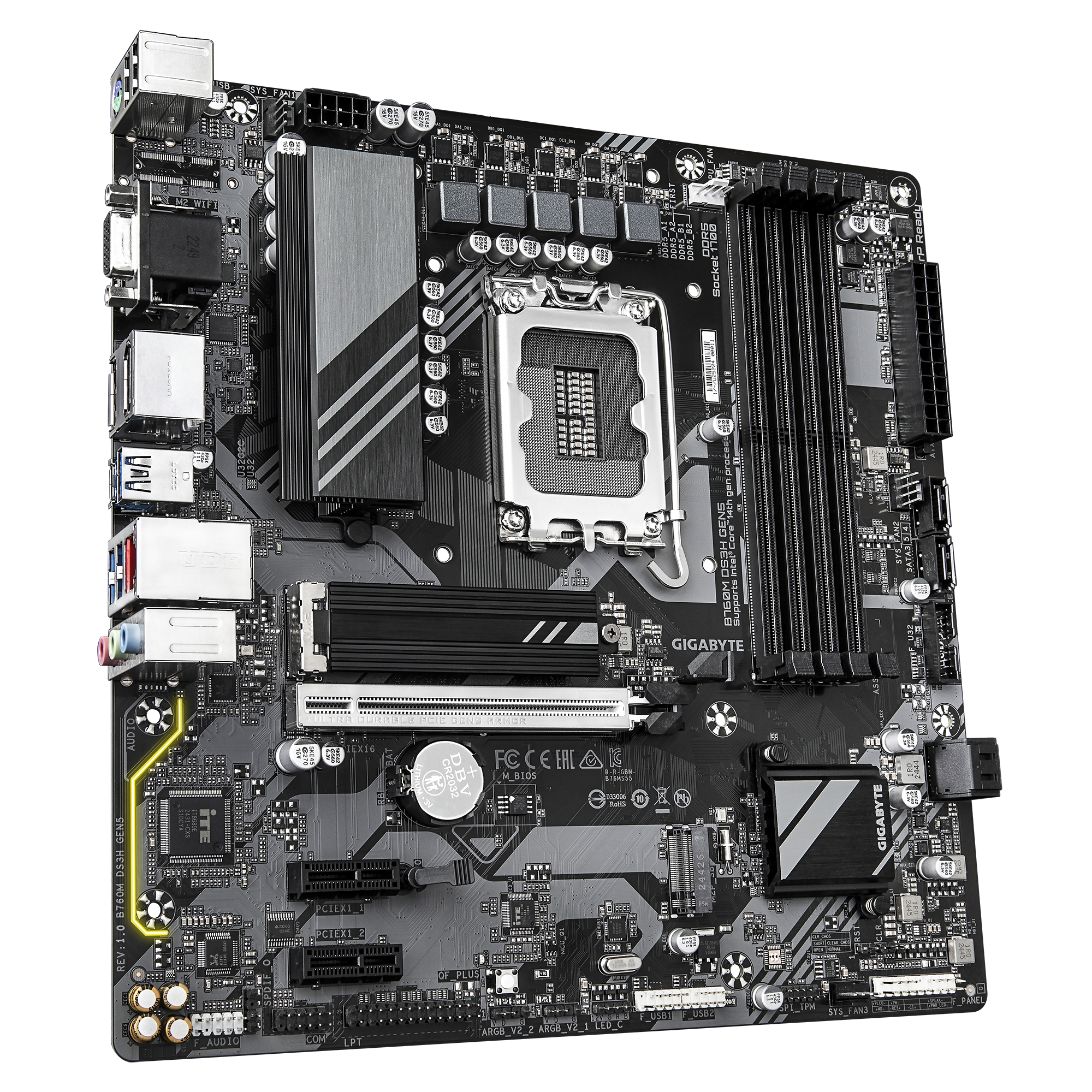

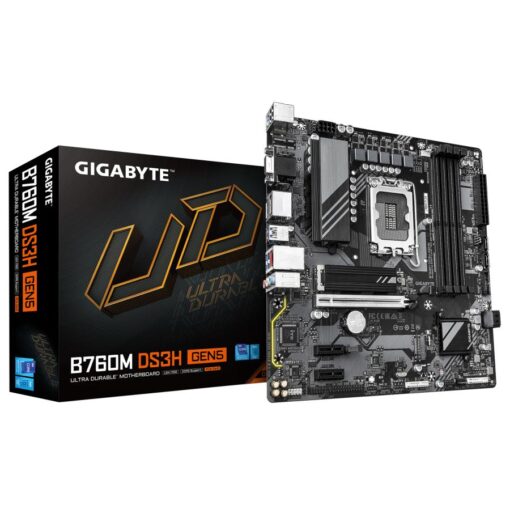

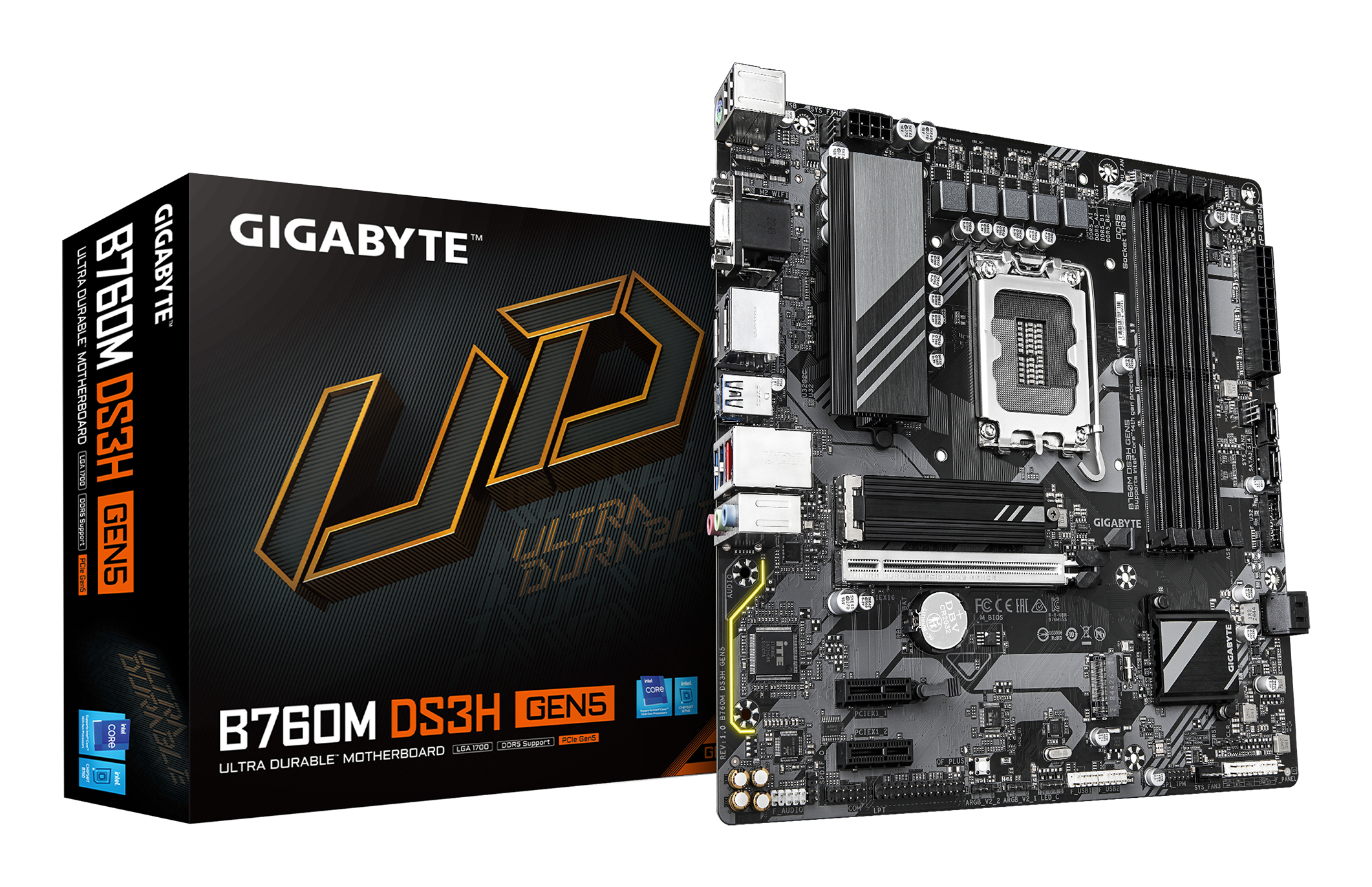

GIGABYTE B760M DS3H GEN5
Processorfabrikant: Intel
Processor socket: LGA 1700
Compatibele processors: Intel® Celeron®
Intel Core i3 12th Gen
Intel Core i3 13th Gen
Intel Core i3 14th Gen
Intel…
Ondersteunde geheugen types: DDR5-SDRAM
Maximum intern geheugen: 256 GB
Geheugen slots type: DIMM
Ondersteunde opslagstationinterfaces: M.2
PCI Express 4.0
SATA III
Ondersteunde types opslag-drives: HDD & SSD
Soorten RAID: 0
1
5
10
Maximum resolutie: 4096 x 2304 Pixels
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
Gigabyte B760M DS3H GEN5, mATX, Intel LGA1700, B760, DDR5, 2x M2. 2.5 GbE LAN, USB 3.2 Gen 2
€107,99 incl. BTW
GTIN: 4719331872793
Categorie: Moederborden
Sub categorie: Intel S1700
29 op voorraad (kan nabesteld worden)
Additional information
| Merk | Gigabyte |
|---|---|
| GTIN | 4719331872793 |
| Fabrikant code | B760M DS3H GEN5 |
| Fabrikant link | https://www.gigabyte.com/Motherboard/B760M-DS3H-GEN5 |
| Artikelnummer | 1067069 |
| Thuiskopieheffing |
Processorfabrikant | Intel |
|---|---|
Processor socket | LGA 1700 |
Compatibele processors | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold |
Supported processor sockets | LGA 1700 |
Ondersteunde geheugen types | DDR5-SDRAM |
|---|---|
Aantal geheugenslots | 4 |
Geheugen slots type | DIMM |
Geheugen kanaal | Dubbelkanaals |
ECC-compatibiliteit | ECC & Niet-ECC |
Supported memory clock speeds | 5600,5200,4800,4400 MHz |
Ondersteunde geheugenkloksnelheid (max) | 5600 MHz |
Maximum intern geheugen | 256 GB |
Niet gebufferd geheugen | ✓ |
Maximaal intern geheugen per slot | 64 GB |
Ondersteunde types opslag-drives | HDD & SSD |
|---|---|
Ondersteunde opslagstationinterfaces | M.2, PCI Express 4.0, SATA III |
Maximum aantal HDD's per behuizing | 4 |
Aantal storage drives ondersteund | 6 |
RAID support | ✓ |
Soorten RAID | 0, 1, 5, 10 |
Ondersteuning voor parallel processing | Niet ondersteund |
|---|---|
Maximum resolutie | 4096 x 2304 Pixels |
HDCP | ✓ |
DirectX versie | 12.0 |
USB 2.0 aansluitingen | 2 |
|---|---|
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 |
Aantal SATA III connectors | 4 |
S/PDIF uitgang | ✓ |
Aansluiting voor audiopaneel aan voorzijde | ✓ |
Voorpaneel-connector | ✓ |
ATX Power connector (24-pin) | ✓ |
Aansluiting voor CPU koeler | ✓ |
Aantal CPU-ventilatoraansluitingen | 1 |
Aansluitingen voor behuizingsventilatoren | 3 |
EPS power connector (8-pin) | ✓ |
Aantal EPS-voedingsaansluitingen (8-pins) | 1 |
TPM connector | ✓ |
Parallele connector | ✓ |
Serial port headers | 1 |
12V vermogen-connector | ✓ |
RGB LED-aansluitrail | ✓ |
Aantal RGB LED-pinheaders | 3 |

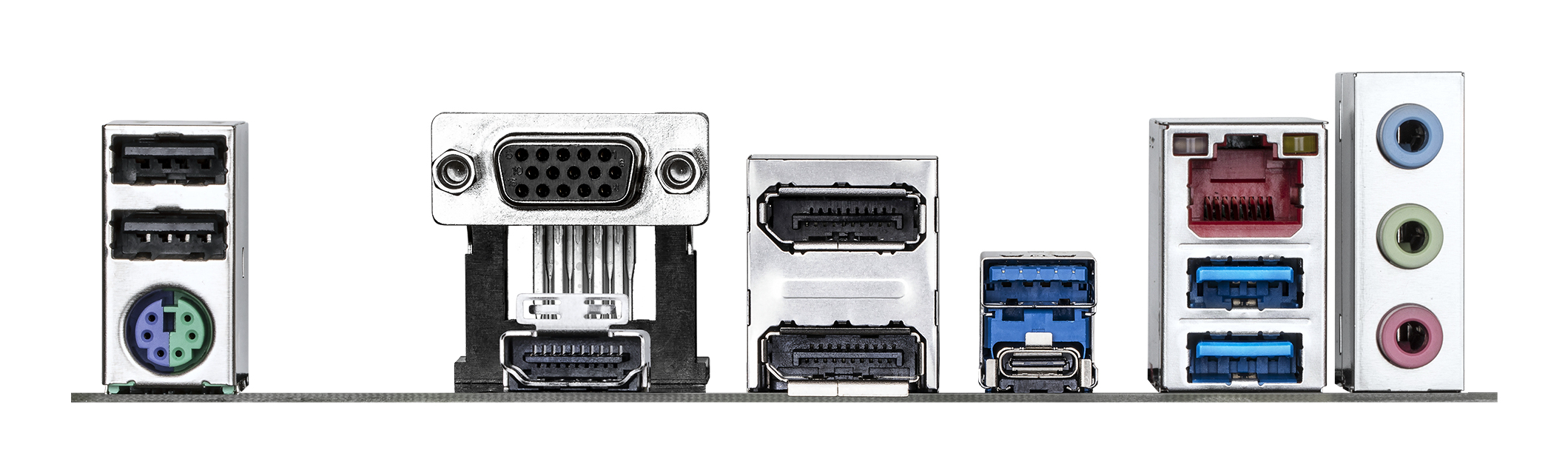

Aantal USB 2.0-poorten | 2 |
|---|---|
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 3 |
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 1 |
Aantal Ethernet LAN (RJ-45)-poorten | 1 |
PS/2 poort(en) | 1 |
VGA (D-Sub)poort(en) | 1 |
Aantal HDMI-poorten | 1 |
HDMI versie | 2.1 |
Aantal DisplayPorts | 2 |
DisplayPort versie | 1.2 |
Hoofdtelefoonuitgangen | 1 |
Lijningang | ✓ |
Microfoon, line-in ingang | ✓ |
Ethernet LAN | ✓ |
|---|---|
Ethernet interface type | 2.5 Gigabit Ethernet |
LAN controller | Realtek RTL8125 |
Wifi | ✕ |
Chipset moederbord | Intel B760 Express |
|---|---|
Audiochip | Realtek ALC897 |
Audio-uitgangskanalen | 7.1 kanalen |
Kleur van het product | Donkerbruin |
PC gezondheids monitor | Ventilator, Temperatuur, Spanning, Water cooling |
Component voor | PC |
Moederbord form factor | micro ATX |
Moederbord chipset familie | Intel |
Type koeling | Passief |
Type stroombron | ATX |
Ondersteunt Windows | Windows 10 x64, Windows 11 x64 |
PCI Express x1 (Gen 3.x) slots | 2 |
|---|---|
PCI Express x16 (Gen 5.x) sleuven | 1 |
Aantal M.2 (M) slots | 2 |
1e M.2 grootste sleutelgrootte | 2280 |
1e M.2 hoogste PCI Express-generatie | 4.0 |
2e M.2 grootste sleutelgrootte | 2280 |
2e M.2 hoogste PCI Express-generatie | 4.0 |
BIOS type | UEFI AMI |
|---|---|
Grootte BIOS-geheugen | 128 Mbit |
ACPI version | 5.0 |
Clear CMOS jumper | ✓ |
Versie Desktop Management Interface (DMI) | 2.7 |
Systeem Management BIOS (SMBIOS) versie | 2.7 |
Land van herkomst | China |
|---|---|
Producten per (binnenste) verzendverpakking | 1 stuk(s) |
Gewicht batterij | 3 g |
|---|---|
Lithiumgewicht per batterij | 0,07 g |
Aantal batterijcellen | 1 |
Batterijtechnologie | Lithium-Manganese Dioxide (LiMnO2) |
Type batterij | CR2032 |
Breedte verpakking | 265 mm |
|---|---|
Diepte verpakking | 265 mm |
Hoogte verpakking | 54 mm |
Gewicht verpakking | 1,04 kg |
Breedte | 244 mm |
|---|---|
Diepte | 244 mm |
Hoogte | 35 mm |
Batterijen inbegrepen | ✓ |
|---|---|
Inclusief schroeven | ✓ |
Meegeleverde software | Norton® Internet Security (OEM version) |
Gewicht | 960 g |
|---|
Garantieperiode | 3 jaar |
|---|
