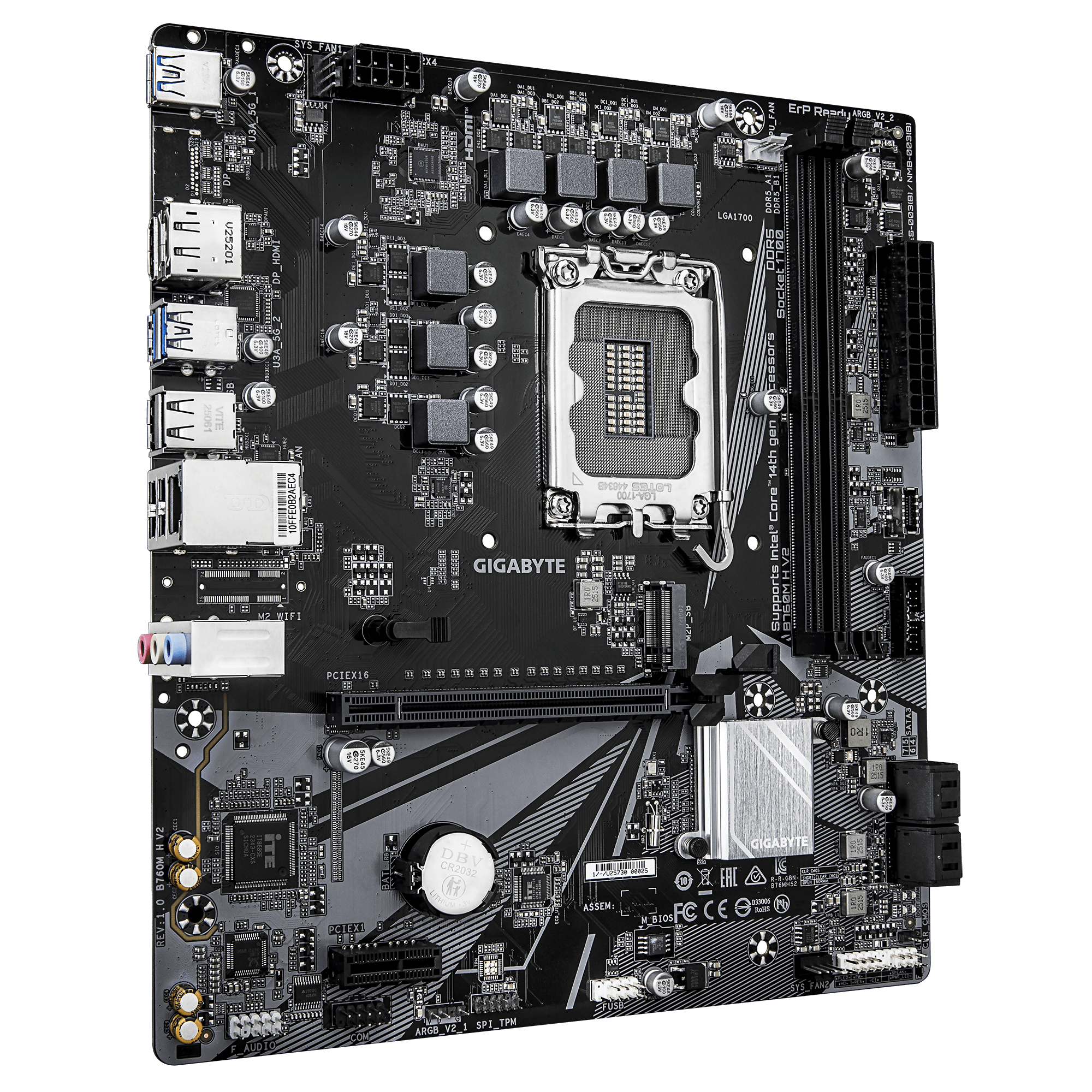

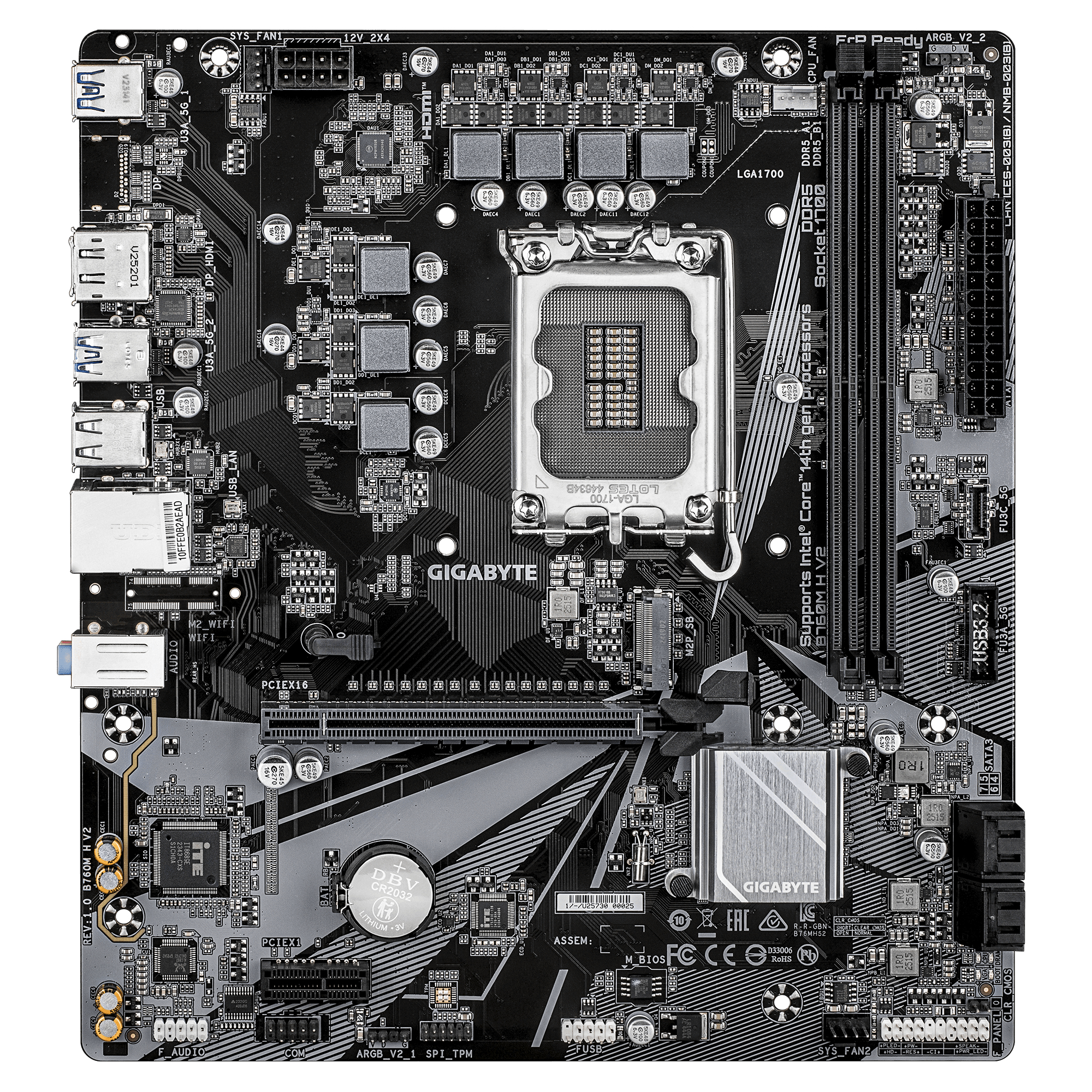

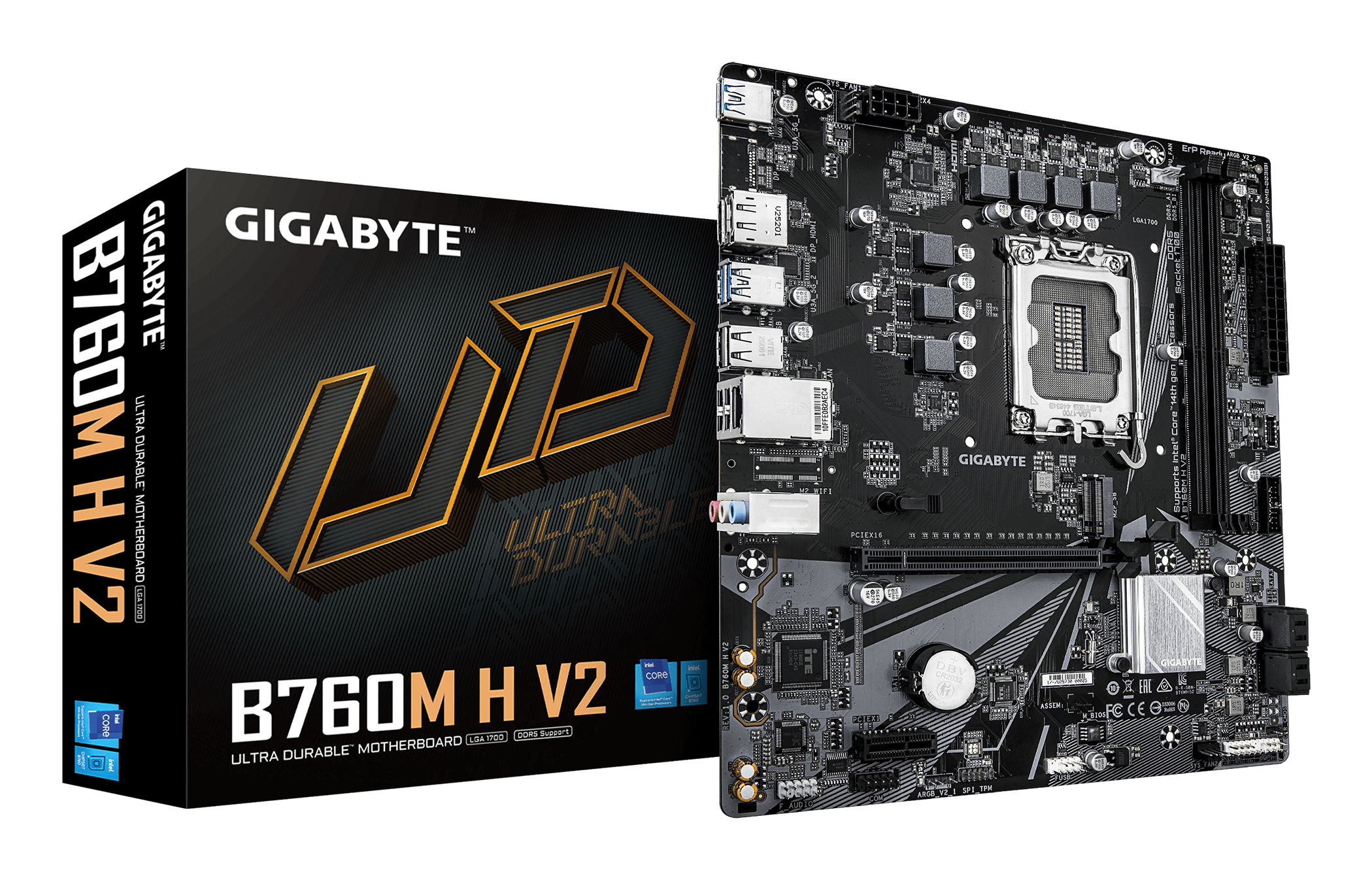

GIGABYTE B760M H V2
Processorfabrikant: Intel
Processor socket: LGA 1700
Compatibele processors: Intel® Celeron®
Intel Core i3 12th Gen
Intel Core i3 13th Gen
Intel Core i3 14th Gen
Intel…
Ondersteunde geheugen types: DDR5-SDRAM
Maximum intern geheugen: 128 GB
Geheugen slots type: DIMM
Ondersteunde opslagstationinterfaces: M.2
PCI Express 4.0
SATA III
Ondersteunde types opslag-drives: HDD & SSD
Soorten RAID: 0
1
5
10
Maximum resolutie: 4096 x 2304 Pixels
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek RTL8111H
Gigabyte B760M H V2 B760M H V2 mATX, Intel LGA1700, Core 14th, DDR5, Gbe LAN, PCIe 4.0 M.2, USB 3.2
€93,99 incl. BTW
GTIN: 4719331878054
Categorie: Moederborden
Sub categorie: Intel S1700
Beschikbaar via nabestelling
Additional information
| Merk | Gigabyte |
|---|---|
| GTIN | 4719331878054 |
| Fabrikant code | B760M H V2 |
| Fabrikant link | https://www.gigabyte.com/Motherboard/B760M-H-V2 |
| Artikelnummer | 1067281 |
| Thuiskopieheffing |
Processorfabrikant | Intel |
|---|---|
Processor socket | LGA 1700 |
Compatibele processors | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold |
Supported processor sockets | LGA 1700 |
Ondersteunde geheugen types | DDR5-SDRAM |
|---|---|
Aantal geheugenslots | 2 |
Geheugen slots type | DIMM |
Geheugen kanaal | Dubbelkanaals |
ECC-compatibiliteit | ECC & Niet-ECC |
Supported memory clock speeds | 8000,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,4800,4000 MHz |
Ondersteunde geheugenkloksnelheid (max) | 8000 MHz |
Maximum intern geheugen | 128 GB |
Niet gebufferd geheugen | ✓ |
Maximaal intern geheugen per slot | 64 GB |
Ondersteunde types opslag-drives | HDD & SSD |
|---|---|
Ondersteunde opslagstationinterfaces | M.2, PCI Express 4.0, SATA III |
Maximum aantal HDD's per behuizing | 4 |
Aantal storage drives ondersteund | 5 |
RAID support | ✓ |
Soorten RAID | 0, 1, 5, 10 |
Ondersteuning voor parallel processing | Niet ondersteund |
|---|---|
Maximum resolutie | 4096 x 2304 Pixels |
HDCP | ✓ |
HDCP versie | 2.3 |
DirectX versie | 12.0 |
USB 2.0 aansluitingen | 1 |
|---|---|
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 2 |
Aantal SATA III connectors | 4 |
Aansluiting voor audiopaneel aan voorzijde | ✓ |
Voorpaneel-connector | ✓ |
ATX Power connector (24-pin) | ✓ |
Aansluiting voor CPU koeler | ✓ |
Aantal CPU-ventilatoraansluitingen | 1 |
Aansluitingen voor behuizingsventilatoren | 2 |
EPS power connector (8-pin) | ✓ |
Aantal EPS-voedingsaansluitingen (8-pins) | 1 |
TPM connector | ✓ |
Serial port headers | 1 |
12V vermogen-connector | ✓ |
RGB LED-aansluitrail | ✓ |
Aantal RGB LED-pinheaders | 2 |

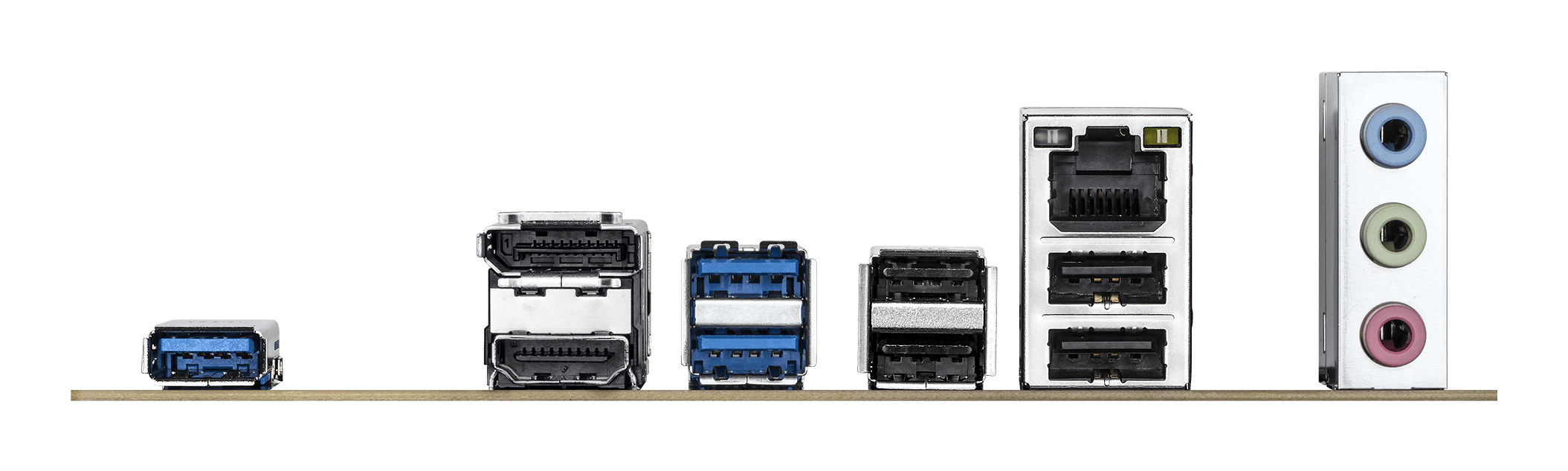

Aantal USB 2.0-poorten | 4 |
|---|---|
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 3 |
Aantal Ethernet LAN (RJ-45)-poorten | 1 |
Aantal HDMI-poorten | 1 |
HDMI versie | 2.1 |
Aantal DisplayPorts | 1 |
DisplayPort versie | 1.2 |
Hoofdtelefoonuitgangen | 1 |
Lijningang | ✓ |
Microfoon, line-in ingang | ✓ |
Ethernet LAN | ✓ |
|---|---|
Ethernet interface type | Gigabit Ethernet |
LAN controller | Realtek RTL8111H |
Wifi | ✕ |
Chipset moederbord | Intel B760 Express |
|---|---|
Audiochip | Realtek ALC897 |
Audio-uitgangskanalen | 7.1 kanalen |
Kleur van het product | Donkerbruin |
PC gezondheids monitor | Ventilator, Temperatuur, Spanning, Water cooling |
Component voor | PC |
Moederbord form factor | micro ATX |
Moederbord chipset familie | Intel |
Type koeling | Passief |
Type stroombron | ATX |
Ondersteunt Windows | Windows 10 x64, Windows 11 x64 |
PCI Express x1 (Gen 3.x) slots | 1 |
|---|---|
PCI Express x16 (Gen 4.x) sleuven | 1 |
Aantal M.2 (M) slots | 1 |
1e M.2 grootste sleutelgrootte | 2280 |
1e M.2 hoogste PCI Express-generatie | 4.0 |
BIOS type | UEFI AMI |
|---|---|
Grootte BIOS-geheugen | 128 Mbit |
ACPI version | 5.0 |
Clear CMOS jumper | ✓ |
Versie Desktop Management Interface (DMI) | 2.7 |
Systeem Management BIOS (SMBIOS) versie | 2.7 |
Land van herkomst | China |
|---|---|
Producten per (binnenste) verzendverpakking | 1 stuk(s) |
Gewicht batterij | 3 g |
|---|---|
Lithiumgewicht per batterij | 0,07 g |
Aantal batterijcellen | 1 |
Capaciteit van de accu/batterij | 220 mAh |
Batterijtechnologie | Lithium-Manganese Dioxide (LiMnO2) |
Type batterij | CR2032 |
Breedte verpakking | 265 mm |
|---|---|
Diepte verpakking | 265 mm |
Hoogte verpakking | 54 mm |
Gewicht verpakking | 850 g |
Breedte | 244 mm |
|---|---|
Diepte | 220 mm |
Hoogte | 35 mm |
Batterijen inbegrepen | ✓ |
|---|---|
Inclusief schroeven | ✓ |
Meegeleverde software | Norton® Internet Security (OEM version) |
Gewicht | 770 g |
|---|
Garantieperiode | 3 jaar |
|---|
