Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

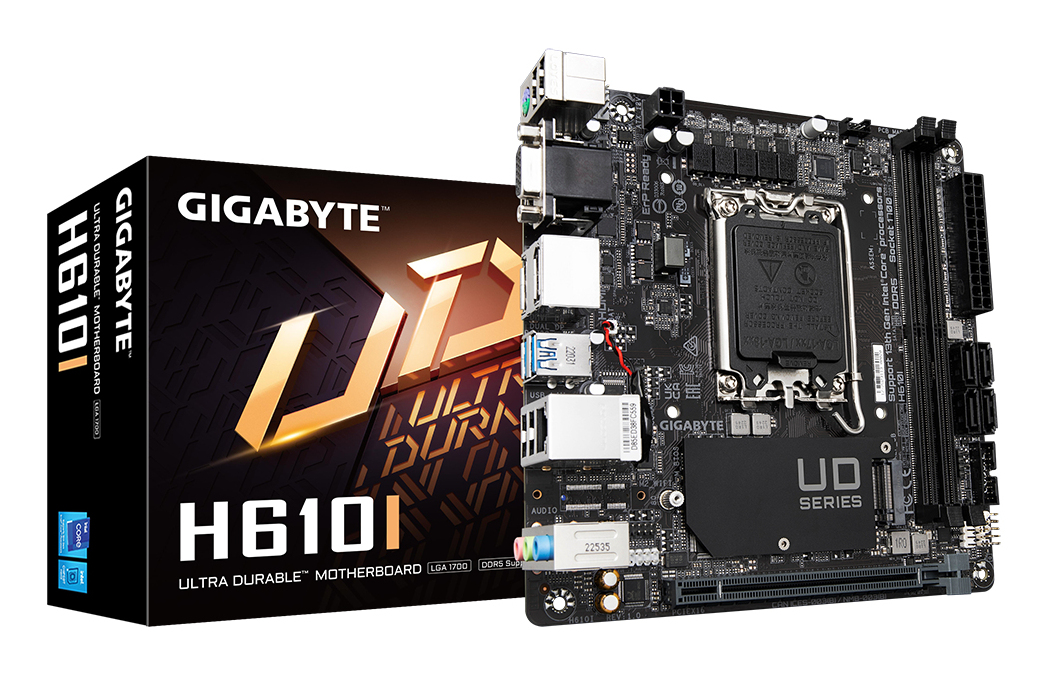

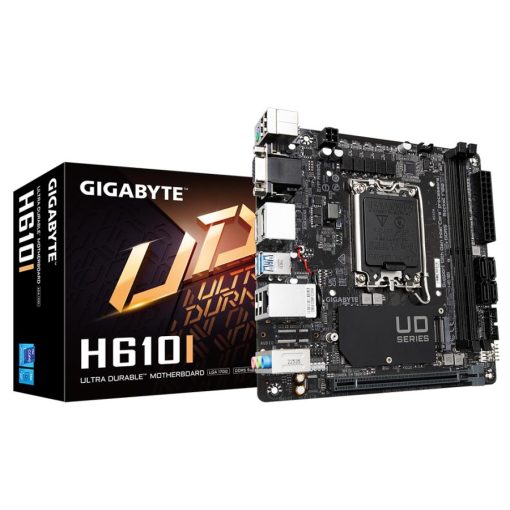

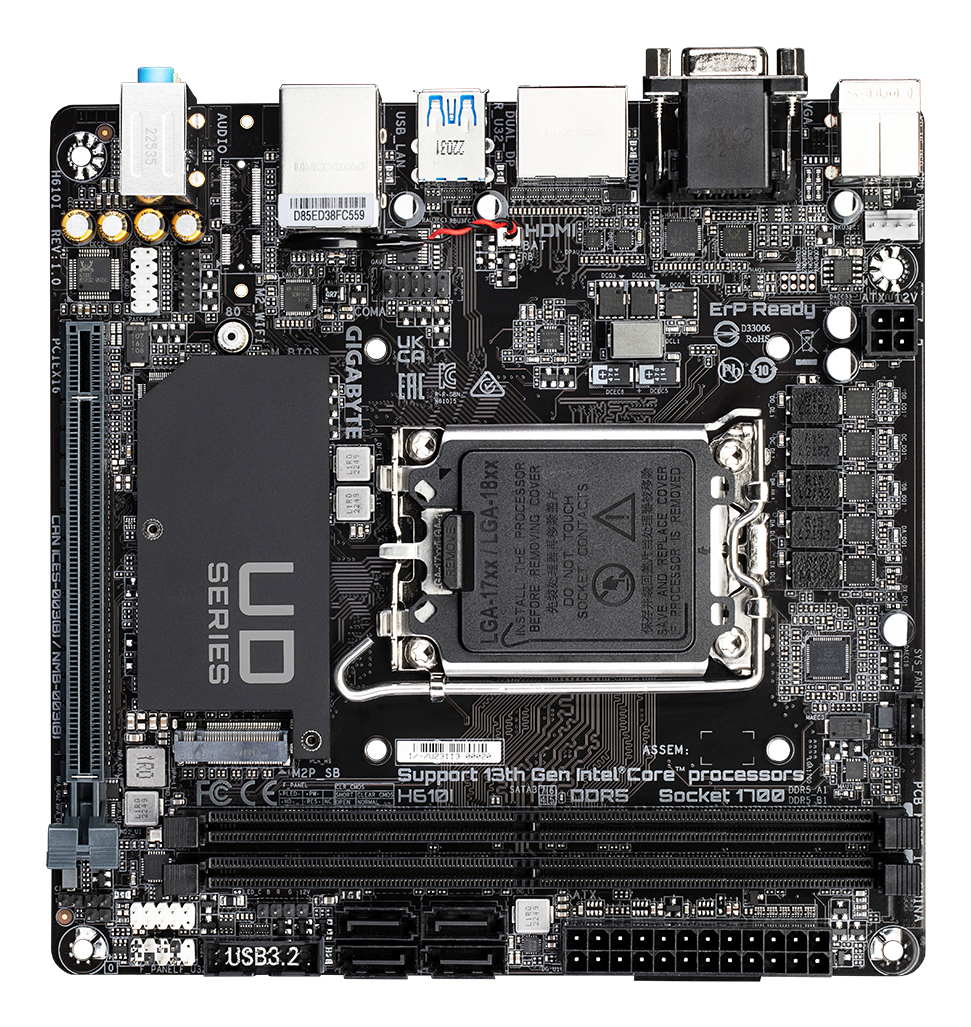

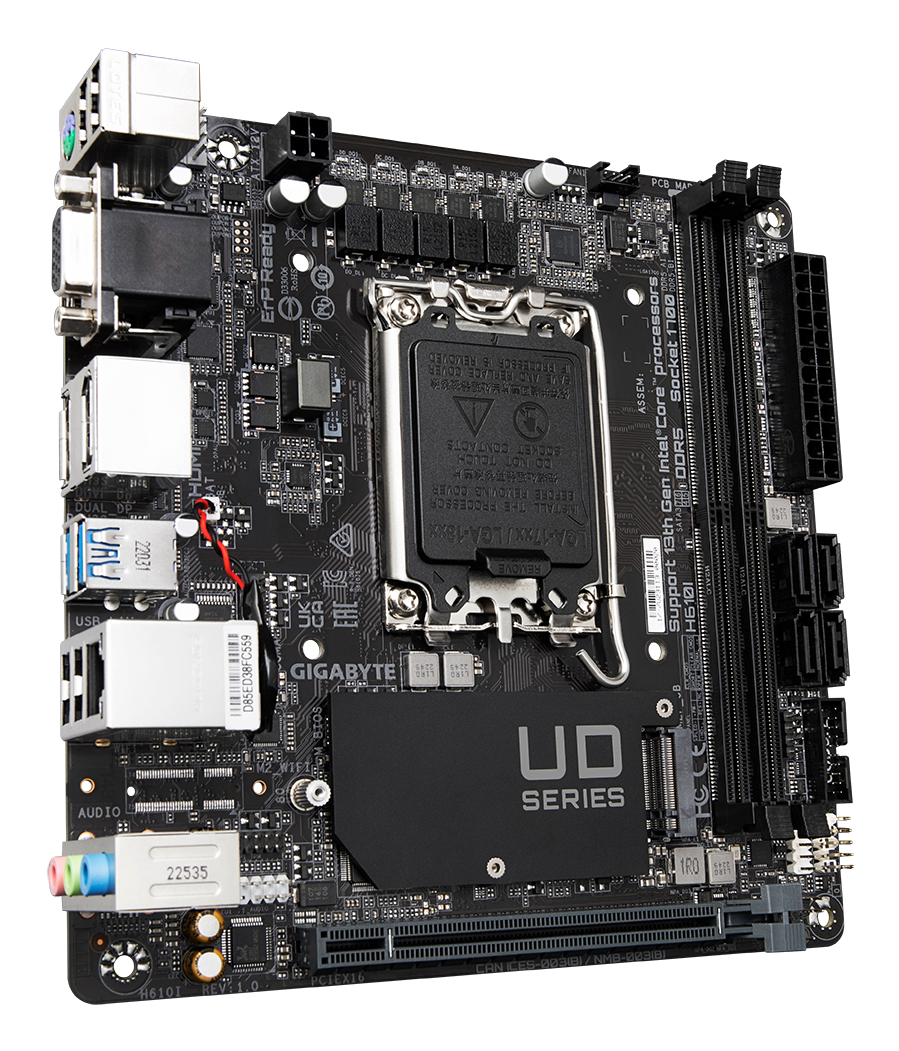

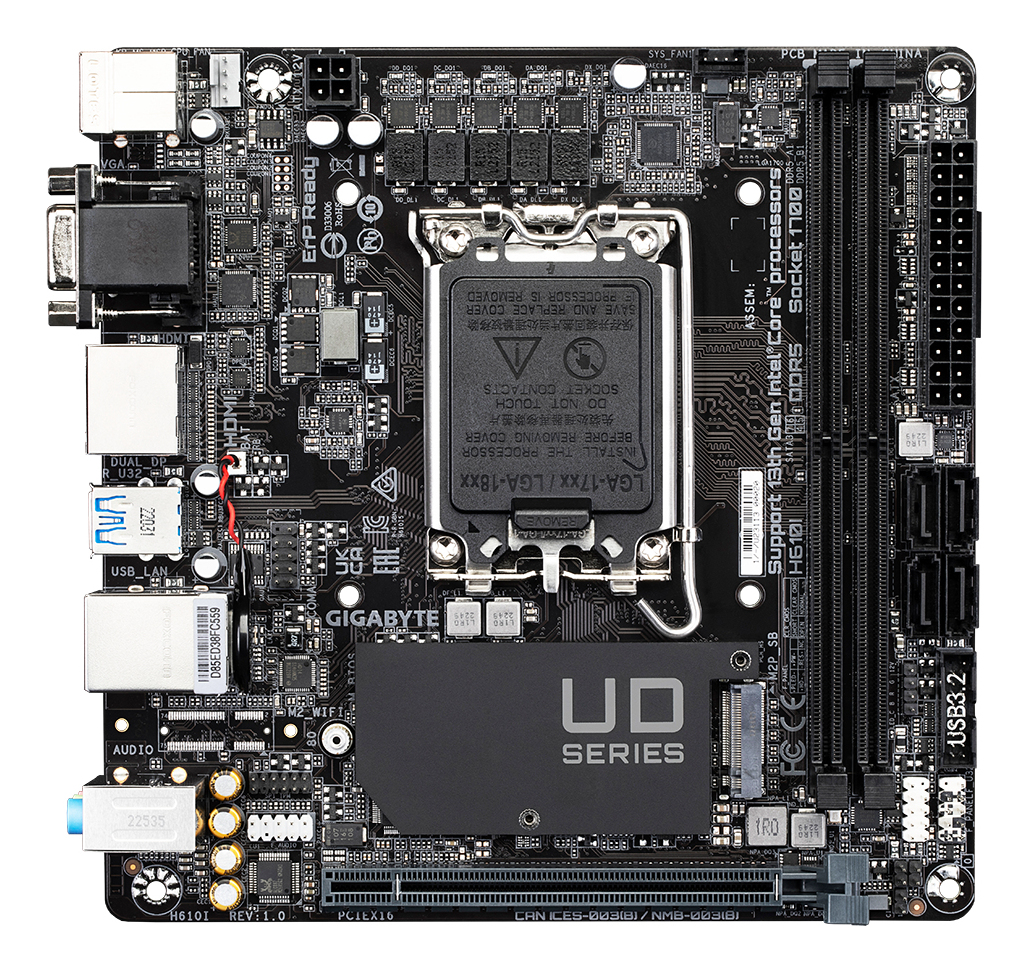

Gigabyte H610I, Mini-ITX, Intel LGA1700, DDR5, 1x PCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
€110,99 incl. BTW
GTIN: 0889523037676
Categorie: Moederborden
Sub categorie: Intel S1700
Beschikbaar via nabestelling
Additional information
| Merk | Gigabyte |
|---|---|
| GTIN | 0889523037676 |
| Fabrikant code | H610I |
| Fabrikant link | https://www.gigabyte.com/uk/Motherboard/H610I-rev-10 |
| Artikelnummer | 1065894 |
| Thuiskopieheffing |
Processorfabrikant | Intel |
|---|---|
Processor socket | LGA 1700 |
Compatibele processors | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® G |
Supported processor sockets | LGA 1700 |
Maximaal intern geheugen ondersteund door processor | 64 GB |
Ondersteunde geheugen types | DDR5-SDRAM |
|---|---|
Aantal geheugenslots | 2 |
Geheugen slots type | DIMM |
Geheugen kanaal | Dubbelkanaals |
ECC-compatibiliteit | ECC & Niet-ECC |
Supported memory clock speeds | 5600, 5200, 4800, 4400 MHz |
Ondersteunde geheugenkloksnelheid (max) | 5600 MHz |
Maximum intern geheugen | 64 GB |
Ondersteunde geheugenmodule capaciteiten | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
Niet gebufferd geheugen | ✓ |
Ondersteunde types opslag-drives | HDD & SSD |
|---|---|
Ondersteunde opslagstationinterfaces | M.2, SATA III |
Maximum aantal HDD's per behuizing | 1 |
Aantal storage drives ondersteund | 5 |
Ondersteuning voor parallel processing | Niet ondersteund |
|---|---|
Grafische adapter-familie | Intel |
Grafische adapter | HD Graphics |
Maximum resolutie | 4096 x 2304 Pixels |
HDCP | ✓ |
USB 2.0 aansluitingen | 1 |
|---|---|
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 |
Aantal SATA III connectors | 4 |
Aansluiting voor audiopaneel aan voorzijde | ✓ |
Voorpaneel-connector | ✓ |
ATX Power connector (24-pin) | ✓ |
Aansluiting voor CPU koeler | ✓ |
Aansluitingen voor behuizingsventilatoren | 2 |
Chassis intrusion aansluiting | ✓ |
TPM connector | ✓ |
Serial port headers | 1 |
12V vermogen-connector | ✓ |
RGB LED-aansluitrail | ✓ |
Aantal USB 2.0-poorten | 4 |
|---|---|
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 2 |
Aantal Ethernet LAN (RJ-45)-poorten | 1 |
PS/2 poort(en) | 1 |
VGA (D-Sub)poort(en) | 1 |
Aantal HDMI-poorten | 1 |
HDMI versie | 2.0 |
Aantal DisplayPorts | 2 |
DisplayPort versie | 1.2 |
Hoofdtelefoonuitgangen | 3 |
Microfoon, line-in ingang | ✓ |
USB-connectortype | USB Type-A |
Ethernet LAN | ✓ |
|---|---|
Ethernet interface type | Gigabit Ethernet |
Wifi | ✕ |
Chipset moederbord | Intel H610 Express |
|---|---|
Audiochip | Realtek ALC897 |
Audio-uitgangskanalen | 7.1 kanalen |
Kleur van het product | Zwart |
PC gezondheids monitor | Ventilator, Temperatuur, Spanning |
Component voor | PC |
Moederbord form factor | mini ITX |
Moederbord chipset familie | Intel |
Type koeling | Actief |
Type stroombron | ATX |
Ondersteunt Windows | Windows 10 x64, Windows 11 x64 |
PCI Express x16 slots | 1 |
|---|---|
Aantal M.2 (M) slots | 1 |
BIOS type | UEFI AMI |
|---|---|
Grootte BIOS-geheugen | 256 Mbit |
ACPI version | 5.0 |
Clear CMOS jumper | ✓ |
Clear CMOS knop | ✓ |
Versie Desktop Management Interface (DMI) | 2.7 |
Systeem Management BIOS (SMBIOS) versie | 2.7 |
Land van herkomst | China |
|---|---|
Producten per (binnenste) verzendverpakking | 1 stuk(s) |
Gewicht batterij | 3 g |
|---|---|
Lithiumgewicht per batterij | 0,07 g |
Aantal batterijcellen | 1 |
Batterijtechnologie | Lithium-Manganese Dioxide (LiMnO2) |
Type batterij | CR2032 |
Breedte verpakking | 222 mm |
|---|---|
Diepte verpakking | 180 mm |
Hoogte verpakking | 65 mm |
Gewicht verpakking | 590 g |
Breedte | 170 mm |
|---|---|
Diepte | 170 mm |
Hoogte | 35 mm |
Meegeleverde kabels | SATA |
|---|---|
Batterijen inbegrepen | ✓ |
Meegeleverde software | Norton Internet Security (OEM version), LAN bandwidth management software |
Garantieperiode | 3 jaar |
|---|
