Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

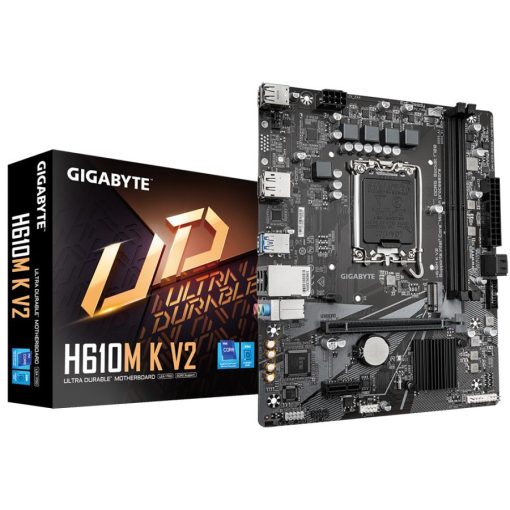

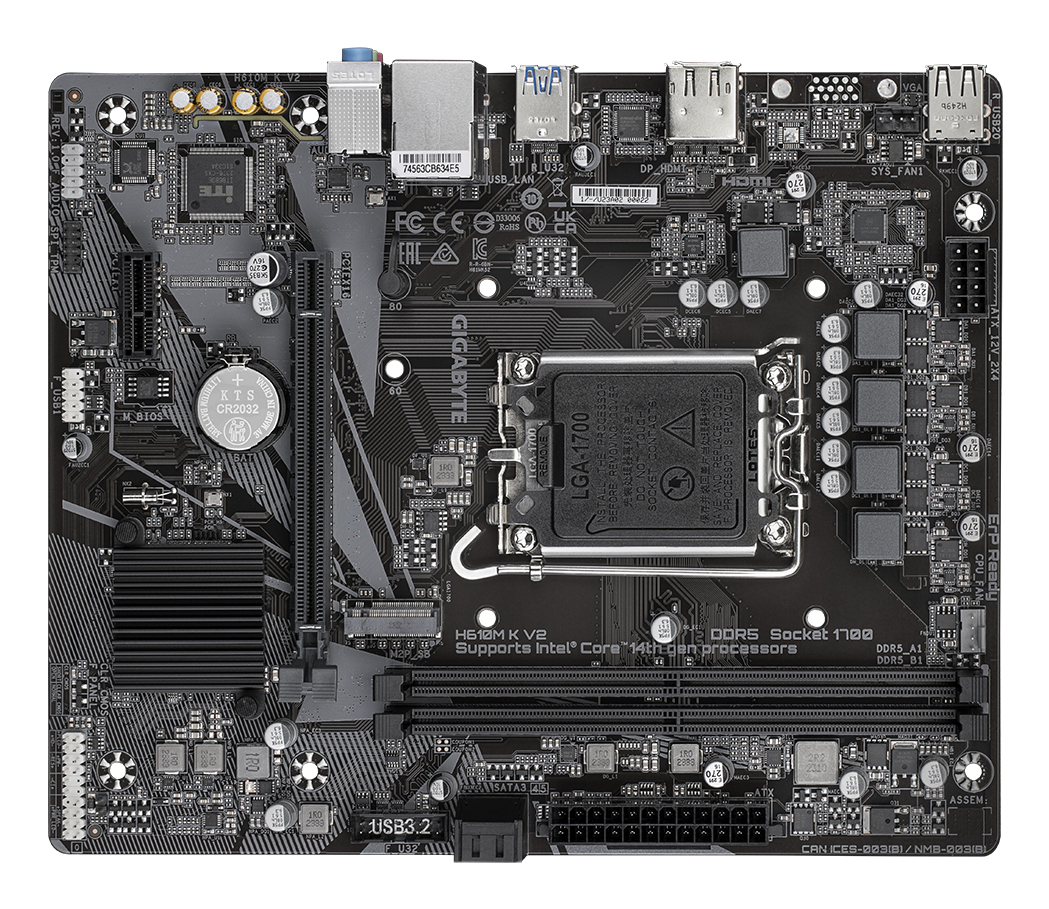

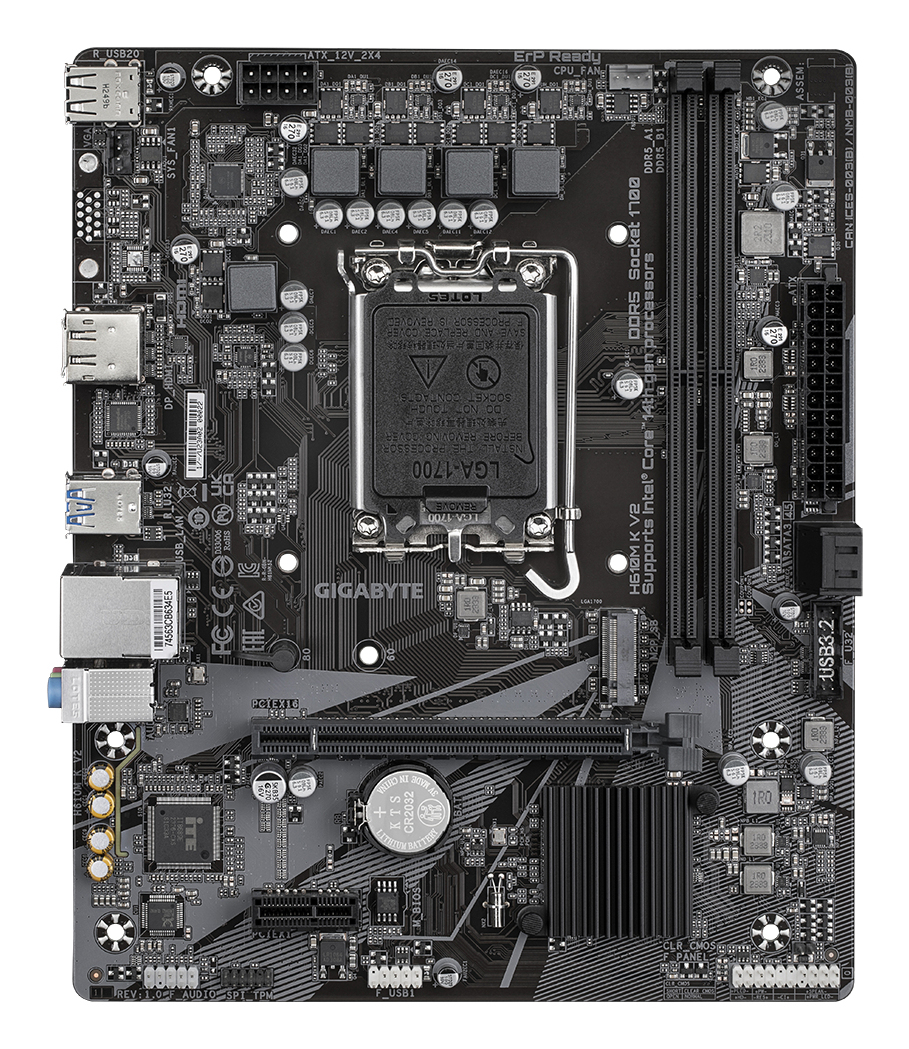

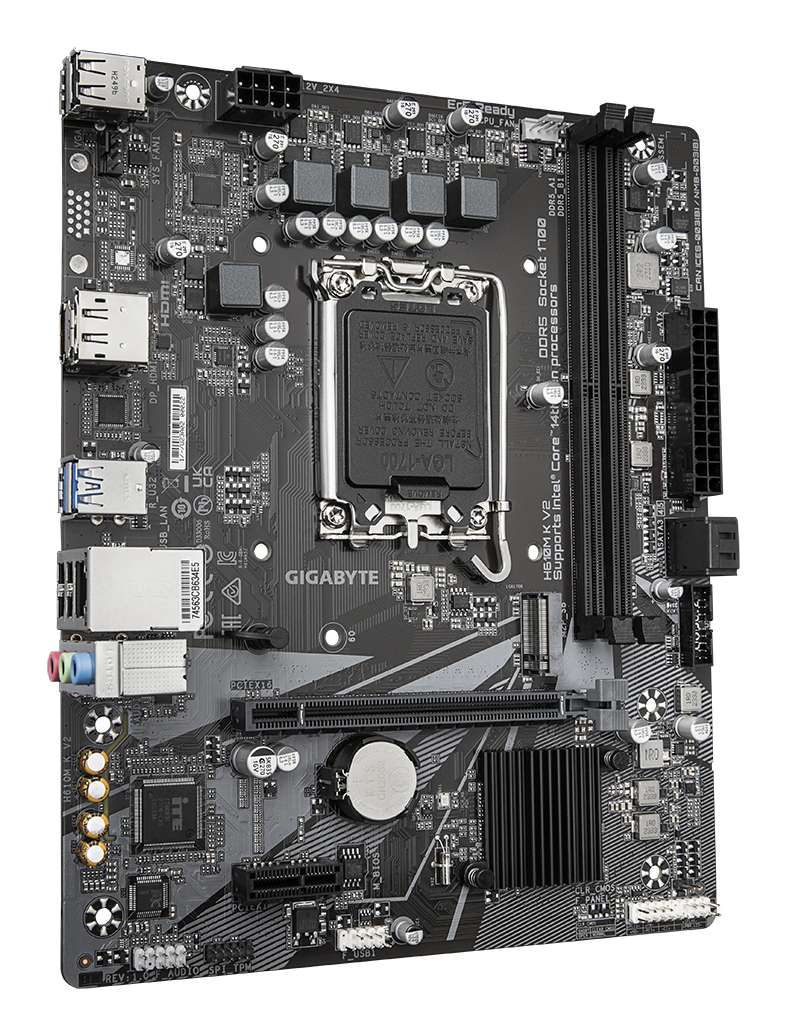

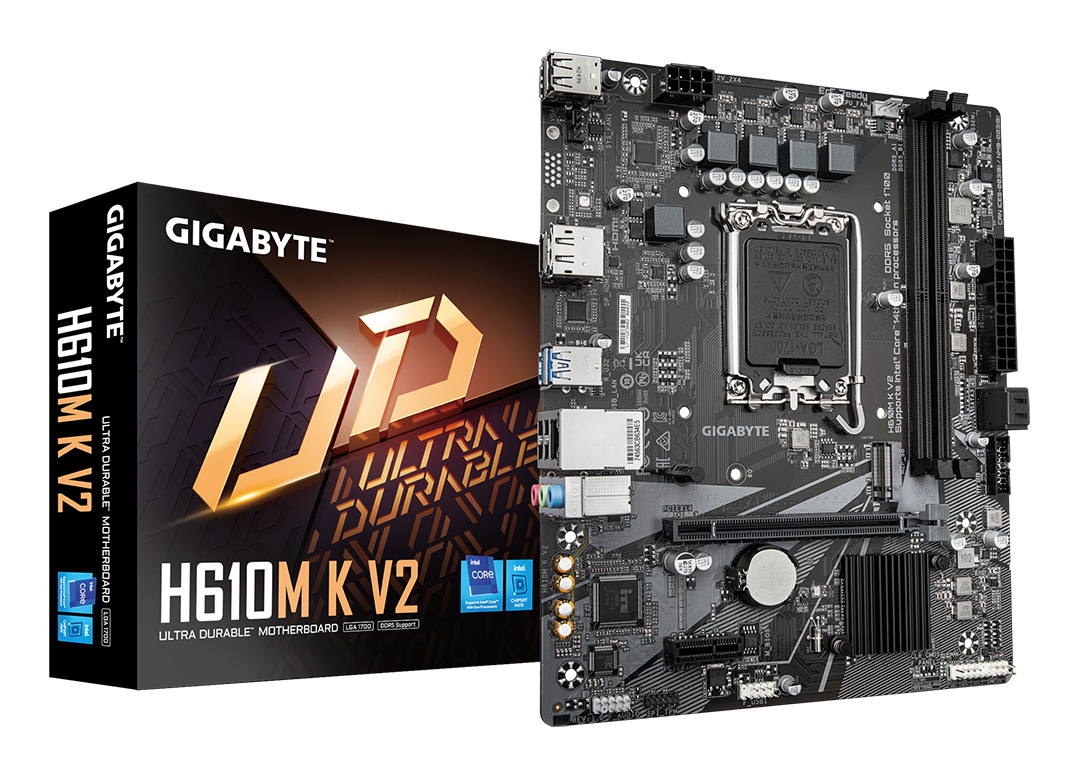

Gigabyte H610M K V2
€68,99 incl. BTW
GTIN: 4719331860134
Categorie: Moederborden
Sub categorie: Intel S1700
Beschikbaar via nabestelling
Additional information
| Merk | Gigabyte |
|---|---|
| GTIN | 4719331860134 |
| Fabrikant code | H610M K V2 |
| Fabrikant link | https://www.gigabyte.com/nl/Motherboard |
| Artikelnummer | 1065892 |
| Thuiskopieheffing |
Processorfabrikant | Intel |
|---|---|
Processor socket | LGA 1700 |
Compatibele processors | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold |
Supported processor sockets | LGA 1700 |
Ondersteunde geheugen types | DDR5-SDRAM |
|---|---|
Aantal geheugenslots | 2 |
Geheugen slots type | DIMM |
Geheugen kanaal | Dubbelkanaals |
ECC-compatibiliteit | ECC & Niet-ECC |
Supported memory clock speeds | 5600,5200,4800,4400 MHz |
Ondersteunde geheugenkloksnelheid (max) | 5600 MHz |
Maximum intern geheugen | 128 GB |
Niet gebufferd geheugen | ✓ |
Maximaal intern geheugen per slot | 64 GB |
Ondersteunde types opslag-drives | HDD & SSD |
|---|---|
Ondersteunde opslagstationinterfaces | M.2, PCI Express 3.0, SATA III |
Maximum aantal HDD's per behuizing | 2 |
Aantal storage drives ondersteund | 3 |
Ondersteuning voor parallel processing | Niet ondersteund |
|---|---|
Maximum resolutie | 4096 x 2160 Pixels |
HDCP | ✓ |
DirectX versie | 12.0 |
USB 2.0 aansluitingen | 1 |
|---|---|
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 |
Aantal SATA III connectors | 2 |
Aansluiting voor audiopaneel aan voorzijde | ✓ |
Voorpaneel-connector | ✓ |
ATX Power connector (24-pin) | ✓ |
Aansluiting voor CPU koeler | ✓ |
Aantal CPU-ventilatoraansluitingen | 1 |
EPS power connector (8-pin) | ✓ |
Aantal EPS-voedingsaansluitingen (8-pins) | 1 |
TPM connector | ✓ |
Aantal USB 2.0-poorten | 4 |
|---|---|
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 2 |
Aantal Ethernet LAN (RJ-45)-poorten | 1 |
Aantal HDMI-poorten | 1 |
HDMI versie | 2.1 |
Aantal DisplayPorts | 1 |
DisplayPort versie | 1.2 |
Hoofdtelefoonuitgangen | 1 |
Lijningang | ✓ |
Microfoon, line-in ingang | ✓ |
Ethernet LAN | ✓ |
|---|---|
Ethernet interface type | Gigabit Ethernet |
LAN controller | Realtek RTL8111H |
Wifi | ✕ |
Chipset moederbord | Intel H610 |
|---|---|
Audiochip | Realtek ALC897 |
Audio-uitgangskanalen | 7.1 kanalen |
Kleur van het product | Donkerbruin |
PC gezondheids monitor | Ventilator, Temperatuur, Spanning, Water cooling |
Component voor | PC |
Moederbord form factor | micro ATX |
Moederbord chipset familie | Intel |
Type koeling | Passief |
Type stroombron | ATX |
Ondersteunt Windows | Windows 10 x64, Windows 11 x64 |
PCI Express x1 (Gen 3.x) slots | 1 |
|---|---|
PCI Express x16 (Gen 4.x) sleuven | 1 |
Aantal M.2 (M) slots | 1 |
1e M.2 grootste sleutelgrootte | 2280 |
1e M.2 hoogste PCI Express-generatie | 3.0 |
BIOS type | UEFI AMI |
|---|---|
Grootte BIOS-geheugen | 128 Mbit |
ACPI version | 5.0 |
Clear CMOS jumper | ✓ |
Versie Desktop Management Interface (DMI) | 2.7 |
Systeem Management BIOS (SMBIOS) versie | 2.7 |
Producten per (binnenste) verzendverpakking | 1 stuk(s) |
|---|
Gewicht batterij | 3 g |
|---|---|
Lithiumgewicht per batterij | 0,07 g |
Aantal batterijcellen | 1 |
Batterijtechnologie | Lithium-Manganese Dioxide (LiMnO2) |
Type batterij | CR2032 |
Breedte verpakking | 265 mm |
|---|---|
Diepte verpakking | 235 mm |
Hoogte verpakking | 52 mm |
Gewicht verpakking | 723 g |
Breedte | 226 mm |
|---|---|
Diepte | 185 mm |
Hoogte | 35 mm |
Batterijen inbegrepen | ✓ |
|---|---|
Inclusief schroeven | ✓ |
Gewicht | 650 g |
|---|
Garantieperiode | 3 jaar |
|---|
