Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

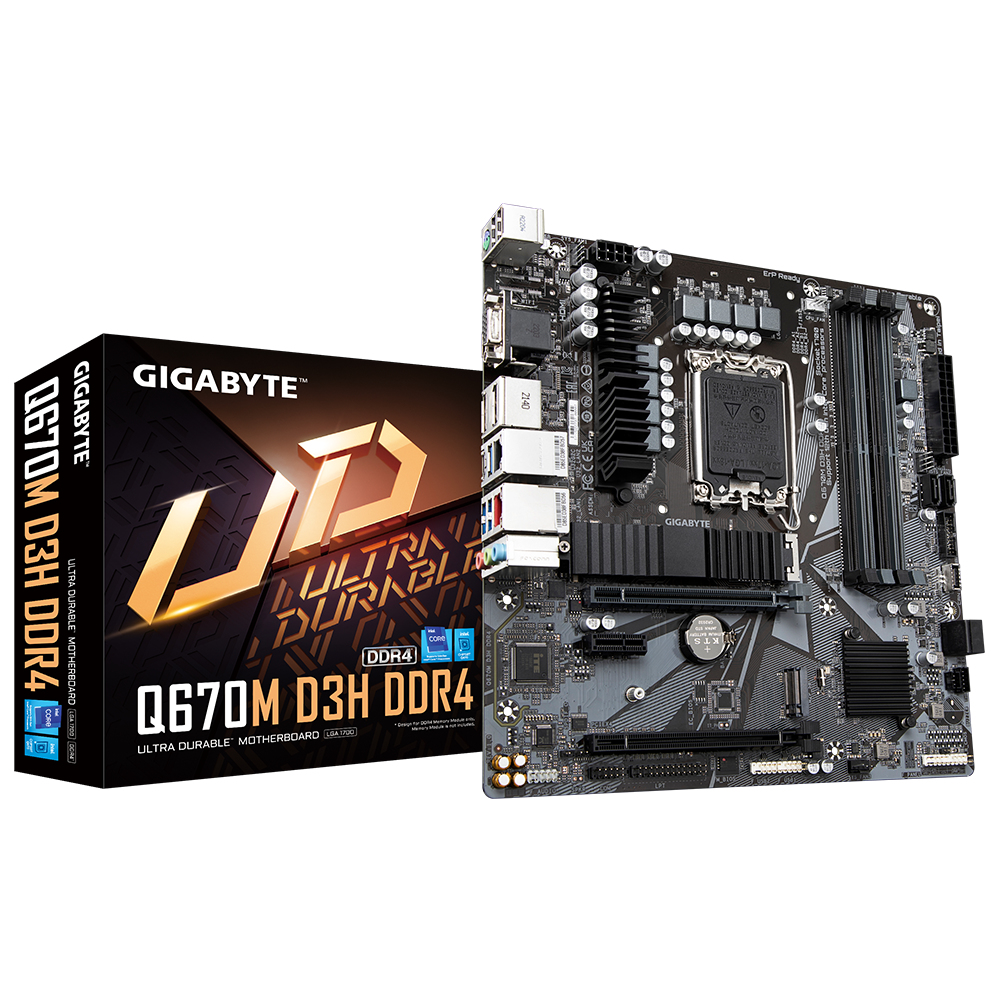

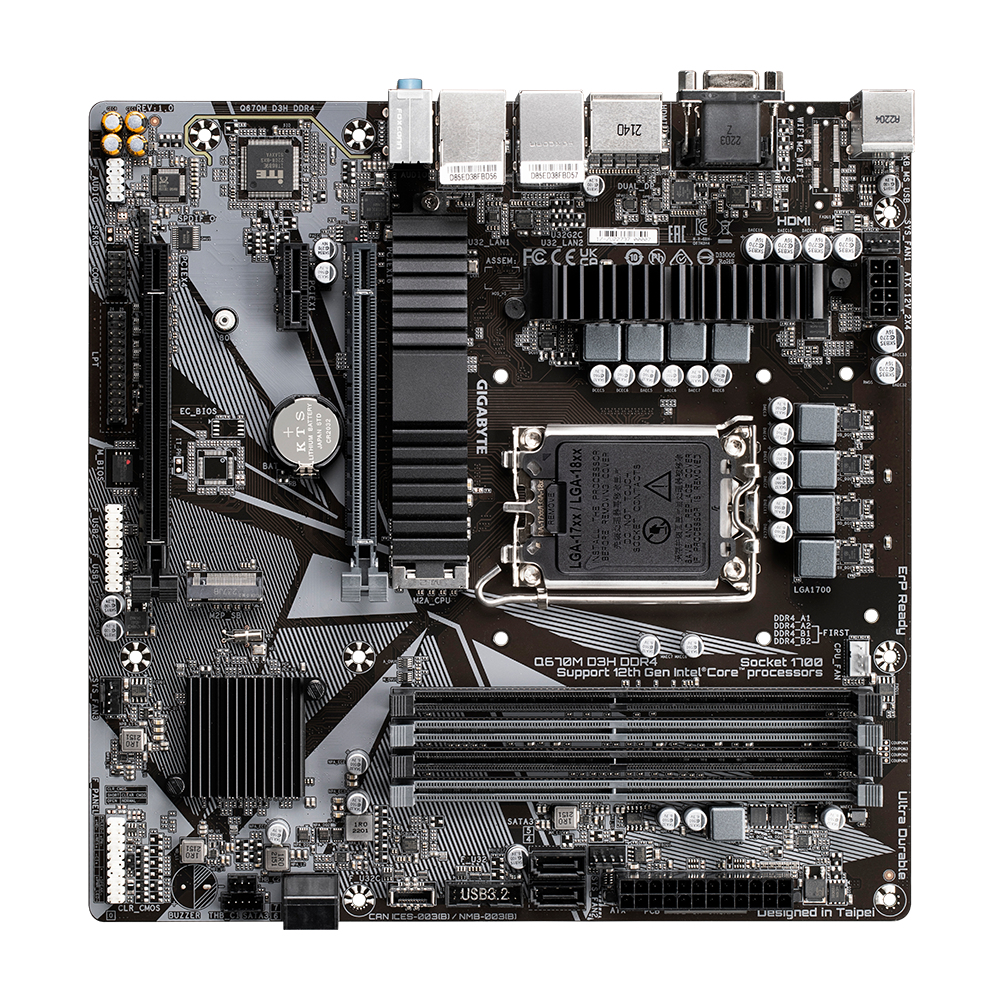

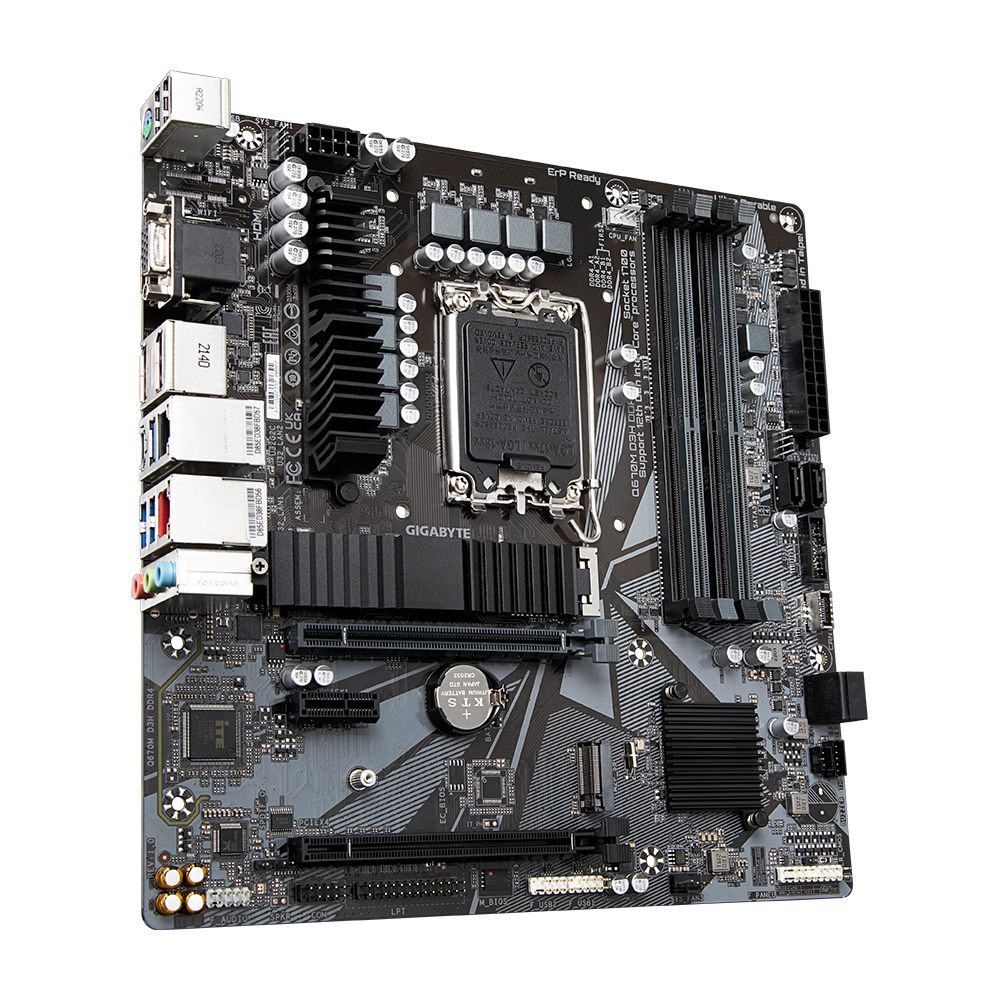

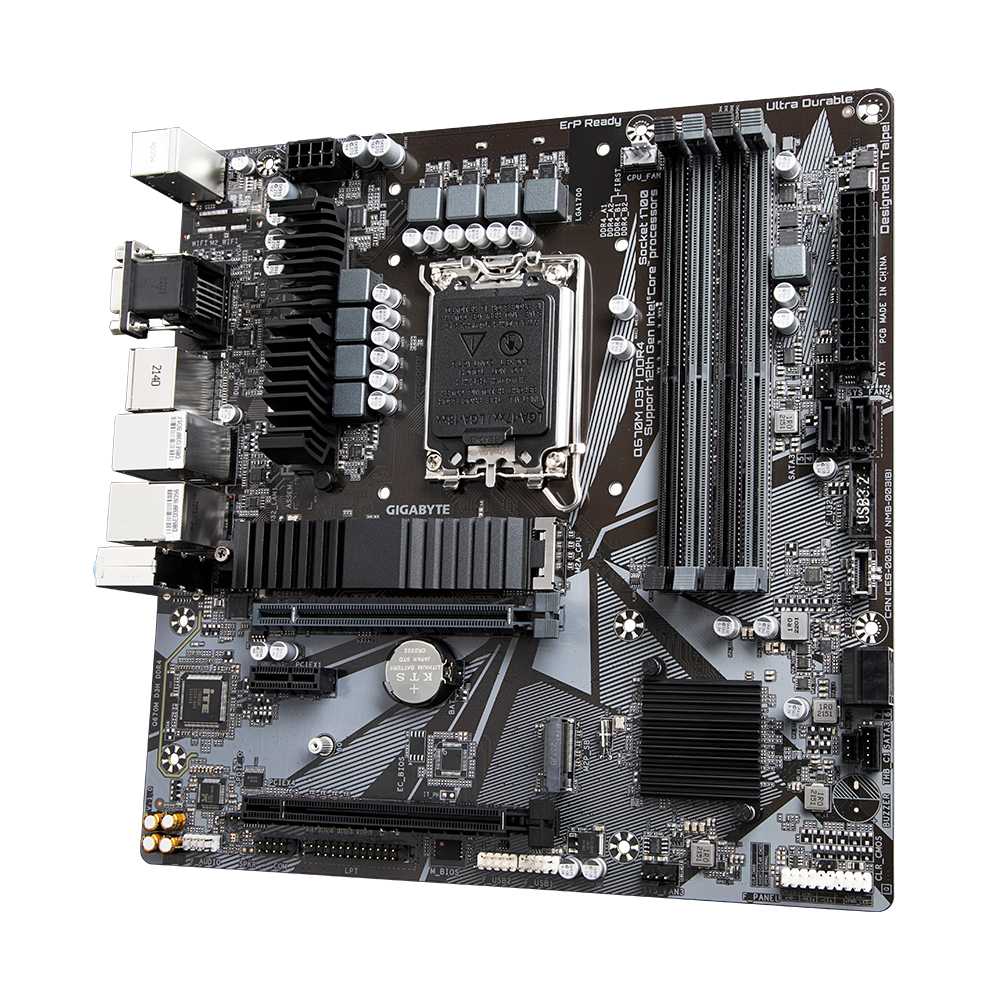

Gigabyte Q670M D3H DDR4, mATX, Intel LGA1700, 128 GB, DDR4-SDRAM, USB 3.2 Gen 2, M.2, 2.5 GbE LAN
€171,99 incl. BTW
GTIN: 0889523033760
Categorie: Moederborden
Sub categorie: Intel S1700
Beschikbaar via nabestelling
Additional information
| Merk | Gigabyte |
|---|---|
| GTIN | 0889523033760 |
| Fabrikant code | Q670M D3H DDR4 |
| Fabrikant link | https://www.gigabyte.com/Motherboard/Q670M-D3H-DDR4-rev-10#kf |
| Artikelnummer | 1064099 |
| Thuiskopieheffing |
Processorfabrikant | Intel |
|---|---|
Processor socket | LGA 1700 |
Compatibele processors | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® G |
Supported processor sockets | LGA 1700 |
Maximaal intern geheugen ondersteund door processor | 128 GB |
Ondersteunde geheugen types | DDR4-SDRAM |
|---|---|
Aantal geheugenslots | 4 |
Geheugen slots type | DIMM |
Geheugen kanaal | Dubbelkanaals |
ECC-compatibiliteit | Niet-ECC |
Supported memory clock speeds | 2133,2400,2666,2933,3000,3200,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
Ondersteunde geheugenkloksnelheid (max) | 5333 MHz |
Maximum intern geheugen | 128 GB |
Ondersteunde geheugenmodule capaciteiten | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
Ondersteunde types opslag-drives | HDD & SSD |
|---|---|
Ondersteunde opslagstationinterfaces | M.2, SATA III |
Maximum aantal HDD's per behuizing | 4 |
Aantal storage drives ondersteund | 6 |
RAID support | ✓ |
Soorten RAID | 0, 1, 5, 10 |
DirectX versie | 12.0 |
|---|
USB 2.0 aansluitingen | 2 |
|---|---|
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 |
USB 3.2-connectoren (3.1 Gen 2) | 1 |
Aantal SATA III connectors | 4 |
Totaal aantal SATA-connectoren | 4 |
Audioconnector | ✓ |
Aansluiting voor audiopaneel aan voorzijde | ✓ |
ATX Power connector (24-pin) | ✓ |
Aansluiting voor CPU koeler | ✓ |
Aansluitingen voor behuizingsventilatoren | 2 |
EPS power connector (8-pin) | ✓ |
COM aansluitingen | 2 |
Thunderbolt-headers | 2 |
Aantal USB 2.0-poorten | 2 |
|---|---|
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 3 |
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 1 |
Aantal Ethernet LAN (RJ-45)-poorten | 1 |
PS/2 poort(en) | 1 |
Aantal HDMI-poorten | 1 |
HDMI versie | 2.1 |
Aantal DisplayPorts | 2 |
DisplayPort versie | 1.2 |
Hoofdtelefoonuitgangen | 2 |
Microfoon, line-in ingang | ✓ |
Ethernet LAN | ✓ |
|---|---|
Ethernet interface type | 2.5 Gigabit Ethernet |
Wifi | ✕ |
Chipset moederbord | Intel Q670 |
|---|---|
Audio-uitgangskanalen | 7.1 kanalen |
Kleur van het product | Bruin |
Component voor | PC |
Moederbord form factor | micro ATX |
Moederbord chipset familie | Intel |
Type koeling | Actief |
Type stroombron | ATX |
Ondersteunt Windows | Windows 10, Windows 11 |
PCI Express x1 (Gen 3.x) slots | 2 |
|---|---|
PCI Express x16 (Gen 4.x) sleuven | 1 |
Aantal M.2 (M) slots | 2 |
BIOS type | UEFI |
|---|---|
Grootte BIOS-geheugen | 256 Mbit |
ACPI version | 5.0 |
Clear CMOS jumper | ✓ |
Clear CMOS knop | ✓ |
Versie Desktop Management Interface (DMI) | 2.7 |
Systeem Management BIOS (SMBIOS) versie | 2.7 |
Land van herkomst | China |
|---|---|
Producten per (binnenste) verzendverpakking | 1 stuk(s) |
Gewicht batterij | 3 g |
|---|---|
Lithiumgewicht per batterij | 0,07 g |
Aantal batterijcellen | 1 |
Batterijtechnologie | Lithium-Manganese Dioxide (LiMnO2) |
Type batterij | CR2032 |
Breedte verpakking | 265 mm |
|---|---|
Diepte verpakking | 265 mm |
Hoogte verpakking | 54 mm |
Gewicht verpakking | 1,02 kg |
Breedte | 244 mm |
|---|---|
Diepte | 244 mm |
Hoogte | 35 mm |
Meegeleverde kabels | SATA |
|---|---|
Batterijen inbegrepen | ✓ |
Meegeleverde drivers | ✓ |
Garantieperiode | 3 jaar |
|---|
