Key Features
Supports Intel® Core™ Ultra processors (Series 2)
Hybrid 8+1+2 phases VRM solution
D5 Bionic Corsa for Infinite Memory Performance
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
EZ-Latch : PCIe x16 Slot with Quick Release Design
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
M.2 Thermal Guard : To Ensure M.2 SSD Performance
Fast Networking : 2.5GbE LAN
Extended Connectivity : DisplayPort, HDMI

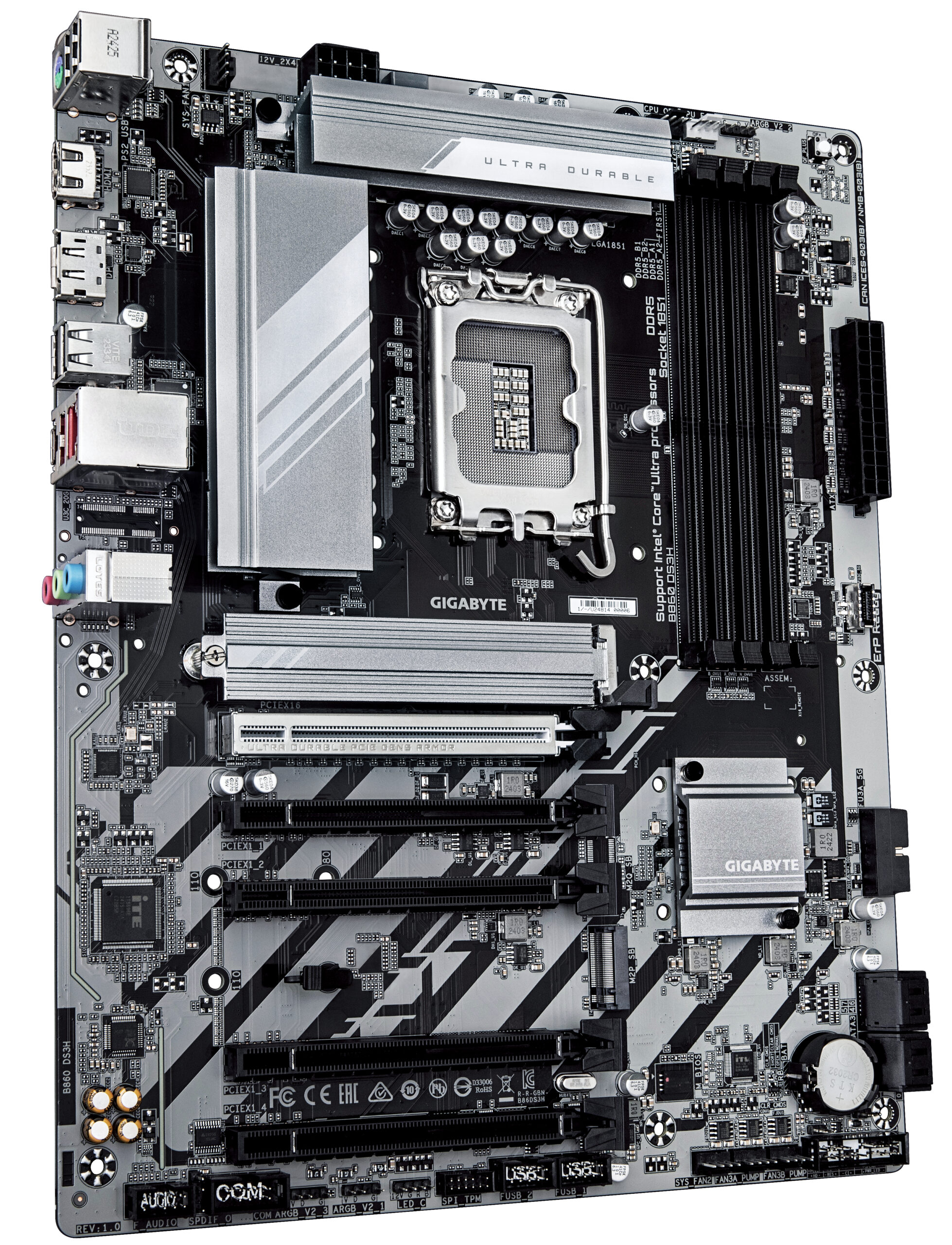

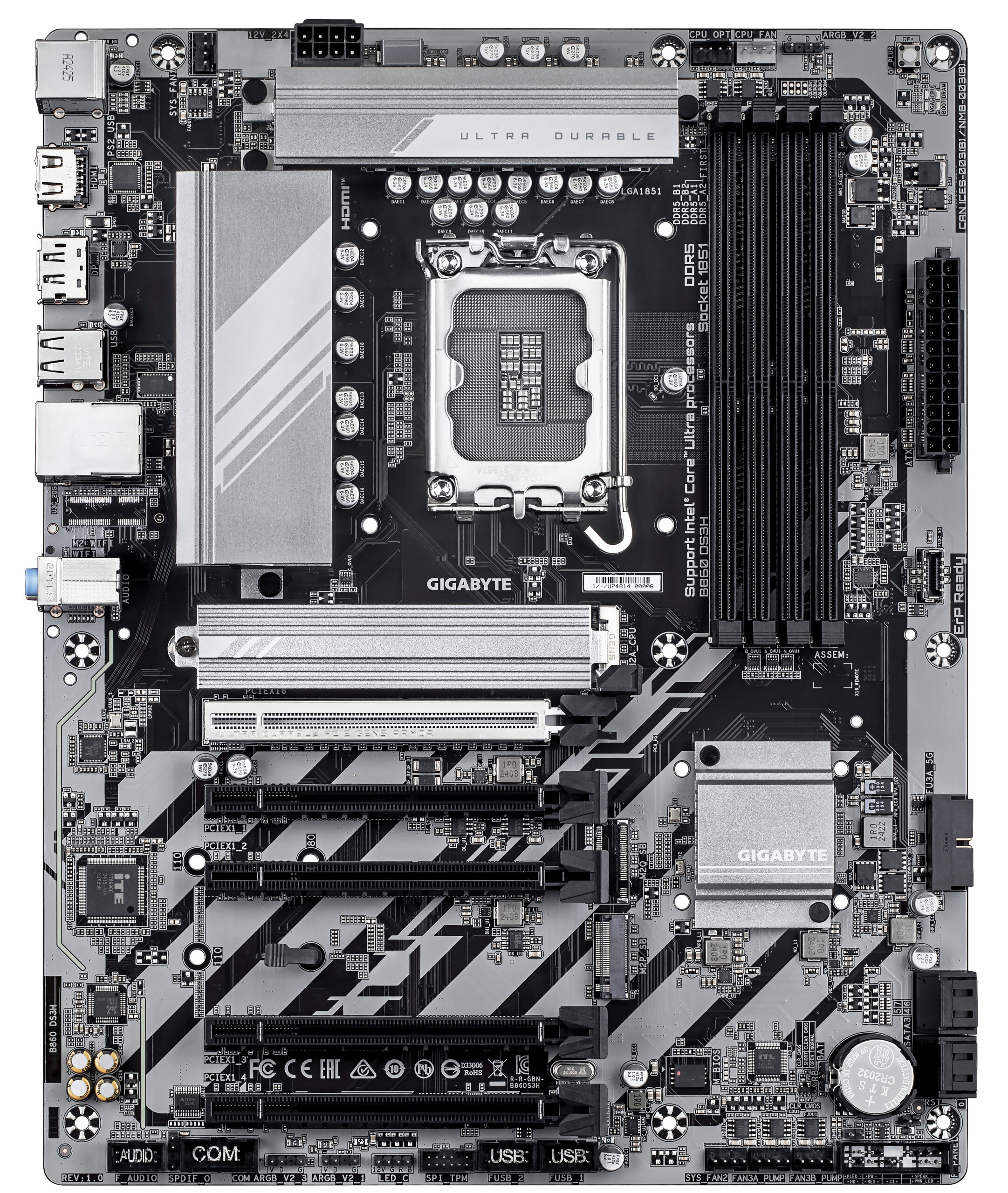

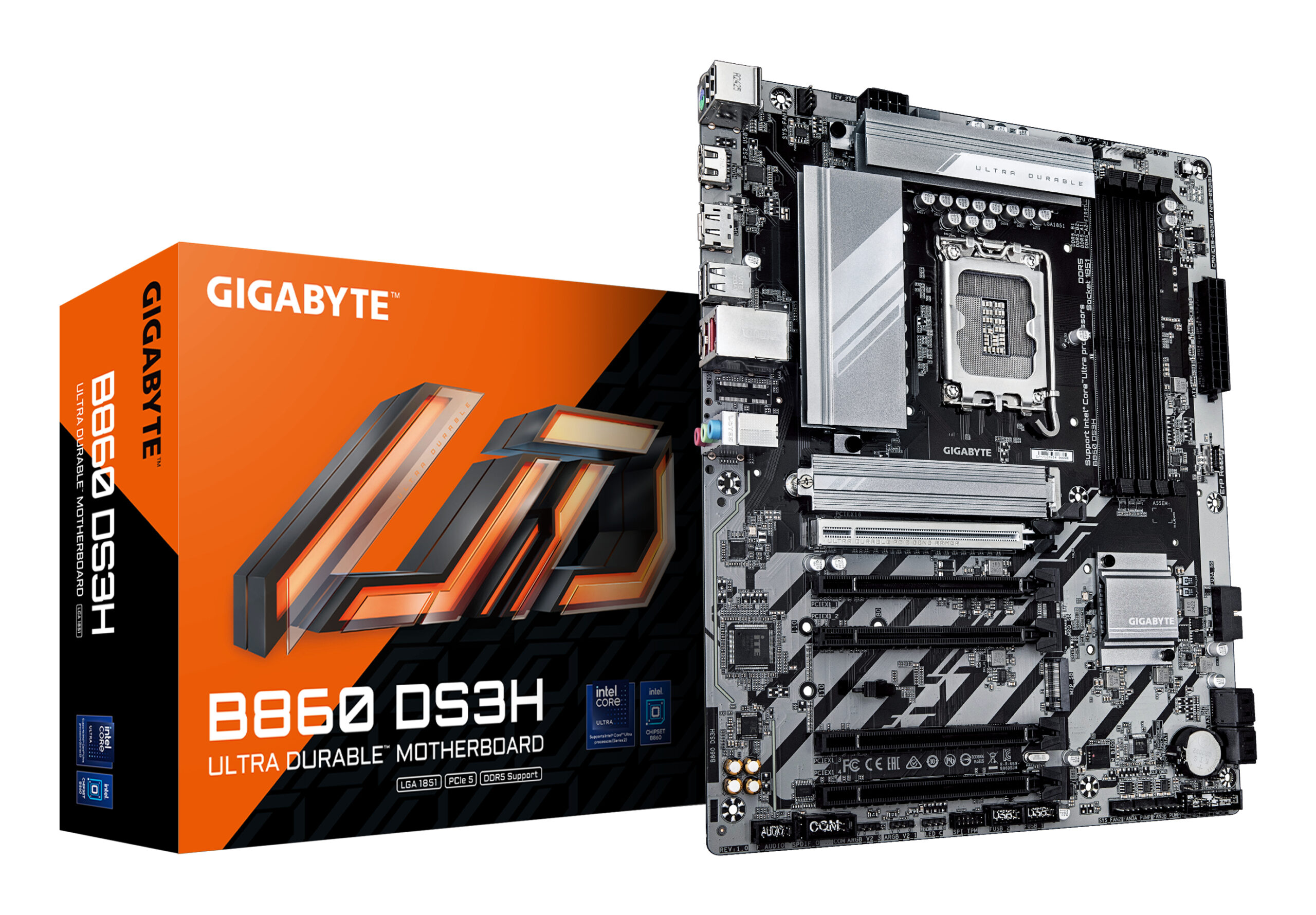

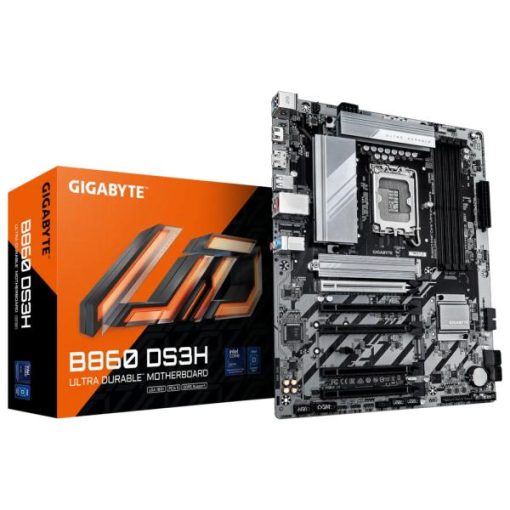

Gigabyte B860 DS3H, ATX, Intel LGA1851, Intel B860, 4x DDR5 9066 O.C, 2.5 GbE, USB Type-C
€152,99 incl. BTW
GTIN: 4719331868178
Categorie: Moederborden
Sub categorie: Intel S1851
Beschikbaar via nabestelling
Additional information
| Merk | Gigabyte |
|---|---|
| GTIN | 4719331868178 |
| Fabrikant code | B860 DS3H |
| Fabrikant link | https://www.gigabyte.com/eu/Motherboard/B860-DS3H |
| Artikelnummer | 1065668 |
| Thuiskopieheffing |
Processorfabrikant | Intel |
|---|---|
Processor socket | LGA 1851 (Socket V1) |
Compatibele processors | Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2) |
Supported processor sockets | LGA 1851 |
Ondersteunde geheugen types | DDR5-SDRAM |
|---|---|
Aantal geheugenslots | 4 |
Geheugen slots type | DIMM |
Geheugen kanaal | Dubbelkanaals |
ECC-compatibiliteit | ECC & Niet-ECC |
Supported memory clock speeds | 5600,6400,9066 MHz |
Ondersteunde geheugenkloksnelheid (max) | 9066 MHz |
Maximum intern geheugen | 256 GB |
Niet gebufferd geheugen | ✓ |
Maximaal intern geheugen per slot | 64 GB |
Ondersteunde types opslag-drives | HDD & SSD |
|---|---|
Ondersteunde opslagstationinterfaces | M.2, SATA III |
Maximum aantal HDD's per behuizing | 4 |
Aantal storage drives ondersteund | 6 |
RAID support | ✓ |
Soorten RAID | 0, 1, 5, 10 |
Ondersteuning voor parallel processing | Niet ondersteund |
|---|---|
Maximum resolutie | 4096 x 2160 Pixels |
HDCP | ✓ |
DirectX versie | 12.0 |
USB 2.0 aansluitingen | 2 |
|---|---|
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 2 |
Aantal SATA III connectors | 4 |
S/PDIF uitgang | ✓ |
Aansluiting voor audiopaneel aan voorzijde | ✓ |
Voorpaneel-connector | ✓ |
ATX Power connector (24-pin) | ✓ |
Aansluiting voor CPU koeler | ✓ |
Aantal CPU-ventilatoraansluitingen | 2 |
Aansluitingen voor behuizingsventilatoren | 4 |
EPS power connector (8-pin) | ✓ |
Aantal EPS-voedingsaansluitingen (8-pins) | 1 |
TPM connector | ✓ |
Serial port headers | 1 |
Aantal waterpompaansluitingen | 3 |
RGB LED-aansluitrail | ✓ |
Aantal RGB LED-pinheaders | 4 |
Aantal USB 2.0-poorten | 4 |
|---|---|
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 1 |
Aantal USB 3.2 Gen 2.2 Type-C-poorten | 1 |
Aantal Ethernet LAN (RJ-45)-poorten | 1 |
PS/2 poort(en) | 1 |
Aantal HDMI-poorten | 1 |
HDMI versie | 2.1 |
Aantal DisplayPorts | 1 |
DisplayPort versie | 2.1 |
Hoofdtelefoonuitgangen | 1 |
Lijningang | ✓ |
Microfoon, line-in ingang | ✓ |
Ethernet LAN | ✓ |
|---|---|
Ethernet interface type | 2.5 Gigabit Ethernet |
LAN controller | Realtek RTL8125 |
Wifi | ✕ |
Chipset moederbord | Intel B860 |
|---|---|
Audiochip | Realtek ALC897 |
Audio-uitgangskanalen | 7.1 kanalen |
Kleur van het product | Donkerbruin |
PC gezondheids monitor | Ventilator, Temperatuur, Spanning, Water cooling |
Component voor | PC |
Moederbord form factor | ATX |
Moederbord chipset familie | Intel |
Type koeling | Passief |
Type stroombron | ATX |
Ondersteunt Windows | Windows 10 x64, Windows 11 x64 |
PCI Express x16 (Gen 4.x) sleuven | 4 |
|---|---|
PCI Express x16 (Gen 5.x) sleuven | 1 |
Aantal M.2 (M) slots | 2 |
1e M.2 grootste sleutelgrootte | 25110 |
1e M.2 hoogste PCI Express-generatie | 5.0 |
2e M.2 grootste sleutelgrootte | 25110 |
2e M.2 hoogste PCI Express-generatie | 4.0 |
BIOS type | UEFI AMI |
|---|---|
Grootte BIOS-geheugen | 256 Mbit |
ACPI version | 5.0 |
Clear CMOS jumper | ✓ |
Versie Desktop Management Interface (DMI) | 2.7 |
Systeem Management BIOS (SMBIOS) versie | 2.7 |
Land van herkomst | China |
|---|---|
Producten per (binnenste) verzendverpakking | 1 stuk(s) |
Gewicht batterij | 3 g |
|---|---|
Lithiumgewicht per batterij | 0,07 g |
Aantal batterijcellen | 1 |
Batterijtechnologie | Lithium-Manganese Dioxide (LiMnO2) |
Type batterij | CR2032 |
Breedte verpakking | 335 mm |
|---|---|
Diepte verpakking | 270 mm |
Hoogte verpakking | 80 mm |
Breedte | 305 mm |
|---|---|
Diepte | 244 mm |
Hoogte | 35 mm |
Batterijen inbegrepen | ✓ |
|---|---|
Inclusief schroeven | ✓ |
Meegeleverde software | Norton® Internet Security (OEM version) LAN bandwidth management software |
Gewicht | 2 kg |
|---|
Garantieperiode | 3 jaar |
|---|
