Key Features
Supports Intel® Core™ Ultra processors (Series 2)
VisionLINK/TB : One USB-C® Port for Video, Data Transfer and Charging
Ultimate Scalibility : 2*PCIe x16 slots for Multi-GPU
Extended Connectivity : THUNDERBOLT™ 4 Type-C®with DP-Alt, HDMI
Ultra-Fast Storage : 5*M.2 slots, including 1* PCIe 5.0 x4
Blazing Fast Networks : Daul 2.5 GbE LAN and Wi-Fi 7 with directional Ultra-high gain antenna
Digital twin 16+1+2 phases VRM solution
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click : M.2 heatsinks with screwless design
Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
D5 Bionic Corsa for Infinite Memory Performance
AORUS AI SNATCH : Auto-Overclocking Software by AI models
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
Premium Compatibility : 4*DDR5 with XMP Memory Module Support
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L
High-Res Audio : ALC1220 & WIMA Audiophile Grade Capacitors
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability

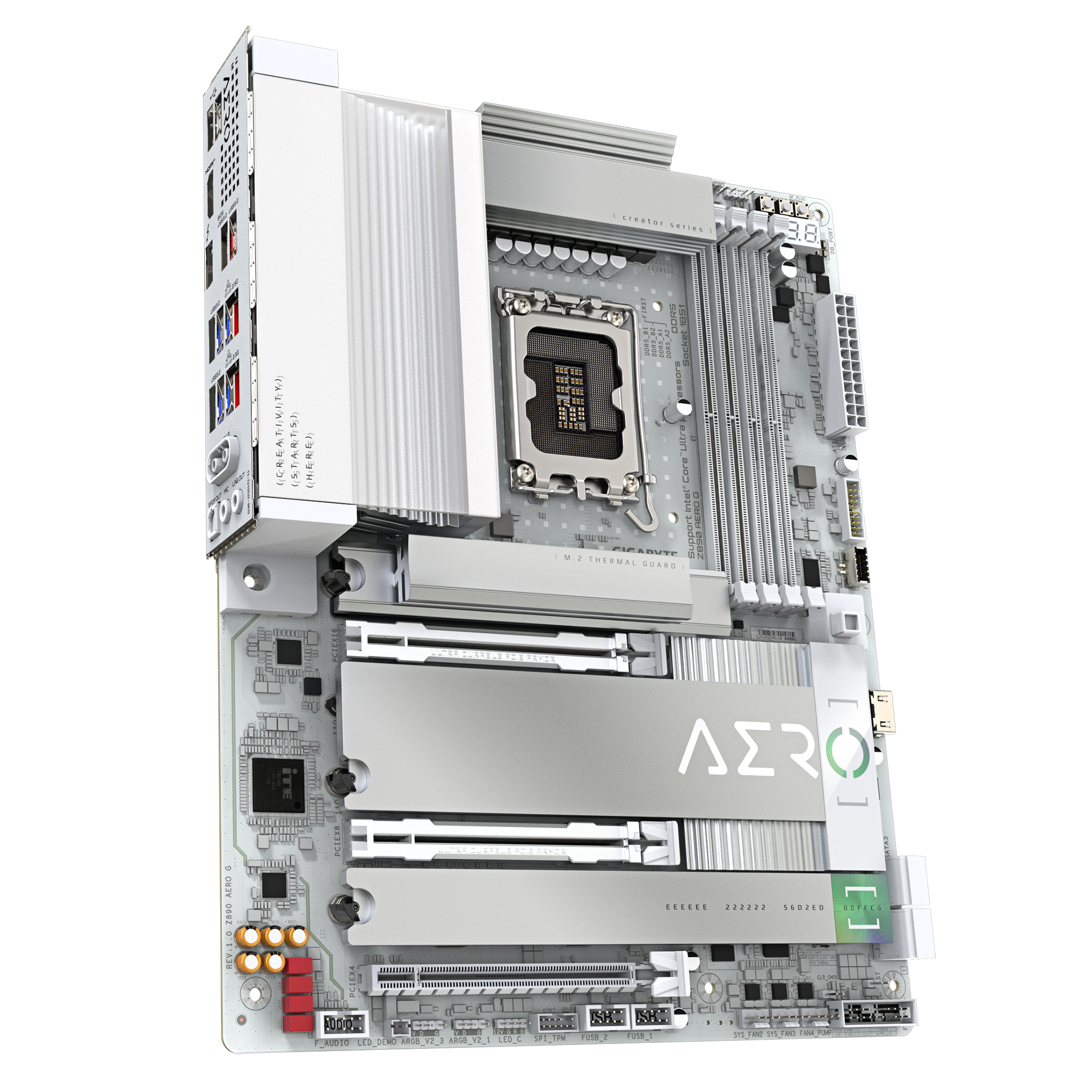

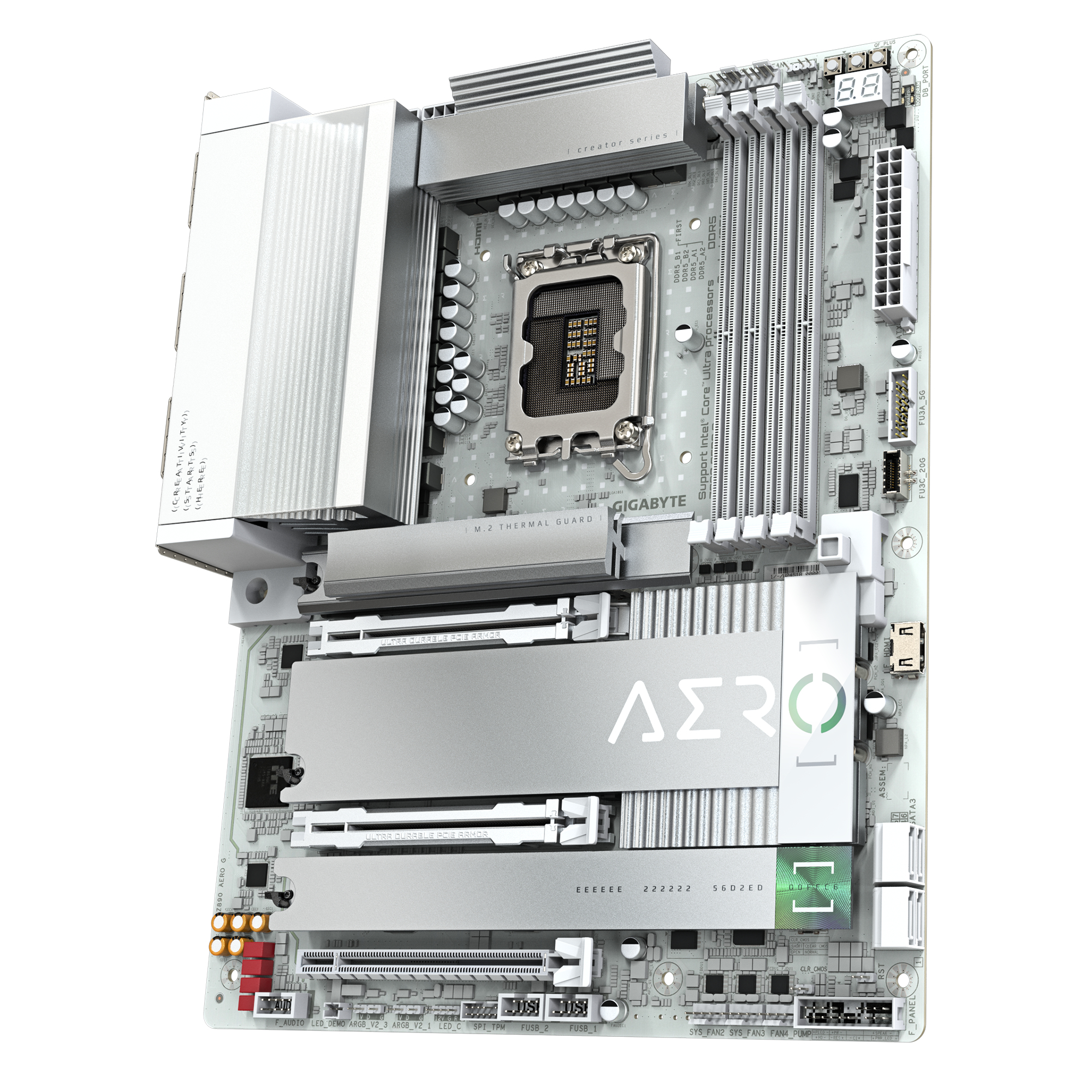

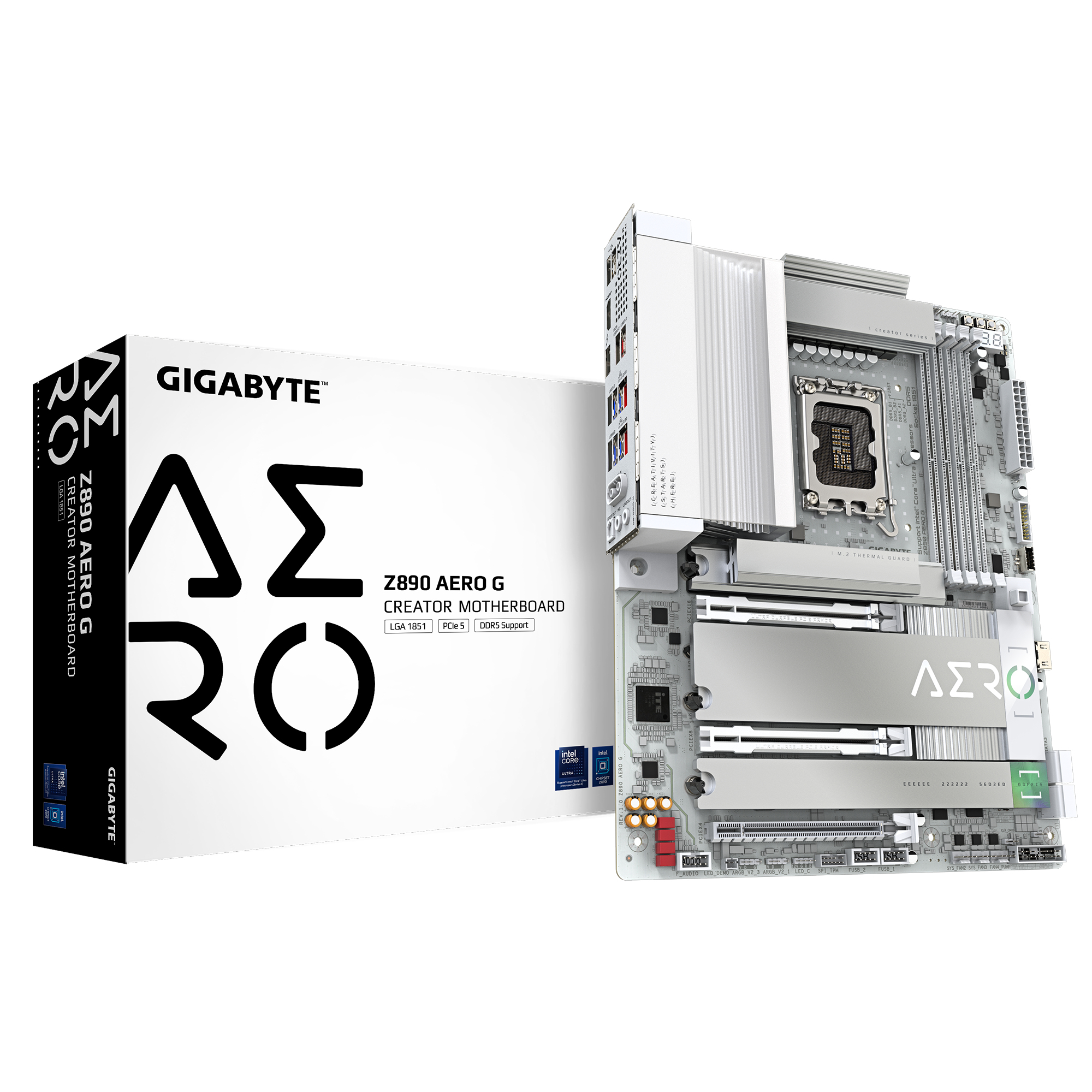

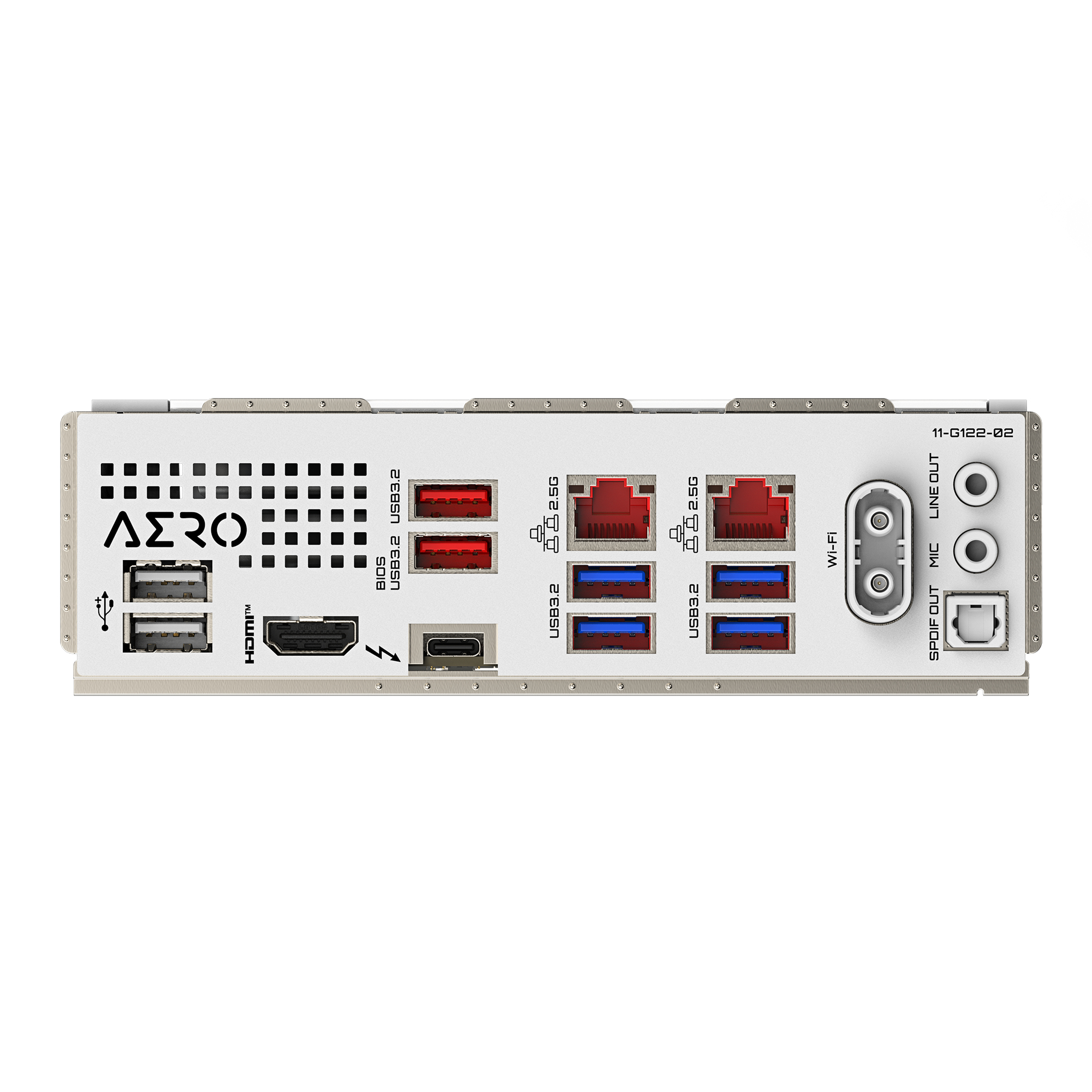

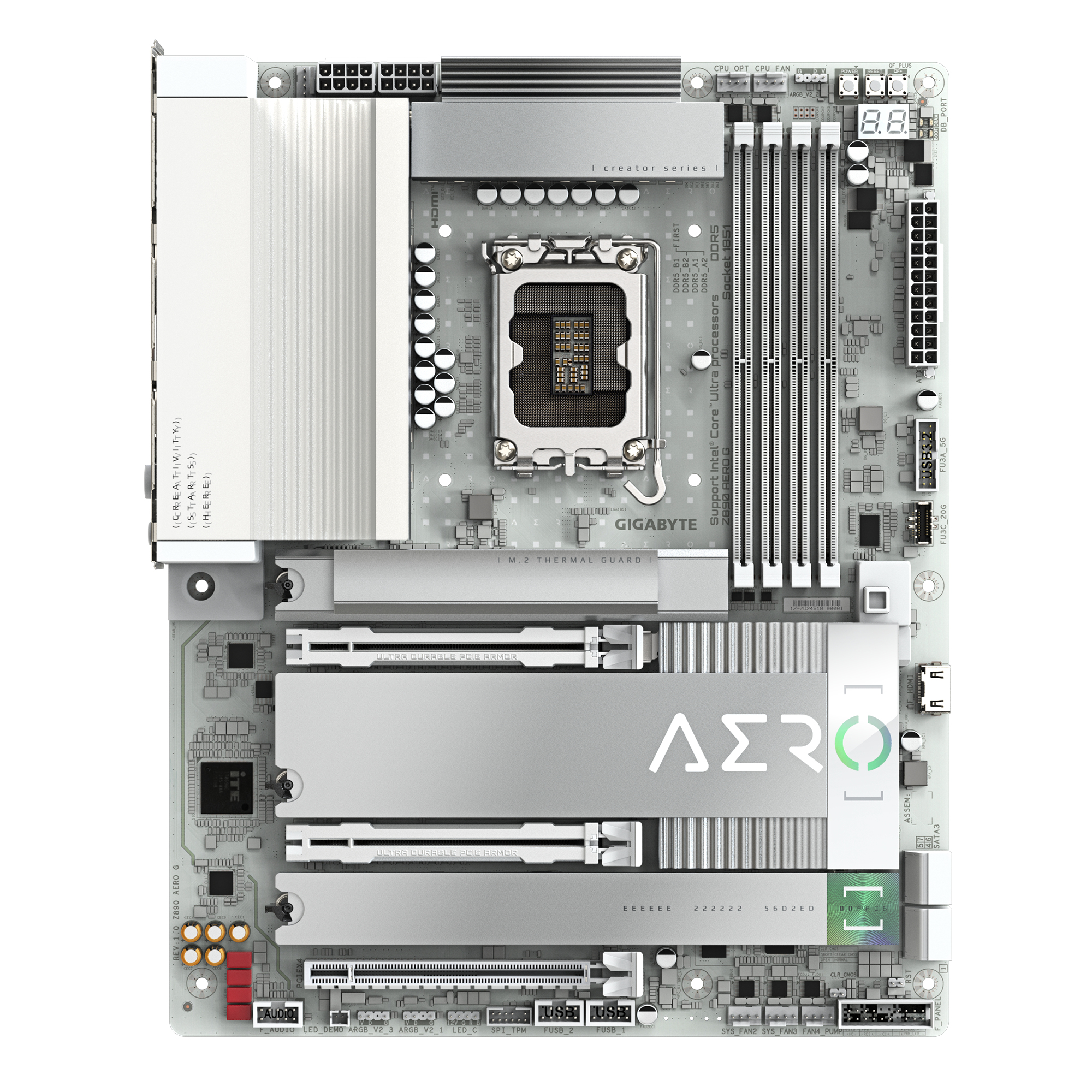

Gigabyte Z890 AERO G, ATX, LGA1851, Intel® Core™ Ultra, 4x DDR5, 2.5 Gbe x2, Wi-Fi 7, USB4, White
€342,99 incl. BTW
GTIN: 4719331865139
Categorie: Moederborden
Sub categorie: Intel S1851
Beschikbaar via nabestelling
Additional information
| Merk | Gigabyte |
|---|---|
| GTIN | 4719331865139 |
| Fabrikant code | Z890 AERO G |
| Fabrikant link | https://www.gigabyte.com/Motherboard/Z890-AERO-G |
| Artikelnummer | 1065454 |
| Thuiskopieheffing |
Processorfabrikant | Intel |
|---|---|
Processor socket | LGA 1851 (Socket V1) |
Compatibele processors | Intel Core Ultra (Series 2) |
Supported processor sockets | LGA 1851 |
Ondersteunde geheugen types | DDR5-SDRAM |
|---|---|
Aantal geheugenslots | 4 |
Geheugen slots type | DIMM |
Geheugen kanaal | Dubbelkanaals |
ECC-compatibiliteit | Niet-ECC |
Supported memory clock speeds | 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800 MHz |
Ondersteunde geheugenkloksnelheid (max) | 8800 MHz |
Maximum intern geheugen | 256 GB |
Ondersteunde geheugenmodule capaciteiten | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB |
Ondersteunde types opslag-drives | HDD & SSD |
|---|---|
Ondersteunde opslagstationinterfaces | M.2, SATA III |
Maximum aantal HDD's per behuizing | 9 |
Aantal storage drives ondersteund | 4 |
RAID support | ✓ |
Soorten RAID | 0, 1, 5, 10 |
DirectX versie | 12.0 |
|---|
USB 2.0 aansluitingen | 2 |
|---|---|
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 |
USB 3.2 Gen 2x2-aansluitingen | 1 |
Aantal SATA III connectors | 4 |
Totaal aantal SATA-connectoren | 4 |
ATX Power connector (24-pin) | ✓ |
EPS power connector (8-pin) | ✓ |
TPM connector | ✓ |
12V vermogen-connector | ✓ |
RGB LED-aansluitrail | ✓ |
Aantal USB 2.0-poorten | 2 |
|---|---|
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 4 |
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 2 |
Aantal Ethernet LAN (RJ-45)-poorten | 1 |
Aantal HDMI-poorten | 1 |
Aantal DisplayPorts | 2 |
Microfoon, line-in ingang | ✓ |
S/PDIF-uitgang | ✓ |
Hoeveelheid Thunderbolt ports | 1 |
Ethernet LAN | ✓ |
|---|---|
Ethernet interface type | 2.5 Gigabit Ethernet |
Wifi | ✓ |
Wifi-standaard | Wi-Fi 7 (802.11be) |
Wi-Fi-standaarden | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
WLAN-controller-model | Intel Wi-Fi 7 BE202 |
Bluetooth | ✓ |
Bluetooth-versie | 5.4 |
Chipset moederbord | Intel Z890 Express |
|---|---|
Audiochip | Realtek ALC1220 |
Audio-uitgangskanalen | 7.1 kanalen |
Kleur van het product | Wit |
PC gezondheids monitor | Ventilator, Temperatuur, Spanning |
Component voor | PC |
Moederbord form factor | ATX |
Moederbord chipset familie | Intel |
Aantal M.2 (M) slots | 5 |
|---|
BIOS type | UEFI AMI |
|---|---|
Grootte BIOS-geheugen | 256 Mbit |
ACPI version | 5.0 |
Clear CMOS jumper | ✓ |
Clear CMOS knop | ✓ |
Versie Desktop Management Interface (DMI) | 2.7 |
Systeem Management BIOS (SMBIOS) versie | 2.7 |
Land van herkomst | China |
|---|---|
Producten per (binnenste) verzendverpakking | 1 stuk(s) |
Gewicht batterij | 3 g |
|---|---|
Lithiumgewicht per batterij | 0,07 g |
Aantal batterijcellen | 1 |
Batterijtechnologie | Lithium-Manganese Dioxide (LiMnO2) |
Type batterij | CR2032 |
Breedte verpakking | 335 mm |
|---|---|
Diepte verpakking | 270 mm |
Hoogte verpakking | 80 mm |
Gewicht verpakking | 2,61 kg |
Breedte | 305 mm |
|---|---|
Diepte | 244 mm |
Hoogte | 35 mm |
Batterijen inbegrepen | ✓ |
|---|---|
Meegeleverde software | Norton® Internet Security (OEM version) LAN bandwidth management software |
Gewicht | 2,29 kg |
|---|
Garantieperiode | 3 jaar |
|---|
