Key Features
Supports Intel® Core™ Ultra processors (Series 2)
Digital 8+1+2 phases VRM solution
D5 Bionic Corsa : for Infinite Memory Performance
AORUS AI SNATCH : Auto-Overclocking Software by AI models
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
Premium Compatibility : 4*DDR5 with XMP Memory Module Support
PCIe EZ-Latch : PCIe slots with Quick Release & Screwless Design
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
Fast Networking : 2.5GbE LAN
Extended Connectivity : HDMI, DisplayPort

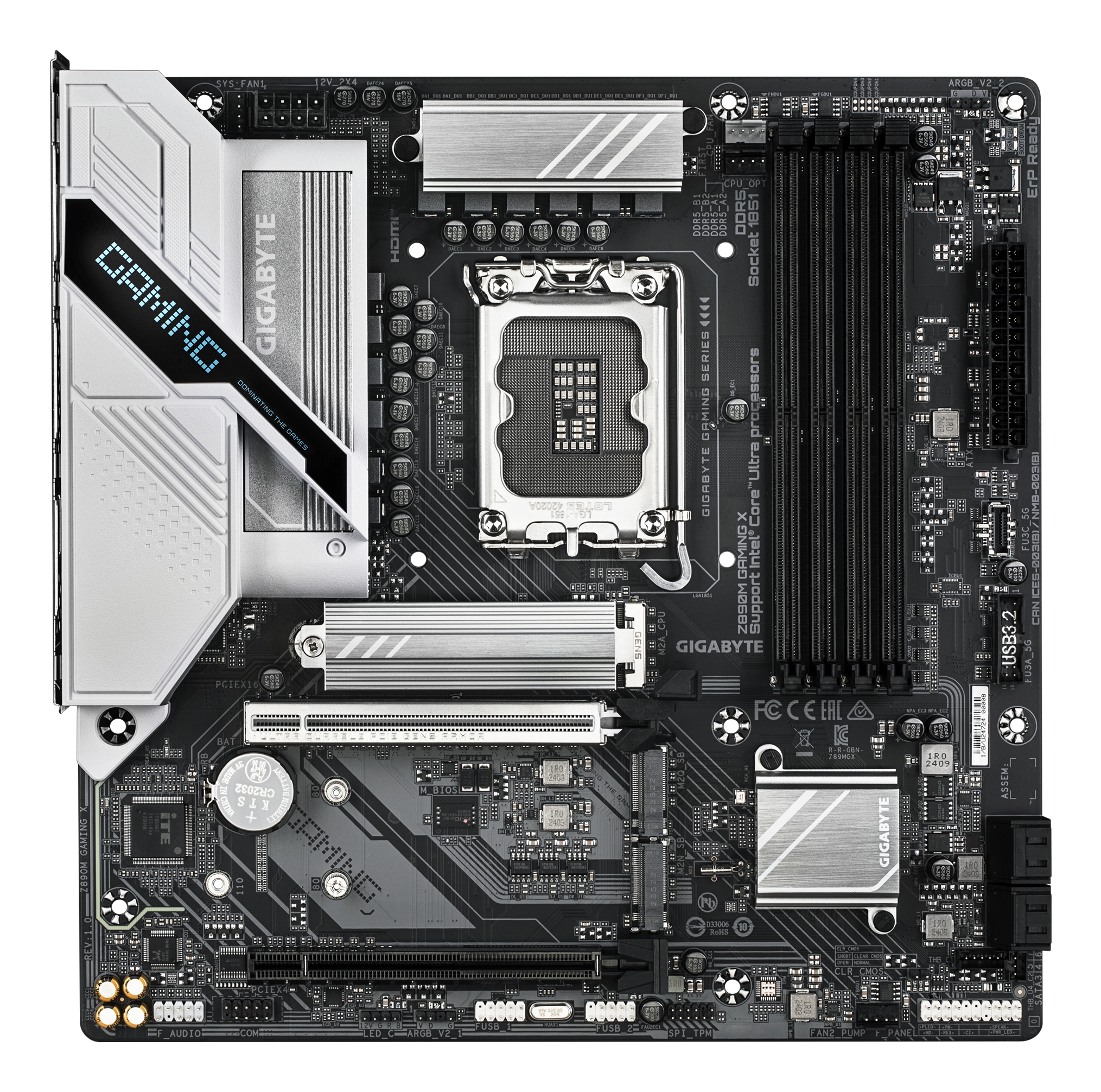

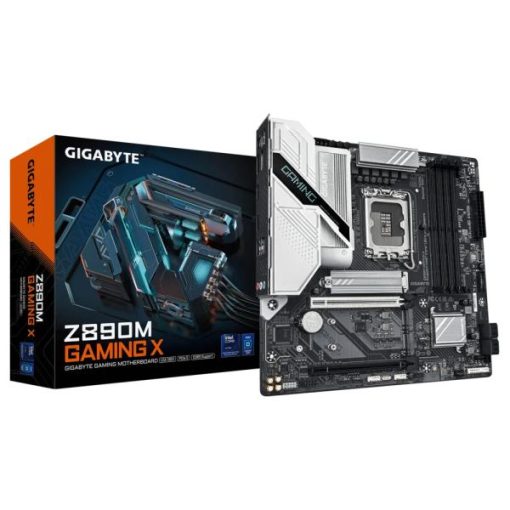

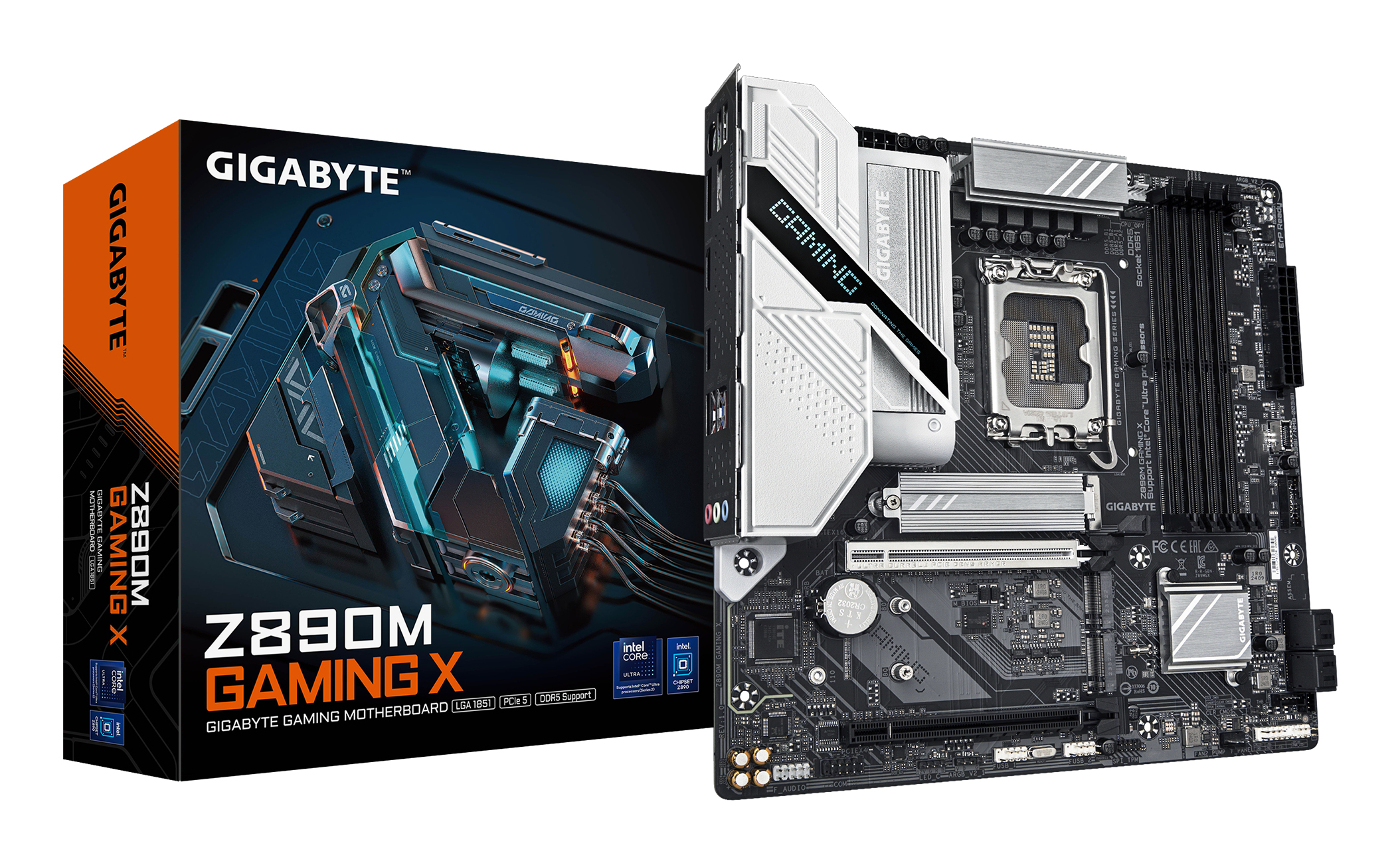

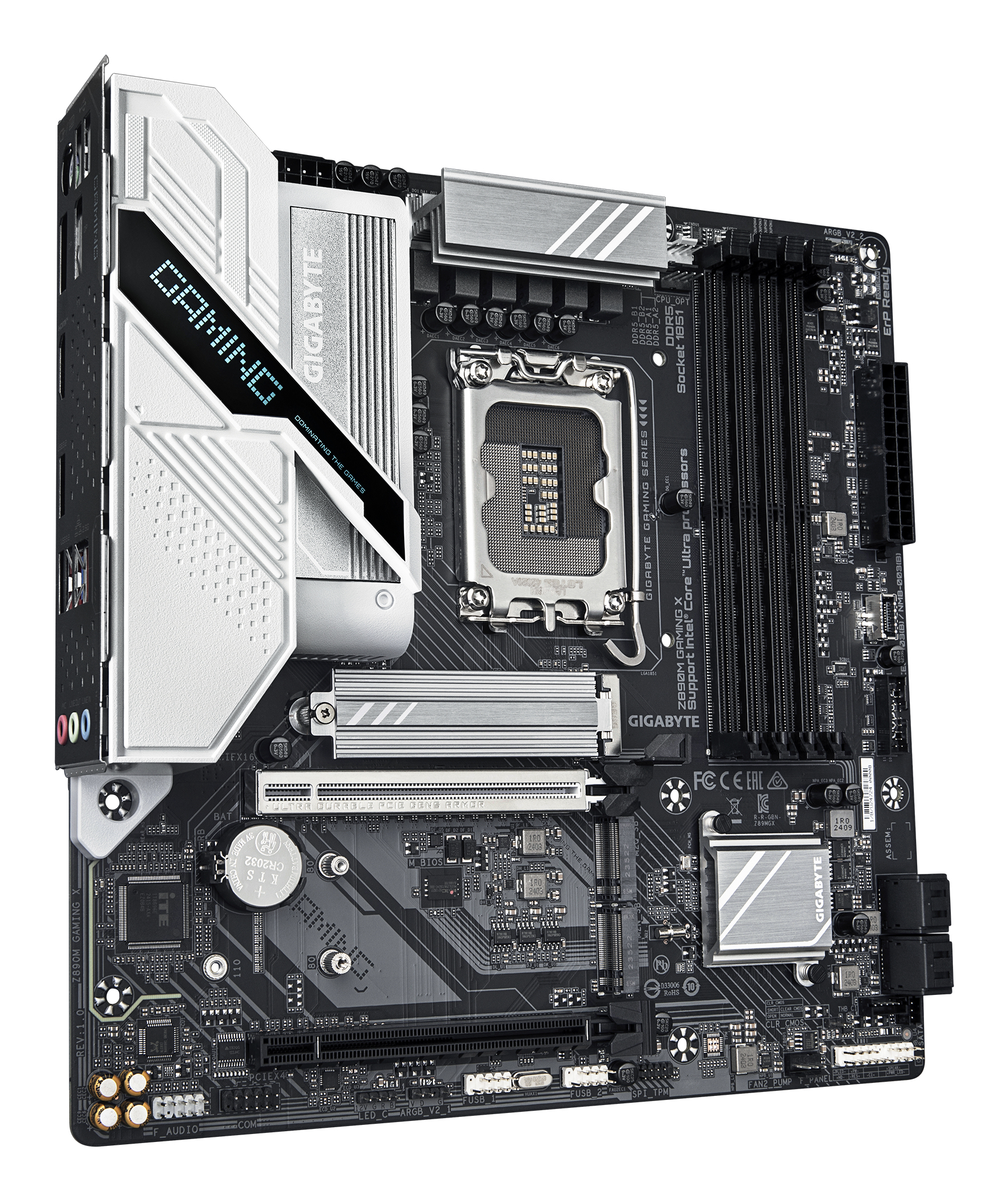

Gigabyte Z890M GAMING X, mATX, LGA1851, Intel® Core™ Ultra, 4x DDR5, 2.5 Gbe, USB 4, BT 5
€183,99 incl. BTW
GTIN: 4719331865160
Categorie: Moederborden
Sub categorie: Intel S1851
Beschikbaar via nabestelling
Additional information
| Merk | Gigabyte |
|---|---|
| GTIN | 4719331865160 |
| Fabrikant code | Z890M GAMING X |
| Fabrikant link | https://www.gigabyte.com/Motherboard/Z890M-GAMING-X |
| Artikelnummer | 1065464 |
| Thuiskopieheffing |
Processorfabrikant | Intel |
|---|---|
Processor socket | LGA 1851 (Socket V1) |
Compatibele processors | Intel Core Ultra (Series 2) |
Supported processor sockets | LGA 1851 |
Maximaal intern geheugen ondersteund door processor | 256 GB |
Ondersteunde geheugen types | DDR5-SDRAM |
|---|---|
Aantal geheugenslots | 4 |
Geheugen slots type | DIMM |
Geheugen kanaal | Dubbelkanaals |
ECC-compatibiliteit | Niet-ECC |
Supported memory clock speeds | 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600 MHz |
Ondersteunde geheugenkloksnelheid (max) | 8800 MHz |
Maximum intern geheugen | 256 GB |
Ondersteunde geheugenmodule capaciteiten | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB |
Ondersteunde types opslag-drives | HDD & SSD |
|---|---|
Ondersteunde opslagstationinterfaces | M.2, SATA III |
Maximum aantal HDD's per behuizing | 7 |
Aantal storage drives ondersteund | 4 |
RAID support | ✓ |
Soorten RAID | 0, 1, 5, 10 |
DirectX versie | 12.0 |
|---|
USB 2.0 aansluitingen | 2 |
|---|---|
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 |
USB 3.2-connectoren (3.1 Gen 2) | 1 |
Aantal SATA III connectors | 4 |
Totaal aantal SATA-connectoren | 4 |
ATX Power connector (24-pin) | ✓ |
EPS power connector (8-pin) | ✓ |
TPM connector | ✓ |
12V vermogen-connector | ✓ |
RGB LED-aansluitrail | ✓ |

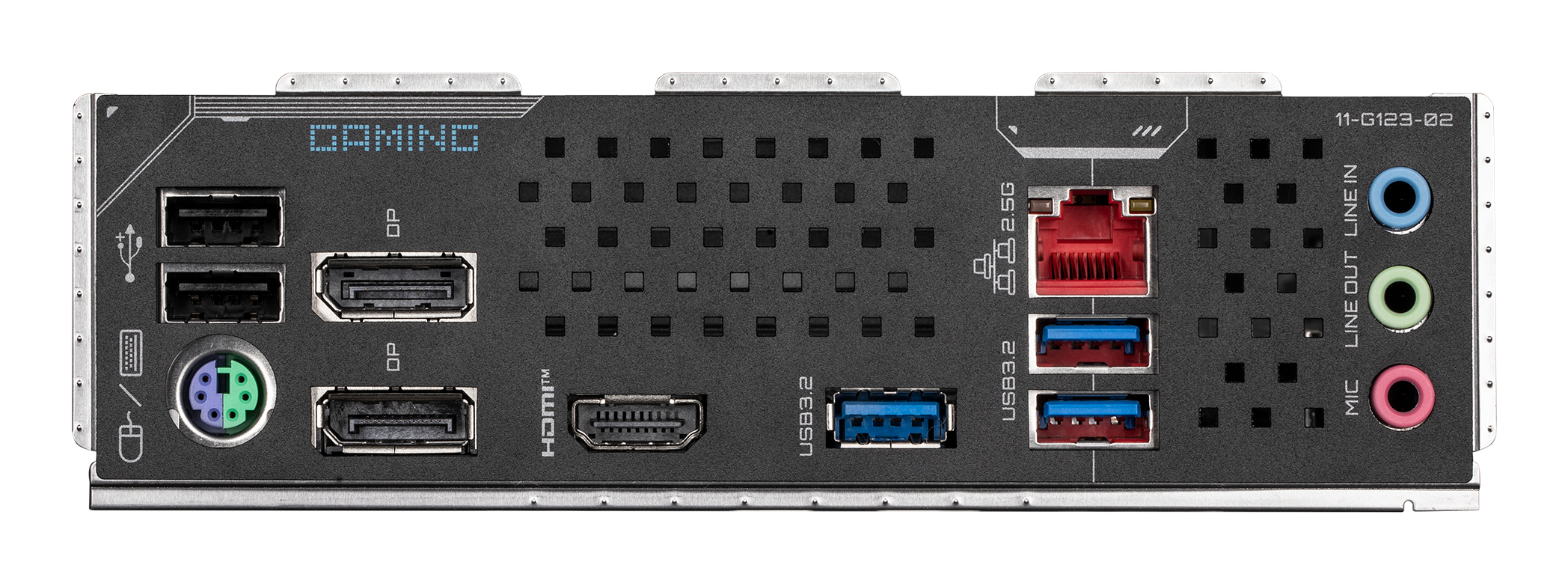

Aantal USB 2.0-poorten | 2 |
|---|---|
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 3 |
Aantal Ethernet LAN (RJ-45)-poorten | 1 |
Aantal HDMI-poorten | 1 |
Aantal DisplayPorts | 2 |
Microfoon, line-in ingang | ✓ |
S/PDIF-uitgang | ✓ |
Ethernet LAN | ✓ |
|---|---|
Ethernet interface type | 2.5 Gigabit Ethernet |
Wifi | ✕ |
Chipset moederbord | Intel Z890 |
|---|---|
Audio-uitgangskanalen | 7.1 kanalen |
Kleur van het product | Zwart |
PC gezondheids monitor | Ventilator, Temperatuur, Spanning |
Component voor | PC |
Moederbord form factor | micro ATX |
Moederbord chipset familie | Intel |
Ondersteunt Windows | Windows 10 x64, Windows 11 x64 |
PCI Express x16 slots | 1 |
|---|---|
Aantal M.2 (M) slots | 3 |
BIOS type | UEFI AMI |
|---|---|
Grootte BIOS-geheugen | 256 Mbit |
ACPI version | 5.0 |
Clear CMOS jumper | ✓ |
Clear CMOS knop | ✓ |
Versie Desktop Management Interface (DMI) | 2.7 |
Systeem Management BIOS (SMBIOS) versie | 2.7 |
Land van herkomst | China |
|---|---|
Producten per (binnenste) verzendverpakking | 1 stuk(s) |
Gewicht batterij | 3 g |
|---|---|
Lithiumgewicht per batterij | 0,07 g |
Aantal batterijcellen | 1 |
Batterijtechnologie | Lithium-Manganese Dioxide (LiMnO2) |
Type batterij | CR2032 |
Breedte verpakking | 270 mm |
|---|---|
Diepte verpakking | 268 mm |
Hoogte verpakking | 68 mm |
Gewicht verpakking | 1,22 kg |
Breedte | 244 mm |
|---|---|
Diepte | 244 mm |
Hoogte | 35 mm |
Batterijen inbegrepen | ✓ |
|---|---|
Meegeleverde software | Norton® Internet Security (OEM version) LAN bandwidth management software |
Gewicht | 1,1 kg |
|---|
Garantieperiode | 3 jaar |
|---|
