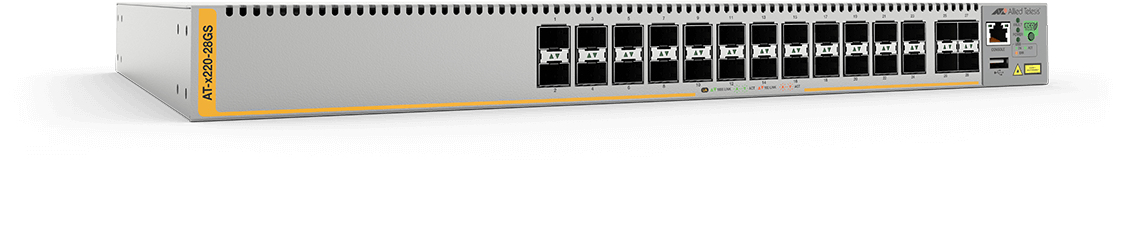

Allied Telesis x220-28GS Managed L3 1U Grijs
€3.322,99 incl. BTW
Allied Telesis x220-28GS, Managed, L3, Full duplex, Rack-montage, 1U
| EAN | 767035212258 |
|---|---|
| Fabrikantcode | x220-28GS |
Incl. wettelijke bijdragen: Recupel €0,07
Uitverkocht
Beschrijving
Allied Telesis x220-28GS. Switch type: Managed, Switch-laag: L3. Aantal USB 2.0-poorten: 1, Console port: RJ-45. Full duplex. MAC-adrestabel: 16000 entries, Switchingcapaciteit: 56 Gbit/s. Netwerkstandaard: IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Netstekker: DC-in ingang. Rack-montage, Vormfactor: 1U
Productgegevens
| SKU | ALT-X220-28GS-50 |
|---|---|
| EAN | 767035212258 |
| Fabrikantcode | x220-28GS |
| Merk | Allied Telesis |
Specificaties
Specificaties
Switch type | Managed |
|---|---|
Switch-laag | L3 |
Quality of Service (QoS) | ✓ |
Web-gebaseerd management | ✓ |
MIB-ondersteuning | ✓ |
Aantal moduleslots SPF | 28 |
Console port | RJ-45 |
Aantal USB 2.0-poorten | 1 |
Netstekker | DC-in ingang |
Netwerkstandaard | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
10G support | ✕ |
Port mirroring | ✓ |
Full duplex | ✓ |
IP routing | ✓ |
Datastroombeheer | ✓ |
Verbindingsaggregatie | ✓ |
Broadcast stormbeheer | ✓ |
Spanning tree protocol | ✓ |
VLAN=ondersteuning | ✓ |
Virtuele LAN-functies | Multicast VLAN, Private VLAN, Voice VLAN, Policy-based VLAN, Port-based VLAN |
Aantal VLANs | 4094 |
MAC-adrestabel | 16000 entries |
Switchingcapaciteit | 56 Gbit/s |
Verzending snelheid | 41,7 Mpps |
Latentie (10-100 Mbps) | 6,9 µs |
Latentie (1 Gbps) | 3,7 µs |
Statische route | ✓ |
Jumbo Frames ondersteuning | ✓ |
Packet buffergeheugen | 1,5 MB |
DHCP-functies | DHCP snooping, DHCP client |
Access Control List (ACL) | ✓ |
IGMP snooping | ✓ |
Ondersteunde beveiligingsalgoritmen | 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SHA-2, SHA-256, SNMP, SSH, SSH-2, SSL/TLS |
MAC adres filtering | ✓ |
SSH/SSL support | ✓ |
Bescherming lus | ✓ |
BPDU filtering / bescherming | ✓ |
Authenticatie | MAC-gebaseerde authenticatie, Poortgebaseerde authenticatie, Webgebaseerde authenticatie |
Root-bescherming | ✓ |
Wachtwoordbeveiliging | ✓ |
DoS aanval preventie | ✓ |
Authenticatie type | IEEE 802.1x |
Multicast-ondersteuning | ✓ |
Beheerprotocollen | SNMP |
Routing protocols | IP, RIP |
IPv4- & IPv6-functies | IPv6 Telnet |
Rack-montage | ✓ |
Vormfactor | 1U |
Kleur van het product | Grijs |
LED-indicatoren | ✓ |
Type geheugen | DDR-SDRAM |
Intern geheugen | 512 MB |
Flash memory | 128 MB |
Geluidsniveau | 45 dB |
Plug and play | ✓ |
Telnet | ✓ |
sFlow | ✓ |
AC-ingangsspanning | 100 - 240 V |
AC-ingangsfrequentie | 50 - 60 Hz |
Stroom | 0.6 A |
Vermogensverbruik (max) | 75 W |
Power over Ethernet (PoE) | ✕ |
Bedrijfstemperatuur (T-T) | 0 - 50 °C |
Temperatuur bij opslag | -25 - 70 °C |
Relatieve vochtigheid in bedrijf (V-V) | 5 - 90 procent |
Luchtvochtigheid bij opslag | 5 - 95 procent |
Hoogte, in bedrijf | 0 - 3048 m |
Warmtedissipatie | 256 BTU/h |
Breedte | 440 mm |
Diepte | 324 mm |
Hoogte | 44 mm |
Gewicht | 4,3 kg |
Rekbevestigingspakket | ✓ |
Breedte verpakking | 570 mm |
Diepte verpakking | 430 mm |
Hoogte verpakking | 150 mm |
Gewicht verpakking | 6,3 kg |
Code geharmoniseerd systeem (HS) | 85176990 |
