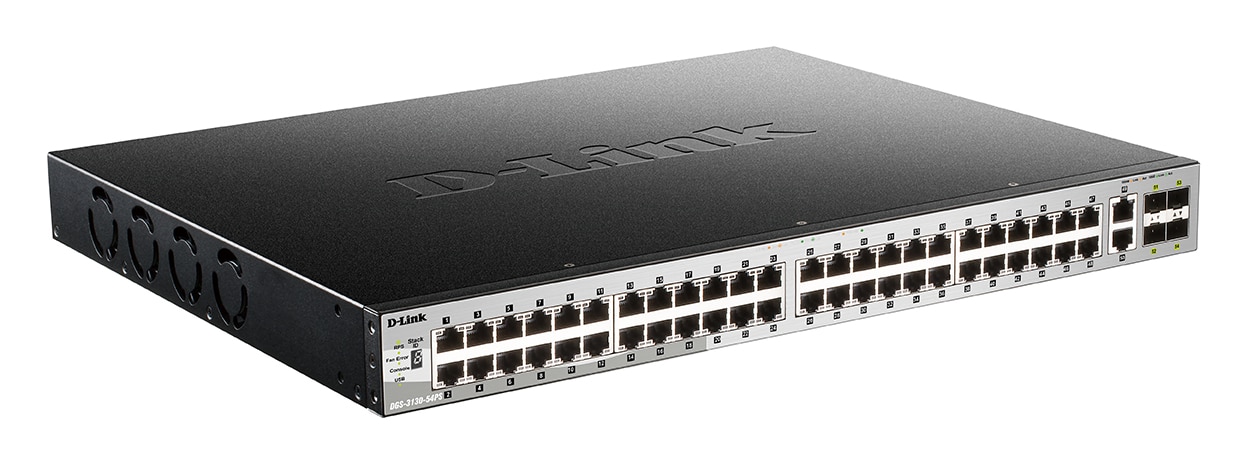

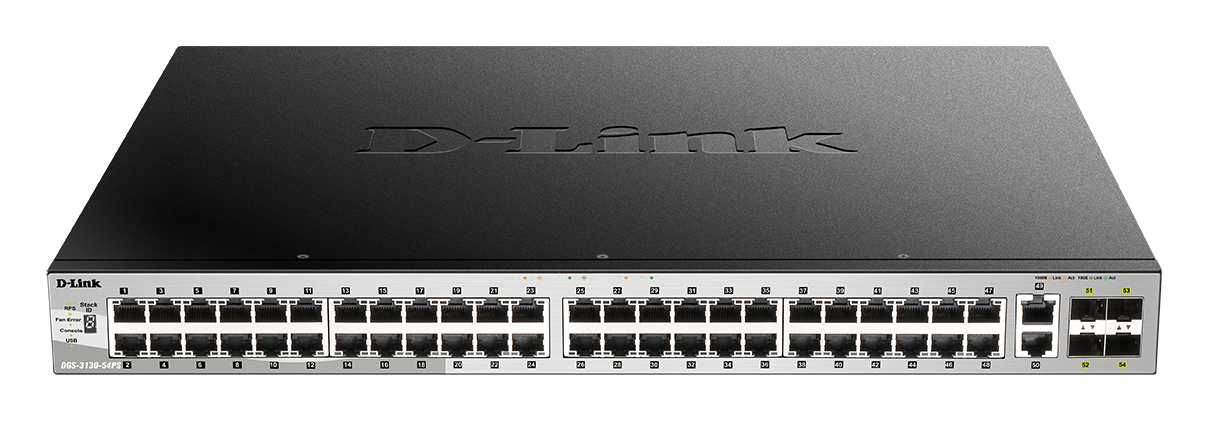

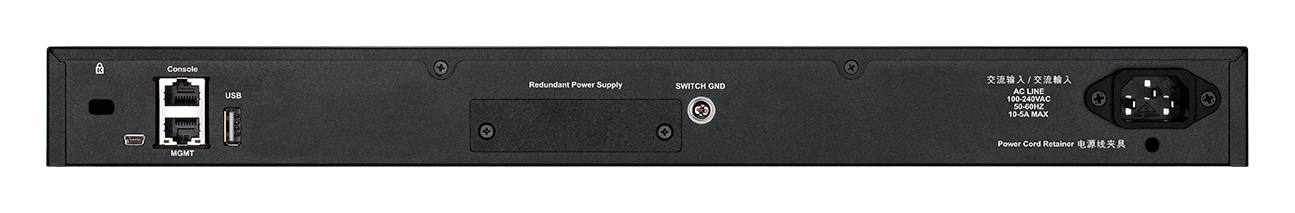

D-Link DGS-3130-54PS/E netwerk-switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grijs
€2.232,99 incl. BTW
D-Link DGS-3130-54PS/E, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage
| EAN | 790069469992 |
|---|---|
| Fabrikantcode | DGS-3130-54PS/E |
Incl. wettelijke bijdragen: Recupel €0,07
Uitverkocht
Beschrijving
D-Link DGS-3130-54PS/E. Switch type: Managed, Switch-laag: L3. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 48, Aantal USB 2.0-poorten: 1, Console port: RJ-45. MAC-adrestabel: 16384 entries, Switchingcapaciteit: 216 Gbit/s. Netwerkstandaard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE.... Netstekker: AC-in-aansluiting. Power over Ethernet (PoE). Rack-montage
Productgegevens
| SKU | DLI-DGS-3130-54PSE |
|---|---|
| EAN | 790069469992 |
| Fabrikantcode | DGS-3130-54PS/E |
| Merk | D-Link |
Specificaties
Specificaties
Switch type | Managed |
|---|---|
Switch-laag | L3 |
Quality of Service (QoS) | ✓ |
Web-gebaseerd management | ✓ |
ARP-inspectie | ✓ |
System event log | ✓ |
MIB-ondersteuning | RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFC 4293; RFC 2737 |
Aantal basis-switching RJ-45 Ethernet-poorten | 48 |
Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
Aantal geïnstalleerde SFP+ modules | 0 |
Aantal moduleslots SPF+ | 4 |
Vezel-optische connector | SFP+ |
Console port | RJ-45 |
Aantal USB 2.0-poorten | 1 |
Netstekker | AC-in-aansluiting |
Netwerkstandaard | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
10G support | ✓ |
Koperen ethernetbekabelingstechnologie | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
Port mirroring | ✓ |
Datastroombeheer | ✓ |
Verbindingsaggregatie | ✓ |
Broadcast stormbeheer | ✓ |
Spanning tree protocol | ✓ |
Head-of-line (HOL) blocking | ✓ |
VLAN=ondersteuning | ✓ |
Virtuele LAN-functies | MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN |
Aantal VLANs | 4000 |
MAC-adrestabel | 16384 entries |
Switchingcapaciteit | 216 Gbit/s |
Verzending snelheid | 161 Mpps |
Aantal wachtrijen | 8 |
Jumbo Frames ondersteuning | ✓ |
Packet buffergeheugen | 2 MB |
DHCP-functies | DHCP client, DHCP relay, DHCP server, DHCP snooping |
Access Control List (ACL) | ✓ |
Toegangsbeheerlijst (ACL) uitgaand | 512 |
Toegangsbeheerlijst (ACL) inkomend | 2048 |
IGMP snooping | ✓ |
Ondersteunde beveiligingsalgoritmen | SNMP, SNMPv3, SSH-2, SSL/TLS |
SSH/SSL support | ✓ |
Bescherming lus | ✓ |
BPDU filtering / bescherming | ✓ |
Authenticatie | MAC-gebaseerde authenticatie, Poortgebaseerde authenticatie, Webgebaseerde authenticatie |
Wachtwoordbeveiliging | ✓ |
Algoritmen wachtrijplanning | Deficit weighted round robin (DWRR), SP, WRR+SP, Weighted Round Robin (WRR) |
Multicast-ondersteuning | ✓ |
Multicast-functies | Beheersbare multicast |
GARP VLAN Registratieprotocol (GVRP) | ✓ |
Routing protocols | RIP |
Rack-montage | ✓ |
Stapelbaar | ✓ |
Kleur van het product | Grijs |
LED-indicatoren | ✓ |
Aantal ventilatoren | 4 ventilator(en) |
Physical stacking (units) | 9 |
Virtual stacking (units) | 32 |
Geluidsniveau | 56 dB |
Mean time between failures (MTBF) | 356876 uur |
Stroombron | DC/PoE |
Redundante voeding | ✓ |
AC-ingangsspanning | 100 - 240 V |
AC-ingangsfrequentie | 50 - 60 Hz |
Vermogensverbruik (max) | 474,51 W |
Power over Ethernet (PoE) | ✓ |
Aantal Power over Ethernet plus (PoE +)-poorten | 48 |
Totaal Power over Ethernet (PoE)-budget | 370 W |
Bedrijfstemperatuur (T-T) | 0 - 50 °C |
Temperatuur bij opslag | -40 - 70 °C |
Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
Luchtvochtigheid bij opslag | 5 - 90 procent |
Warmtedissipatie | 1619,03 BTU/h |
Breedte | 440 mm |
Diepte | 430 mm |
Hoogte | 44 mm |
Gewicht | 6,2 kg |
