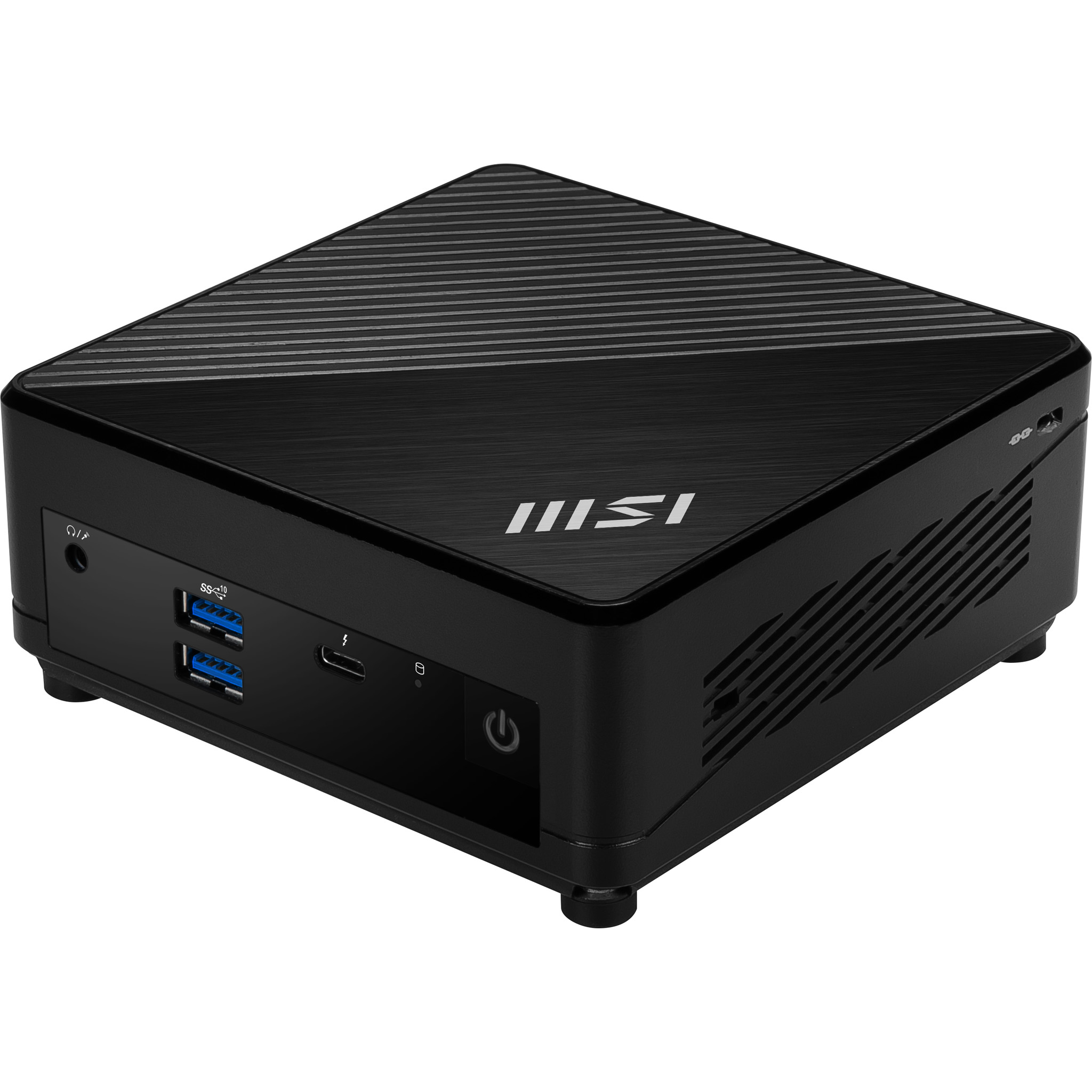

MSI Cubi 5 12M-001BEU 0.66L sized PC Zwart i7-1255U Intel SoC
€445,99 incl. BTW
MSI Cubi 5 12M-001BEU, 0.66L sized PC, Mini PC barebone, Intel SoC, M.2, SATA III, Wi-Fi 6E (802.11ax), 65 W
| EAN | 4711377026086 |
|---|---|
| Fabrikantcode | Cubi 5 12M-001BEU |
10 op voorraad
Beschrijving
MSI Cubi 5 12M-001BEU. Type behuizing: 0.66L sized PC, Type product: Mini PC barebone. Chipset moederbord: Intel SoC. Aantal geheugenslots: 2, Maximum intern geheugen: 64 GB. Ondersteunde types opslag-drives: HDD & SSD, Opslag schijf-interface: M.2, SATA III. Aantal Ethernet LAN (RJ-45)-poorten: 2. Wi-Fi-standaarden: Wi-Fi 6E (802.11ax), Bluetooth-versie: 5.3. Type koeling: Actief. Netvoeding: 65 W
Productgegevens
| SKU | MSI-CUBI512M001BEU |
|---|---|
| EAN | 4711377026086 |
| Fabrikantcode | Cubi 5 12M-001BEU |
| Merk | MSI |
Specificaties
Cubi 5 12M-001BEU
Type processor | ✓ |
|---|---|
Processorfabrikant | Intel |
Processorfamilie | Intel® Core™ i7 |
Processorgeneratie | Intel® 12de generatie Core™ i7 |
Processormodel | i7-1255U |
Aantal processorkernen | 10 |
Processor aantal threads | 12 |
Maximale turbofrequentie van processor | 4,7 GHz |
Prestatiekernen | 2 |
Efficiënte kernen | 8 |
Processor lithografie | 14 nm |
Prestatie-kernboostfrequentie | 4,7 GHz |
Efficiënte kernboostfrequentie | 3,5 GHz |
Processor cache | 12 MB |
Thermal Design Power (TDP) | 15 W |
Geheugen slots type | SO-DIMM |
Aantal geheugenslots | 2 |
Maximum intern geheugen | 64 GB |
Supported memory clock speeds | 3200 MHz |
Geheugen kanaal | Dubbelkanaals |
Ondersteunde types opslag-drives | HDD & SSD |
Opslagschijf afmetingen ondersteund | 2.5,M.2 |
SSD-vormfactor | 2.5" |
Opslag schijf-interface | M.2, SATA III |
NVMe | ✓ |
Aantal storage drives ondersteund | 2 |
Ingebouwde grafische adapter | ✓ |
Grafische adapter-familie | Intel |
On-board graphics adapter model | Intel Iris Xe Graphics |
Aantal displays ondersteund | 3 |
Moederbord form factor | NUC |
Chipset moederbord | Intel SoC |
Aantal ondersteunde processoren | 1 |
Ingebouwde luidsprekers | ✕ |
Ethernet LAN | ✓ |
Wifi | ✓ |
Wifi-standaard | Wi-Fi 6E (802.11ax) |
Wi-Fi-standaarden | Wi-Fi 6E (802.11ax) |
WLAN-controller-model | Intel Wi-Fi 6E AX211 |
LAN controller | Realtek RTL8111H, Realtek RTL8125-BG, Realtek RTL8125-CG |
Bluetooth | ✓ |
Bluetooth-versie | 5.3 |
Aantal USB 2.0-poorten | 0 |
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 0 |
Aantal HDMI-poorten | 1 |
VGA (D-Sub)poort(en) | 0 |
Aantal Ethernet LAN (RJ-45)-poorten | 2 |
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C | 0 |
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 4 |
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 1 |
Mini HDMI ports kwantiteit | 0 |
HDMI versie | 2.0b |
DVI-poort | ✕ |
DVI-D poorten | 0 |
Aantal DisplayPorts | 1 |
Mini DisplayPort kwantiteit | 0 |
DisplayPort versie | 1.4 |
Combo koptelefoon/microfoon port | ✓ |
Aantal Thunderbolt 4-poorten | 1 |
Aansluiting voor netstroomadapter | ✓ |
Aantal M.2 (M) slots | 1 |
Type behuizing | 0.66L sized PC |
Kleur van het product | Zwart |
Type koeling | Actief |
Type product | Mini PC barebone |
Aan/uitschakelaar | ✓ |
LED-indicatoren | ✓ |
VESA-montage | ✓ |
Paneelmontage-interface | 100 x 100 mm |
Certificering | FCC, CB/CE, UL & CUL, VCCI, RCM |
Inclusief besturingssysteem | ✕ |
Soort voeding | Externe AC-adapter |
Netvoeding | 65 W |
Aantal voedingen | 1 |
Bedrijfstemperatuur (T-T) | 0 - 35 °C |
Temperatuur bij opslag | -20 - 60 °C |
Relatieve vochtigheid in bedrijf (V-V) | 0 - 85 procent |
Luchtvochtigheid bij opslag | 0 - 90 procent |
Breedte | 124 mm |
Diepte | 124 mm |
Hoogte | 53,7 mm |
Gewicht | 590 g |
Breedte verpakking | 221 mm |
Diepte verpakking | 506 mm |
Hoogte verpakking | 469 mm |
Gewicht verpakking | 1,33 kg |
Inclusief netsnoer | ✓ |
Inclusief AC-adapter | ✓ |
Snelstartgids | ✓ |
Meegeleverde drivers | ✓ |
Inclusief monitor | ✕ |
Inclusief muis | ✕ |
Toetsenbord inbegrepen | ✕ |
Land van herkomst | China |
Garantieperiode | 2 jaar |
