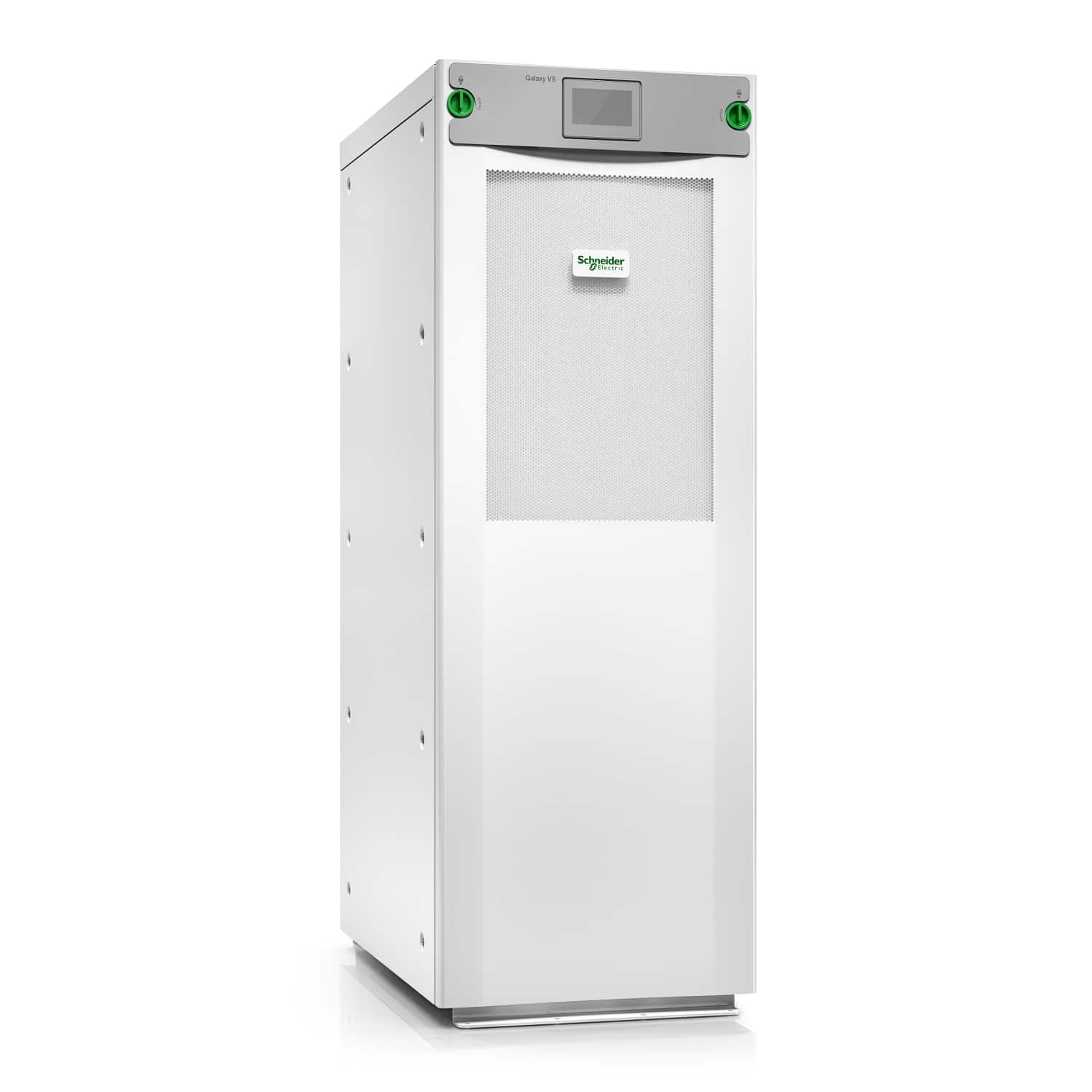

APC Galaxy VS UPS 150kW 400V voor externe accu’s, Start-up 5×8
€30.415,00 incl. BTW
APC Galaxy VS UPS 150kW 400V voor externe accu's, Start-up 5×8, Dubbele conversie (online), 150 kVA, 150000 W, Sinus, 340 V, 460 V
| EAN | 0731304407911 |
|---|---|
| Fabrikantcode | GVSUPS150KHS |
Incl. wettelijke bijdragen: Recupel €0,07
Uitverkocht
Beschrijving
APC Galaxy VS UPS 150kW 400V voor externe accu's, Start-up 5x8. UPS-topologie: Dubbele conversie (online), Output power capacity: 150 kVA, Uitgangsvermogen: 150000 W. Vormfactor: Tower, Kleur van het product: Wit, Type beeldscherm: LCD. Certificering: FCC Part 15 Class A, IEC 62040-1-1, IEC 62040-2, IEC 60721-4-2 Level 2M2, OSHPD, UL 1778 5th.... Breedte: 521 mm, Diepte: 847 mm, Hoogte: 1485 mm. Breedte verpakking: 640 mm, Diepte verpakking: 990 mm, Hoogte verpakking: 1680 mm
Productgegevens
| SKU | APC-GVSUPS150KHS |
|---|---|
| EAN | 0731304407911 |
| Fabrikantcode | GVSUPS150KHS |
| Merk | APC |
Specificaties
Galaxy VS UPS 150kW 400V voor externe accu's, Start-up 5x8
UPS-topologie | Dubbele conversie (online) |
|---|---|
Output power capacity | 150 kVA |
Uitgangsvermogen | 150000 W |
Golfvorm | Sinus |
Ingang operation voltage (min) | 340 V |
Ingang operation voltage (max) | 460 V |
Frequentie | 40/70 Hz |
Uitgang operation voltage (min) | 380 V |
Uitgang operation voltage (max) | 415 V |
Output frequentie | 50/60 Hz |
Stroom (max.) | 270 A |
Aantal input fases | 3 |
Aantal output fases | 3 |
Input vermogensfactor | 0,99 |
Crest factor | 2.5:1 |
ECO mode | ✓ |
Input stroom THD | 3 procent |
Geluidsniveau | 65 dB |
Stroomspanning bescherming | Overbelasting, Kortsluiting |
Geluidsalarm(en) | ✓ |
SmartSlot | ✓ |
SmartConnect-poort | ✕ |
Vormfactor | Tower |
Kleur van het product | Wit |
Type beeldscherm | LCD |
Internationale veiligheidscode (IP) | IP21 |
Bedrijfstemperatuur (T-T) | 0 - 40 °C |
Temperatuur bij opslag | -25 - 55 °C |
Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
Luchtvochtigheid bij opslag | 10 - 80 procent |
Hoogte, in bedrijf | 0 - 1000 m |
Hoogte bij opslag | 0 - 3000 m |
Certificering | FCC Part 15 Class A, IEC 62040-1-1, IEC 62040-2, IEC 60721-4-2 Level 2M2, OSHPD, UL 1778 5th edition, REACH |
Managementkaart inbegrepen | ✓ |
Snelle installatiehandleiding | ✓ |
Breedte | 521 mm |
Diepte | 847 mm |
Hoogte | 1485 mm |
Gewicht | 290 kg |
Breedte verpakking | 640 mm |
Diepte verpakking | 990 mm |
Hoogte verpakking | 1680 mm |
Gewicht verpakking | 315 kg |
Code geharmoniseerd systeem (HS) | 85078000 |
