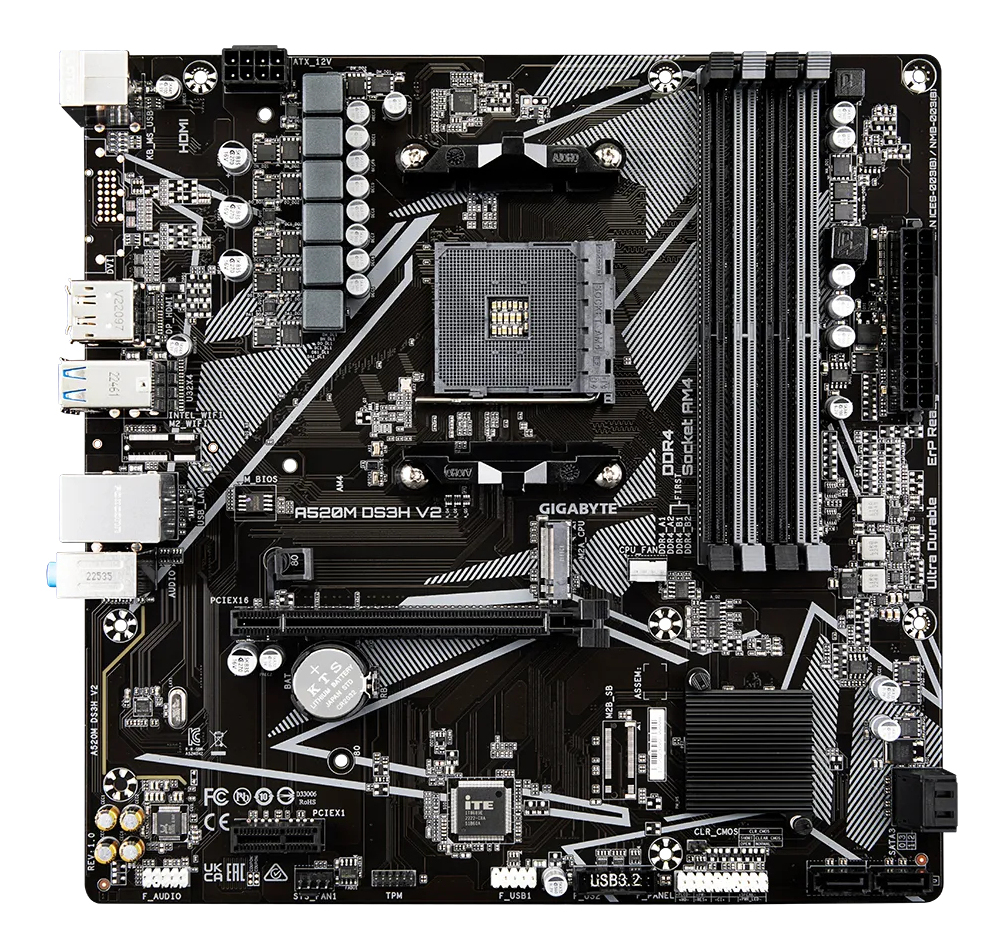

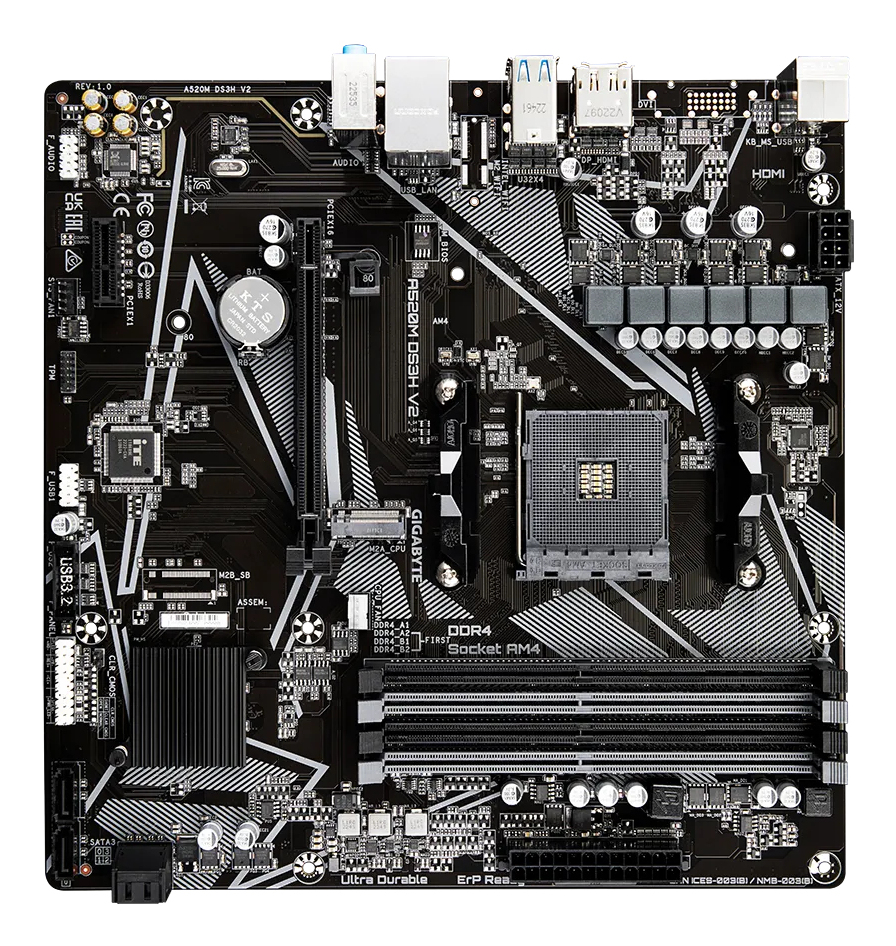

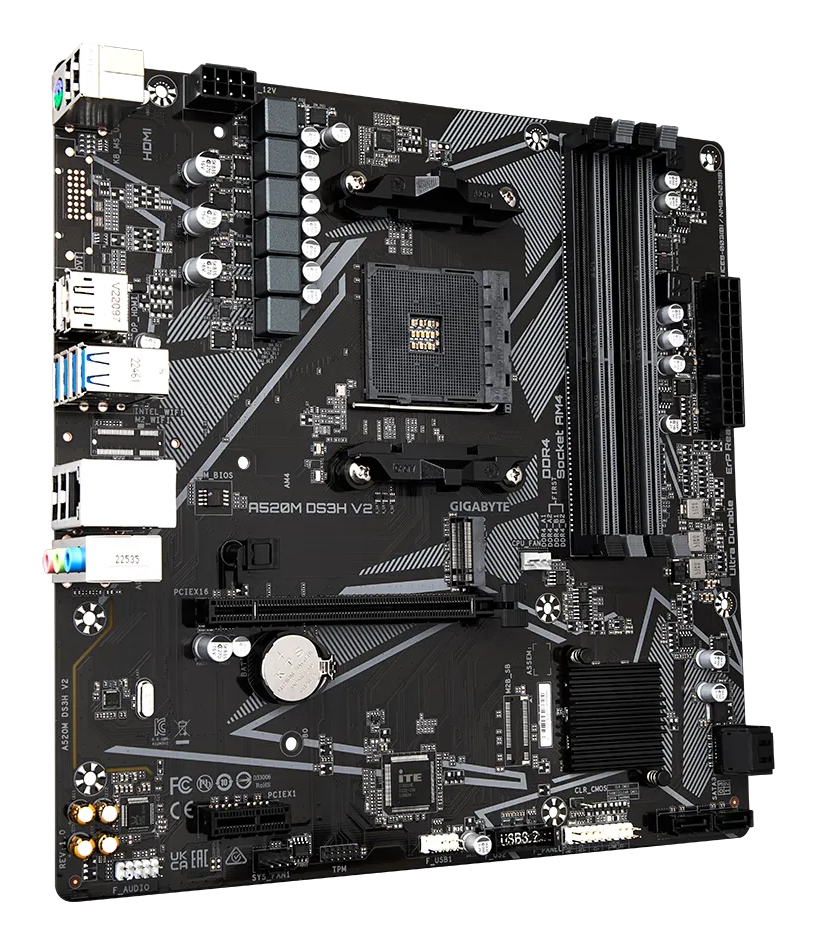

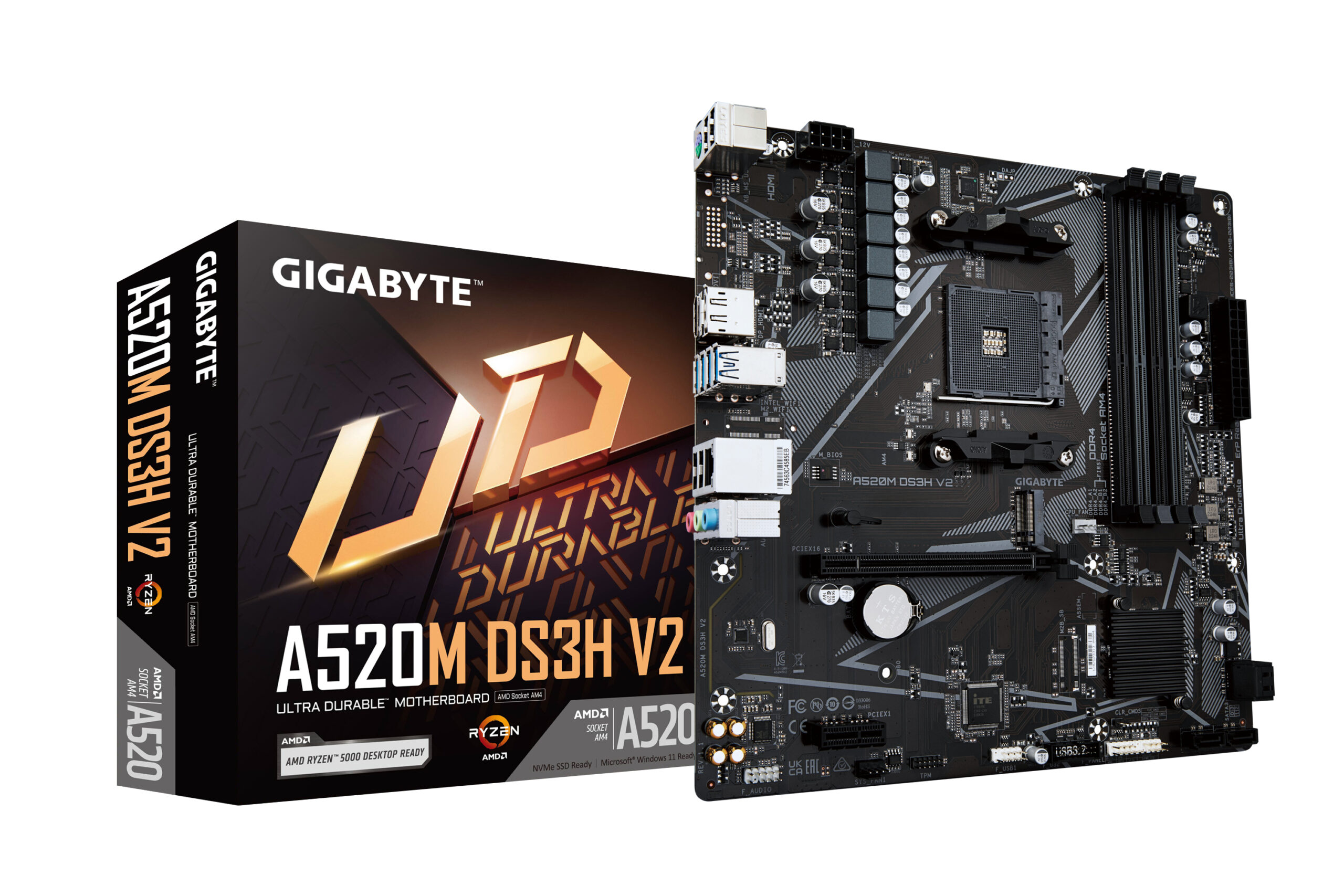

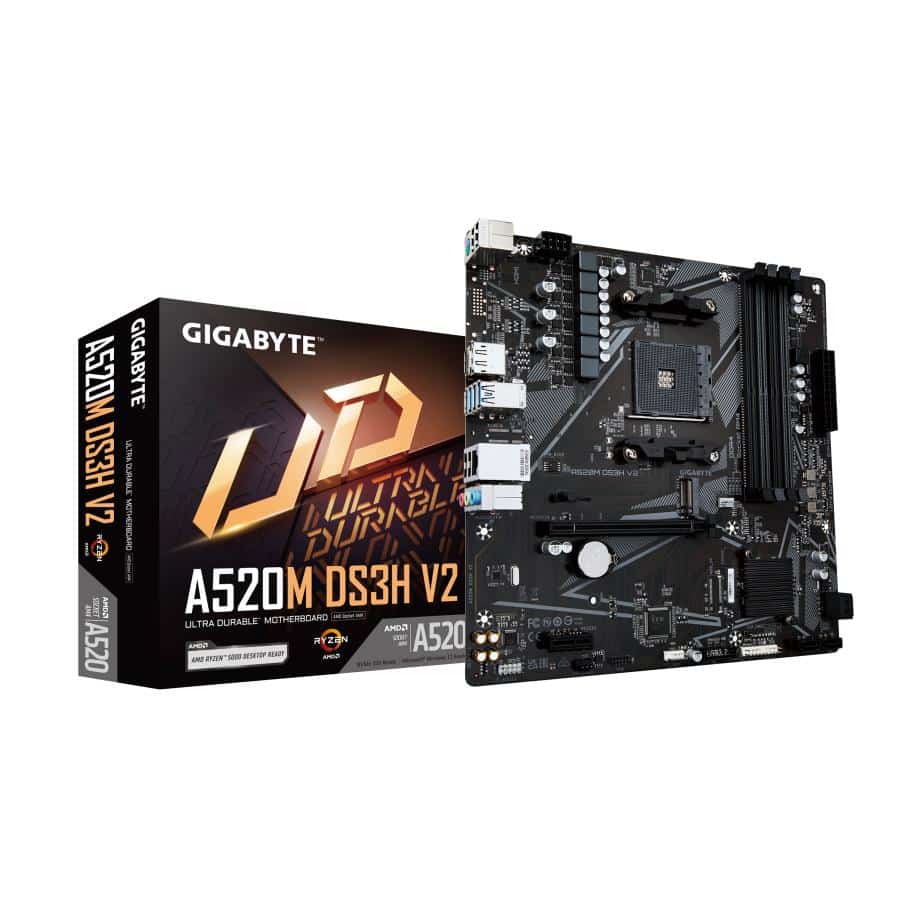

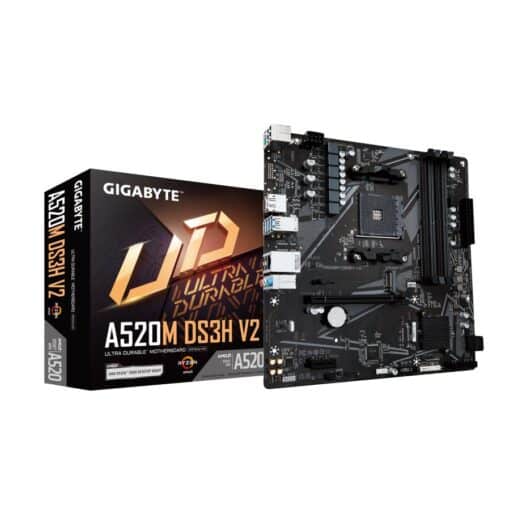

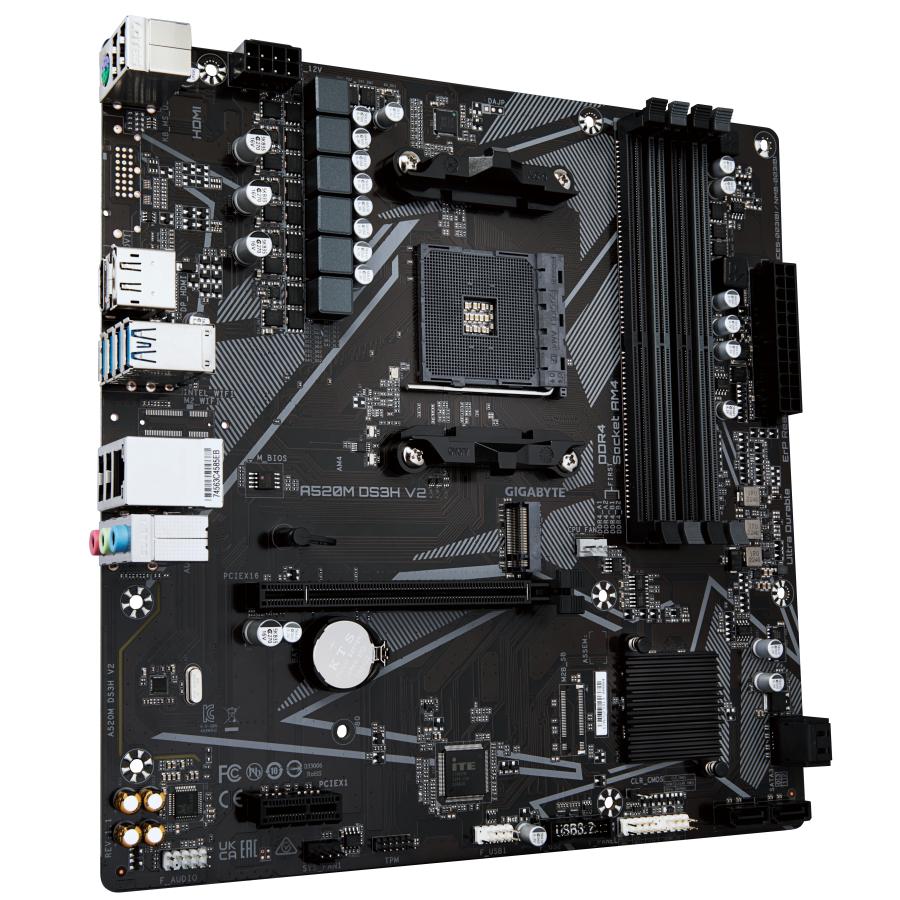

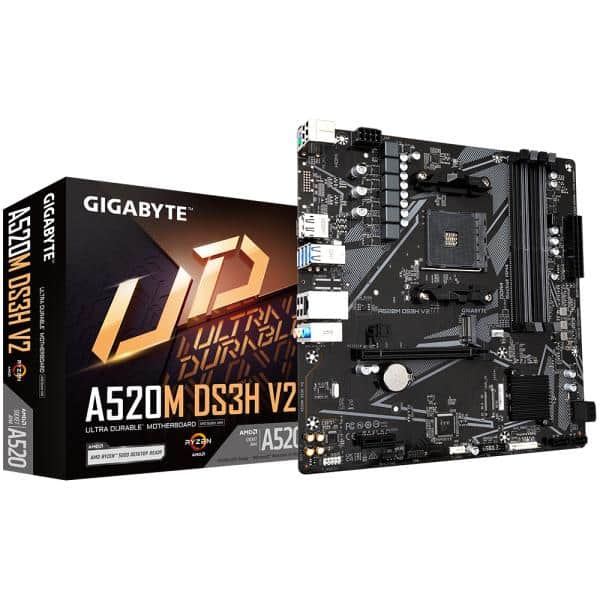

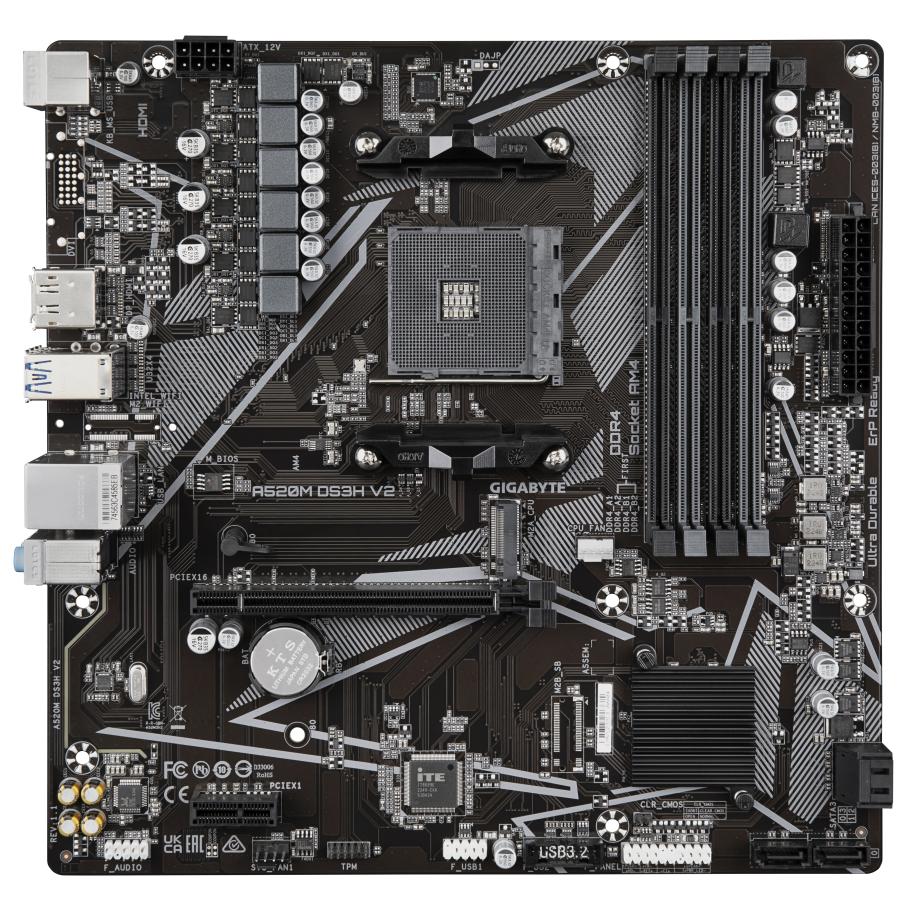

GIGABYTE A520M DS3H V2 moederbord Socket AM4 micro ATX
€63,98 incl. BTW
GIGABYTE A520M DS3H V2, AMD, Socket AM4, AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series, Socket AM4, 128 GB, DDR4-SDRAM
| EAN | 4719331854690 |
|---|---|
| Fabrikantcode | A520M DS3H V2 |
30 op voorraad
Beschrijving
GIGABYTE A520M DS3H V2. Processorfabrikant: AMD, Processor socket: Socket AM4, Compatibele processors: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series. Ondersteunde geheugen types: DDR4-SDRAM, Maximum intern geheugen: 128 GB, Geheugen slots type: DIMM. Ondersteunde opslagstationinterfaces: M.2, SATA III, Ondersteunde types opslag-drives: HDD & SSD, Soorten RAID: 0, 1, 10. Maximum resolutie: 5120 x 2880 Pixels. USB-connectortype: USB Type-A
Productgegevens
| SKU | 1064111 |
|---|---|
| EAN | 4719331854690 |
| Fabrikantcode | A520M DS3H V2 |
| Merk | GIGABYTE |
Specificaties
Specificaties
Processorfabrikant | AMD |
|---|---|
Processor socket | Socket AM4 |
Compatibele processors | AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series |
Max. aantal SMP-processoren | 1 |
Supported processor sockets | Socket AM4 |
Maximaal intern geheugen ondersteund door processor | 128 GB |
Ondersteunde geheugen types | DDR4-SDRAM |
Aantal geheugenslots | 4 |
Maximum intern geheugen | 128 GB |
Geheugen slots type | DIMM |
Geheugen kanaal | Dubbelkanaals |
ECC-compatibiliteit | ECC & Niet-ECC |
Supported memory clock speeds | 2133,2400,2667,2933,3200,3333,3600,4000,4400,4733 MHz |
Ondersteunde geheugenmodule capaciteiten | 1GB, 2GB, 4GB, 8GB, 16GB, 32GB |
Niet gebufferd geheugen | ✓ |
Ondersteunde opslagstationinterfaces | M.2, SATA III |
Ondersteunde types opslag-drives | HDD & SSD |
Maximum aantal HDD's per behuizing | 4 |
Aantal storage drives ondersteund | 5 |
RAID support | ✓ |
Soorten RAID | 0, 1, 10 |
Maximum resolutie | 5120 x 2880 Pixels |
HDCP | ✓ |
Discrete grafische ondersteuning | ✓ |
Aantal displays ondersteund | 3 |
USB 2.0 aansluitingen | 1 |
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 |
USB 3.2-connectoren (3.1 Gen 2) | 0 |
Aantal SATA III connectors | 4 |
Aantal SATA II connectors | 0 |
Totaal aantal SATA-connectoren | 4 |
Aantal Parallel ATA aansluitingen | 0 |
Aansluiting voor audiopaneel aan voorzijde | ✓ |
Voorpaneel-connector | ✓ |
ATX Power connector (24-pin) | ✓ |
Aansluitingen voor EATX voedingen | 1 |
Aansluiting voor ventilator van voeding | ✓ |
Aansluiting voor CPU koeler | ✓ |
TPM connector | ✓ |
Serial port headers | 1 |
12V vermogen-connector | ✓ |

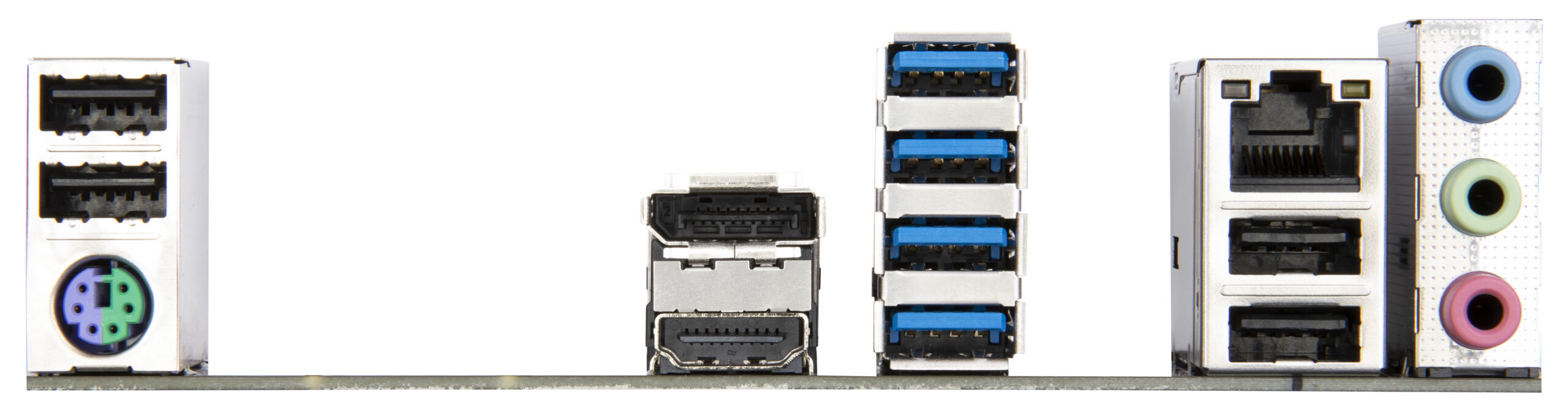

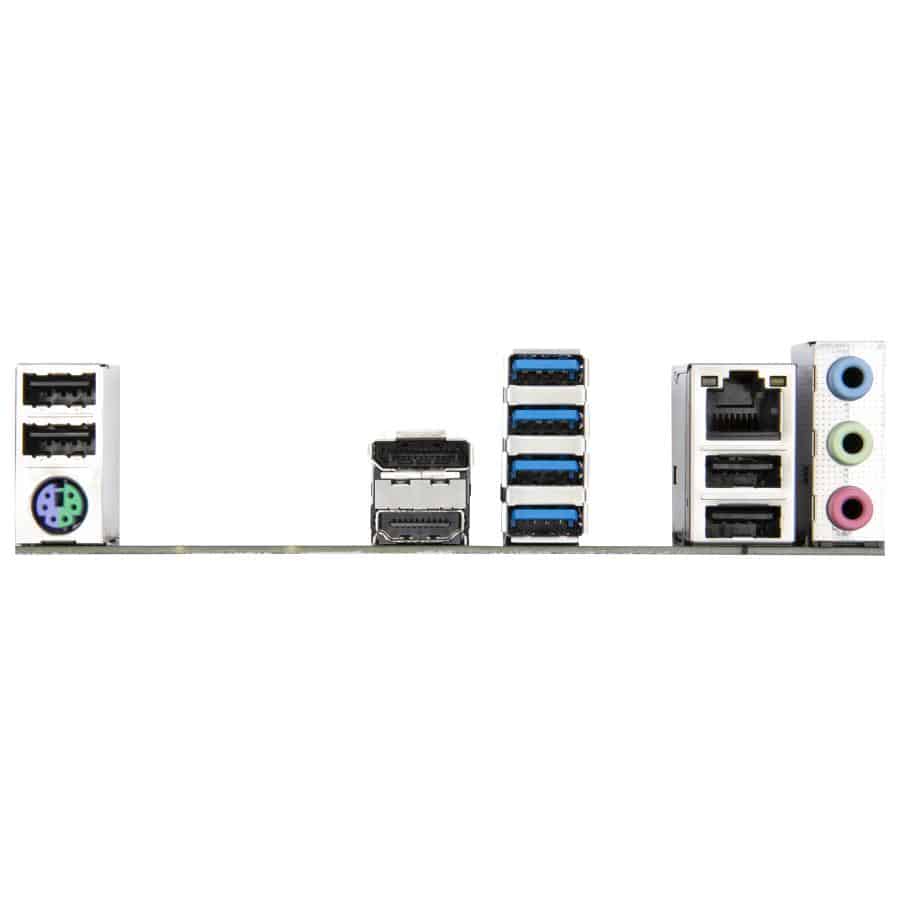

Aantal USB 2.0-poorten | 2 |
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 4 |
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C | 0 |
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 0 |
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 0 |
Aantal Ethernet LAN (RJ-45)-poorten | 1 |
VGA (D-Sub)poort(en) | 0 |
Aantal HDMI-poorten | 1 |
DVI-D poorten | 1 |
Aantal eSATA-poorten | 0 |
PS/2 poort(en) | 1 |
Aantal IEEE 1394-/Firewire-poorten | 0 |
HDMI versie | 2.1 |
Aantal DisplayPorts | 1 |
DisplayPort versie | 2.0 |
Hoofdtelefoonuitgangen | 1 |
Microfoon, line-in ingang | ✓ |
Digitale audio, optische uitgang | 1 |
USB-connectortype | USB Type-A |
Wifi | ✕ |
Ethernet LAN | ✓ |
Ethernet interface type | Gigabit Ethernet |
Component voor | PC |
Moederbord form factor | micro ATX |
Moederbord chipset familie | AMD |
Audio-uitgangskanalen | 7.1 kanalen |
Audiochip | Realtek ALC887 |
Kleur van het product | Zwart |
PC gezondheids monitor | CPU, LED, Voeding, Temperatuur, Spanning |
Type koeling | Actief |
Type stroombron | ATX |
Ondersteunt Windows | Windows 10 x64 |
PCI Express x1 (Gen 3.x) slots | 2 |
PCI Express x16 (Gen 3.x) slots | 1 |
Aantal M.2 (M) slots | 1 |
BIOS type | UEFI AMI |
Grootte BIOS-geheugen | 128 Mbit |
ACPI version | 5.0 |
Clear CMOS jumper | ✓ |
Clear CMOS knop | ✓ |
Versie Desktop Management Interface (DMI) | 2.7 |
Systeem Management BIOS (SMBIOS) versie | 2.7 |
Land van herkomst | China |
Producten per (binnenste) verzendverpakking | 1 stuk(s) |
Gewicht batterij | 3 g |
Lithiumgewicht per batterij | 0,07 g |
Aantal batterijcellen | 1 |
Batterijtechnologie | Lithium-Manganese Dioxide (LiMnO2) |
Type batterij | CR2032 |
Breedte verpakking | 265 mm |
Diepte verpakking | 265 mm |
Hoogte verpakking | 54 mm |
Gewicht verpakking | 810 g |
Breedte | 244 mm |
Diepte | 244 mm |
Hoogte | 35 mm |
Meegeleverde kabels | SATA |
Batterijen inbegrepen | ✓ |
Meegeleverde drivers | ✓ |
Meegeleverde software | Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility |
Garantieperiode | 3 jaar |
