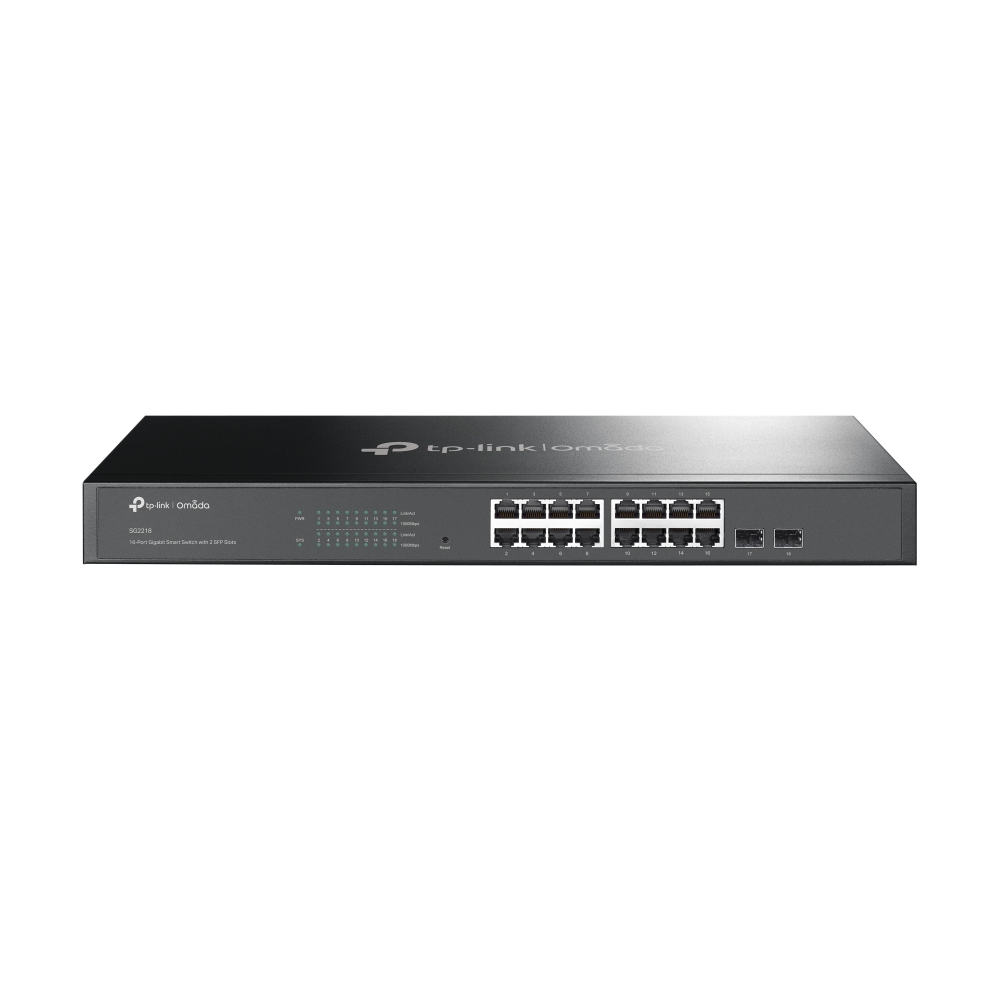

TP-Link Omada SG2218 netwerk-switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) 1U Zwart
€137,99 incl. BTW
TP-Link Omada SG2218, Managed, L2/L2+, Gigabit Ethernet (10/100/1000), Rack-montage, 1U
| EAN | 6935364006419 |
|---|---|
| Fabrikantcode | SG2218 |
Incl. wettelijke bijdragen: Recupel €0,07
4 stuks verwacht op 17-06-2026
Uitverkocht
Beschrijving
TP-Link Omada SG2218. Switch type: Managed, Switch-laag: L2/L2+. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 16. MAC-adrestabel: 8000 entries, Switchingcapaciteit: 36 Gbit/s. Netwerkstandaard: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z. Rack-montage, Vormfactor: 1U
Productgegevens
| SKU | TPL-TL-SG2218 |
|---|---|
| EAN | 6935364006419 |
| Fabrikantcode | SG2218 |
| Merk | TP-Link |
Specificaties
Specificaties
Switch type | Managed |
|---|---|
Switch-laag | L2/L2+ |
Quality of Service (QoS) | ✓ |
Web-gebaseerd management | ✓ |
Cloud-beheerd | ✓ |
ARP-inspectie | ✓ |
System event log | ✓ |
MIB-ondersteuning | ✓ |
Aantal basis-switching RJ-45 Ethernet-poorten | 16 |
Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
Aantal geïnstalleerde SFP+ modules | 0 |
Aantal Gigabit Ethernet (koper)-poorten | 16 |
Aantal moduleslots SPF | 2 |
Netwerkstandaard | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
10G support | ✕ |
Port mirroring | ✓ |
Datastroombeheer | ✓ |
Verbindingsaggregatie | ✓ |
Broadcast stormbeheer | ✓ |
Rate limiting | ✓ |
Spanning tree protocol | ✓ |
Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
VLAN=ondersteuning | ✓ |
Virtuele LAN-functies | Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
Aantal VLANs | 4000 |
MAC-adrestabel | 8000 entries |
Switchingcapaciteit | 36 Gbit/s |
Verzending snelheid | 26,8 Mpps |
Store-and-forward | ✓ |
Statische route | ✓ |
Aantal statische routes | 32 |
Aantal IP-interfaces | 16 |
Jumbo Frames ondersteuning | ✓ |
Jumbo frames | 9000 |
Packet buffergeheugen | 4,1 MB |
DHCP-functies | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
Access Control List (ACL) | ✓ |
IGMP snooping | ✓ |
SSH/SSL support | ✓ |
Bescherming lus | ✓ |
BPDU filtering / bescherming | ✓ |
Multicast-ondersteuning | ✓ |
Multicast Listener Discovery (MLD) snooping | ✓ |
Beheerprotocollen | SNMPv1/v2c/v3, SNTP |
GARP VLAN Registratieprotocol (GVRP) | ✓ |
Rack-montage | ✓ |
Vormfactor | 1U |
Kleur van het product | Zwart |
LED-indicatoren | ✓ |
Fanloos | ✓ |
Stroombron | AC |
Vermogenstoevoer inclusief | ✓ |
AC-ingangsspanning | 100 - 240 V |
AC-ingangsfrequentie | 50/60 Hz |
Vermogensverbruik (max) | 12,3 W |
Power over Ethernet (PoE) | ✕ |
Bedrijfstemperatuur (T-T) | 0 - 40 °C |
Temperatuur bij opslag | -40 - 70 °C |
Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
Luchtvochtigheid bij opslag | 5 - 90 procent |
Warmtedissipatie | 41,97 BTU/h |
Breedte | 440 mm |
Diepte | 180 mm |
Hoogte | 44 mm |
Meegeleverde kabels | AC, LAN (RJ-45) |
Snelstartgids | ✓ |
Certificering | CE, FCC, RoHS |
