€922,00 incl. BTW

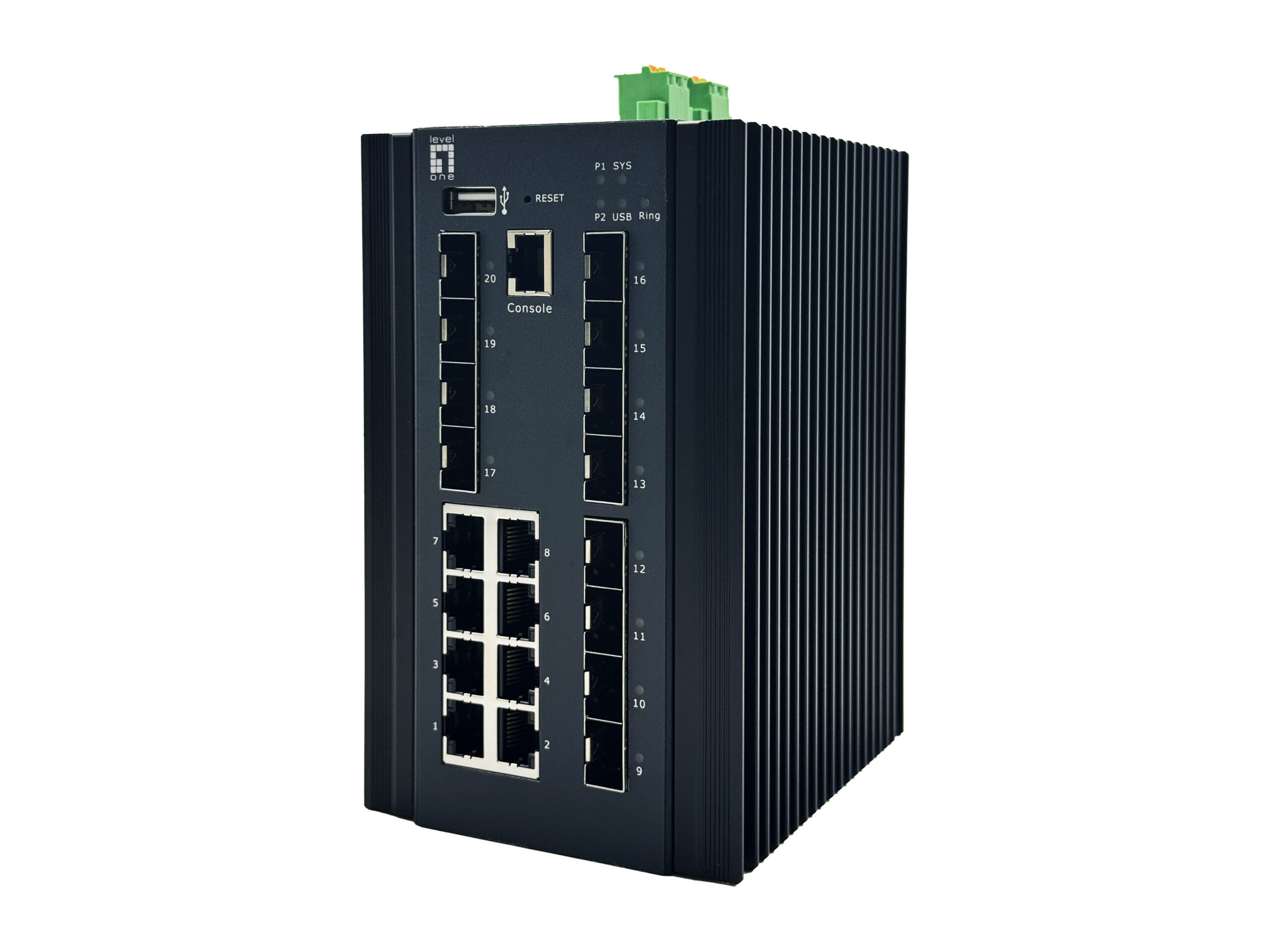

Levelone 55054907101 IGU-2072 20-Port L2Plus Managed Gigabit Industrial Switch, 8x RJ45, 8x SFP
| EAN | 4015867239278 |
|---|---|
| Fabrikantcode | 55054907101 |
Uitverkocht
Beschrijving
The LevelOne IGU-2072 is a rugged design L2+ managed industrial Ethernet switch designed for demanding environments. With its 8 Gigabit RJ45 ports, 8 Gigabit SFP ports, and 4 2.5-Gigabit SFP ports, it offers comprehensive Layer 2 management and rapid failover capabilities. This switch ensures uninterrupted operations with its ERPS redundant network, boasting a sub-20ms recovery time, it offers exceptional connectivity and bandwidth for mission-critical industrial applications.FeaturesOffers comprehensive connectivity with 8 10/100/1000Base-T RJ45, 8 100/1000Base-X SFP ports and 4 1G/2.5GBase-X SFP ports.Ensures reliable operation with redundant 12-75V DC power supply, advanced surge protection (6KV), and ESD protection (Air-15kV, Contact-8kV).Designed for harsh environments with fanless IP40 Din-rail enclosure and wide operating temperature range (-40°C to +80°C).Delivers uninterrupted operation through G.8032 ERPS protocol with
Productgegevens
| SKU | 1066219 |
|---|---|
| EAN | 4015867239278 |
| Fabrikantcode | 55054907101 |
| Merk | LevelOne |
Specificaties
Beheerfuncties
Switch type | Managed |
|---|---|
Switch-laag | L2+ |
Quality of Service (QoS) | ✓ |
Web-gebaseerd management | ✓ |
ARP-inspectie | ✓ |
Locatie-instellingen (CLI) configureren | ✓ |
System event log | ✓ |
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten | 8 |
|---|---|
Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
Aantal Gigabit Ethernet (koper)-poorten | 8 |
Aantal moduleslots SPF | 8 |
Aantal USB Type-A-poorten | 1 |
Console port | RJ-45 |
Netwerk
Netwerkstandaard | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|---|---|
10G support | ✓ |
Port mirroring | ✓ |
Datastroombeheer | ✓ |
Broadcast stormbeheer | ✓ |
Rate limiting | ✓ |
Spanning tree protocol | ✓ |
Kabellengtedetectie | ✓ |
Ethernet Ring Protection Switching (ERPS) | ✓ |
VLAN=ondersteuning | ✓ |
Virtuele LAN-functies | IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping |
Data-uitwisseling
Switchingcapaciteit | 52 Gbit/s |
|---|---|
MAC-adrestabel | 16000 entries |
Statische route | ✓ |
Jumbo Frames ondersteuning | ✓ |
Jumbo frames | 10000 |
Packet buffergeheugen | 12 MB |
Beveiliging
DHCP-functies | DHCP server |
|---|---|
Access Control List (ACL) | ✓ |
IGMP snooping | ✓ |
Ondersteunde beveiligingsalgoritmen | HTTPS |
MAC adres filtering | ✓ |
Bescherming lus | ✓ |
IP-MAC-Port binding | ✓ |
Wachtwoordbeveiliging | ✓ |
Authenticatie type | IEEE 802.1x |
Algoritmen wachtrijplanning | SP, Weighted Round Robin (WRR) |
Multicast-functies
Multicast-ondersteuning | ✓ |
|---|
Protocollen
GARP VLAN Registratieprotocol (GVRP) | ✓ |
|---|---|
IP Source Guard (IPSG) | ✓ |
Design
Stapelbaar | ✕ |
|---|---|
Kleur van het product | Zwart |
LED-indicatoren | Stroom, Ring, Systeem, USB |
Internationale veiligheidscode (IP) | IP40 |

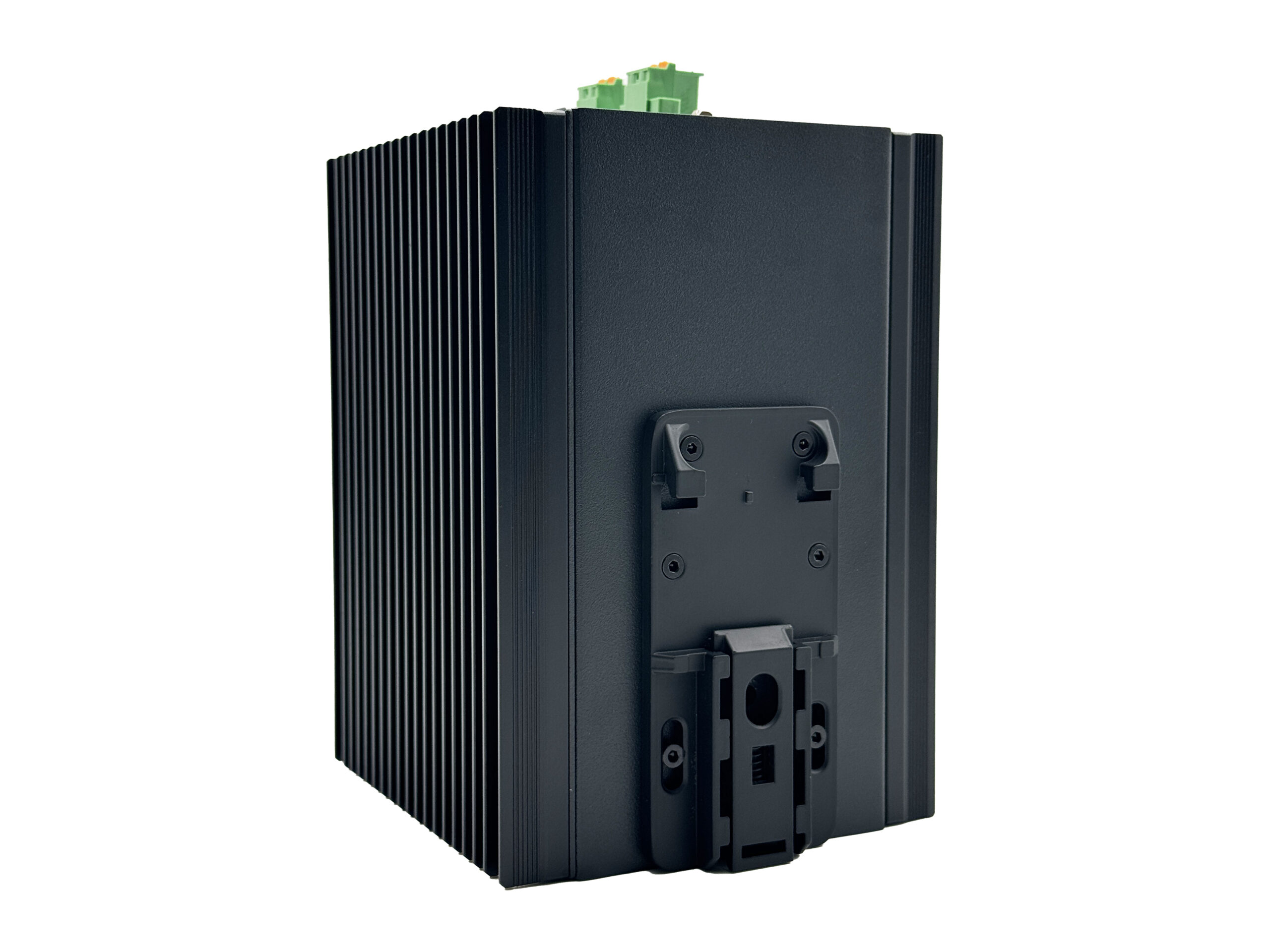

DIN rail bevestiging | ✓ |
Prestatie
Upgraden van firmware mogelijk | ✓ |
|---|---|
Telnet | ✓ |
Dying Gasp | ✓ |
Fanloos | ✓ |
Mean time between failures (MTBF) | 200000 uur |
Energie
Stroombron | DC |
|---|---|
Redundante voeding | ✓ |

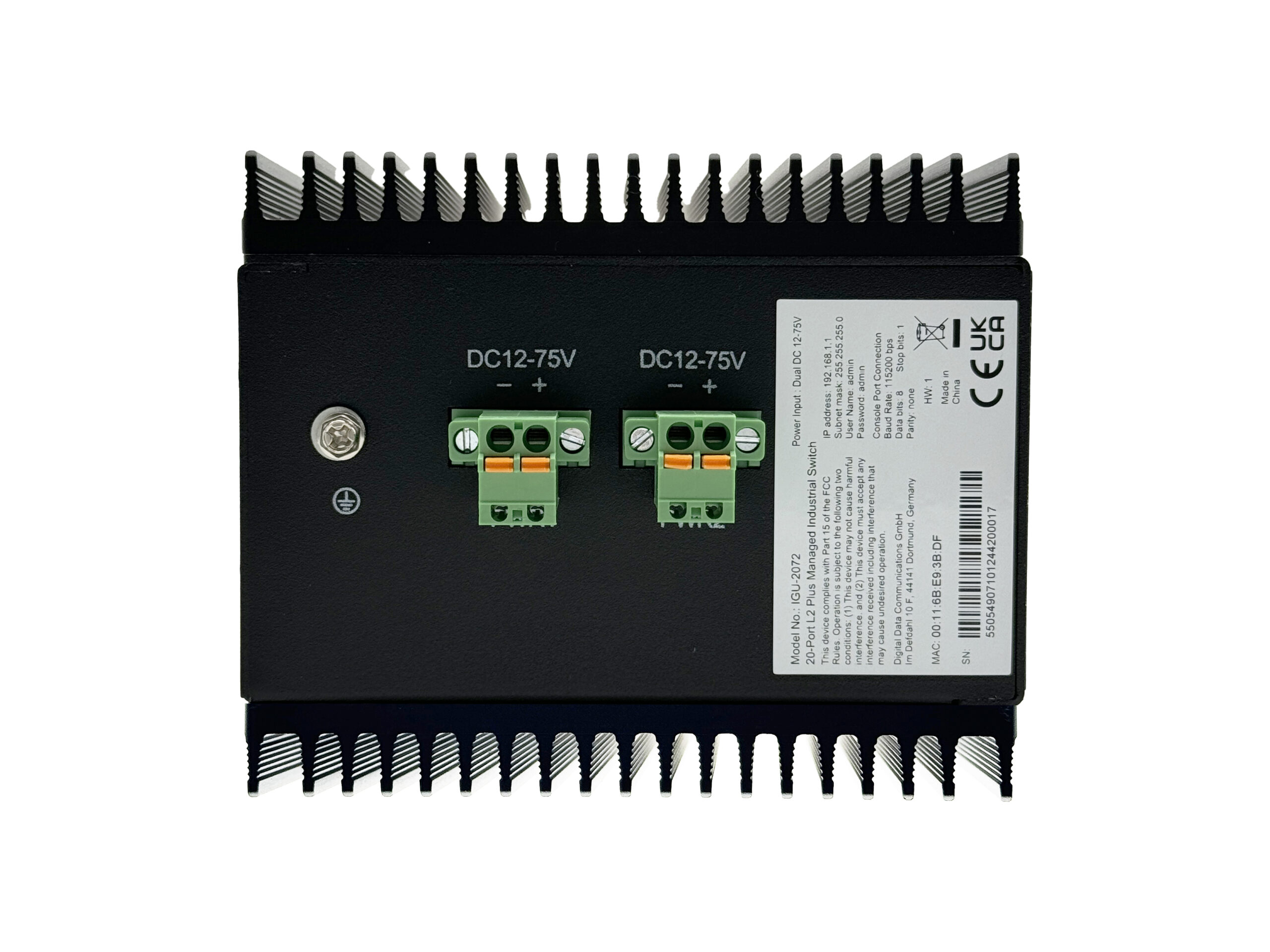

Ingangsspanning | 12 - 75 V |
Vermogensverbruik (max) | 25 W |
Spanningsbeveiliging | ✓ |
Overspanningsbeveiliging in voltage | 6 kV |
Power over Ethernet (PoE)
Power over Ethernet (PoE) | ✕ |
|---|
Overige specificaties
Klemmenblokpoort | ✓ |
|---|
Eisen aan de omgeving
Bedrijfstemperatuur (T-T) | -40 - 80 °C |
|---|---|
Temperatuur bij opslag | -40 - 85 °C |
Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
Luchtvochtigheid bij opslag | 5 - 95 procent |
Gewicht en omvang
Breedte | 110 mm |
|---|---|
Diepte | 115 mm |
Hoogte | 158 mm |
Gewicht | 1,79 kg |

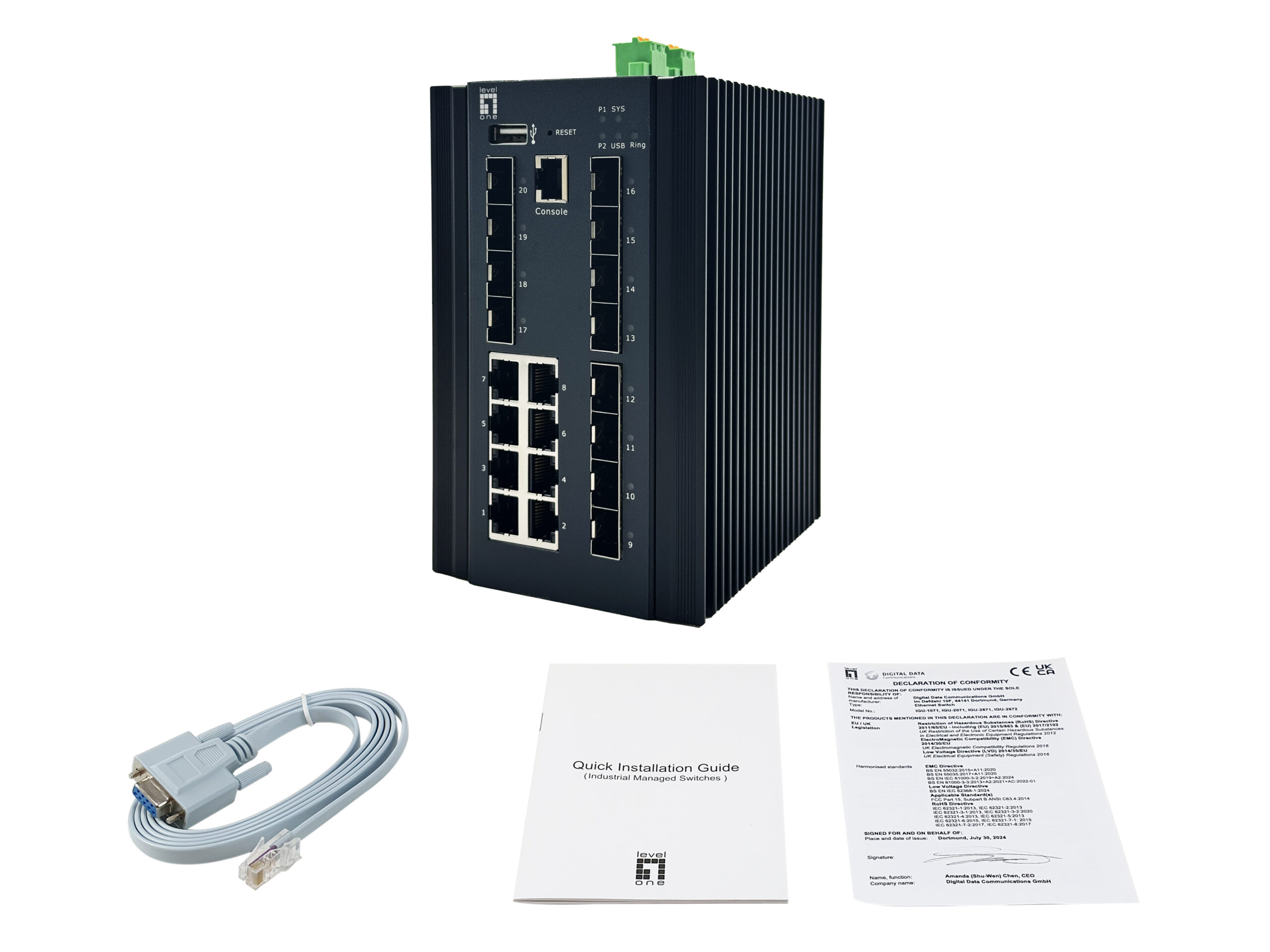

Inhoud van de verpakking
Meegeleverde kabels | LAN (RJ-45) to DB9 |
|---|---|
Snelstartgids | ✓ |
Verpakking
Klemmenblok inclusief | ✓ |
|---|---|
DIN-rail inbegrepen | ✓ |
Breedte verpakking | 232 mm |
Diepte verpakking | 180 mm |
Hoogte verpakking | 138 mm |
Gewicht verpakking | 2,12 kg |
Technische details
Pallet brutolengte | 80 cm |
|---|---|
Pallet brutobreedte | 120 cm |
Certificaten
Certificaten van naleving | UKCA, Federal Communications Commission (FCC), RoHS, CE |
|---|
Logistieke gegevens
Pallet brutohoogte | 167,4 cm |
|---|---|
Land van herkomst | China |
(Buitenste) hoofdverpakking breedte | 440 mm |
(Buitenste) hoofdverpakking lengte | 375 mm |
(Buitenste) hoofdverpakking hoogte | 255 mm |
Code geharmoniseerd systeem (HS) | 851762 |
(Buitenste) hoofdverpakking brutogewicht | 15 kg |
Hoeveelheid per (buitenste) hoofdverpakking | 6 stuk(s) |
