Beschrijving

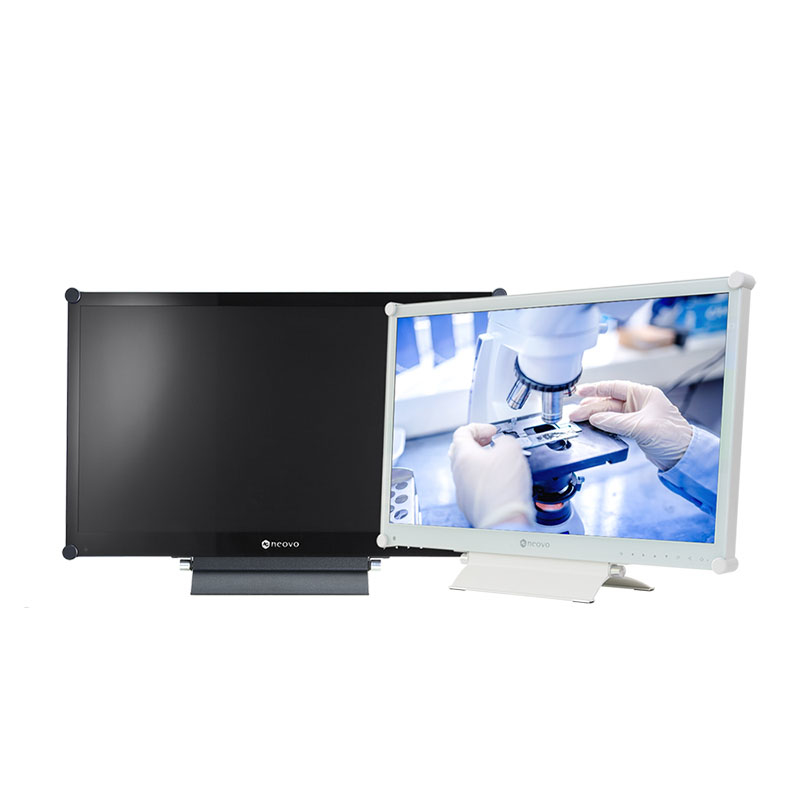

The 22” display has been redesigned with new features such as adjustable gamma curve, black level, and video mode settings which can be configured to present the most optimal visuals, as well as a newly added DisplayPort 1.2 input which provides faster transmission of high-resolution video. Furthermore the display also includes Anti-Burn-in™ technology to prevent image retention. Housed in a sturdy metal exterior coupled with NeoV™ Optical Glass and rigorous screening of components, the X-22E ensures a lifetime of performance in various environments.Features• LED-backlit technology with high FHD 1920 x 1080 resolution• Crisp 2,000,000 dynamic contrast ratio• Slim 14 mm border & bezel design for a stylish look• NeoV™ Optical Glass• AIP technology: PIP and PBP functions; 3D Comb Filter/Deinterlace/Noise Reduction• Selectable aspect ratio for ultimate image• EcoSmart Sensor for low watt power consumption• Black-level alignment• Versatile inputs: VGA, DVI, HDMI, DisplayPort, Audio in• Built-in speakers• Touch sensor control keys to prevent vandalism• Durable metal housing• Rigorous screening of the components for mission-critical 24/7 applications• Kensington® Security socket
Productgegevens
| SKU | 1055217 |
|---|---|
| EAN | 4710739593785 |
| Fabrikantcode | X-22E White |
| Merk | Neovo |
Specificaties
X-22E
Beeldschermdiagonaal | 54,6 cm (21.5") |
|---|---|
Resolutie | 1920 x 1080 Pixels |
Oorspronkelijke beeldverhouding | 16:9 |
Display technologie | LED |
Touchscreen | ✕ |
HD type | Full HD |
Soort paneel | TN |
Responstijd | 3 ms |
Beeldscherm vorm | Flat |
Typische contrastverhouding | 1000:1 |
Beeldscherm, aantal kleuren | 16.78 miljoen kleuren |
Backlight type | LED |
Helderheid (typisch) | 250 cd/m² |
Ondersteunde grafische resoluties | 1920 x 1080 (HD 1080) |
Ondersteunde video-modi | 1080p |
Contrast ratio (dynamisch) | 2000000:1 |
Kijkhoek, horizontaal | 170° |
Kijkhoek, verticaal | 160° |
Pixel pitch | 0,2482 x 0,2482 mm |
Digitale horizontale frequentie | 24 - 83 kHz |
Digitale verticale frequentie | 50 - 75 Hz |
Hardheid oppervlak | 9H |
Kleurstandaard gamut | NTSC |
NTSC-dekking (normaal) | 72 procent |
NVIDIA G-SYNC | ✕ |
AMD FreeSync | ✕ |
Ingebouwde luidsprekers | ✓ |
Ingebouwde camera | ✕ |
Aantal luidsprekers | 2 |
Gemiddeld vermogen | 4 W |
Markt positionering | Industrieel |
Kleur van het product | Wit |
Materiaal behuizing | Metaal |
Ingebouwde USB-hub | ✕ |
HDMI | ✓ |
VGA (D-Sub)poort(en) | 1 |
DVI-poort | ✓ |
DVI-D poorten | 1 |
Aantal HDMI-poorten | 1 |
HDMI versie | 1.4 |
Aantal DisplayPorts | 1 |
DisplayPort versie | 1.2a |
Audio-ingangen | ✓ |
VESA-montage | ✓ |
Bevestigingsmogelijkheid voor kabelslot | ✓ |
In hoogte verstelbaar | ✕ |
Paneelmontage-interface | 75 x 75,100 x 100 mm |
Kabelslot sleuf type | Kensington |
kantel aanpassingen | ✓ |
Bereik kantelhoek | 0 - 15° |
Picture-in-Picture | ✓ |
Energie-efficiëntieklasse (SDR) | E |
Energieverbruik (SDR) per 1000 uur | 15 kWu |
Stroomverbruik (typisch) | 18 W |
Stroomverbruik (in standby) | 0,3 W |
Stroomverbruik (indien uit) | 0,3 W |
Energie-efficiëntieschaal | A tot G |
Bedrijfstemperatuur (T-T) | 0 - 40 °C |
Temperatuur bij opslag | -20 - 60 °C |
Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
Luchtvochtigheid bij opslag | 5 - 95 procent |
Breedte apparaat (met standaard) | 513,2 mm |
Diepte apparaat (met standaard) | 155 mm |
Hoogte apparaat (met standaard) | 368,5 mm |
Gewicht (met standaard) | 6,7 kg |
Breedte ( zonder voet ) | 513,2 mm |
Diepte ( zonder voet ) | 56,2 mm |
Hoogte (zonder voet ) | 324,3 mm |
Gewicht (zonder voet) | 6,1 kg |
Breedte verpakking | 614 mm |
Diepte verpakking | 204 mm |
Hoogte verpakking | 477 mm |
Type verpakking | Doos |
Staander inbegrepen | ✓ |
Meegeleverde kabels | AC, Audio (3ˌ5 mm), VGA |
Snelstartgids | ✓ |
Inclusief AC-adapter | ✓ |
Certificaten van naleving | CE, Laagspanningsrichtlijn (LVD), REACH, RoHS, WEEE |
Code geharmoniseerd systeem (HS) | 85285210 |
