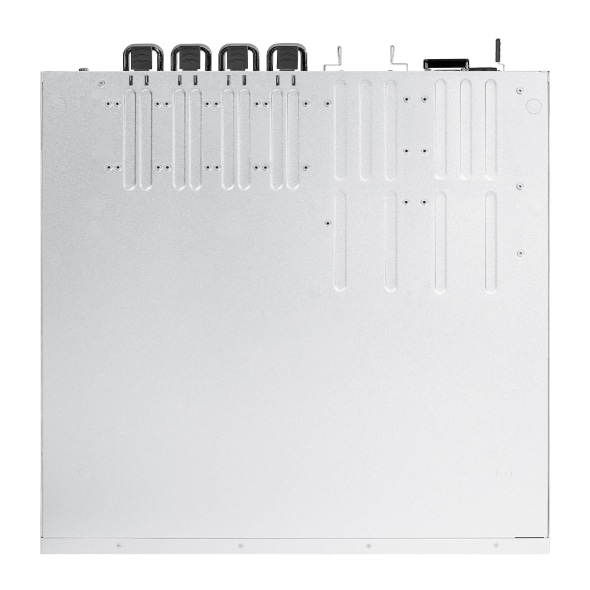

TP-Link Omada Pro S6500-48MPP6Y netwerk-switch Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Grijs
€14.516,99 incl. BTW
TP-Link Omada Pro S6500-48MPP6Y, Managed, L3, 2.5G Ethernet (100/1000/2500), Power over Ethernet (PoE), Rack-montage, 1U
| EAN | 1210002638630 |
|---|---|
| Fabrikantcode | S6500-48MPP6Y |
Uitverkocht
Beschrijving
TP-Link Omada Pro S6500-48MPP6Y. Switch type: Managed, Switch-laag: L3. Type basis-switching RJ-45 Ethernet-poorten: 2.5G Ethernet (100/1000/2500), Aantal basis-switching RJ-45 Ethernet-poorten: 48, Console port: RJ-45/Micro-USB. MAC-adrestabel: 32000 entries, Switchingcapaciteit: 540 Gbit/s. Netwerkstandaard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack-montage, Vormfactor: 1U
Productgegevens
| SKU | TPL-S6500-48MPP6Y |
|---|---|
| EAN | 1210002638630 |
| Fabrikantcode | S6500-48MPP6Y |
| Merk | TP-Link |
Specificaties
Specificaties
Switch type | Managed |
|---|---|
Switch-laag | L3 |
Web-gebaseerd management | ✓ |
Cloud-beheerd | ✓ |
ARP-inspectie | ✓ |
Locatie-instellingen (CLI) configureren | ✓ |
Aantal basis-switching RJ-45 Ethernet-poorten | 48 |
Type basis-switching RJ-45 Ethernet-poorten | 2.5G Ethernet (100/1000/2500) |
Aantal geïnstalleerde SFP+ modules | 0 |
Console port | RJ-45/Micro-USB |
Aantal SFP28-poorten | 6 |
Netwerkstandaard | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
10G support | ✓ |
Port mirroring | ✓ |
Datastroombeheer | ✓ |
Verbindingsaggregatie | ✓ |
Broadcast stormbeheer | ✓ |
Rate limiting | ✓ |
Spanning tree protocol | ✓ |
Active Link-detectie | ✓ |
Virtuele LAN-functies | MAC address-based VLAN, Protocol-based VLAN, Voice VLAN |
Aantal VLANs | 4000 |
MAC-adrestabel | 32000 entries |
Switchingcapaciteit | 540 Gbit/s |
Verzending snelheid | 401,7 Mpps |
Aantal wachtrijen | 8 |
Statische route | ✓ |
Aantal IP-interfaces | 16 |
Jumbo Frames ondersteuning | ✓ |
Jumbo frames | 9000 |
Packet buffergeheugen | 3 MB |
DHCP-functies | DHCP relay, DHCP server, DHCPv6 relay |
Access Control List (ACL) | ✓ |
IGMP snooping | ✓ |
Statische poort beveiliging | ✓ |
SSH/SSL support | ✓ |
Authenticatie type | AAA, RADIUS, TACACS+ |
Multicast-ondersteuning | ✓ |
Rack-montage | ✓ |
Stapelbaar | ✓ |
Vormfactor | 1U |
Kleur van het product | Grijs |
Aantal ventilatoren | 4 ventilator(en) |
Stroombron | AC |
Vermogenstoevoer inclusief | ✓ |
AC-ingangsspanning | 100 - 240 V |
AC-ingangsfrequentie | 50/60 Hz |
Vermogensverbruik (max) | 635,7 W |
Power over Ethernet (PoE) | ✓ |
Hoeveelheid Power over Ethernet (PoE) ports | 48 |
Totaal Power over Ethernet (PoE)-budget | 500 W |
Bedrijfstemperatuur (T-T) | 0 - 45 °C |
Temperatuur bij opslag | -40 - 70 °C |
Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
Luchtvochtigheid bij opslag | 5 - 90 procent |
Warmtedissipatie | 2169,2 BTU/h |
Breedte | 440 mm |
Diepte | 330 mm |
Hoogte | 44 mm |
Meegeleverde kabels | AC |
Snelstartgids | ✓ |
Rekbevestigingspakket | ✓ |
