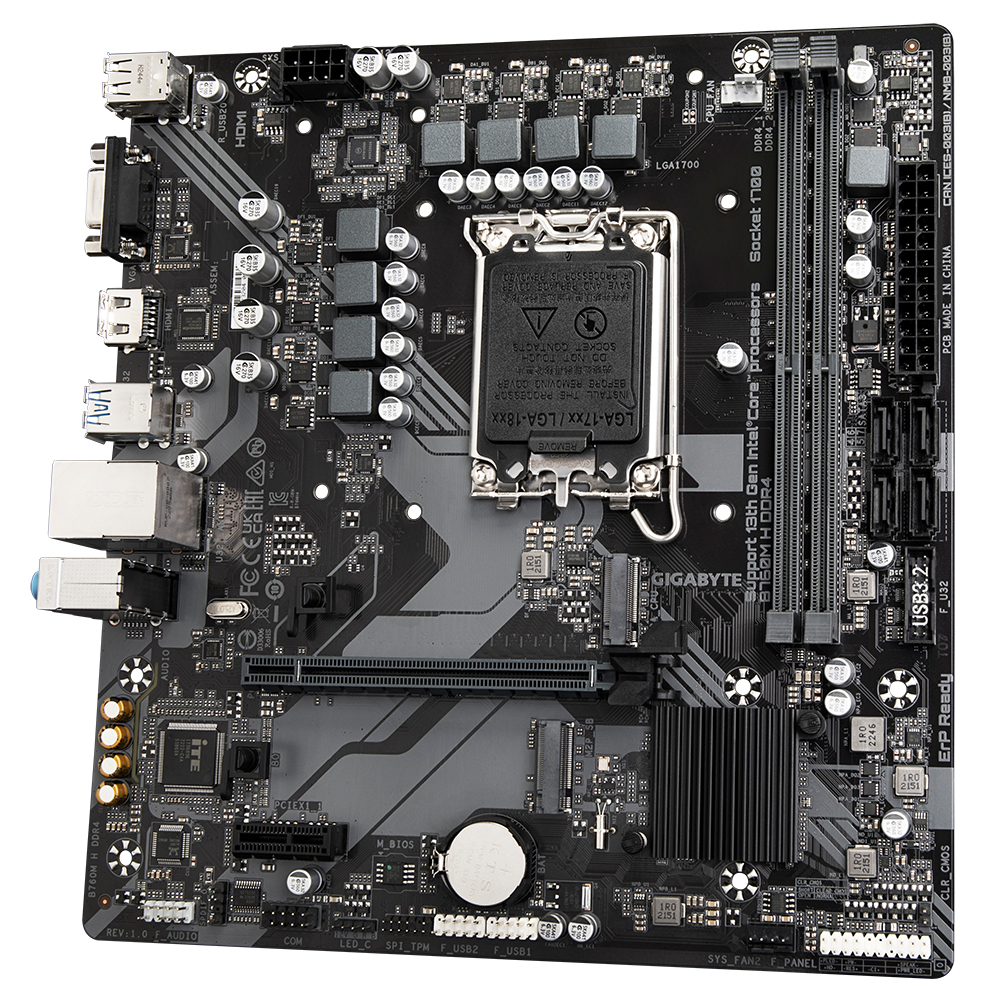

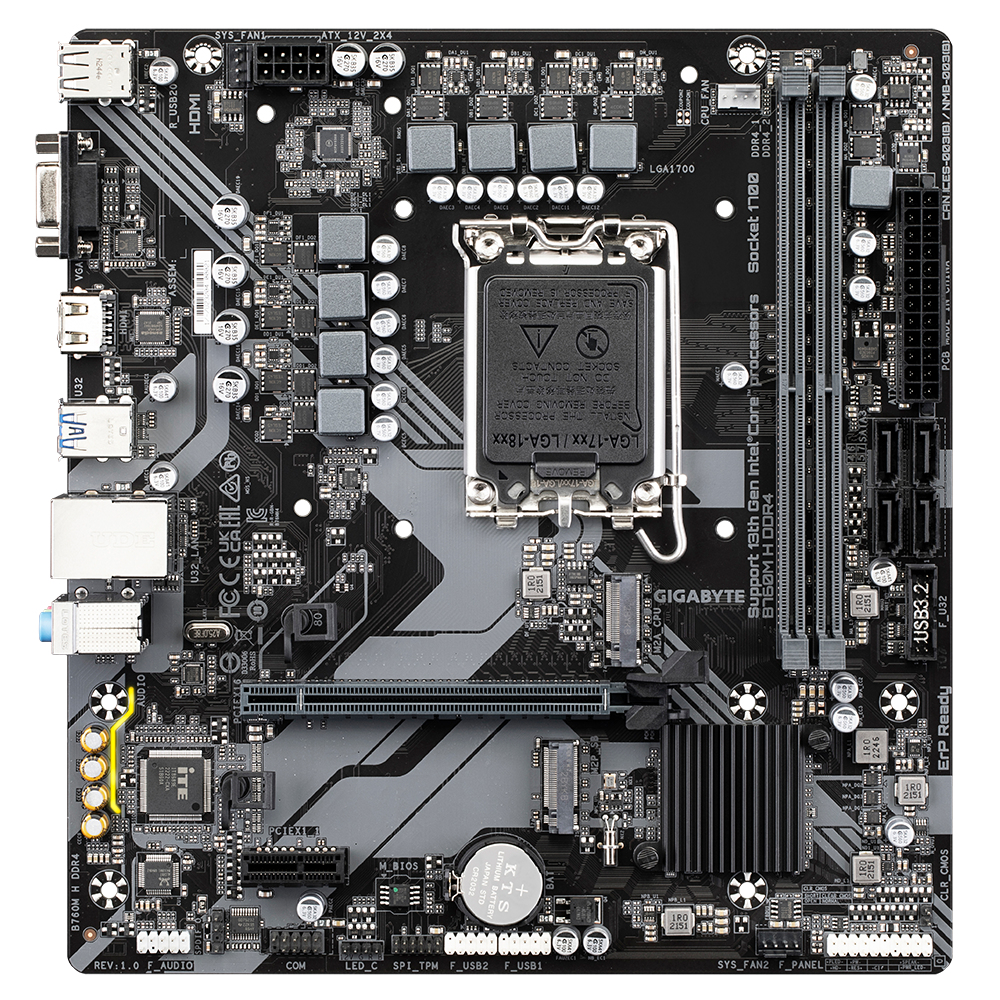

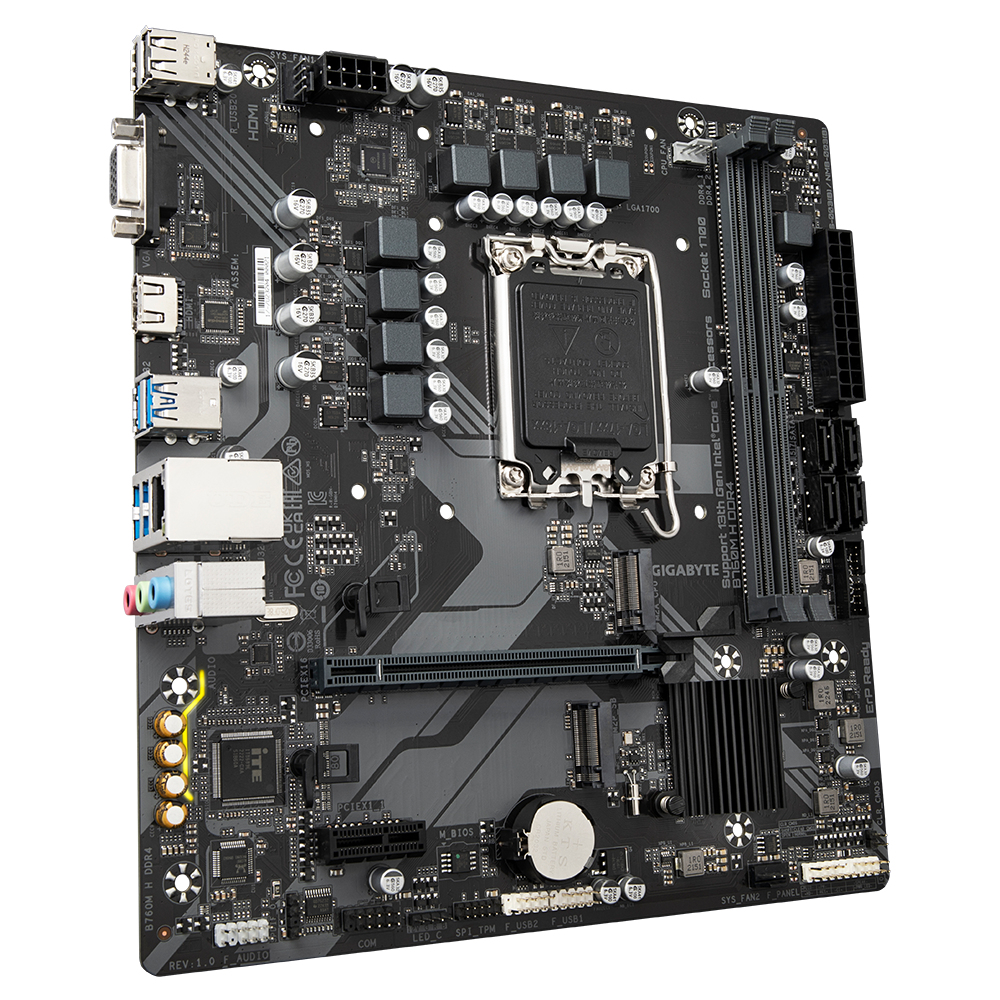

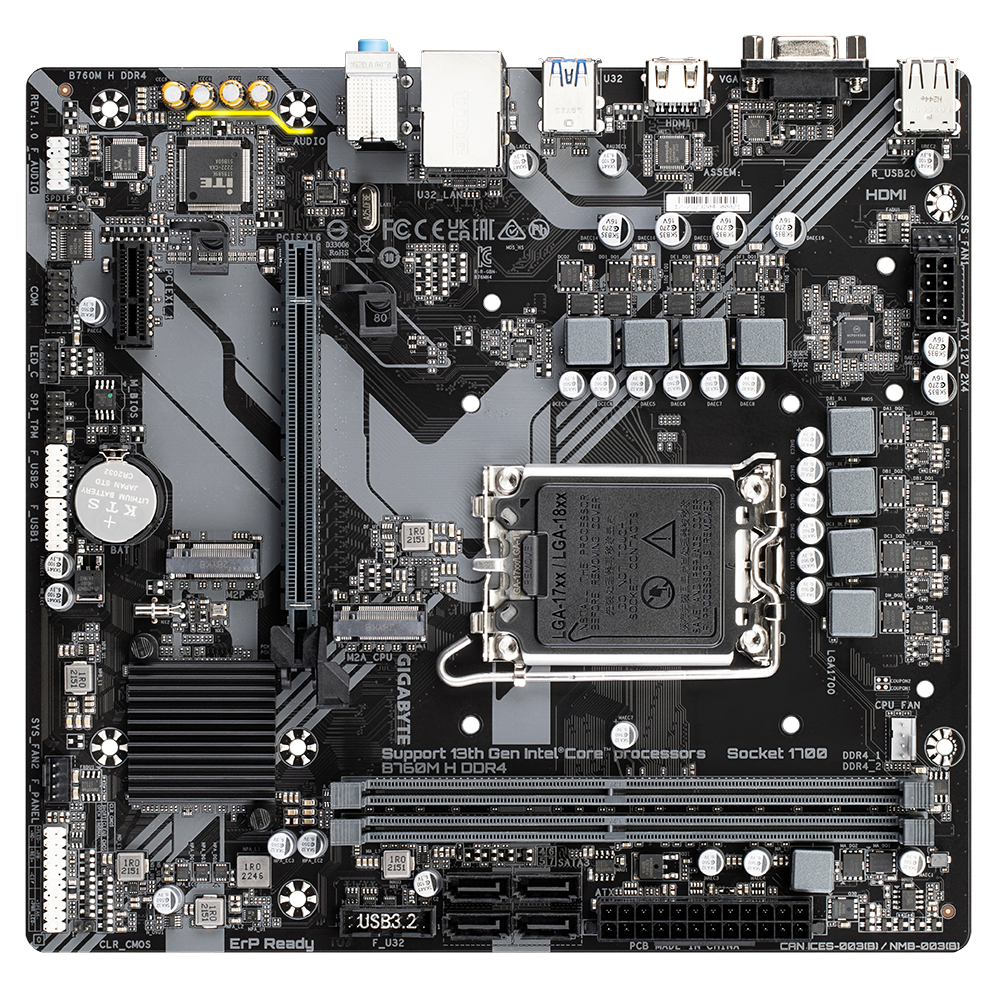

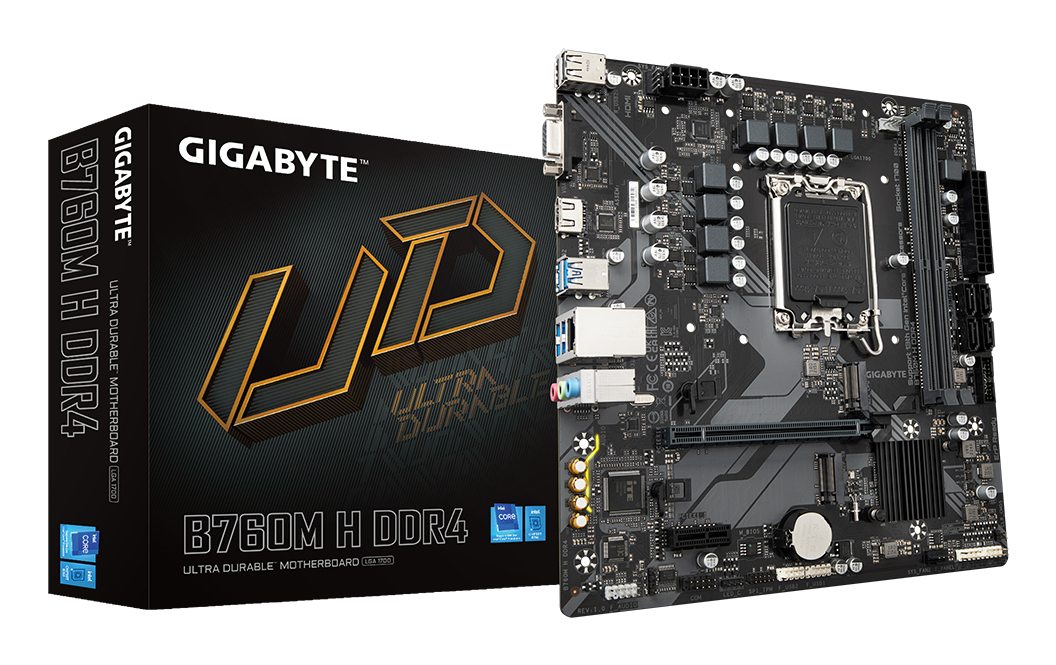

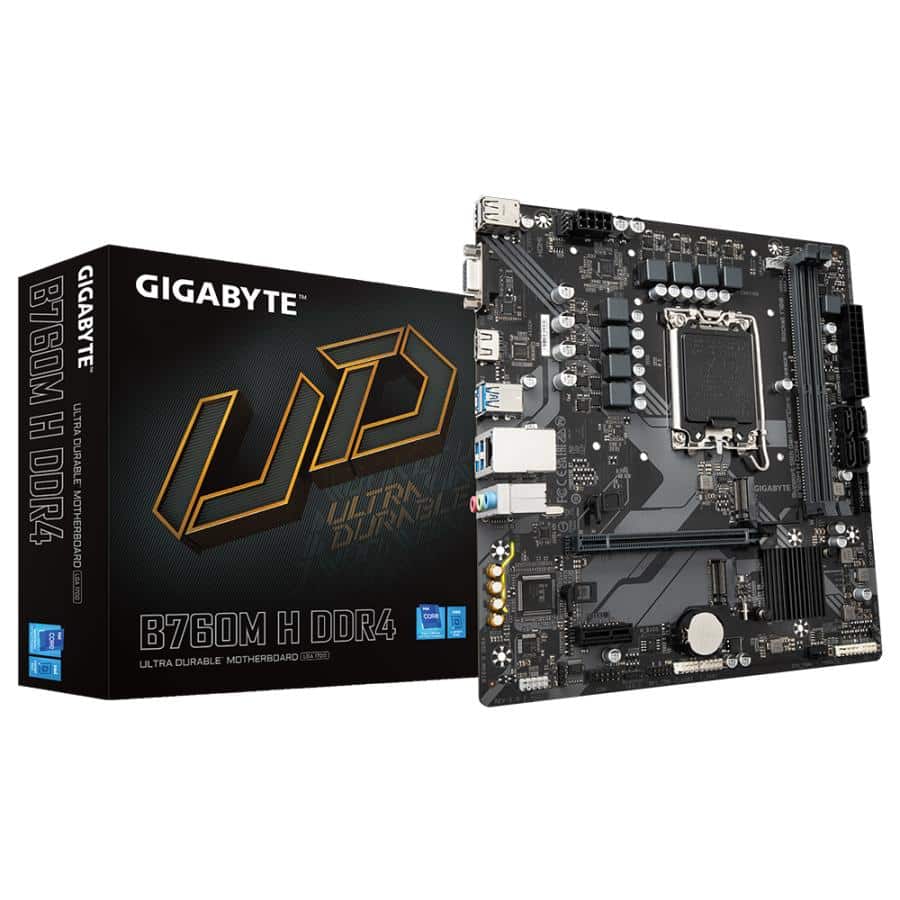

GIGABYTE B760M H DDR4 moederbord Intel B760 Express LGA 1700 micro ATX
€85,99 incl. BTW
GIGABYTE B760M H DDR4, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, 64 GB, DDR4-SDRAM
| EAN | 4719331854645 |
|---|---|
| Fabrikantcode | B760M H DDR4 |
Uitverkocht
Beschrijving
GIGABYTE B760M H DDR4. Processorfabrikant: Intel, Processor socket: LGA 1700, Compatibele processors: Intel® Celeron®, Intel® Pentium® Gold. Ondersteunde geheugen types: DDR4-SDRAM, Maximum intern geheugen: 64 GB, Geheugen slots type: DIMM. Ondersteunde opslagstationinterfaces: M.2, SATA III, Soorten RAID: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet. Component voor: PC, Moederbord form factor: micro ATX, Moederbord chipset familie: Intel
Productgegevens
| SKU | 1064098 |
|---|---|
| EAN | 4719331854645 |
| Fabrikantcode | B760M H DDR4 |
| Merk | GIGABYTE |
Specificaties
Specificaties
Processorfabrikant | Intel |
|---|---|
Processor socket | LGA 1700 |
Compatibele processors | Intel® Celeron®, Intel® Pentium® Gold |
Max. aantal SMP-processoren | 1 |
Supported processor sockets | LGA 1700 |
Maximaal intern geheugen ondersteund door processor | 64 GB |
Ondersteunde geheugen types | DDR4-SDRAM |
Aantal geheugenslots | 2 |
Maximum intern geheugen | 64 GB |
Geheugen slots type | DIMM |
Geheugen kanaal | Dubbelkanaals |
ECC-compatibiliteit | Niet-ECC |
Supported memory clock speeds | 2133,2400,2666,2933,3000,3200 MHz |
Ondersteunde geheugenkloksnelheid (max) | 3200 MHz |
Ondersteunde geheugenmodule capaciteiten | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
Ondersteunde opslagstationinterfaces | M.2, SATA III |
Maximum aantal HDD's per behuizing | 4 |
Aantal storage drives ondersteund | 6 |
RAID support | ✓ |
Soorten RAID | 0, 1, 5, 10 |
Ondersteuning voor parallel processing | Niet ondersteund |
DirectX versie | 12.1 |
USB 2.0 aansluitingen | 2 |
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 |
USB 3.2-connectoren (3.1 Gen 2) | 0 |
Aantal SATA III connectors | 4 |
Totaal aantal SATA-connectoren | 4 |
Aansluiting voor audiopaneel aan voorzijde | ✓ |
Voorpaneel-connector | ✓ |
ATX Power connector (24-pin) | ✓ |
Aansluiting voor CPU koeler | ✓ |
EPS power connector (8-pin) | ✓ |
TPM connector | ✓ |
Serial port headers | 1 |
RGB LED-aansluitrail | ✓ |
Aantal USB 2.0-poorten | 2 |
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 4 |
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C | 0 |
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 0 |
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 0 |
Aantal Ethernet LAN (RJ-45)-poorten | 1 |
VGA (D-Sub)poort(en) | 1 |
Aantal HDMI-poorten | 1 |
DVI-D poorten | 0 |
HDMI versie | 1.4 |
Aantal DisplayPorts | 1 |
DisplayPort versie | 1.4 |
Wifi | ✕ |
Ethernet LAN | ✓ |
Ethernet interface type | Gigabit Ethernet |
Component voor | PC |
Moederbord form factor | micro ATX |
Moederbord chipset familie | Intel |
Chipset moederbord | Intel B760 Express |
Audio-uitgangskanalen | 7.1 kanalen |
Audiochip | Realtek ALC897 |
Kleur van het product | Bruin |
Type stroombron | ATX |
Ondersteunt Windows | Windows 10, Windows 11 |
PCI Express x16 (Gen 4.x) sleuven | 1 |
Aantal M.2 (M) slots | 2 |
BIOS type | UEFI AMI |
Grootte BIOS-geheugen | 128 Mbit |
ACPI version | 5.0 |
Clear CMOS jumper | ✓ |
Versie Desktop Management Interface (DMI) | 2.7 |
Systeem Management BIOS (SMBIOS) versie | 2.7 |
Land van herkomst | China |
Producten per (binnenste) verzendverpakking | 1 stuk(s) |
Gewicht batterij | 3 g |
Lithiumgewicht per batterij | 0,07 g |
Aantal batterijcellen | 1 |
Batterijtechnologie | Lithium-Manganese Dioxide (LiMnO2) |
Type batterij | CR2032 |
Breedte verpakking | 265 mm |
Diepte verpakking | 265 mm |
Hoogte verpakking | 54 mm |
Gewicht verpakking | 825 g |
Breedte | 230 mm |
Diepte | 215 mm |
Hoogte | 35 mm |
Batterijen inbegrepen | ✓ |
Garantieperiode | 3 jaar |
