Beschrijving

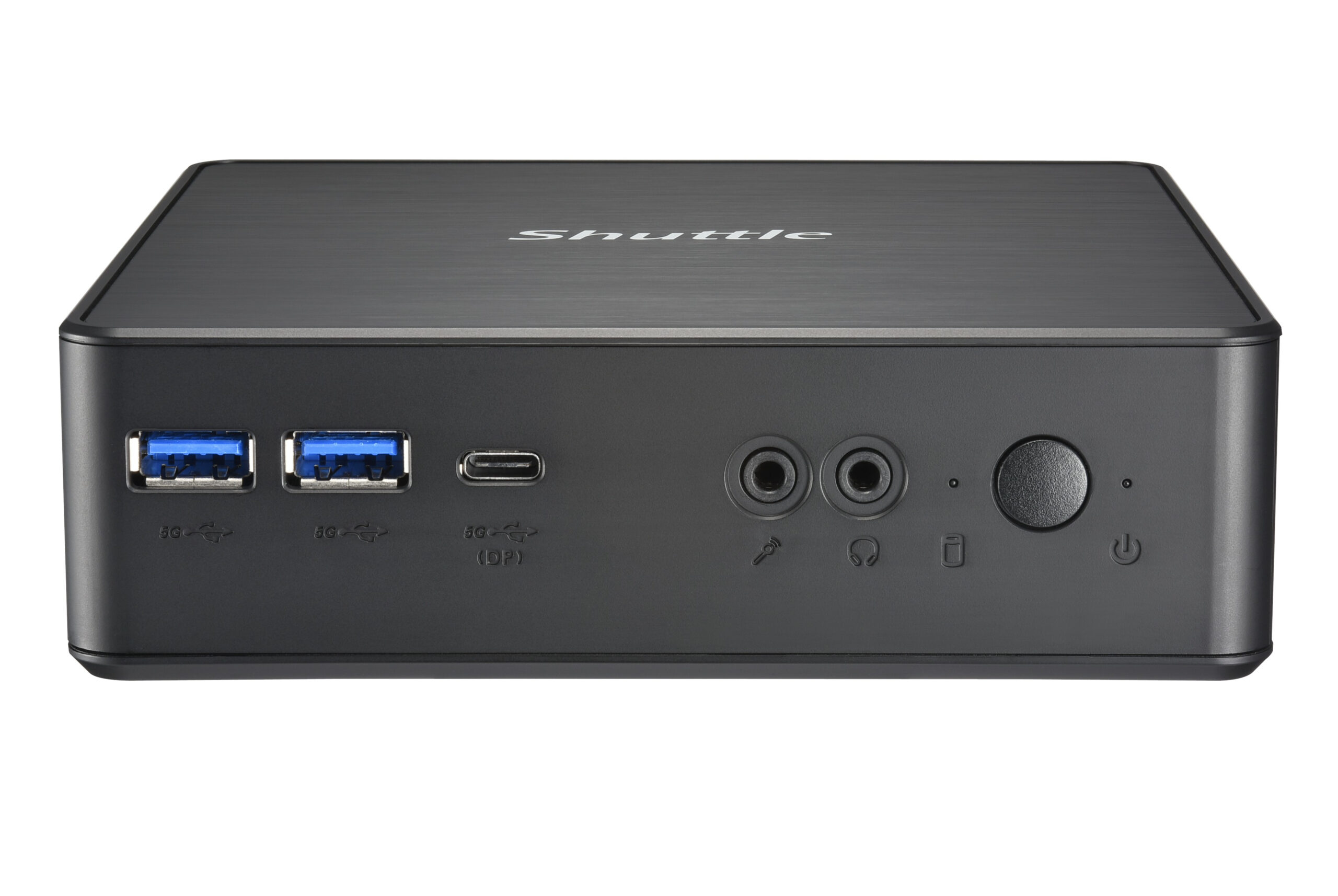

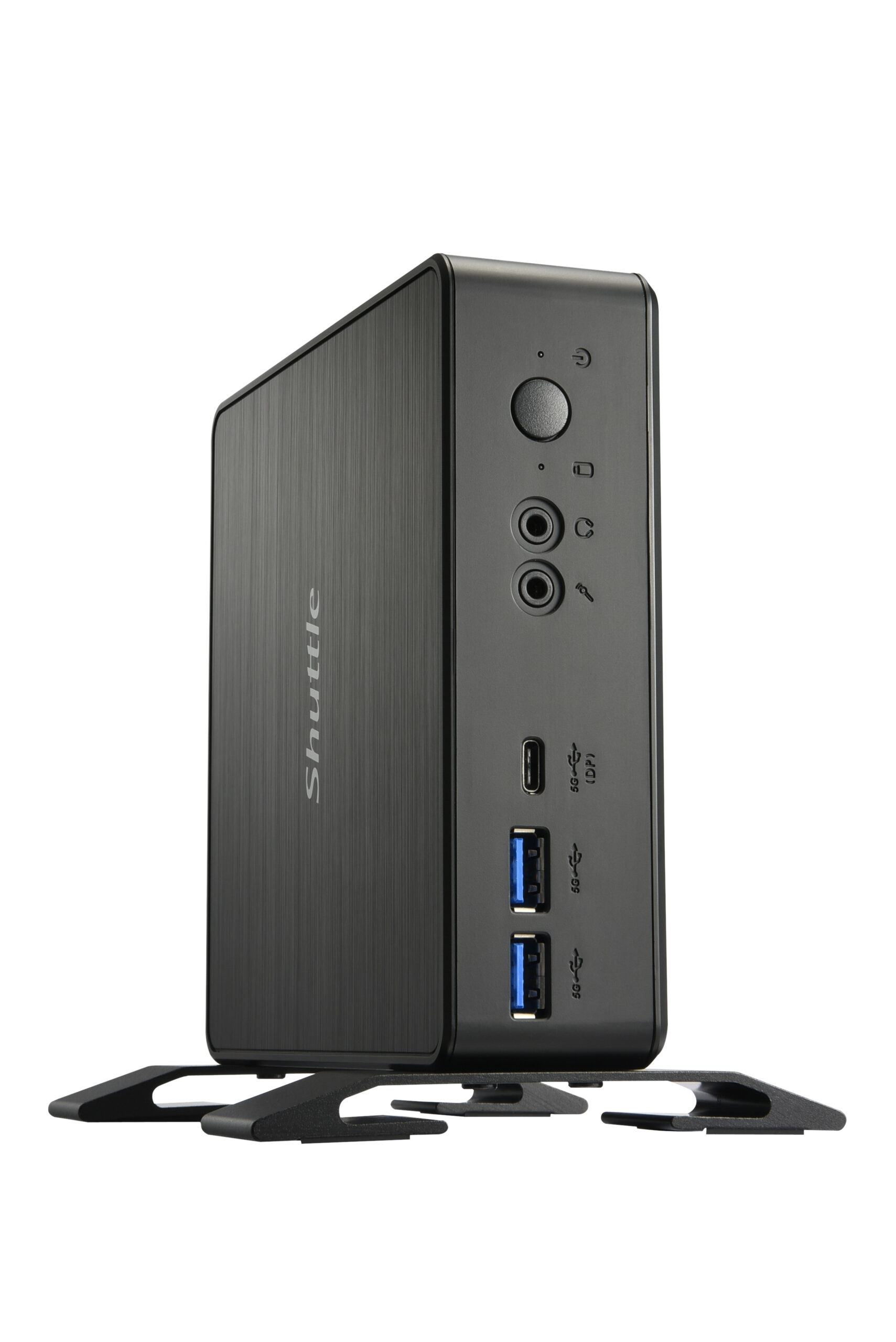

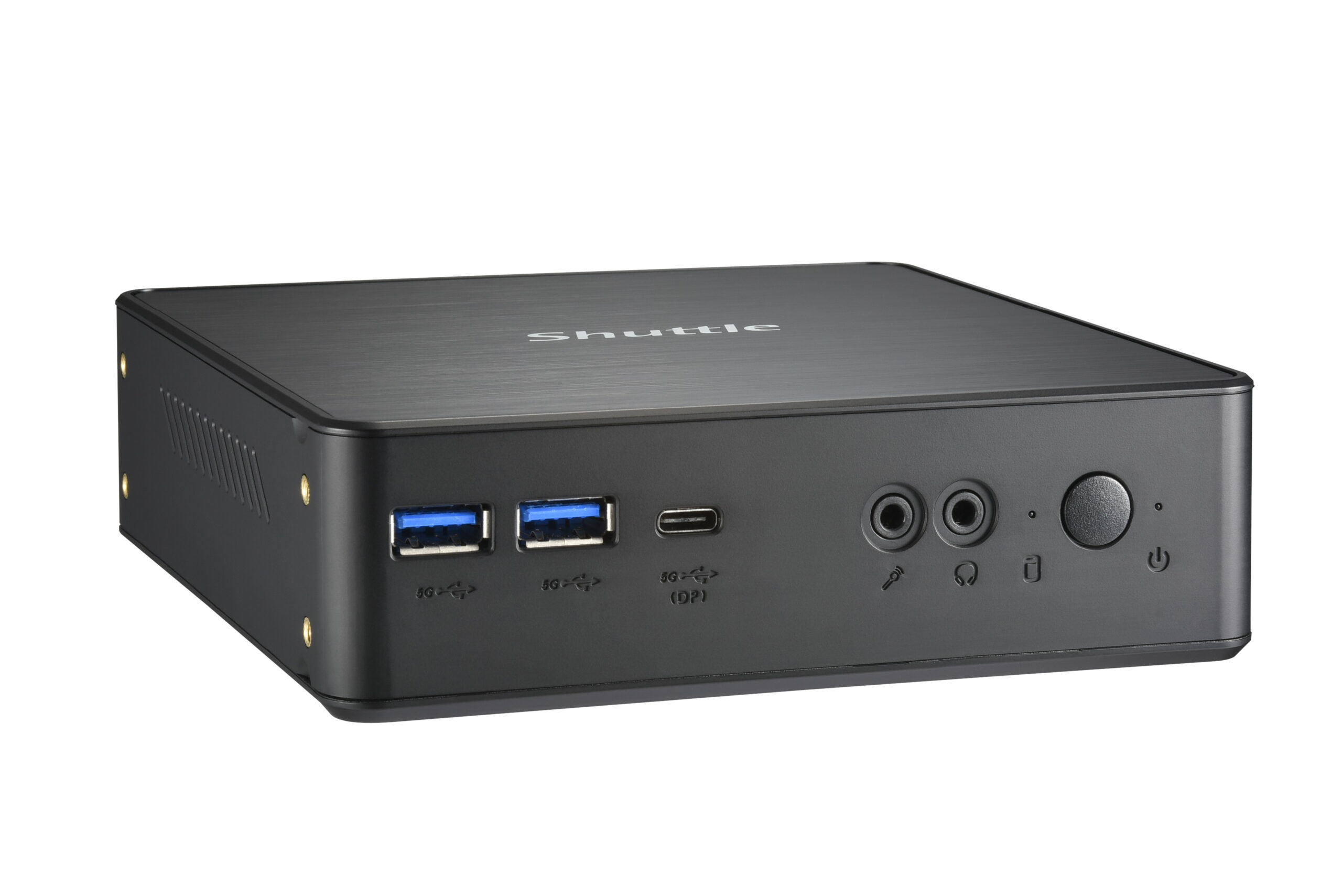

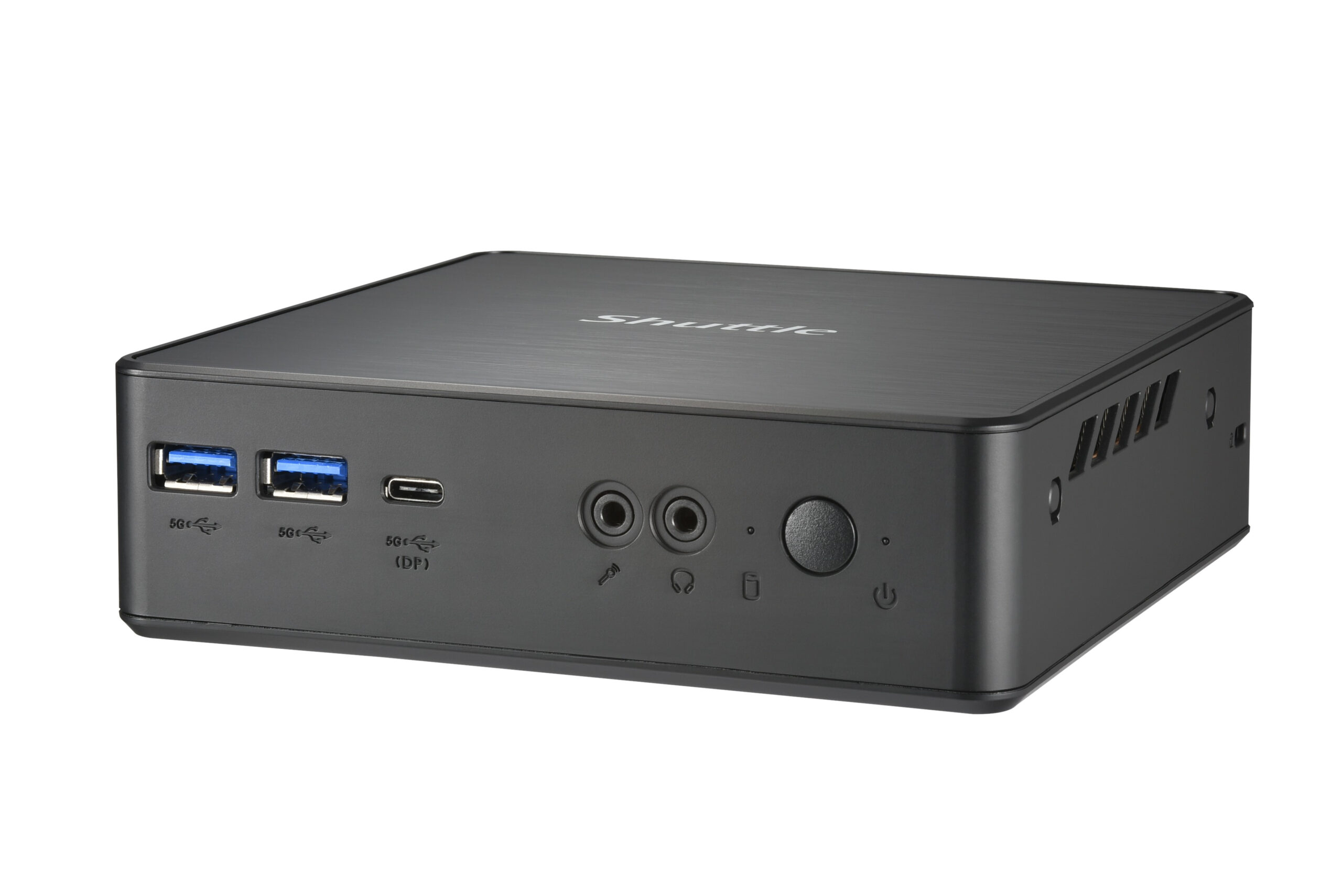

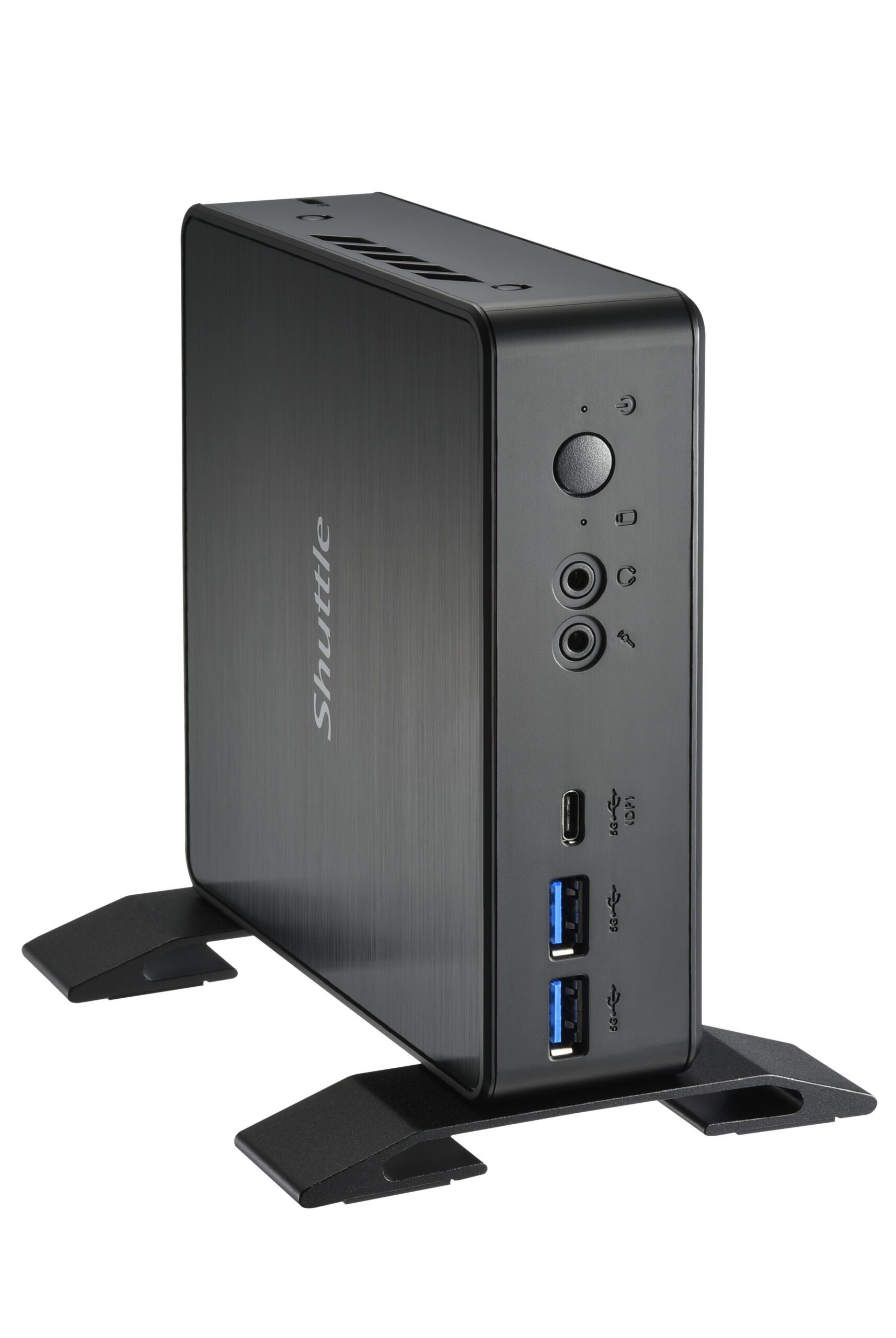

Many ports and high performance in nano formatThe NC40U series comes with powerful and efficient 12th generation Intel Core processors, codenamed 'Alder Lake-U'. Despite the nano format with only 850 ml volume, it offers enormous connection variety and expansion options. Thus, up to three UHD displays (4K/60Hz) and up to seven USB 3.2 devices can be connected, and two NVMe/SSD cards in M.2-2280 format as well as one 2. 5 inch hard drive (up to 15 mm thickness) can be installed. The NC40U series is ideal for Digital Signage, POS, control, office or even multimedia.
Productgegevens
| SKU | 1064167 |
|---|---|
| EAN | 0887993005904 |
| Fabrikantcode | PFB-NC40U001 |
| Merk | Shuttle |
Specificaties
Processor
Processorfabrikant | Intel |
|---|---|
Processorfamilie | Intel® Celeron® |
Processormodel | 7305 |
Aantal processorkernen | 5 |
Processor aantal threads | 5 |
Frequentie van processor | 1,1 GHz |
Prestatiekernen | 1 |
Efficiënte kernen | 4 |
Type processor | ✓ |
Processor cache | 8 MB |
Geheugen
Geheugen slots type | SO-DIMM |
|---|---|
Aantal geheugenslots | 2 |
Maximum intern geheugen | 64 GB |
Supported memory clock speeds | 3200 MHz |
Ondersteunde geheugen types | DDR4-SDRAM |
Geheugen kanaal | Dubbelkanaals |
Geheugen voltage | 1.2 V |
ECC | ✕ |
Non-ECC | ✓ |
Opslagmedia
Ondersteunde types opslag-drives | HDD & SSD |
|---|---|
Opslagschijf afmetingen ondersteund | 2.5,M.2 |
Opslag schijf-interface | PCI Express, SATA III |
NVMe | ✓ |
Aantal storage drives ondersteund | 3 |
Geïntegreerde geheugenkaartlezer | ✕ |
Grafisch
Ingebouwde grafische adapter | ✓ |
|---|---|
Grafische adapter-familie | Intel |
On-board graphics adapter model | Intel® UHD Graphics |
Maximum resolutie | 7680 x 4320 Pixels |
Prestatie
Chipset moederbord | Intel SoC |
|---|---|
Aantal ondersteunde processoren | 1 |
BIOS type | AMI |
Trusted Platform Module (TPM) | ✓ |
Trusted Platform Module (TPM) version | 2.0 |
Audio
Ingebouwde luidsprekers | ✕ |
|---|
Netwerk
Ethernet LAN | ✓ |
|---|---|
Wifi | ✕ |
LAN controller | Intel® I219 |

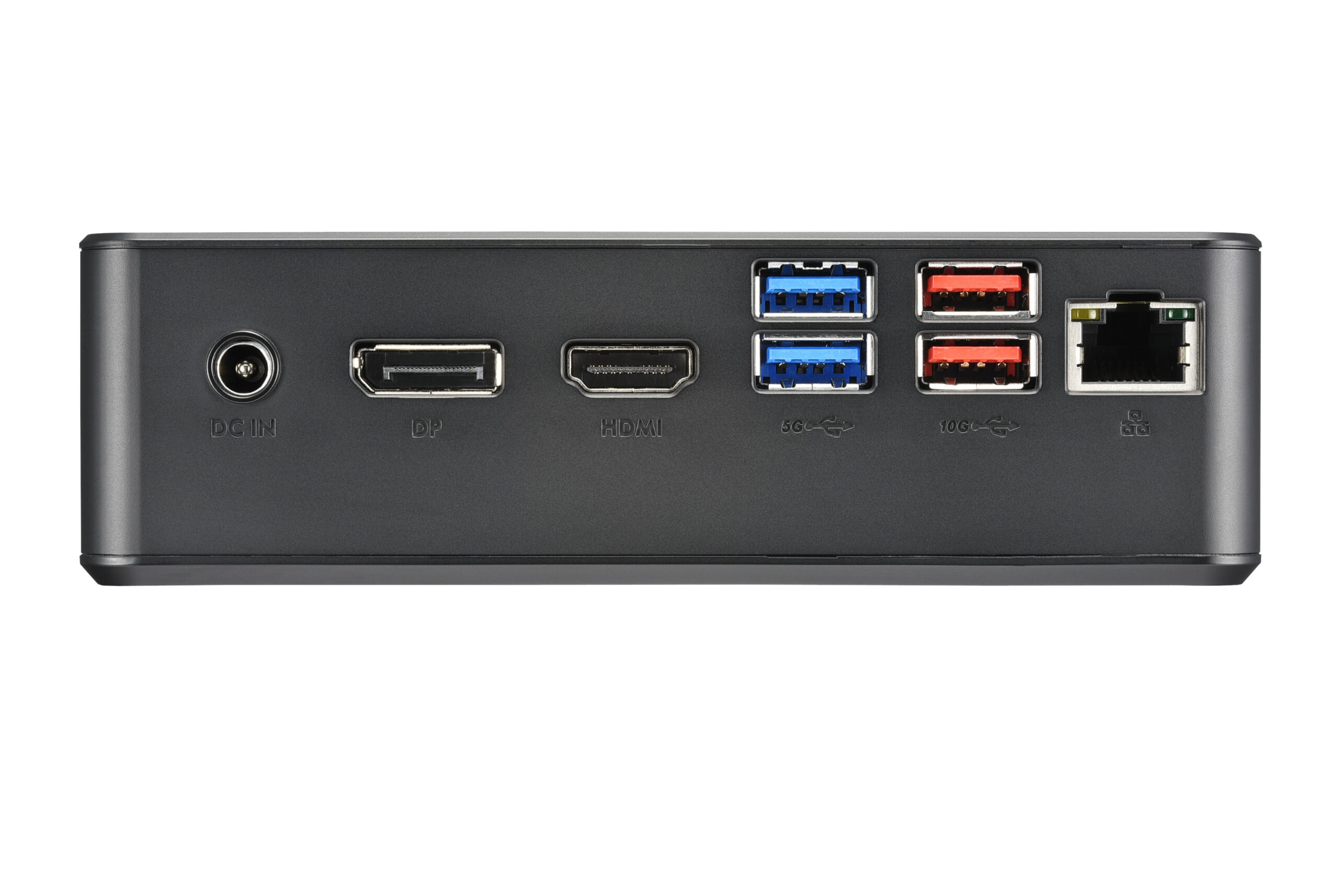

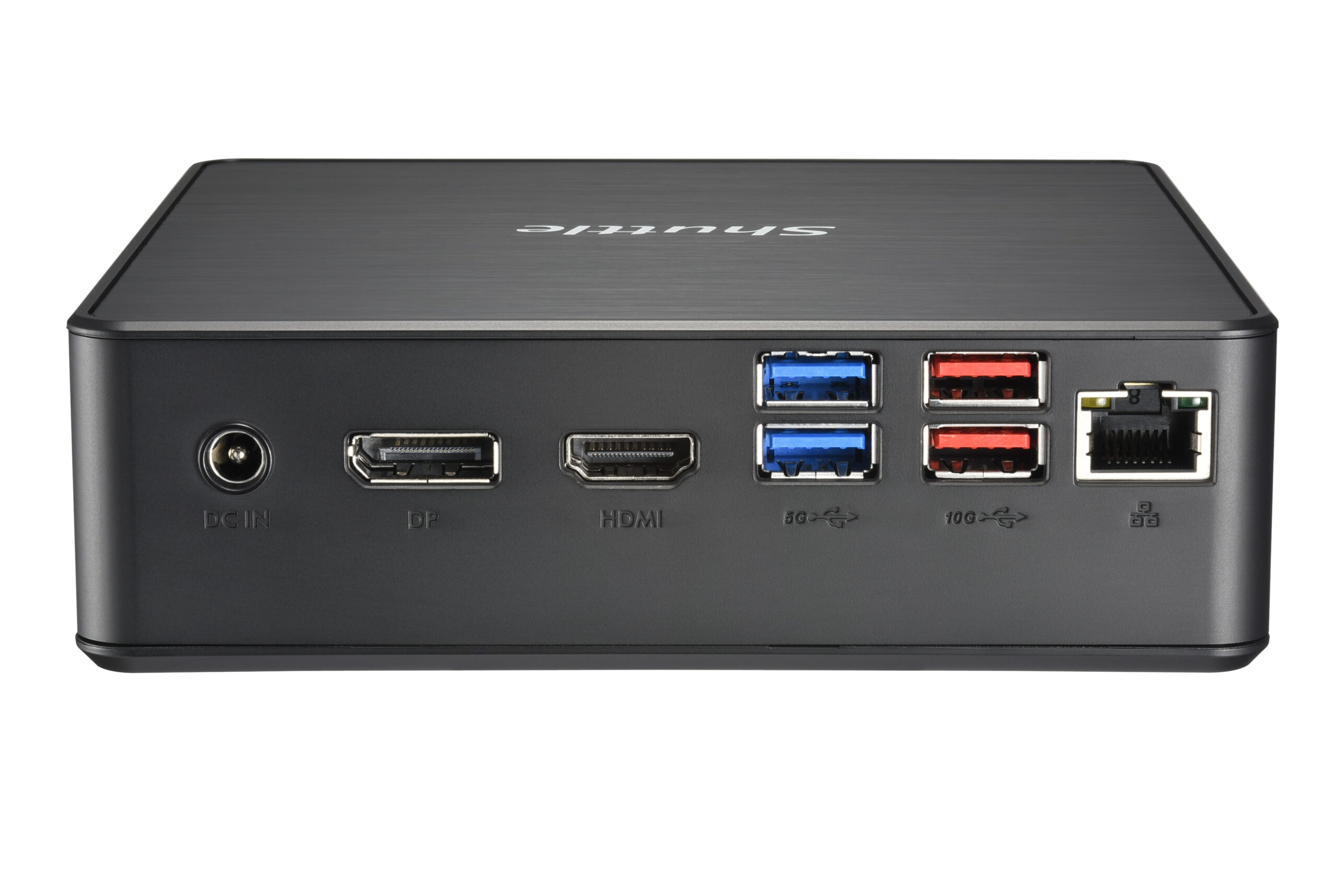

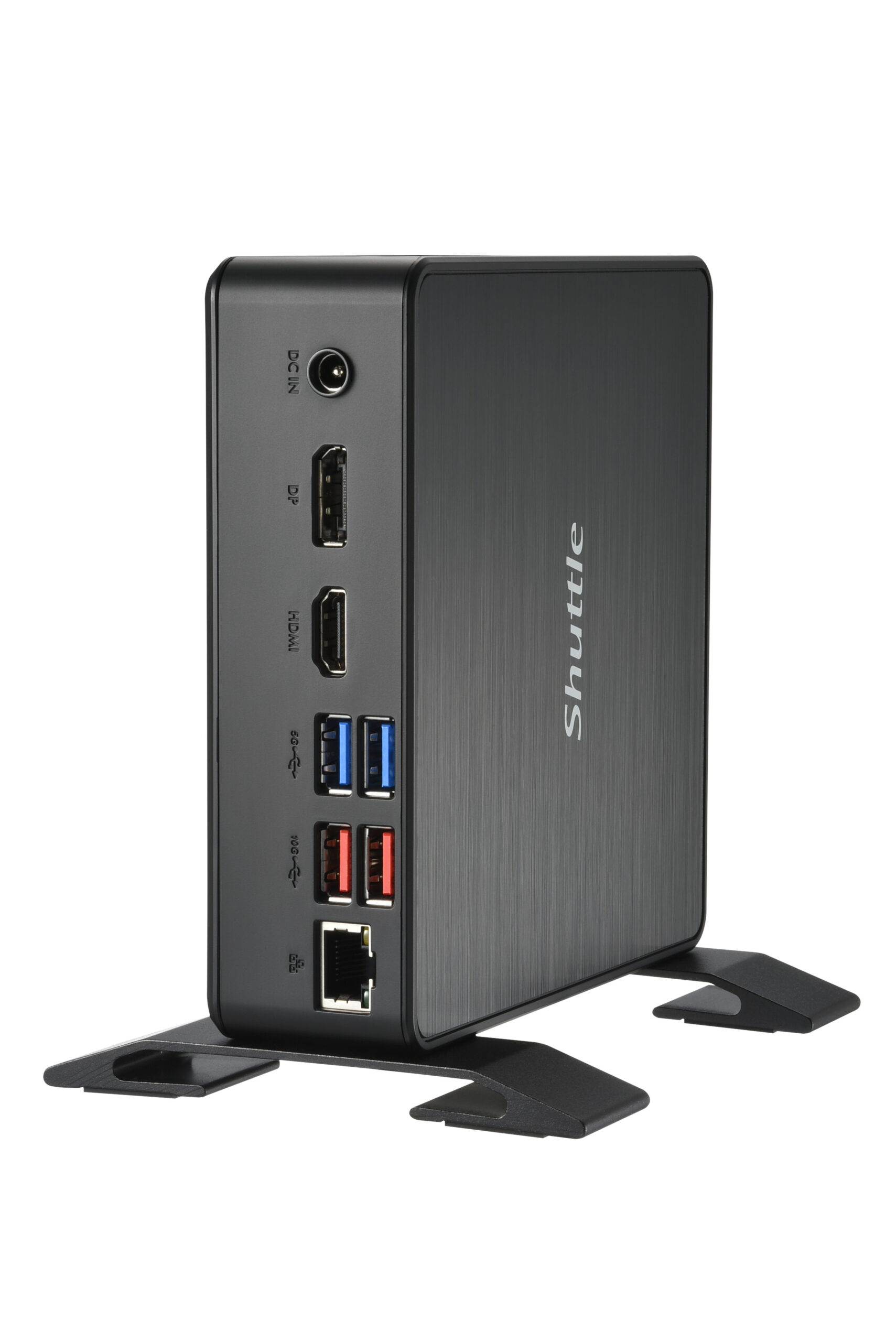

Poorten & interfaces
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 4 |
|---|---|
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C | 1 |
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 2 |
Aantal HDMI-poorten | 1 |
HDMI versie | 2.0b |
Aantal DisplayPorts | 1 |
DisplayPort versie | 1.4a |
Microfoon, line-in ingang | ✓ |
Hoofdtelefoonuitgangen | 1 |
Aantal Ethernet LAN (RJ-45)-poorten | 1 |
Aansluiting voor netstroomadapter | ✓ |
Uitbreidingsmodules
PCI Express slots versie | 3.0, 4.0 |
|---|---|
Aantal M.2 (M) slots | 2 |
Design
Type behuizing | 0.84L sized PC |
|---|---|
Kleur van het product | Zwart |
Type koeling | Actief |
Aan/uitschakelaar | ✓ |
LED-indicatoren | HDD, Stroom |
Materiaal behuizing | Kunststof |
Bevestigingsmogelijkheid voor kabelslot | ✓ |
Kabelslot sleuf type | Kensington |
VESA-montage | ✓ |
Paneelmontage-interface | 75 x 75,100 x 100 mm |
Type product | Mini PC barebone |
Veiligheid | CB IEC60950/62368, cTUVus (UL 62368) |
Technische details
Certificaten van naleving | BSMI, CE, Federal Communications Commission (FCC), RoHS, UKCA |
|---|
Logistieke gegevens
Code geharmoniseerd systeem (HS) | 84733080 |
|---|
Software
Ondersteunt Windows | Windows 10, Windows 11 |
|---|---|
Ondersteunt Linux | ✓ |
Inclusief besturingssysteem | ✕ |
Duurzaamheid
Naleving van duurzaamheid | ✓ |
|---|---|
Duurzaamheidscertificaten | ENERGY STAR, ErP |
Energie
Soort voeding | Externe AC-adapter |
|---|---|
Netvoeding | 65 W |
Aantal voedingen | 1 |
AC-ingangsspanning | 100 - 240 V |
AC-ingangsfrequentie | 50/60 Hz |
AC-adapter, uitgangsspanning | 19 V |
AC-adapter, uitgangsstroom | 3,42 A |
Eisen aan de omgeving
Bedrijfstemperatuur (T-T) | 0 - 40 °C |
|---|---|
Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
Gewicht en omvang
Breedte | 142 mm |
|---|---|
Diepte | 142 mm |
Hoogte | 42 mm |
Gewicht | 400 g |
Gewicht verpakking | 1,2 kg |
Inhoud van de verpakking
Inclusief netsnoer | ✓ |
|---|---|
Inclusief AC-adapter | ✓ |
Snelstartgids | ✓ |
Meegeleverde drivers | ✓ |
