Beschrijving

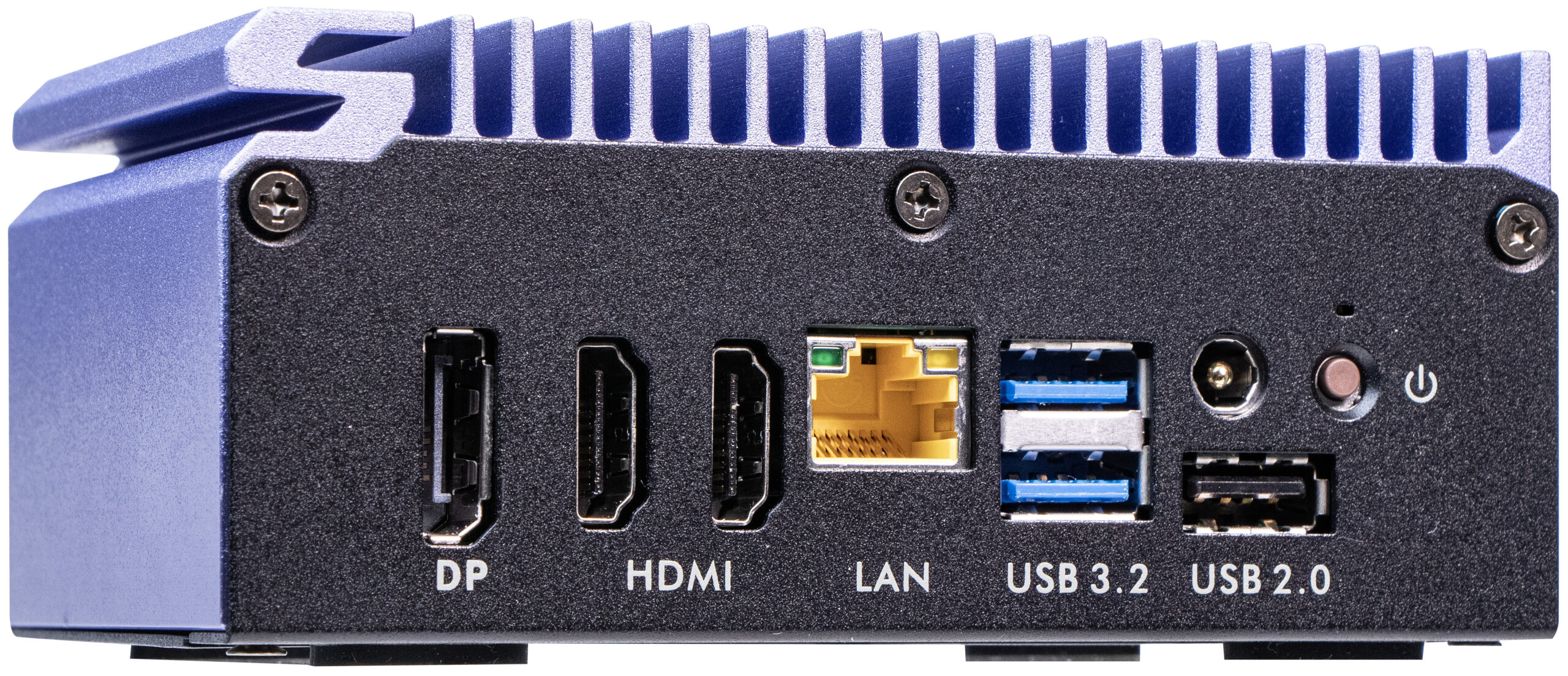

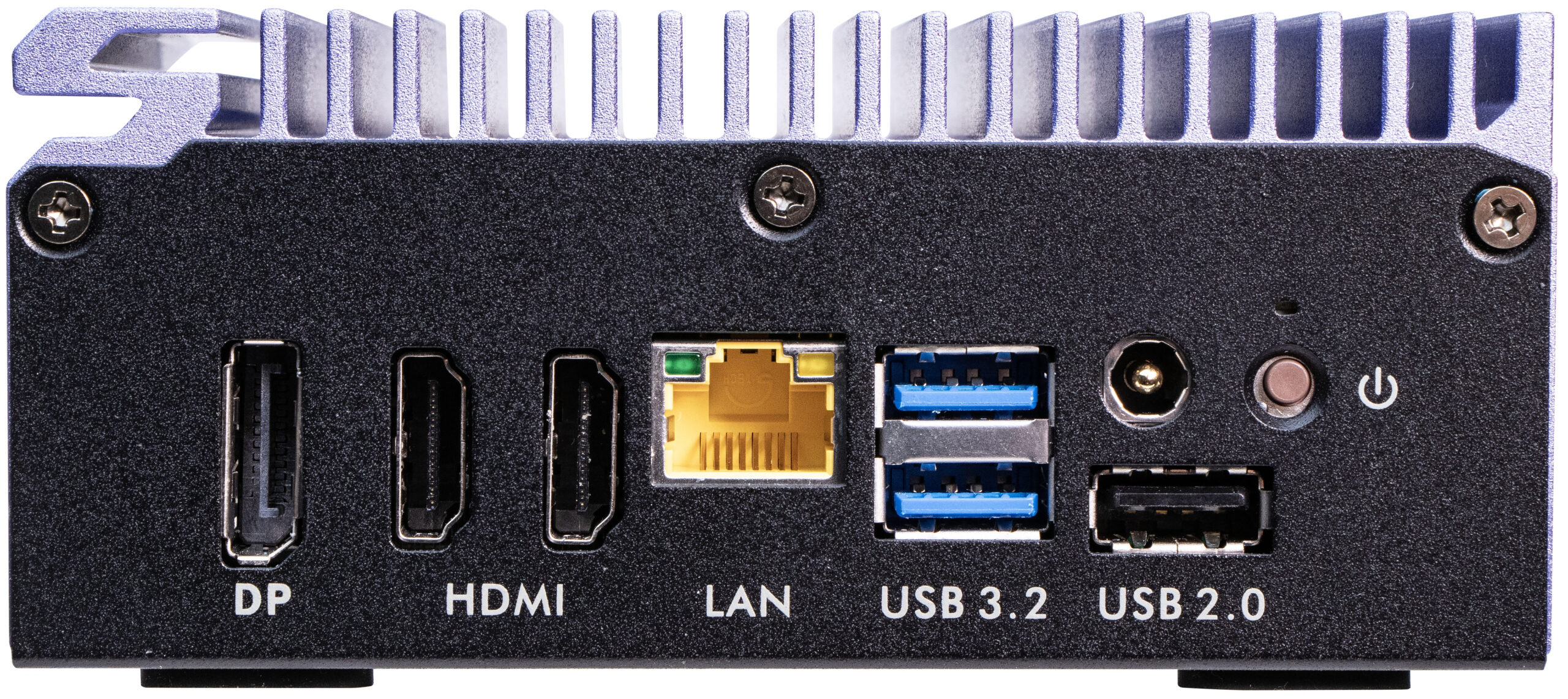

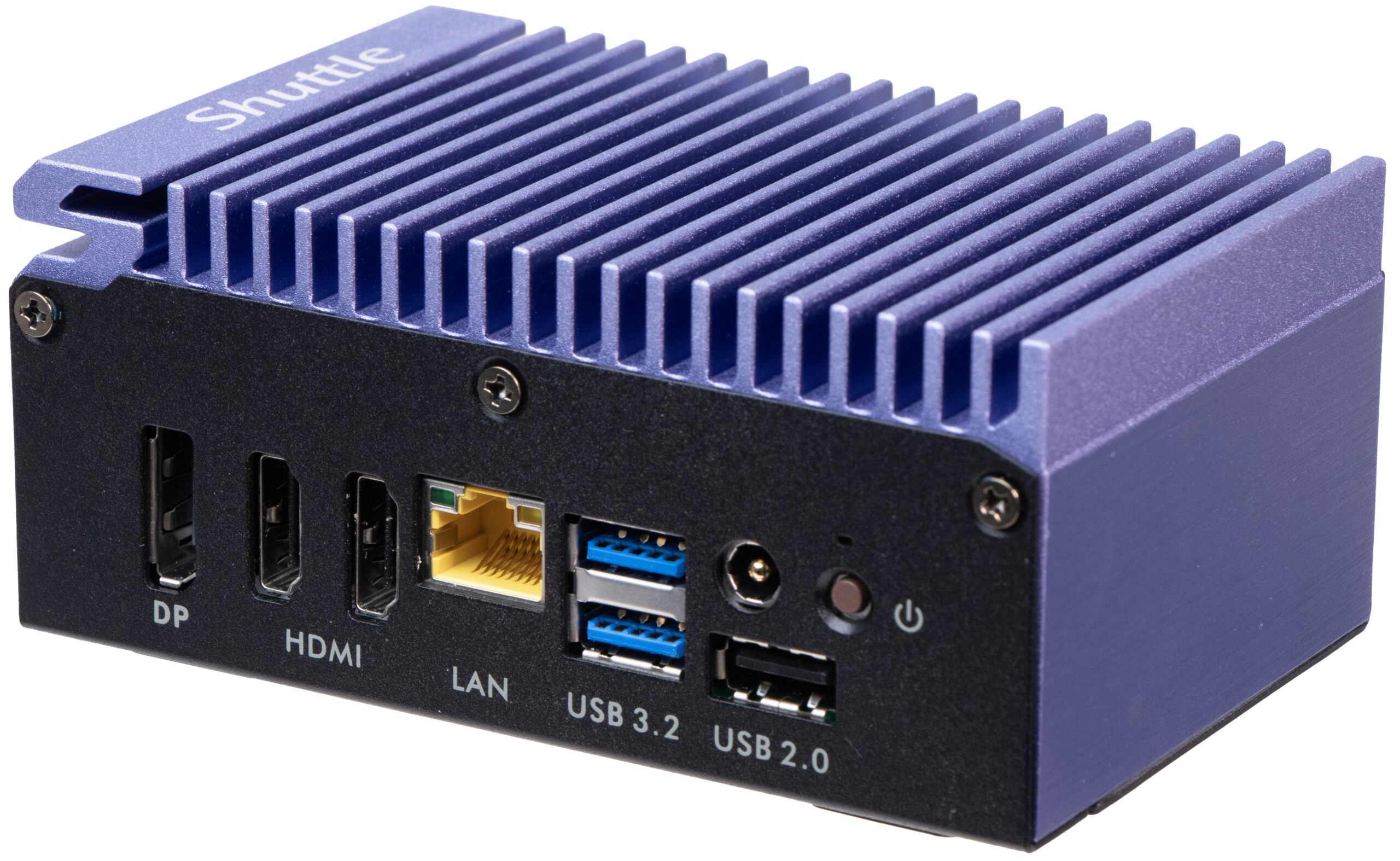

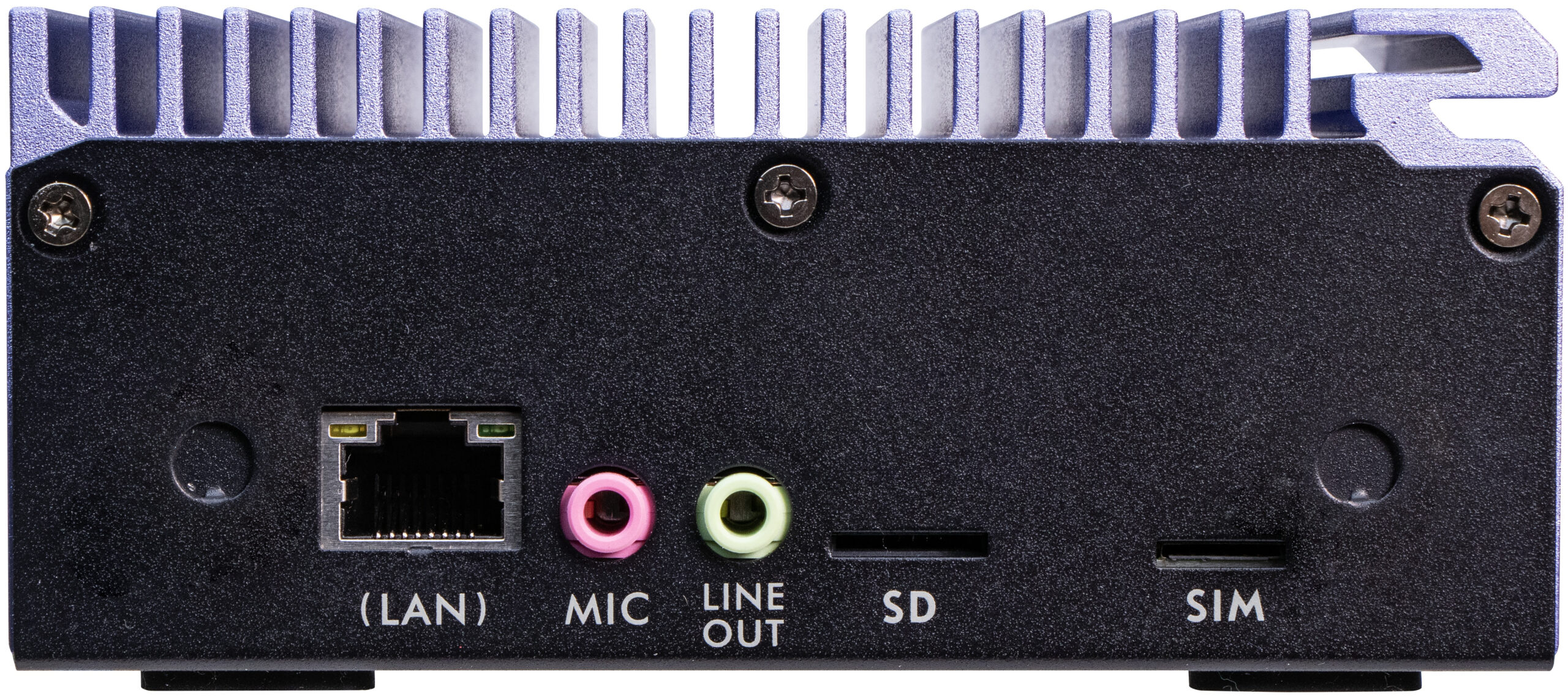

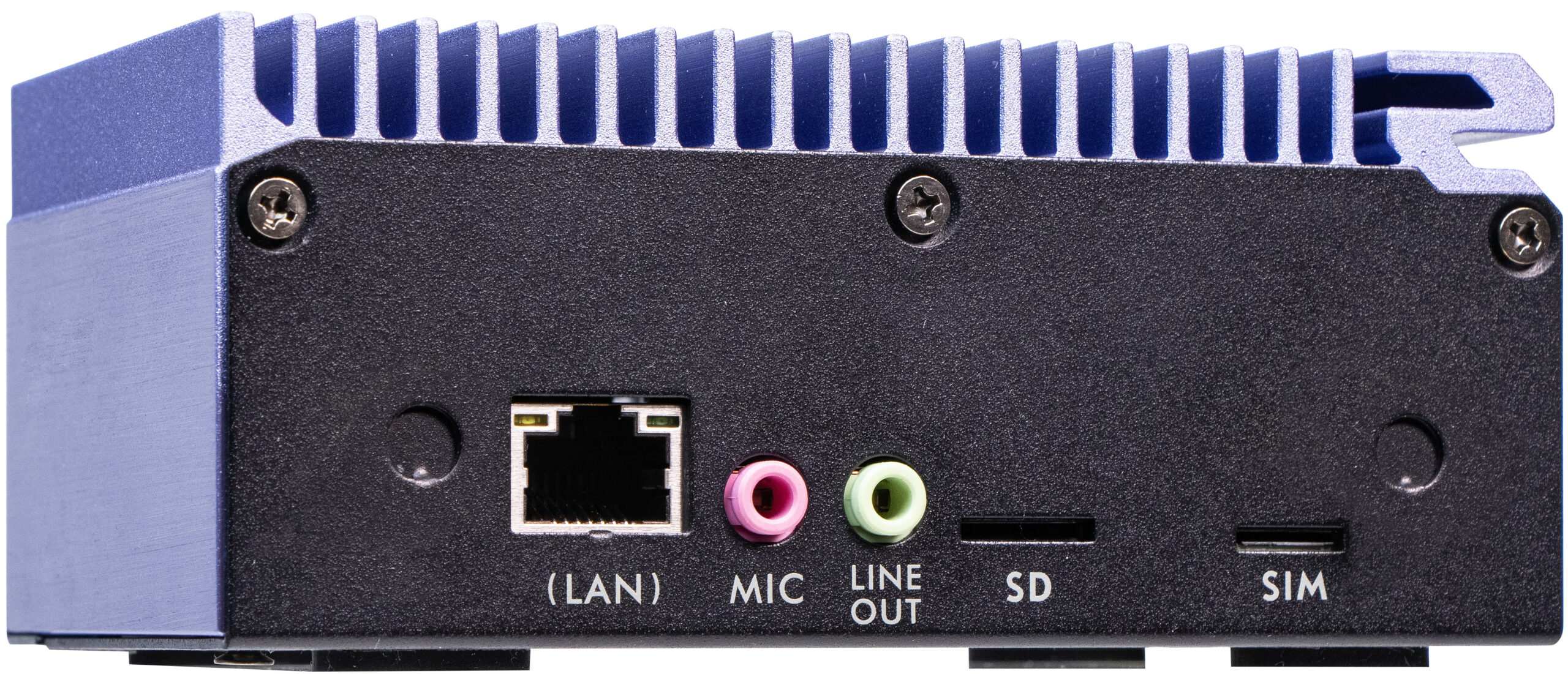

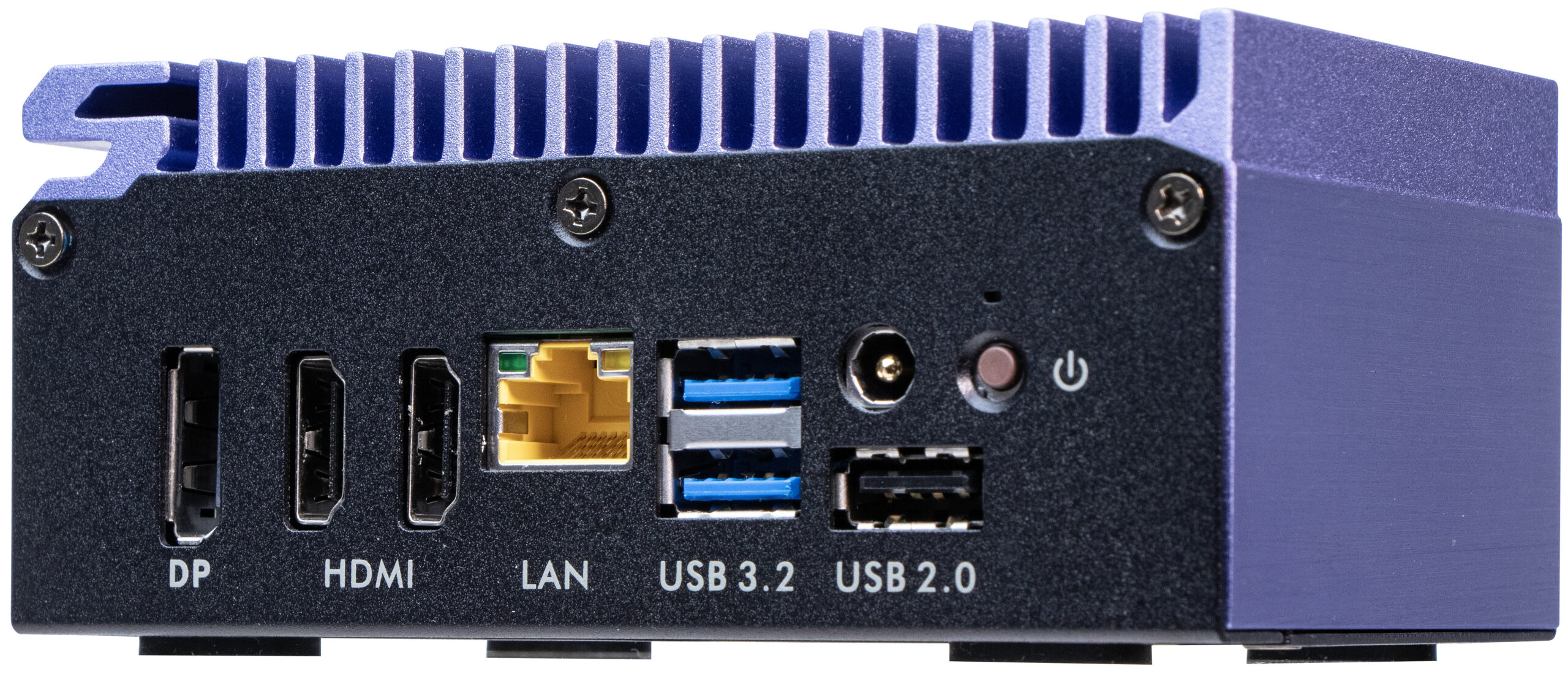

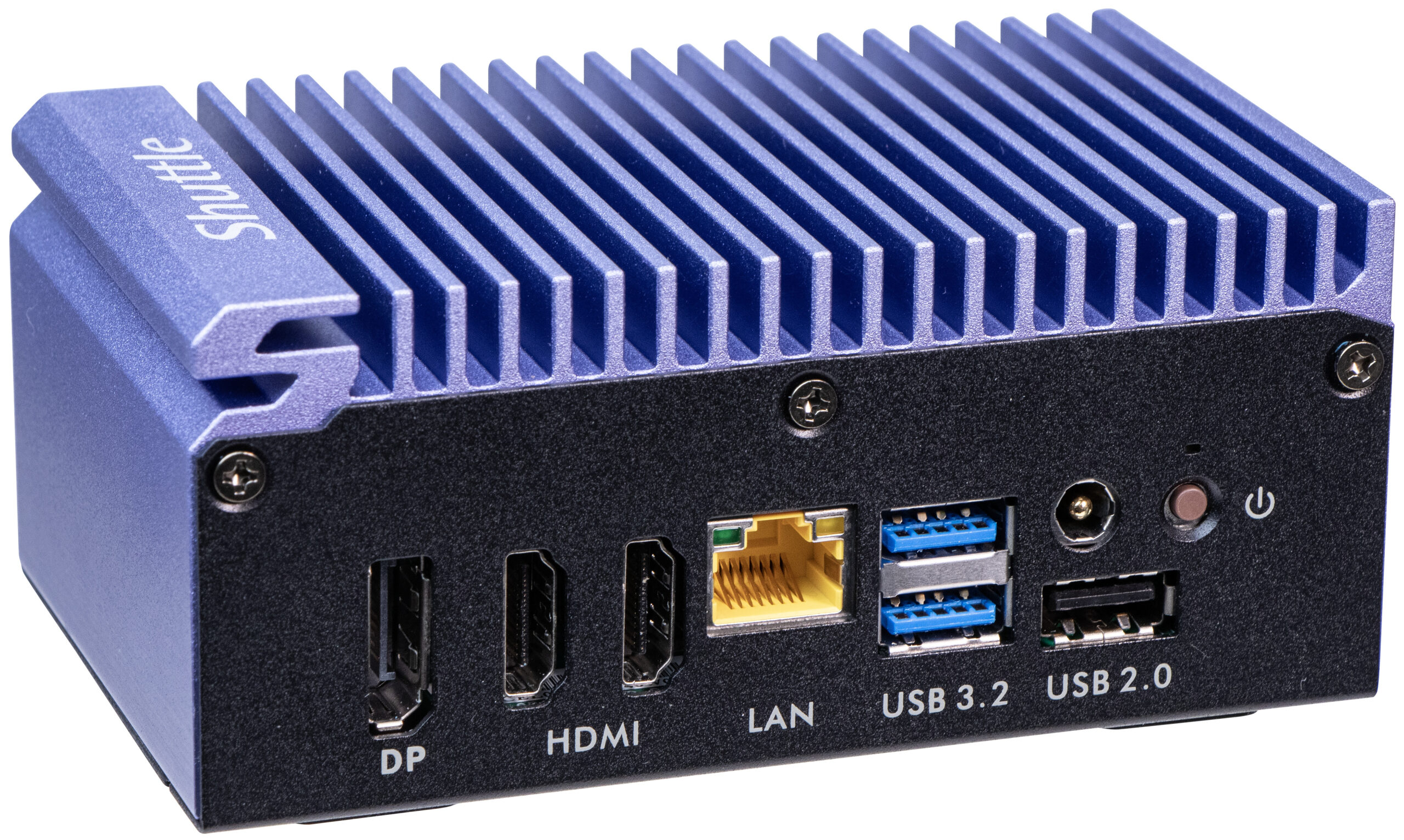

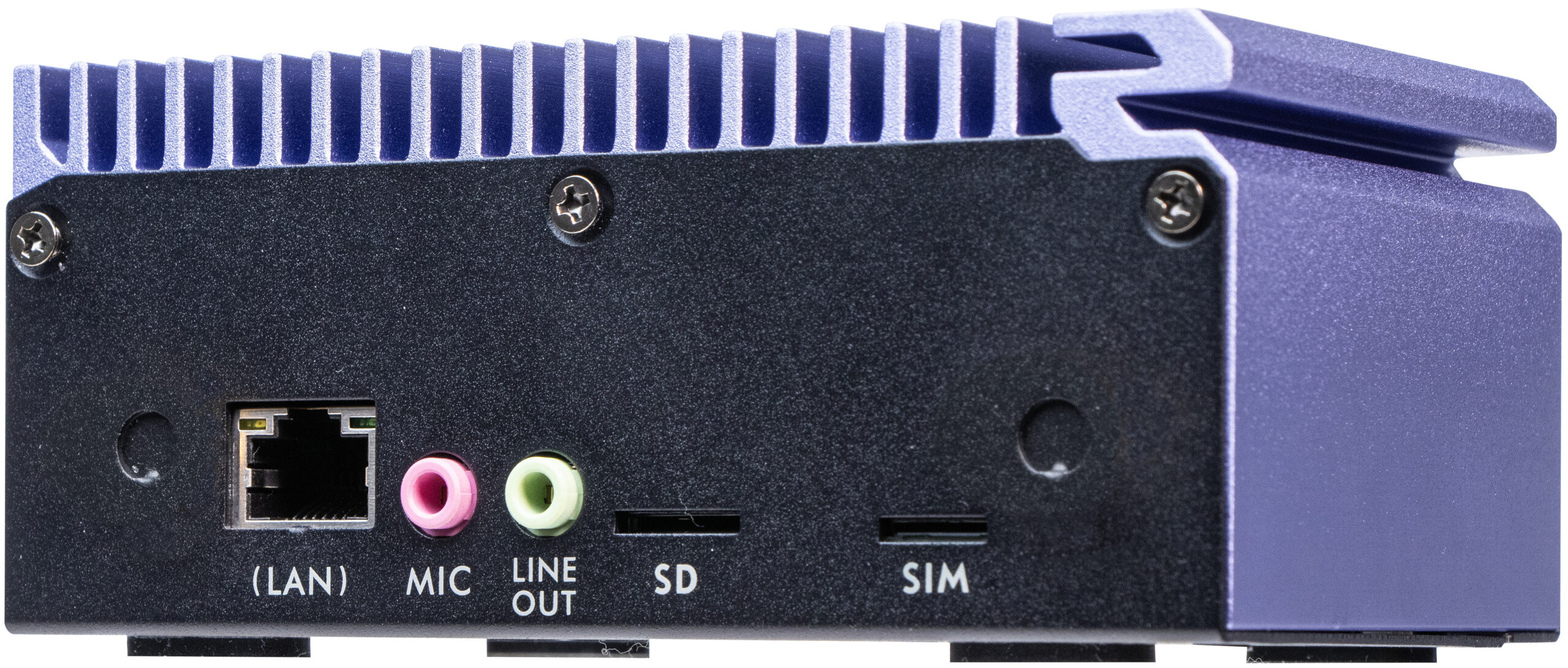

Robust 0.5L Industry PC supports three displays and optional 4GThe Shuttle Edge PC SPCEL12 is a fanless Industrial PC barebone in a robust metal chassis and intended for VESA mounting. It is flexible in use and de-signed for maintenance-free 24/7 operation at ambient temperatures of up to 40°C. Inside there is an Intel Celeron 'Elkhart Lake' processor with slots for RAM module, M.2 SSD card and optional WLAN or 4G card. The small housing offers an amazing variety of connections, including three graphics ports, dual LAN, Audio, and slots for Micro SD and Nano SIM. This product is targeted at professional applications such as digital signage (media player), edge computing (IoT gateway), automation, control, data logging and video surveillance.
Productgegevens
| SKU | 1065541 |
|---|---|
| EAN | 0887993007243 |
| Fabrikantcode | KEB-SPCEL12001 |
| Merk | Shuttle |
Specificaties
Processor
Processorfabrikant | Intel |
|---|---|
Processorfamilie | Intel® Celeron® |
Processormodel | J6412 |
Aantal processorkernen | 4 |
Processor aantal threads | 4 |
Maximale turbofrequentie van processor | 2,6 GHz |
Frequentie van processor | 2 GHz |
Type processor | ✓ |
Geïnstalleerde processorcache | 1,5 MB |
Thermal Design Power (TDP) | 10 W |
Geheugen
Geheugen slots type | SO-DIMM |
|---|---|
Aantal geheugenslots | 1 |
Maximum intern geheugen | 32 GB |
Supported memory clock speeds | 3200 MHz |
Ondersteunde geheugen types | DDR4-SDRAM |
Geheugen kanaal | Eenkanaals |
Geheugen voltage | 1.2 V |
ECC | ✕ |
Non-ECC | ✓ |
Opslagmedia
Ondersteunde types opslag-drives | SSD |
|---|---|
Opslagschijf afmetingen ondersteund | M.2 |
SSD-vormfactor | M.2 |
Opslag schijf-interface | SATA |
Geïntegreerde geheugenkaartlezer | ✓ |
Compatibele geheugenkaarten | MicroSD (TransFlash) |
Grafisch
Ingebouwde grafische adapter | ✓ |
|---|---|
Grafische adapter-familie | Intel |
On-board graphics adapter model | Intel® UHD Graphics |
Maximum resolutie | 3840 x 2160 Pixels |
Prestatie
Chipset moederbord | Intel SoC |
|---|---|
Processor socket | BGA 1493 |
Aantal ondersteunde processoren | 1 |
BIOS type | UEFI AMI |
Trusted Platform Module (TPM) | ✓ |
Trusted Platform Module (TPM) version | 2.0 |
Audiochip | Realtek ALC888-VD |
Audio
Ingebouwde luidsprekers | ✕ |
|---|
Netwerk
Ethernet LAN | ✓ |
|---|---|
Wifi | ✕ |
LAN controller | Intel I226-V |
Poorten & interfaces
Aantal USB 2.0-poorten | 1 |
|---|---|
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 2 |
Aantal HDMI-poorten | 2 |
HDMI versie | 2.0b |
Aantal DisplayPorts | 1 |
DisplayPort versie | 1.4 |
Microfoon, line-in ingang | ✓ |
Hoofdtelefoonuitgangen | 1 |
Aantal Ethernet LAN (RJ-45)-poorten | 2 |
Aansluiting voor netstroomadapter | ✓ |
Design
Type behuizing | 0,46L maat pc |
|---|---|
Kleur van het product | Zwart, Blauw |
Type koeling | Passief |
LED-indicatoren | Stroom |
Materiaal behuizing | Aluminium |
VESA-montage | ✓ |
Paneelmontage-interface | 100 x 100 mm |
Type product | Mini PC barebone |
Technische details
Certificaten van naleving | CE, Federal Communications Commission (FCC), RoHS, VCCI |
|---|
Logistieke gegevens
Code geharmoniseerd systeem (HS) | 84733080 |
|---|
Software
Ondersteunt Windows | Windows 10, Windows 11 |
|---|---|
Ondersteunt Linux | ✓ |
Inclusief besturingssysteem | ✕ |
Duurzaamheid
Duurzaamheidscertificaten | ENERGY STAR |
|---|
Energie
Soort voeding | Externe AC-adapter |
|---|---|
Netvoeding | 65 W |
Aantal voedingen | 1 |
AC-ingangsspanning | 100 - 240 V |
AC-ingangsfrequentie | 50/60 Hz |
AC-adapter, uitgangsspanning | 19 V |
AC-adapter, uitgangsstroom | 3,42 A |
Eisen aan de omgeving
Bedrijfstemperatuur (T-T) | 0 - 40 °C |
|---|---|
Relatieve vochtigheid in bedrijf (V-V) | 20 - 80 procent |
Gewicht en omvang
Breedte | 120 mm |
|---|---|
Diepte | 75 mm |
Hoogte | 51 mm |
Gewicht | 720 g |
Gewicht verpakking | 1,2 kg |
Inhoud van de verpakking
Inclusief netsnoer | ✓ |
|---|---|
Inclusief AC-adapter | ✓ |
