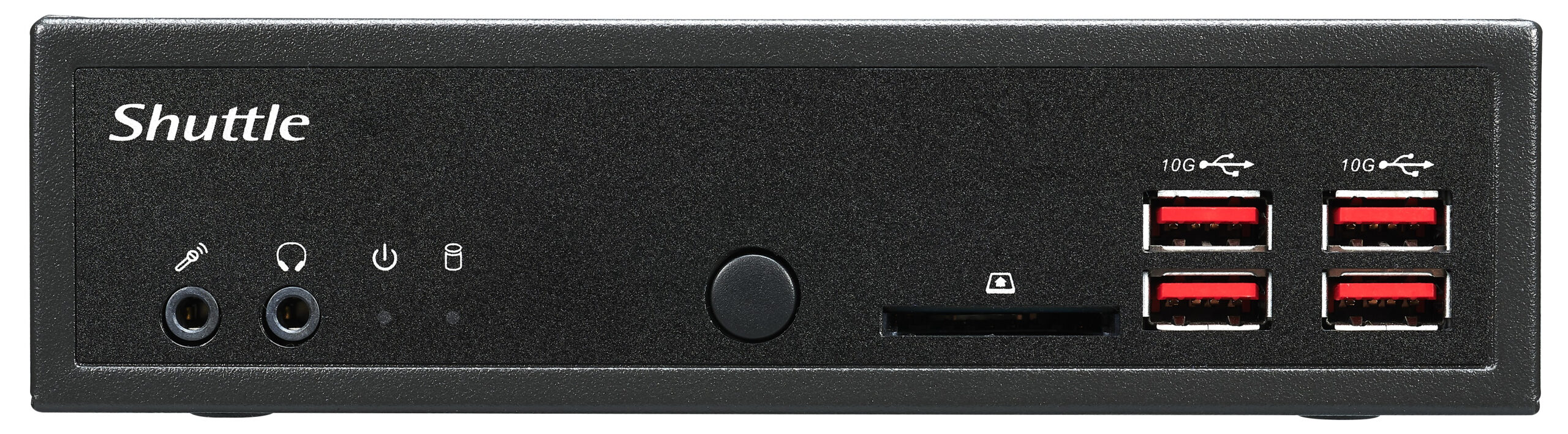

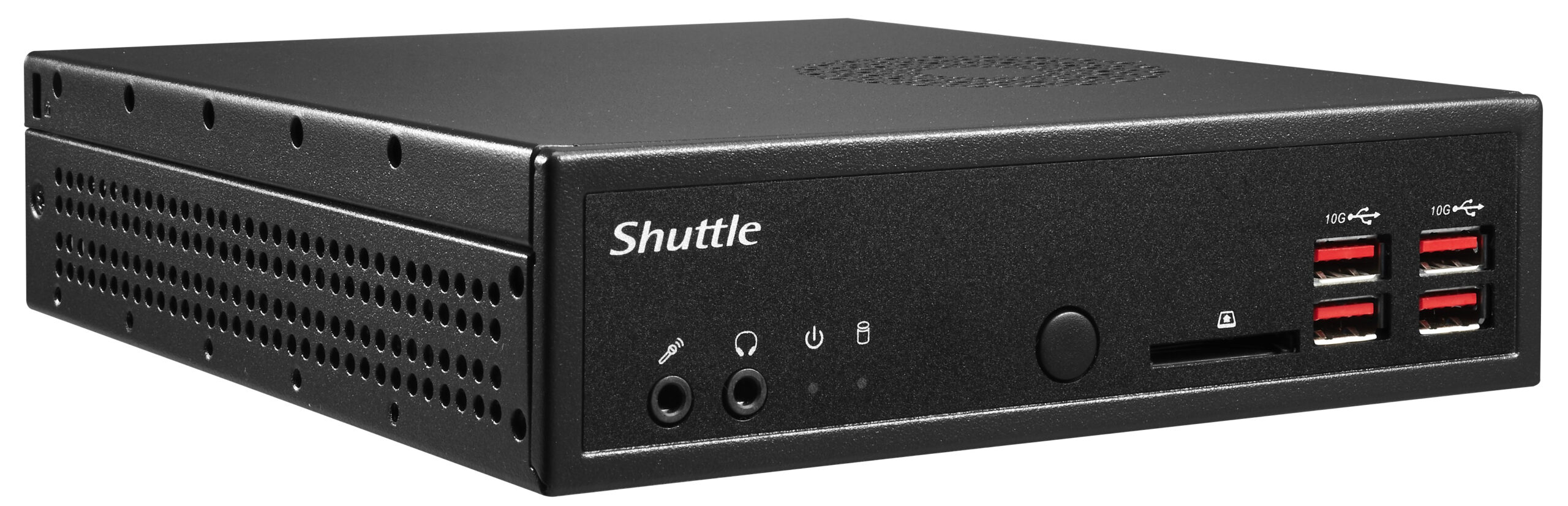

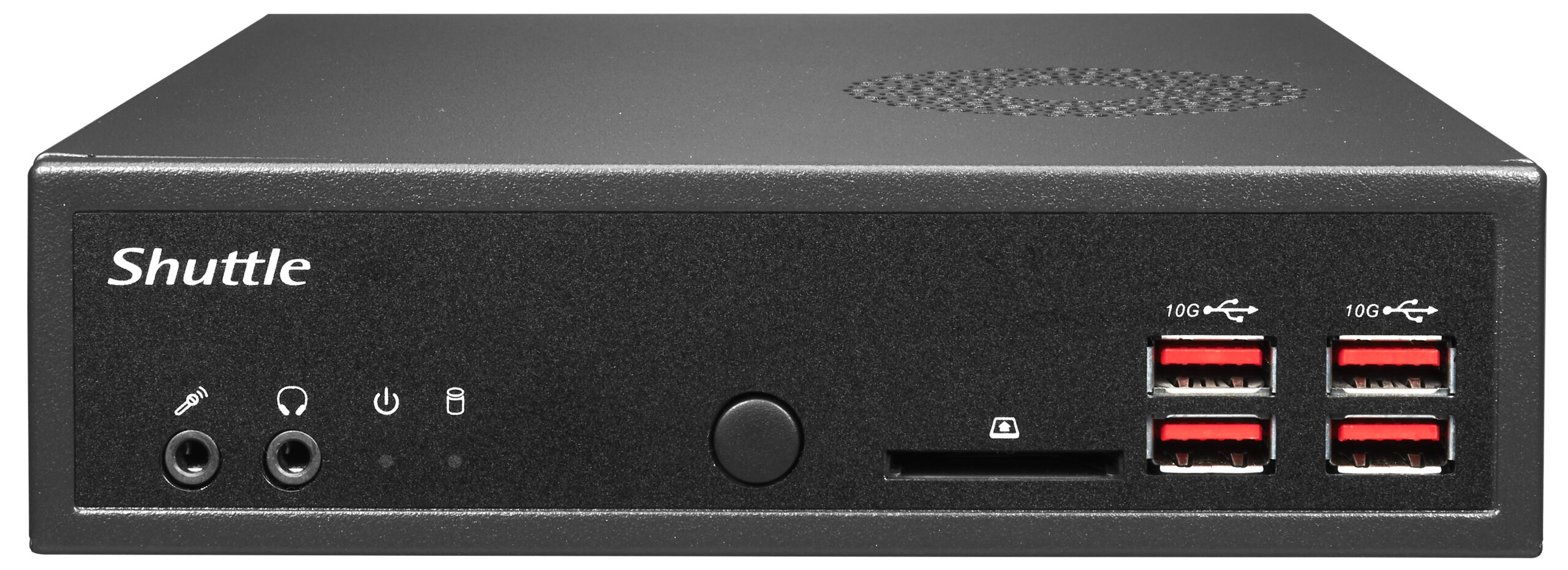

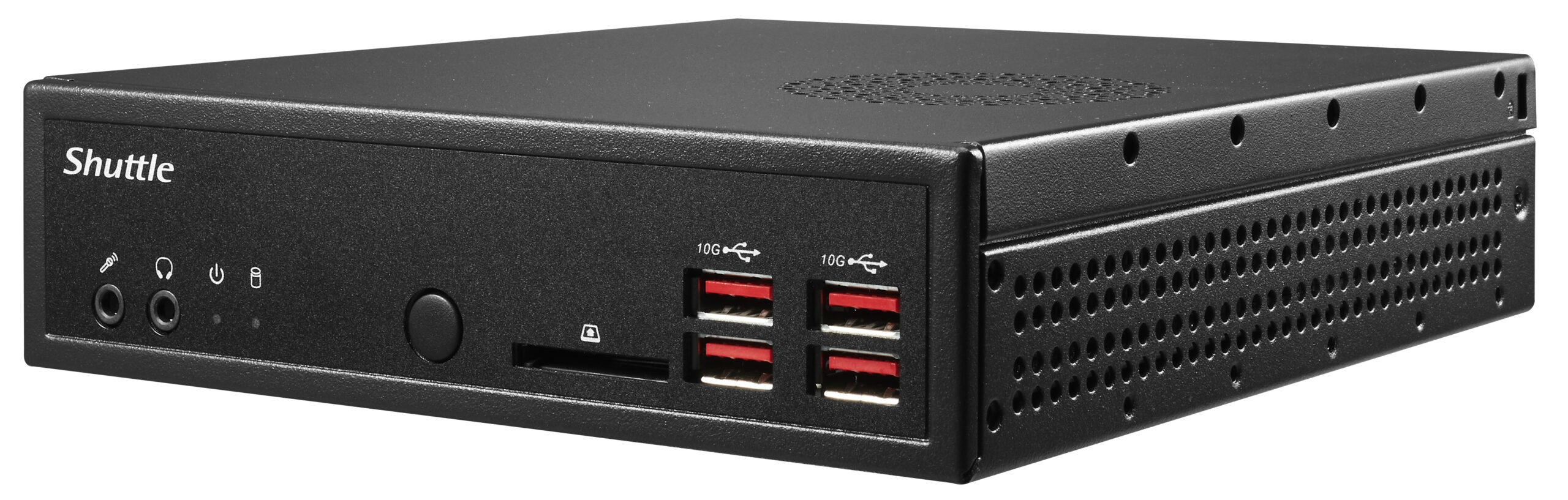

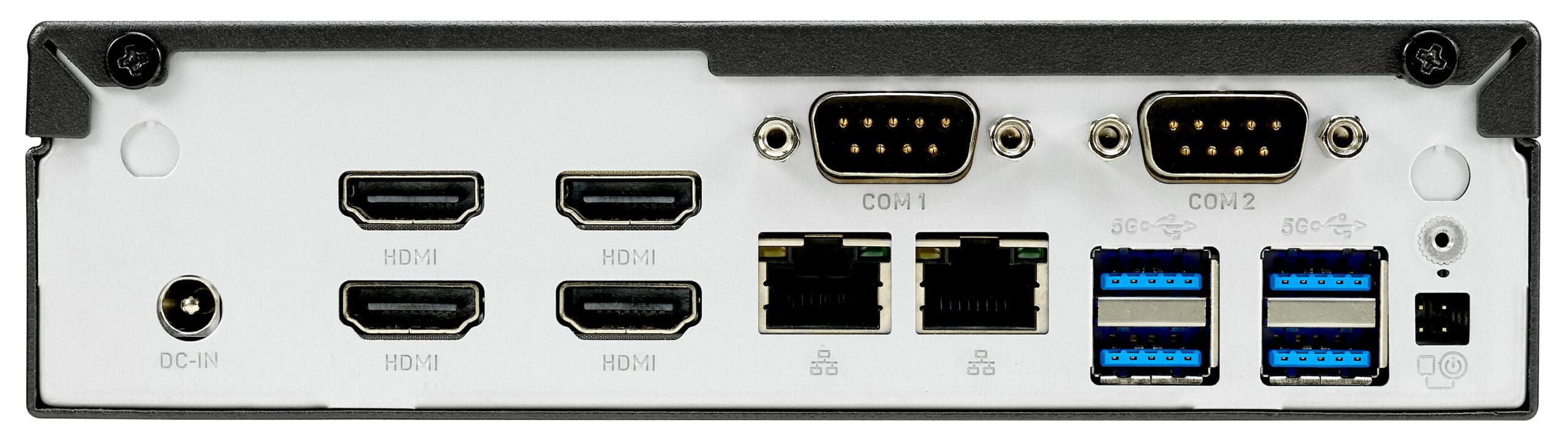

Shuttle XPC slim Barebone DH32U, Intel Pentium Gold 7505, 4x HDMI 2.0b 2x LAN, 2x COM, incl. VESA, , 24/7 permanent gebruik
€452,00 incl. BTW
Shuttle XPC slim Barebone DH32U, Intel Pentium Gold 7505, 4x HDMI 2.0b 2x LAN, 2x COM, incl. VESA, , 24/7 permanent gebruik, 1,35L maat pc, Mini PC barebone, Intel SoC, DDR4-SDRAM, PCI Express, SATA III, 90 W
| EAN | 0887993004440 |
|---|---|
| Fabrikantcode | XPC slim Barebone DH32U, Intel Pentium Gold 7505, 4x HDMI 2.0b 2x LAN, 2x COM, incl. VESA, , 24/7 permanent gebruik |
Uitverkocht
Beschrijving
Shuttle XPC slim Barebone DH32U, Intel Pentium Gold 7505, 4x HDMI 2.0b 2x LAN, 2x COM, incl. VESA, , 24/7 permanent gebruik. Type behuizing: 1,35L maat pc, Type product: Mini PC barebone. Chipset moederbord: Intel SoC, BIOS type: UEFI AMI. Ondersteunde geheugen types: DDR4-SDRAM, Aantal geheugenslots: 2, Maximum intern geheugen: 64 GB. Ondersteunde types opslag-drives: HDD & SSD, Opslag schijf-interface: PCI Express, SATA III. Aantal Ethernet LAN (RJ-45)-poorten: 2. Type koeling: Actief. Netvoeding: 90 W
Productgegevens
| SKU | 1061731 |
|---|---|
| EAN | 0887993004440 |
| Fabrikantcode | XPC slim Barebone DH32U, Intel Pentium Gold 7505, 4x HDMI 2.0b 2x LAN, 2x COM, incl. VESA, , 24/7 permanent gebruik |
| Merk | Shuttle |
Specificaties
Specificaties
Type processor | ✓ |
|---|---|
Processorfabrikant | Intel |
Processorfamilie | Intel® Pentium® Gold |
Processormodel | 7505 |
Aantal processorkernen | 2 |
Processor aantal threads | 4 |
Maximale turbofrequentie van processor | 3,5 GHz |
Processor lithografie | 10 nm |
Processor cache | 4 MB |
CPU configuratie (max) | 1 |
Geheugen slots type | SO-DIMM |
Aantal geheugenslots | 2 |
Maximum intern geheugen | 64 GB |
Supported memory clock speeds | 3200 MHz |
Ondersteunde geheugen types | DDR4-SDRAM |
Geheugen kanaal | Dubbelkanaals |
Geheugen voltage | 1.2 V |
Ondersteunde types opslag-drives | HDD & SSD |
Opslagschijf afmetingen ondersteund | 2.5,M.2 |
Opslag schijf-interface | PCI Express, SATA III |
Aantal storage drives ondersteund | 2 |
Geïntegreerde geheugenkaartlezer | ✓ |
Compatibele geheugenkaarten | SD, SDHC, SDXC |
Ingebouwde grafische adapter | ✓ |
Grafische adapter-familie | Intel |
On-board graphics adapter model | Intel® UHD Graphics |
Maximum resolutie | 4096 x 2304 Pixels |
Chipset moederbord | Intel SoC |
Aantal ondersteunde processoren | 1 |
BIOS type | UEFI AMI |
Trusted Platform Module (TPM) version | 2.0 |
Audio-uitgangskanalen | 5.1 kanalen |
Ingebouwde luidsprekers | ✕ |
Ethernet LAN | ✓ |
Wifi | ✕ |
LAN controller | Intel® I211 |
Aantal USB 2.0-poorten | 0 |
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 4 |
Aantal HDMI-poorten | 4 |
VGA (D-Sub)poort(en) | 0 |
Aantal Ethernet LAN (RJ-45)-poorten | 2 |
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 4 |
HDMI versie | 2.0b |
Microfoon, line-in ingang | ✓ |
Hoofdtelefoonuitgangen | 1 |
Seriële poort(en) | 2 |
Aansluiting voor netstroomadapter | ✓ |
PCI Express slots versie | 4.0 |
Aantal M.2 (M) slots | 1 |
Type behuizing | 1,35L maat pc |
Kleur van het product | Zwart |
Type koeling | Actief |
Type product | Mini PC barebone |
LED-indicatoren | HDD, Stroom |
Materiaal behuizing | Metaal |
Bevestigingsmogelijkheid voor kabelslot | ✓ |
Kabelslot sleuf type | Kensington |
VESA-montage | ✓ |
Ingebouwde opties beschikbaar | ✕ |
Intel® Virtualization Technology for Directed I/O (VT-d) | ✓ |
Intel® VT-x with Extended Page Tables (EPT) | ✓ |
Idle States | ✓ |
Intel® Trusted Execution Technology | ✕ |
Intel® Stable Image Platform Program (SIPP) | ✕ |
Intel® Virtualization Technology (VT-x) | ✓ |
Code geharmoniseerd systeem (HS) | 84713000 |
Ondersteunt Windows | Windows 10, Windows 11 |
Ondersteunt Linux | ✓ |
Inclusief besturingssysteem | ✕ |
Soort voeding | Externe AC-adapter |
Netvoeding | 90 W |
Aantal voedingen | 1 |
AC-ingangsspanning | 100 - 240 V |
AC-ingangsfrequentie | 50 - 60 Hz |
AC-adapter, uitgangsspanning | 19 V |
AC-adapter, uitgangsstroom | 4,74 A |
Bedrijfstemperatuur (T-T) | 0 - 50 °C |
Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
Breedte | 190 mm |
Diepte | 165 mm |
Hoogte | 43 mm |
Gewicht | 1,3 kg |
Gewicht verpakking | 2,1 kg |
Inclusief netsnoer | ✓ |
Inclusief AC-adapter | ✓ |
Meegeleverde drivers | ✓ |
Land van herkomst | China |
